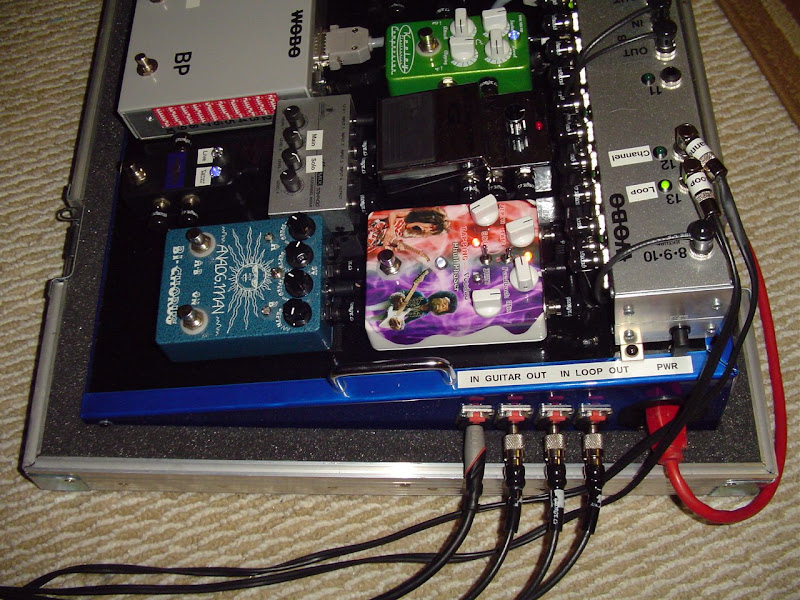

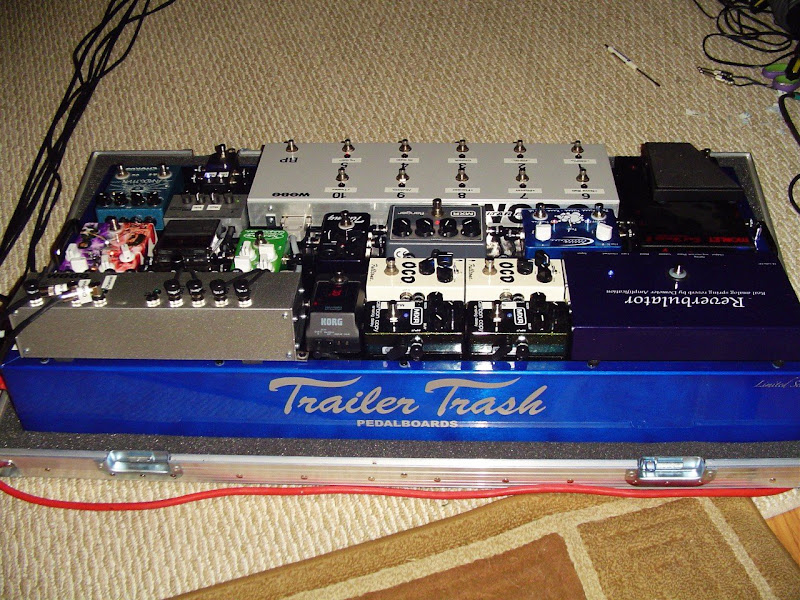

PP2+ under the board powering everything except the Reverbulator (24v). The OCD pedals and MXR flanger are set to 18v, the Analogman Bi-Chorus and Behringer mini mixer are set to 12v, all other pedals are at 9v. Board measures 36x18.

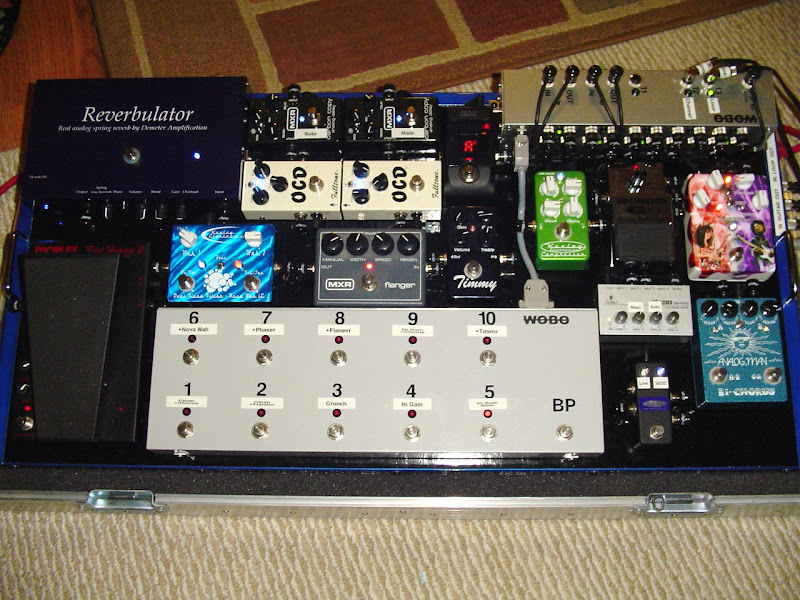

Each of the effects (except the Bad Horsie II, Decimator G-string & tuner) are in there own loops which are "preset" assignable in any combination and/or can be made to be an add-on to an already activated preset. Both of the OCD's are in the same loop, one just feeds into the other. All "looped" effects pedals stay on all the time. All loops are true bypass when not engaged. The switching unit also handles the amp channel switching and amp loop function as needed (loop stays on all the time though). So basically it's "one button" activation for each of my main sounds. The bottom row and one of the upper row buttons are my main sounds. The other top row buttons are my "add-ons" as needed. Stepping on one of the main preset drops the activated add-ons, really simple for stage use. Basically there is the "A" group of loops (7 loops) for the effects before the amp and the "B" group of loops (3 loops) for effects in the amp's effects loop. One thing that I had added to the switching unit was a common return for the "B" group loops. The Reverbulator and both MXR Carbon Copy's are the "B' group. What this allowed me to do was feed both of the Carbon Copy's outputs to the mini mixer which then feeds the "common return". That way when I switch between presets that change which delay pedal (main or long/solo) is active, the previous delay's input is shut off, but the effect's output does not get cut off and naturally decays away. In may go back and set the Reverbulator up the same way, but right now it just loops back in and then feeds both the Carbon Copy's as needed. The mini mixer also allows me to set my solo level a little higher for a solo boost that follows the presets.
There's so much I could keep talking about with this board, but it would get very long winded. So if anybody has any questions about the routing of the effects, or what any particular effect is used for, etc., just ask. It looks complicated, but it's really simple. Power plug on the side is just a male 3-prong. So any 3-prong extension cord works as the power cord.
Couldn't be happier!! Made a great home for my BYOC Tapping into Voodoo Phull Phaser
Each of the effects (except the Bad Horsie II, Decimator G-string & tuner) are in there own loops which are "preset" assignable in any combination and/or can be made to be an add-on to an already activated preset. Both of the OCD's are in the same loop, one just feeds into the other. All "looped" effects pedals stay on all the time. All loops are true bypass when not engaged. The switching unit also handles the amp channel switching and amp loop function as needed (loop stays on all the time though). So basically it's "one button" activation for each of my main sounds. The bottom row and one of the upper row buttons are my main sounds. The other top row buttons are my "add-ons" as needed. Stepping on one of the main preset drops the activated add-ons, really simple for stage use. Basically there is the "A" group of loops (7 loops) for the effects before the amp and the "B" group of loops (3 loops) for effects in the amp's effects loop. One thing that I had added to the switching unit was a common return for the "B" group loops. The Reverbulator and both MXR Carbon Copy's are the "B' group. What this allowed me to do was feed both of the Carbon Copy's outputs to the mini mixer which then feeds the "common return". That way when I switch between presets that change which delay pedal (main or long/solo) is active, the previous delay's input is shut off, but the effect's output does not get cut off and naturally decays away. In may go back and set the Reverbulator up the same way, but right now it just loops back in and then feeds both the Carbon Copy's as needed. The mini mixer also allows me to set my solo level a little higher for a solo boost that follows the presets.
There's so much I could keep talking about with this board, but it would get very long winded. So if anybody has any questions about the routing of the effects, or what any particular effect is used for, etc., just ask. It looks complicated, but it's really simple. Power plug on the side is just a male 3-prong. So any 3-prong extension cord works as the power cord.
Couldn't be happier!! Made a great home for my BYOC Tapping into Voodoo Phull Phaser
Nice lookin' board.
The delays are set differently for main/normal delay and solo/longer delay and based on preset programming will switch between them on the fly.
