D-moll and Boss Es-5 Help, I'm an idiot

  • Thread starter Thread starter studiodunn
  • Start date Start date
studiodunn

studiodunn

Member
If anyone has experience with the D-Moll and a boss switcher can you please explain to me how you got them communicating. I've tried the amp in Omni mode and all 7 individual channels and I can't get them to work it out.

I have used the boss with several other midi devices and never hit a wall like this. I'm a couple hours into it and losing my mind. I've followed all the walk throughs I could find and nada.
Example -
I am setting the D-Moll on Ch7 MUTE held down ch2 and 3 lights on
Boss preset 1 - Midi patch 1 / CH7 and PC# does nothing. No ctrl or cc# set

I tried setting the Boss Midi Settings to DEV ID 7 and it didn't help either.

I had both a few years & it worked
I think 1 or Omni? It should work on any of the channels if they are the same on each

crankyrayhanky said:
I had both a few years & it worked
I think 1 or Omni? It should work on any of the channels if they are the same on each
Click to expand...
Yeah, it obviously isn’t this hard but I’m struggling with this amp.

amp on ch7
Patch - MIDI 1 / Ch7, write
Hold mute, hit preset FS then store twice
Write again

I’m using the boss to control an H9 as well so Omni isn’t going to work, but I went direct from the Boss to the Diezel and tried all channels including Omni and still get no response from the amp.

Does the Diezel have to have a 7 pin midi cable?

Answer in no.

Last edited:

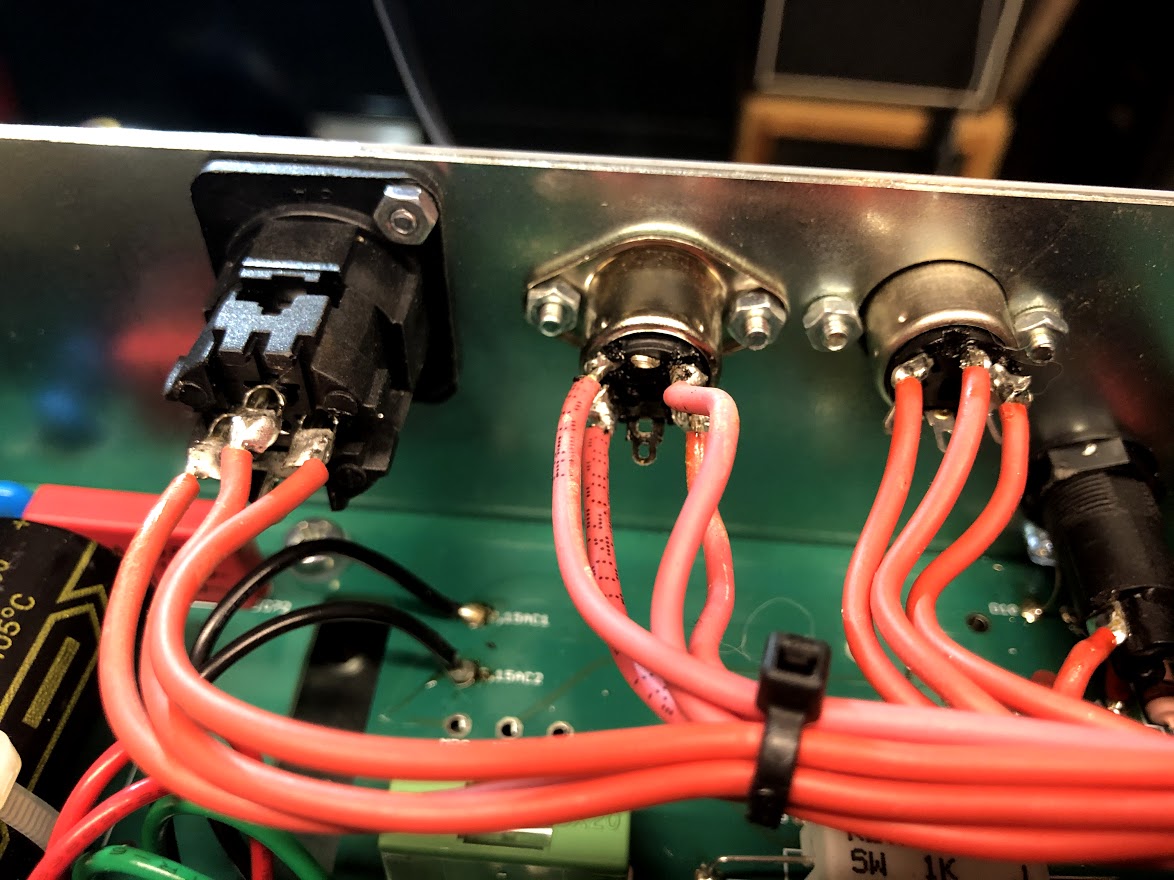

Update: I pulled the chassis and noticed someone has been into this amp. It looks like its wired right, the soldering is a little ugly, but there is continuity on all the pins. Question is why was it worked on?

I'm borrowing another midi controller before I start blaming it on the amp and not the user.


Last edited:
New midi pedal and cable did nothing so I had to return the amp.....bummer cause it sounded great.

Thanks Peter. I wasn’t happy about the fact it was worked on but just needed the midi to work and I would have overlooked it.

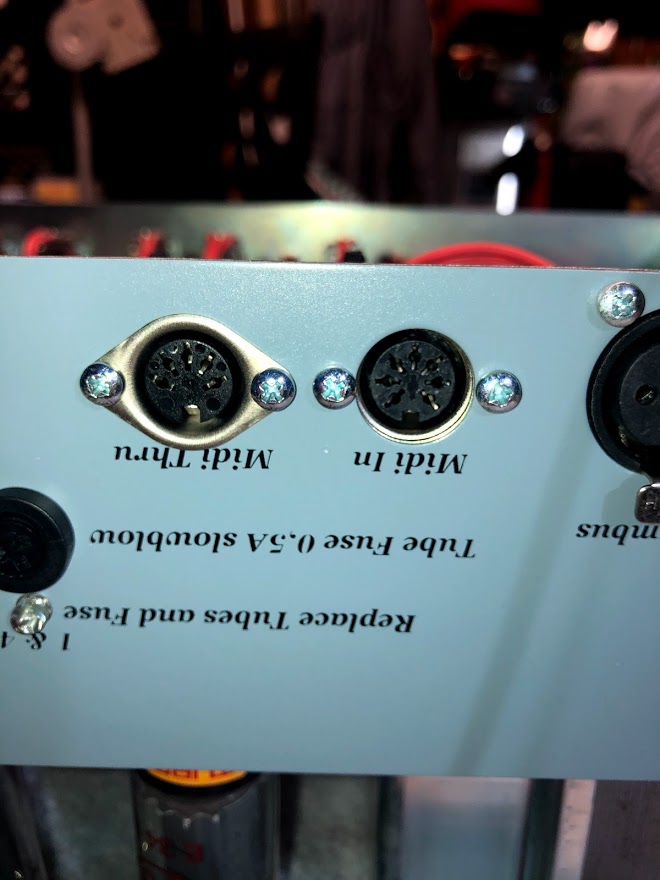

It was the in jack that had new wires and the thru jack that was mounted on the wrong side.

on the hunt for another.
