Diezel Cabinet Ohms?

[shampoch]

...just received my Diezel Rear Loaded Cab (used) It looks mint but I know from previous owner the V30 were installed in place of the stock speakers. I want to be sure it is still an 8ohm cab (taking no chances with my VH4).

Can anyone confirm wiring is still 8ohm?

The V30's are 8ohm each, and wired "+ into -" The blurry pic of the back of the jack plate look stock for sure and I will be using the "mono" 8 ohm cabinet jack into the VH4 1x8ohm jack.



[King Crimson]

You can't change the speaker load by re-wiring the connections.

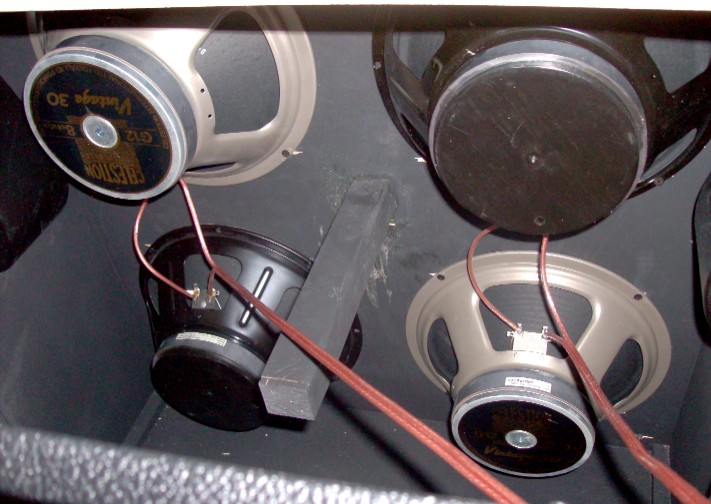

Attached is a shot of one of my Diezel 4x12 cabs running at 8-Ohm - yours is the same, mine is just a little cleaner.



[shampoch]

thanks King Crimson! So your speakers are 8ohm not 16 ohm each right?



[duesentrieb]

If your speakers are 8 ohm, the cab is wired 2x8 Ohm series (16 Ohm) and those two pairs parallel (8 Ohm).

So its mono 8 Ohm or when both jacks are used (stereo) 2 x 16 Ohm.



[Random Hero]

Diezel cabs have the polyfill material in the back? Cool.



[RedB4Black]

Diezel cabs have the polyfill material in the back? Cool.

no. it was probably added by the owner. that's what I had to do with mine.



[duesentrieb]

Mine has that stuff on its backplate.



[RedB4Black]

Mine has that stuff on its backplate.

I don't know then, cause mine didn't. Your's was probably made in Europe and mine the US though.



[King Crimson]

thanks King Crimson! So your speakers are 8ohm not 16 ohm each right?

Yes. I use Diezel 2x(4x12's) each running at 8-Ω, therefore I plug them into the two outs of each 4-Ω connection on Herbert. As Peter says, "Just do what it says on the jacks, and you’ll be fine"...



[Hartmut]

Diezel cabs have the polyfill material in the back? Cool.

How much does it change the sound of the cab if it`s filled with the polyfill or not?



[shampoch]

Hey, I do not have a screw through the back panel into the center cab support. I have seen pics of diezel cabs that do. Anyone know why?



[nbarts]

Diezel cabs have the polyfill material in the back? Cool.

How much does it change the sound of the cab if it`s filled with the polyfill or not?

A lot.



[nbarts]

I will be using the "mono" 8 ohm cabinet jack into the VH4 1x8ohm jack.

If your V30s are 8ohm each, you are good to go.



[nbarts]

Now that looks 1 to 1 similar to Bogner 4x12. So which version of Diezel cabs is this one?



[King Crimson]

Mine has that stuff on its backplate.

That's interesting, I found a bag of weed stapled to my backplate. I ended up stuffing it in a little cloth pouch and threw it to my two cats, they went bonkers over it...



[King Crimson]

Diezel cabs have the polyfill material in the back?

That's only if the cab has a potency issue. Otherwise they are bare naked and ready to perform.



[King Crimson]

I don't know then, cause mine didn't. Your's was probably made in Europe and mine the US though.

That's because it's much colder in Europe than in the USA.



[King Crimson]

Now that looks 1 to 1 similar to Bogner 4x12. So which version of Diezel cabs is this one?

It's clearly a Diezogner!



[nbarts]

Man, you are on fire



[thegame]

Diezel cabs have the polyfill material in the back? Cool.

The one I bought brand new in 2003 did.
