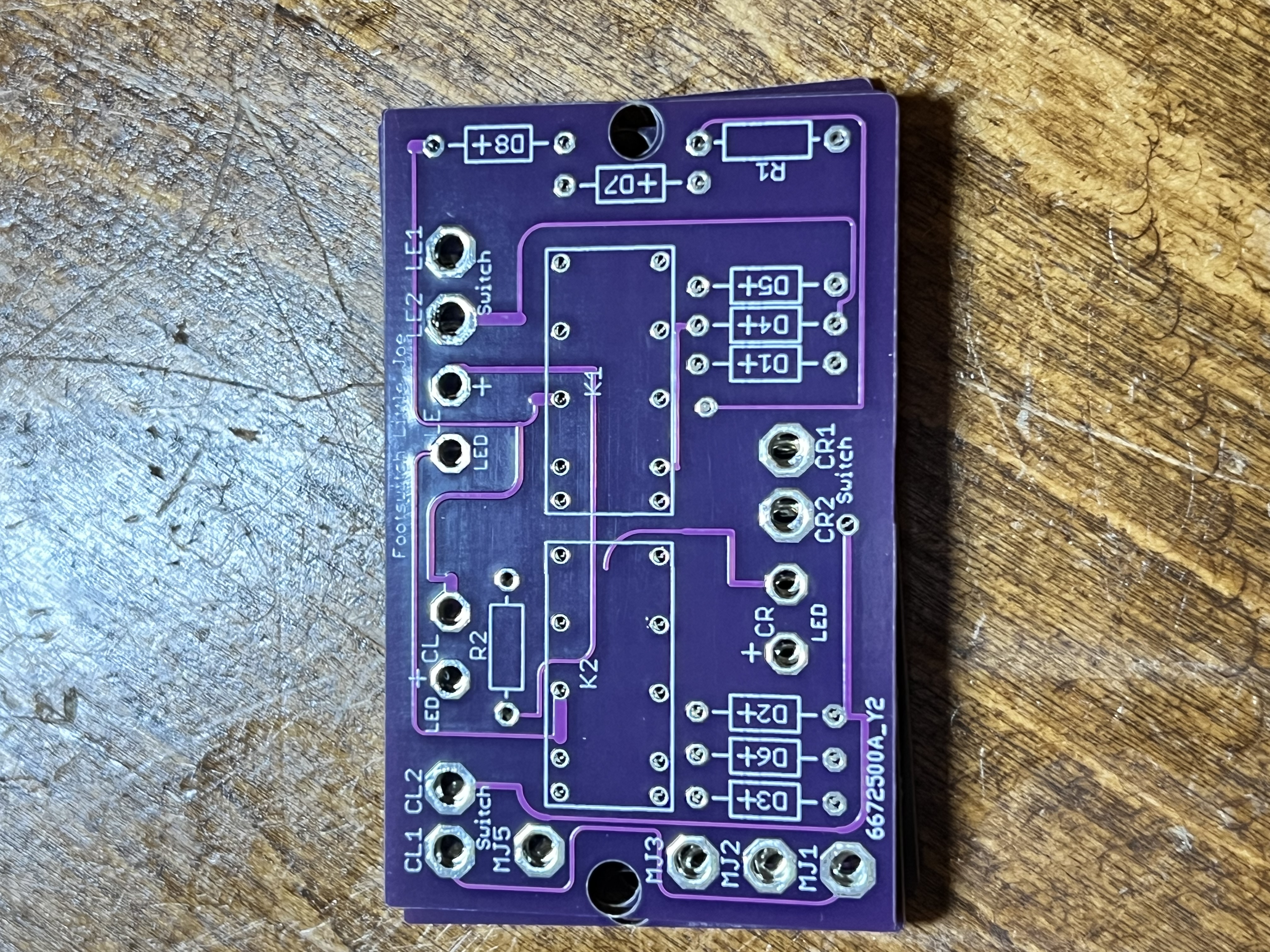

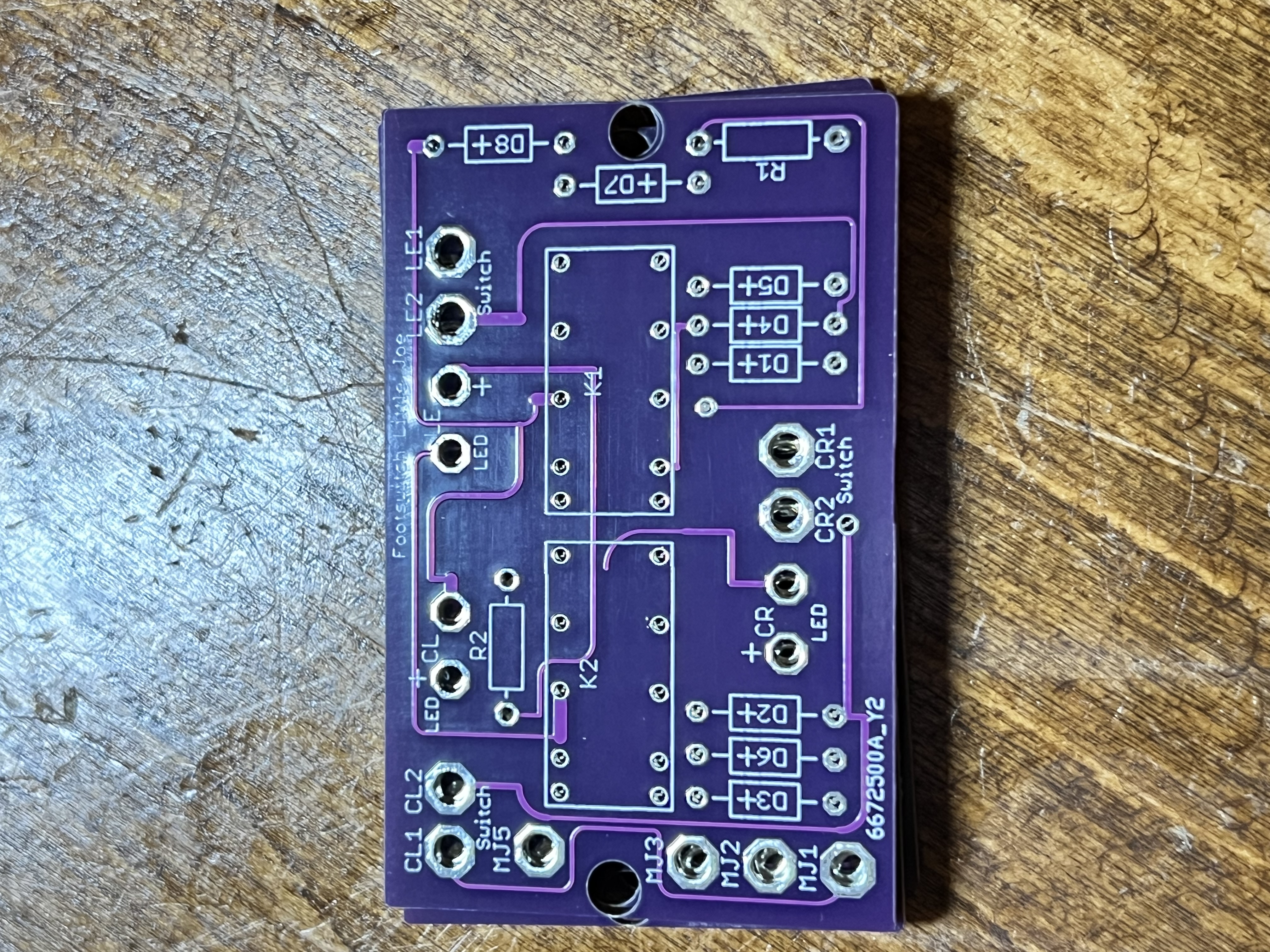

For Sale Diezel Einstein custom footswitch PCBs

[Faldoe]

I put “for sale” but I’m looking to give these away and you pay shipping. A forum member on here posted the files in a thread for these and I had some PCBs made for when I owned my Einstein. I had extras made.

If you could use these, you can have them. Just pay me back the shipping cost which would be a few bucks.

There is an error on the layout and a pin needs some wire or jumper. It’s been a year or so since I built mine but you can spot it on the PCB layout.

Here is a link to the thread with the guy that made the PCB layout:

Thread 'Einstein Channel 1 Modes - instructions, schem and a board'

Mar 31, 2008

Inside the Einstein you need to install a stereo jack (insulated preferred) and run three wires from the manual switch on the frontplate to the jack. Middle of toggle = ground on jack.

Keep the old wires on the toggle !!!!
