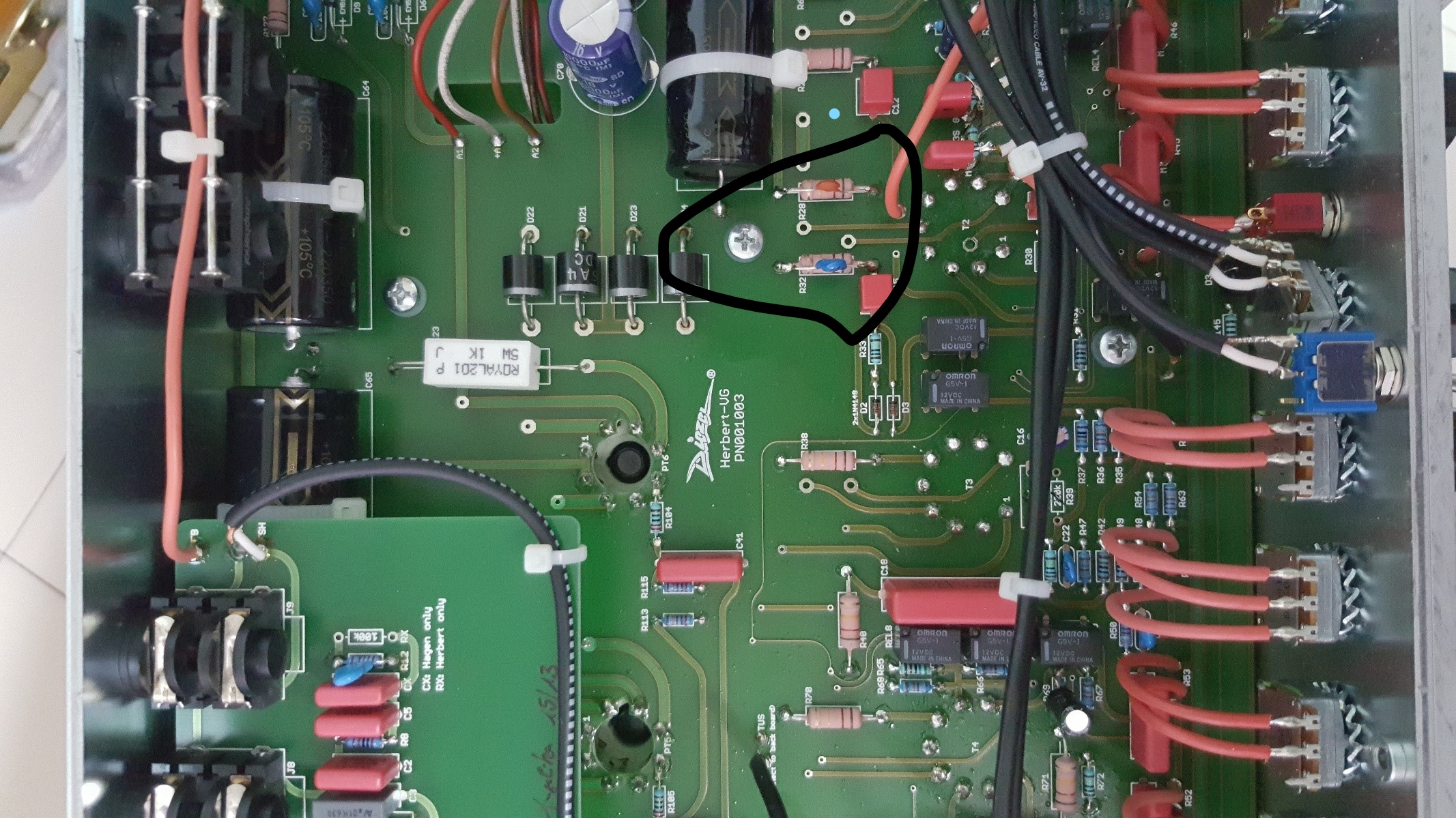

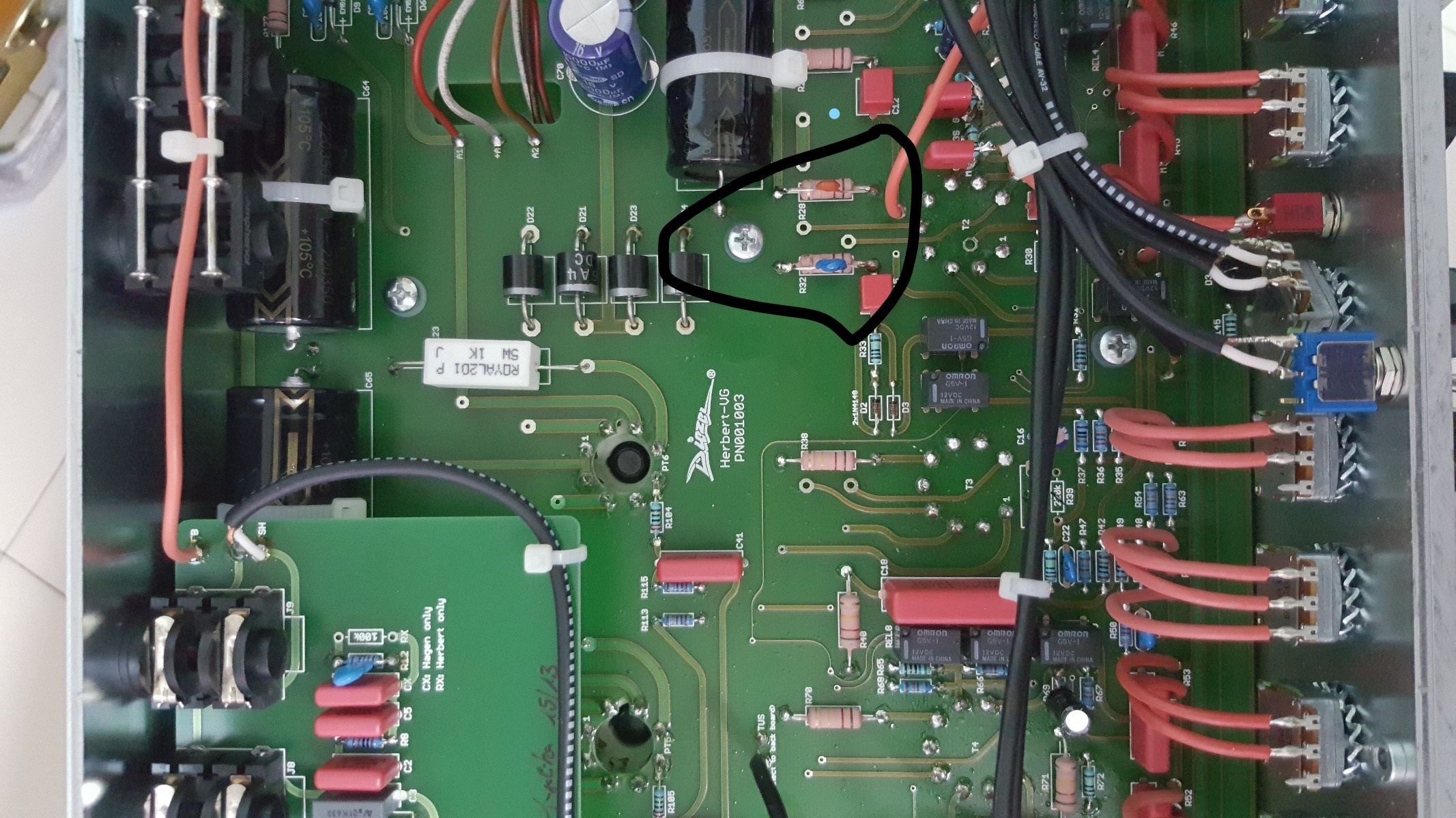

Hi fellas... am feeling strange lately having looking inside the Herbert Mk2 components lately, not only marvelled by the genius engineering work of both Peter but i thought the picture showing a piggyback capacitors (high pass) on two of the supply resistors for Pin 1 and Pin 6 on V2 .... i wonder if its modded by somebody professionally or its infact a stock? but all of the Diezel picture i could gather dont have such piggyback caps (circled black)....
Could somebody with a Herbert Mk2 help on looking at his or hers and gather some good pictures on their Mk2 PCB components? Thanks....
