duesentrieb
Well-known member
Every now and then I get a request for a schem/instructions to do this mod . . . well:

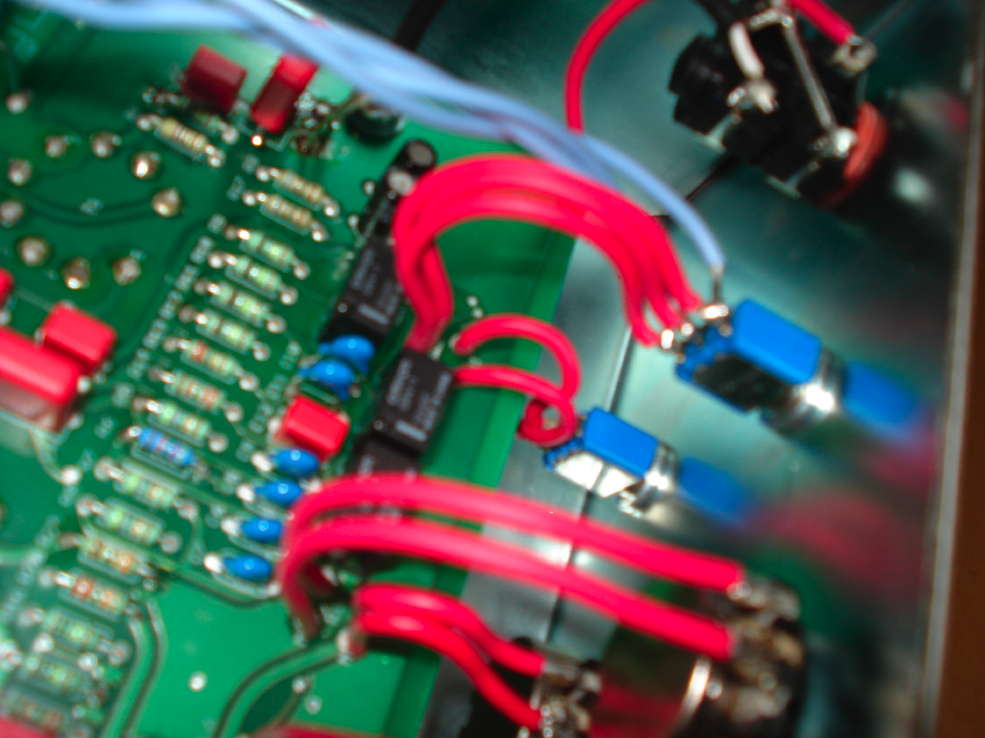

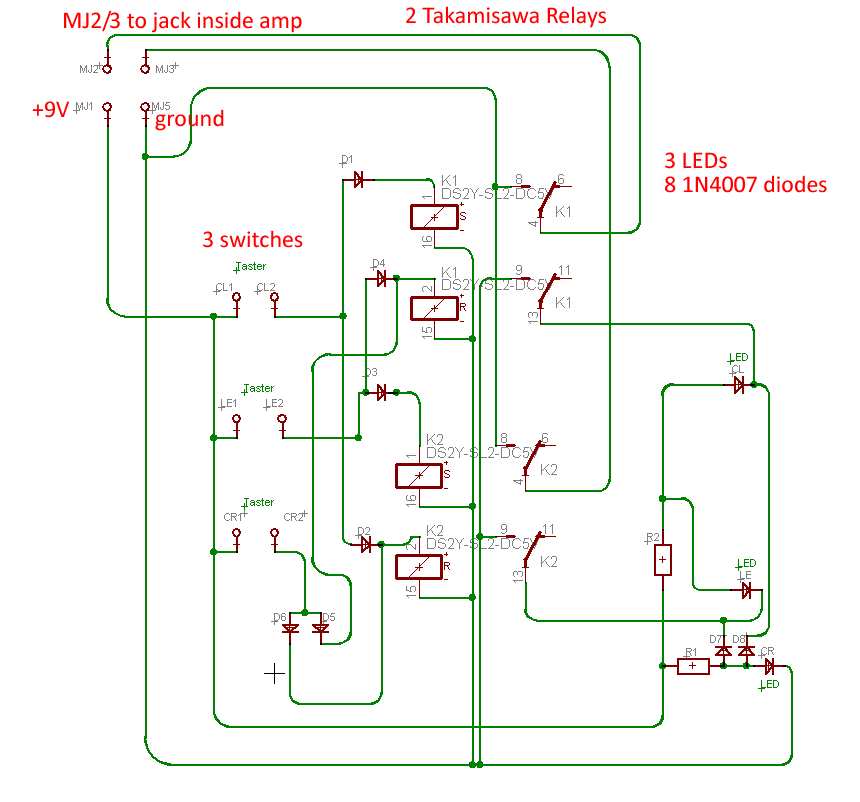

here's a zip with Eagle (you can download a free version) schematic, board and PDF.
Feel free to create your own PCB or use the schem to PTP it.
you need 8 diodes 1N4007
3 LEDs
a 9V supply (jack)
2 Resistors (1k Ohm)
3 switches (not latching, momentary switches)
a Hammond BB enclosure
and two Takamisawa relays, type see schem. DS2Y SL2 . . . 5V or 6V.
Those are bistabil (no idea about the english word) and each has 10 contacts.
http://www.jameco.com/webapp/wcs/stores ... 2120516_-1
MJ1 and MJ5 hooked to 9V supply
MJ2, MJ3 and (ground) MJ5 via stereo jack into the amp.
here's a zip with Eagle (you can download a free version) schematic, board and PDF.
Feel free to create your own PCB or use the schem to PTP it.
you need 8 diodes 1N4007
3 LEDs
a 9V supply (jack)
2 Resistors (1k Ohm)
3 switches (not latching, momentary switches)
a Hammond BB enclosure
and two Takamisawa relays, type see schem. DS2Y SL2 . . . 5V or 6V.
Those are bistabil (no idea about the english word) and each has 10 contacts.
http://www.jameco.com/webapp/wcs/stores ... 2120516_-1
MJ1 and MJ5 hooked to 9V supply
MJ2, MJ3 and (ground) MJ5 via stereo jack into the amp.
Attachments
moltenmetalburn
Active member
necro bump lol.
which tabs are soldered to on the jack end? I have six tabs, thanks.
which tabs are soldered to on the jack end? I have six tabs, thanks.
joanesinu
New member
Hello, I'm looking for the switching modes mod on my Einstein.
Doing it like you said, the switching would enable mode 1 or 3, but 2 wouldn't be selectable.
Am I right?
F
Faldoe
Active member
Bumping this.
I just got an Einstein 100 and I'm thinking of trying to do a mod similar to the Kruse with separate gain and volume controls for each mod.
I'm having trouble figuring out how I'd implement the wiring for the mod. Anyone have any ideas on it?
I just got an Einstein 100 and I'm thinking of trying to do a mod similar to the Kruse with separate gain and volume controls for each mod.
I'm having trouble figuring out how I'd implement the wiring for the mod. Anyone have any ideas on it?
F
Faldoe
Active member
I ended up having some PCBs made based off of duesen’s layout - thanks!
Works great though I found an issue only later that the cathode on the CR led needing the pad run to ground as it looks like it wasn’t connected on the PCB layout.
Works just as it should though on the Einstein.
Works great though I found an issue only later that the cathode on the CR led needing the pad run to ground as it looks like it wasn’t connected on the PCB layout.
Works just as it should though on the Einstein.
