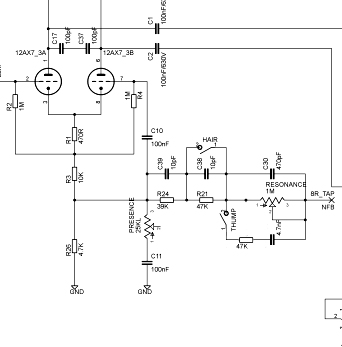

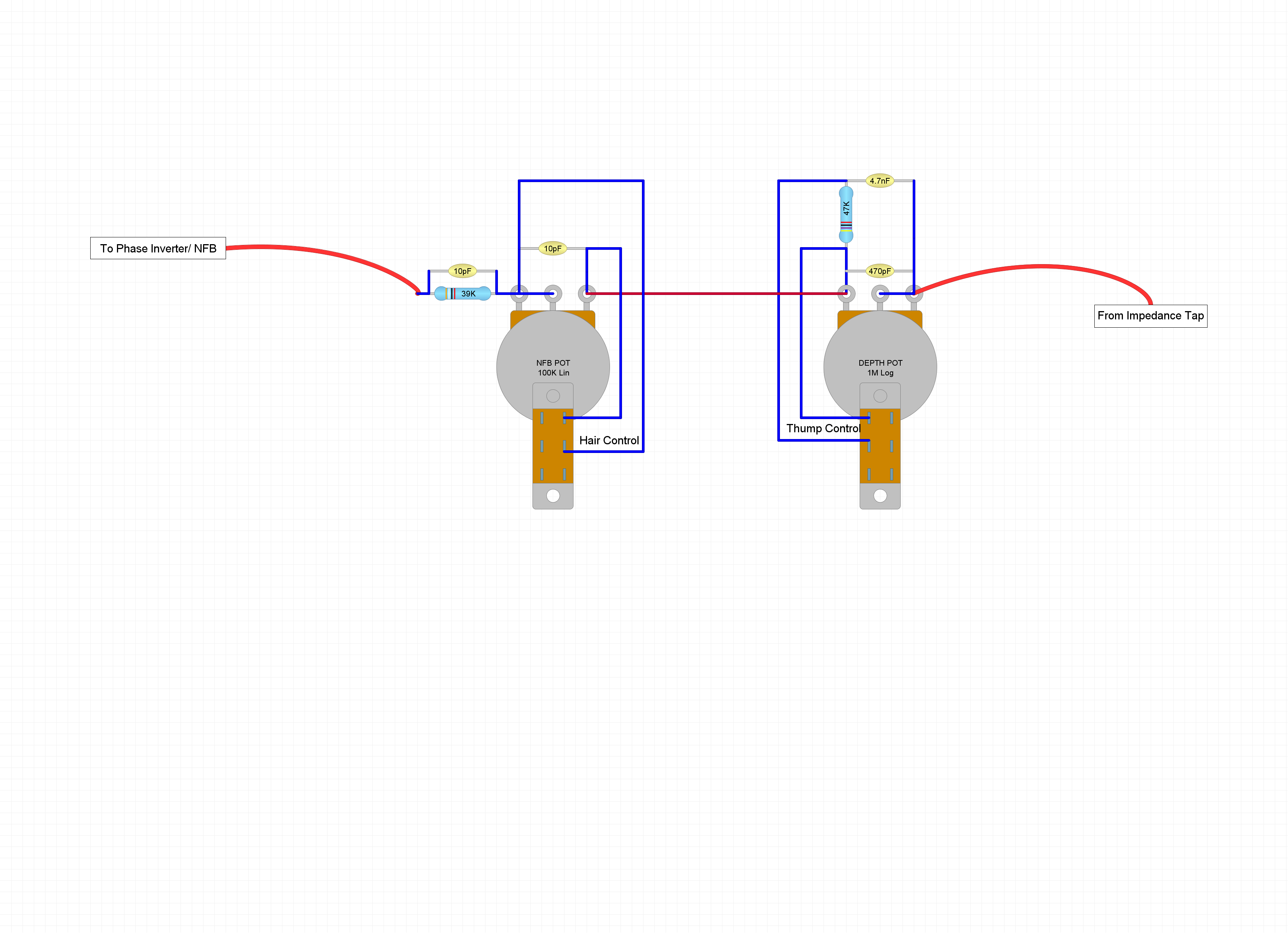

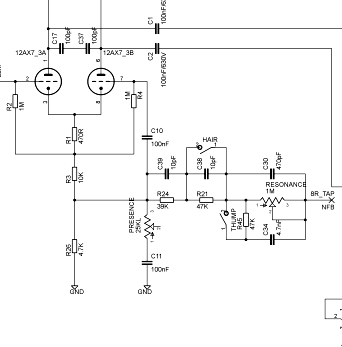

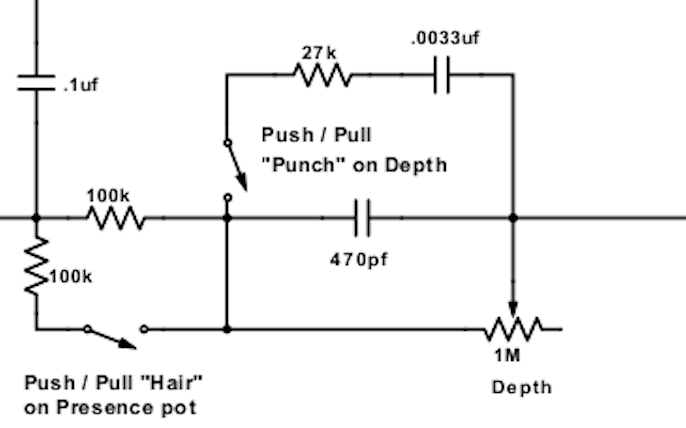

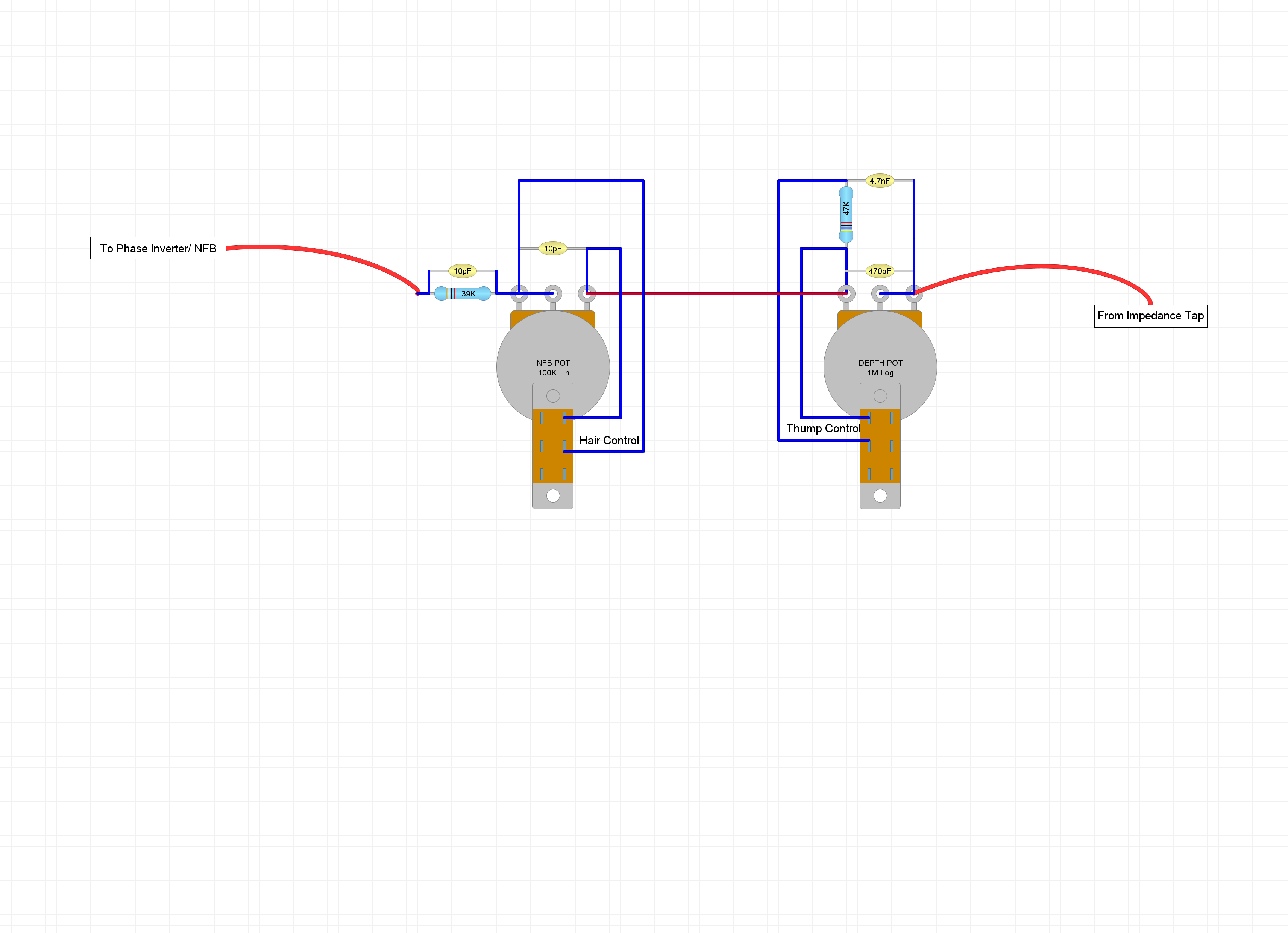

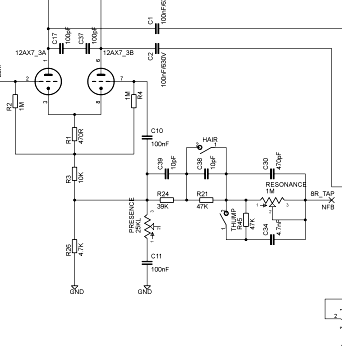

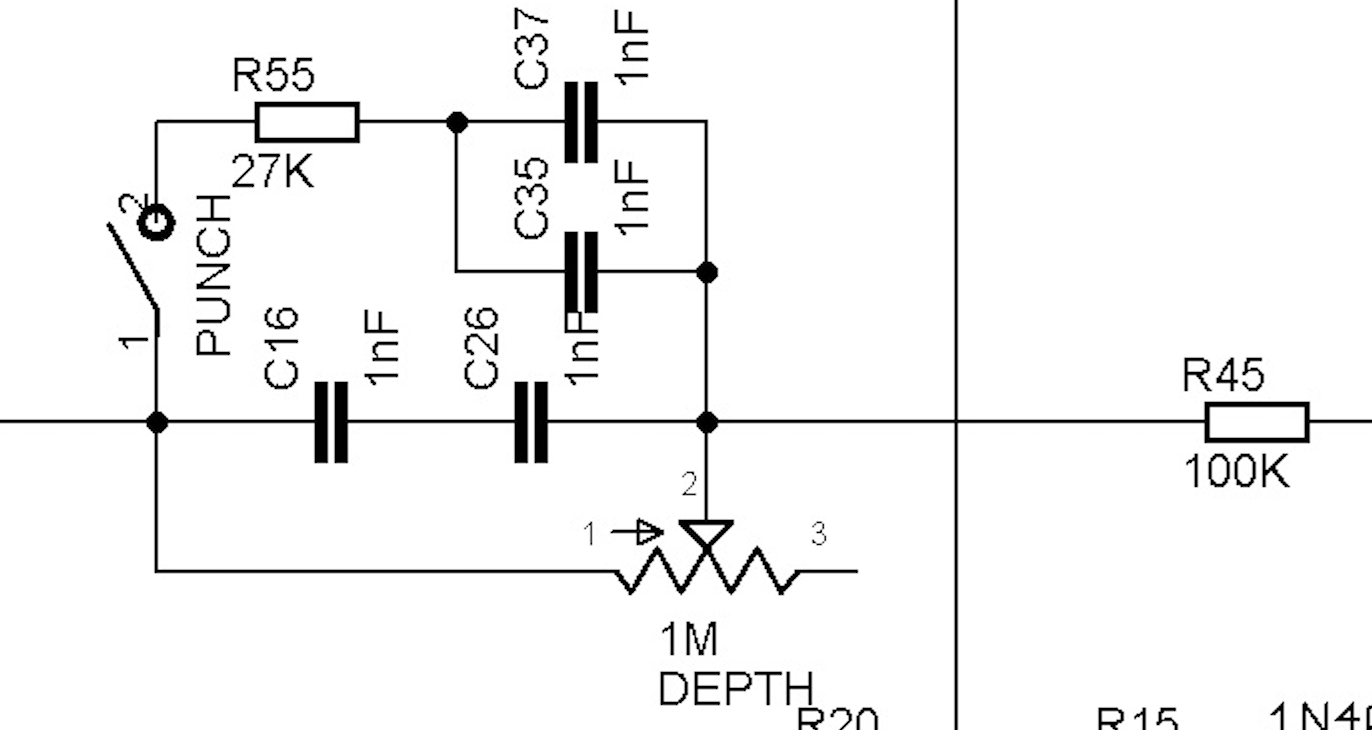

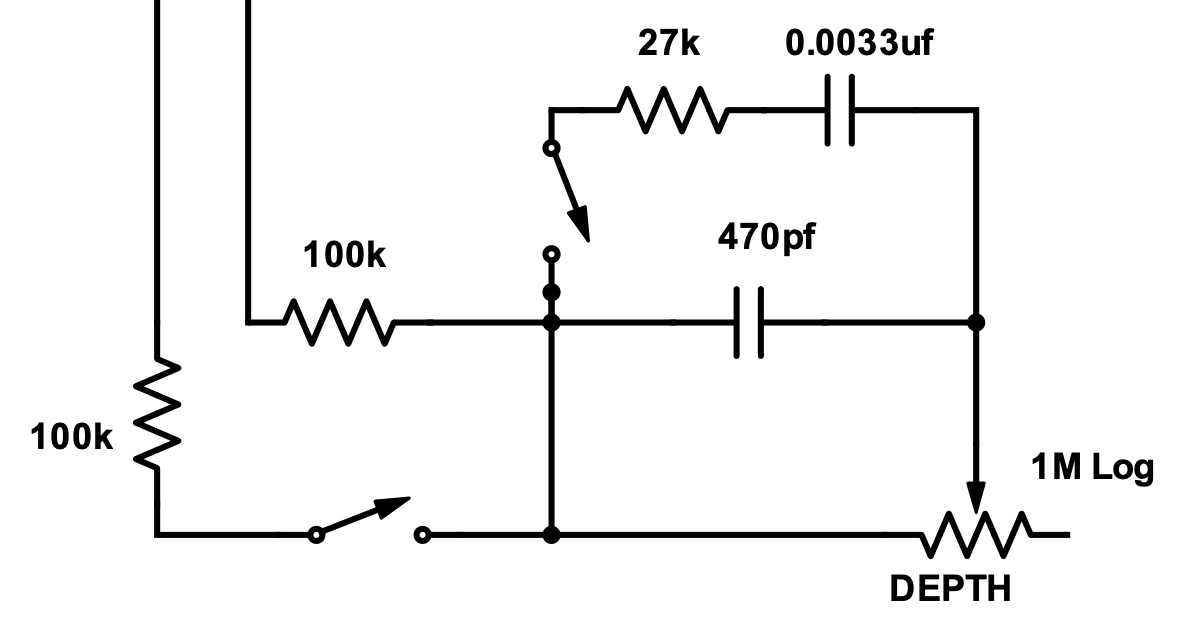

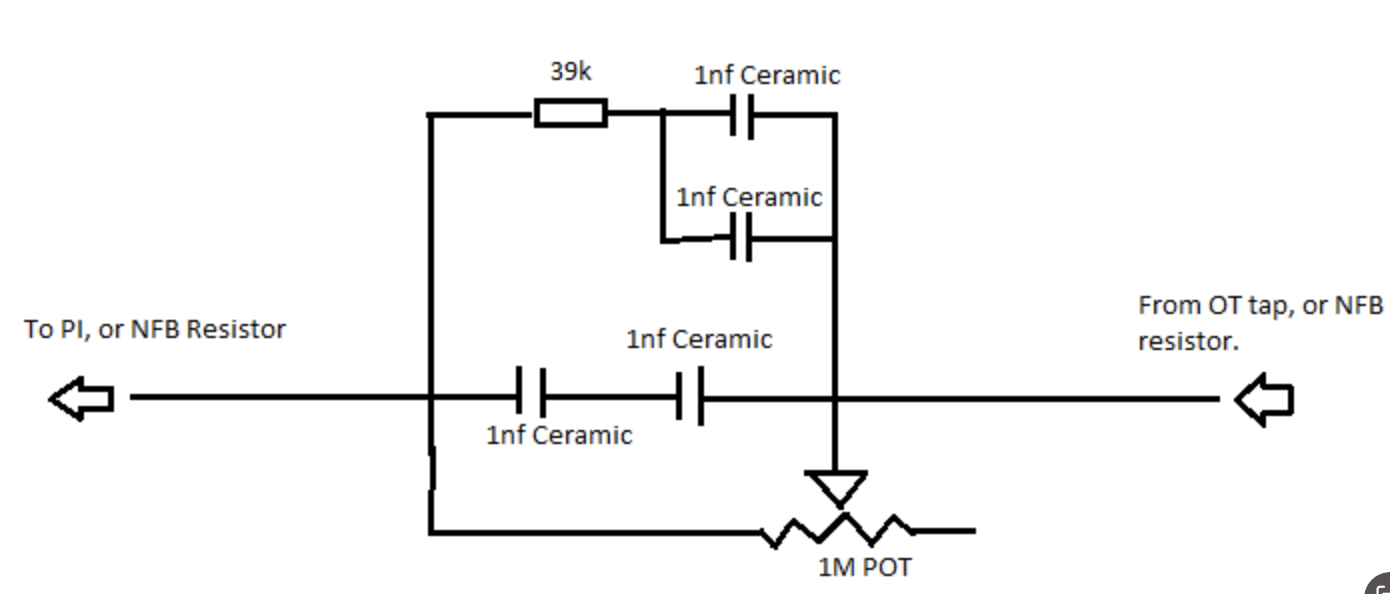

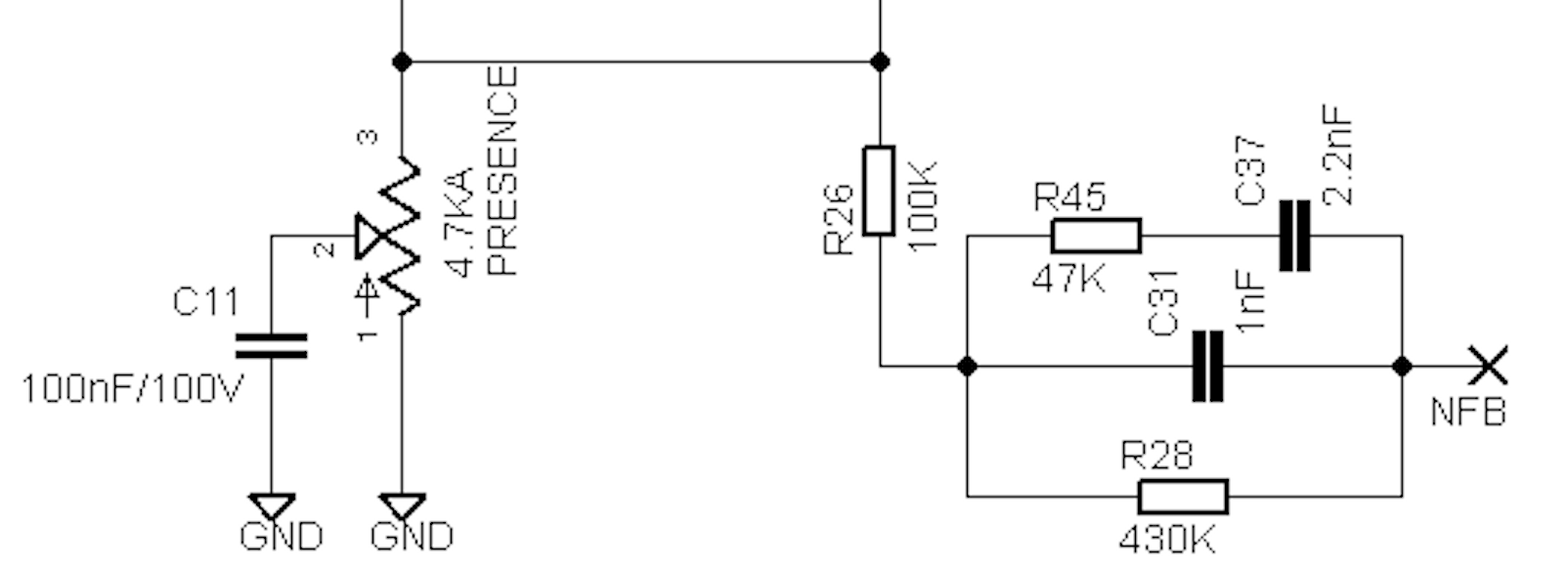

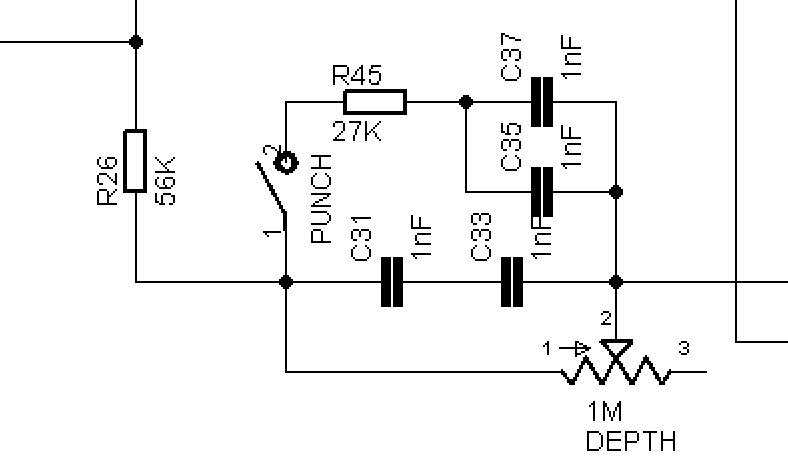

In this schematic, can someone elaborate on it further and help me understand how the thump and hair switches are affecting the negative feedback, Obviously the the 4.7nf on the pot is a resonance control, but how do the 39K and 47K resistors and 10pf caps affect things? I would like to try this circuit on an amp with a 100K NFB control pot in series with a 27K NFB resistor, so I have a range ok 27K to 100K. Would I still run my NFB pot off the speaker tap and then into this circuit and eliminate the 27K resistor or is this circuit going to change my minimum NFB resistance? Ultimately I'd like to keep my range the same but also implement this circuit as well. Thanks in advance!
