How are these pickups wired?

G

g_giac

Member

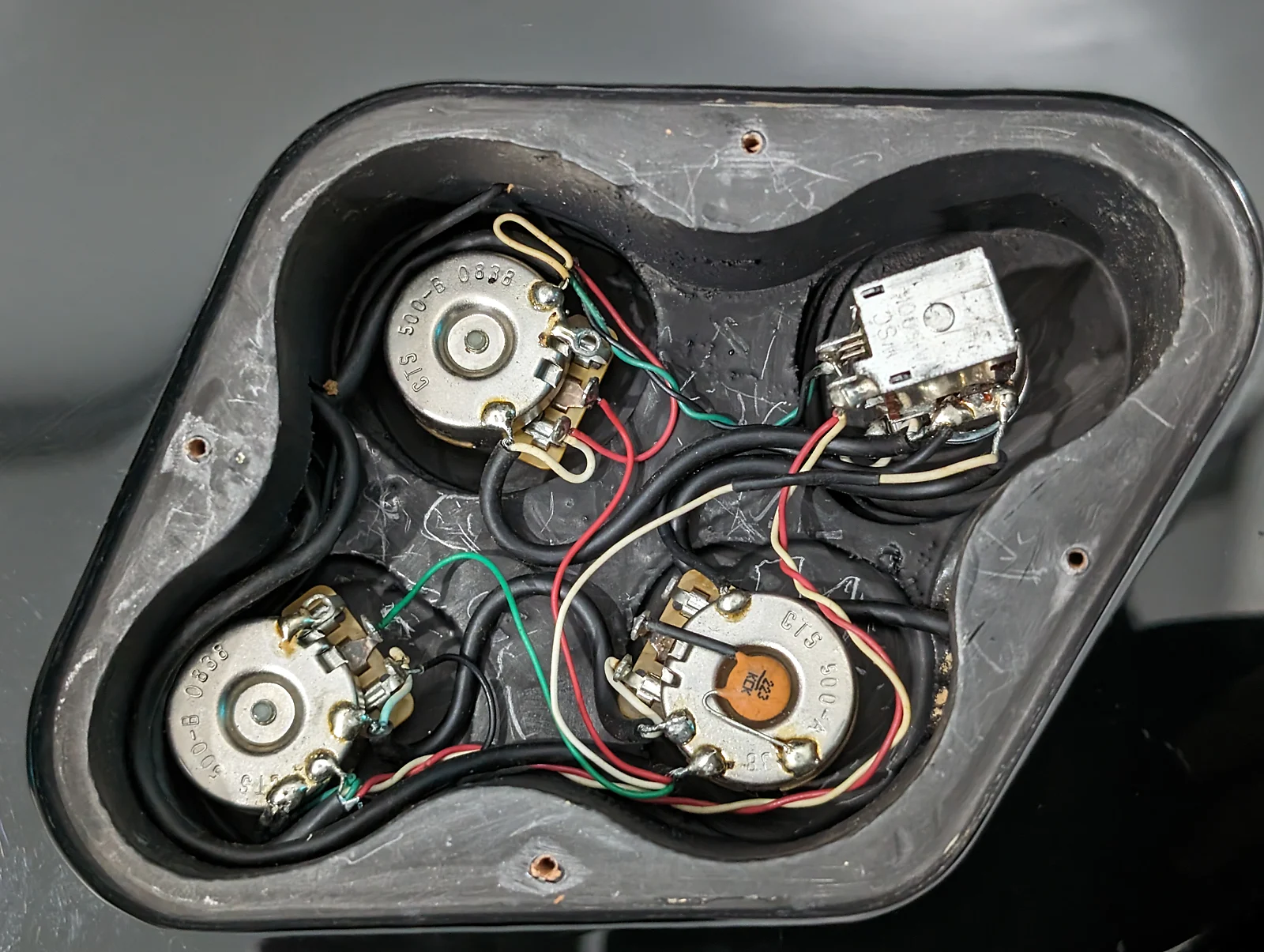

Just got an ‘08 ESP Eclipse with Seymour Duncan APH-1 in the neck and bridge. The push-push (? - it’s push in to pop out then push in to engage again) is on the neck pickup tone knob (picture top right).

Is this wired to only split the neck pickup, or both?

Appreciate the help and thanks in advance!

It’s on both. See the red/white from the bridge on one side of the throw and black and green from the neck on the other.

It’s on both. See the red/white from the bridge on one side of the throw and black and green from the neck on the other.
Sorry for my ignorance, but does that mean they both split then? Figured I’d ask this before getting my multimeter on it tomorrow and trying to confirm myself.
