My tribute partcaster to EVH

  • Thread starter Thread starter Fusionbear
  • Start date Start date
Fusionbear

Fusionbear

Well-known member
Just finished converting my partscaster into a EVH tribute. Warmoth neck, Fender body, Gotoh trem, Hipshot locking tuners, BK VHII humbucker.

Guitar kick arse!




Here is my EVH rig:


Wow.

Super cool. Love the guitar insert jack - never seen that before. I bet it sounds killer. Clippy?

Oh. Never mind. I have a Fender too. I didn't realize it was a 90 degree plug. I thought maybe you had done some rerouting :cool:

Not EVH playing, but a quick test. I'll post an EVH style clip later:


Fusionbear said:
Spring popped out. I forgot to make sure they were seated properly when I reinstalled the trem...
Click to expand...
How do you get that non floyd to stay in tune after using whammy? I asume you have locking tuners and blocked the bridge with decent tension on springs?

Briman24 said:
How do you get that non floyd to stay in tune after using whammy? I asume you have locking tuners and blocked the bridge with decent tension on springs?
Click to expand...
Not blocked. It's floating with two springs. Hipshot locking tuners.

I had Jerry Bizon from Luxxtone/SIS do a full set up. He cleaned up the nut slots, leveled and polished the frets. He installed the trem initially. It's one of the new Gotoh 510 FE trems. Very smooth and I can pull up and down quite a bit. He did a little extra routing in the trem cavity.

Jerry was EVH's in-house luthier for Eddie. He knows how to set up trems and the rest awesomely!


Fusionbear said:
Not blocked. It's floating with two springs. Hipshot locking tuners.

I had Jerry Bizon from Luxxtone/SIS do a full set up. He cleaned up the nut slots, leveled and polished the frets. He installed the trem initially. It's one of the new Gotoh 510 FE trems. Very smooth and I can pull up and down quite a bit. He did a little extra routing in the trem cavity.

Jerry was EVH's in-house luthier for Eddie. He knows how to set up trems and the rest awesomely!

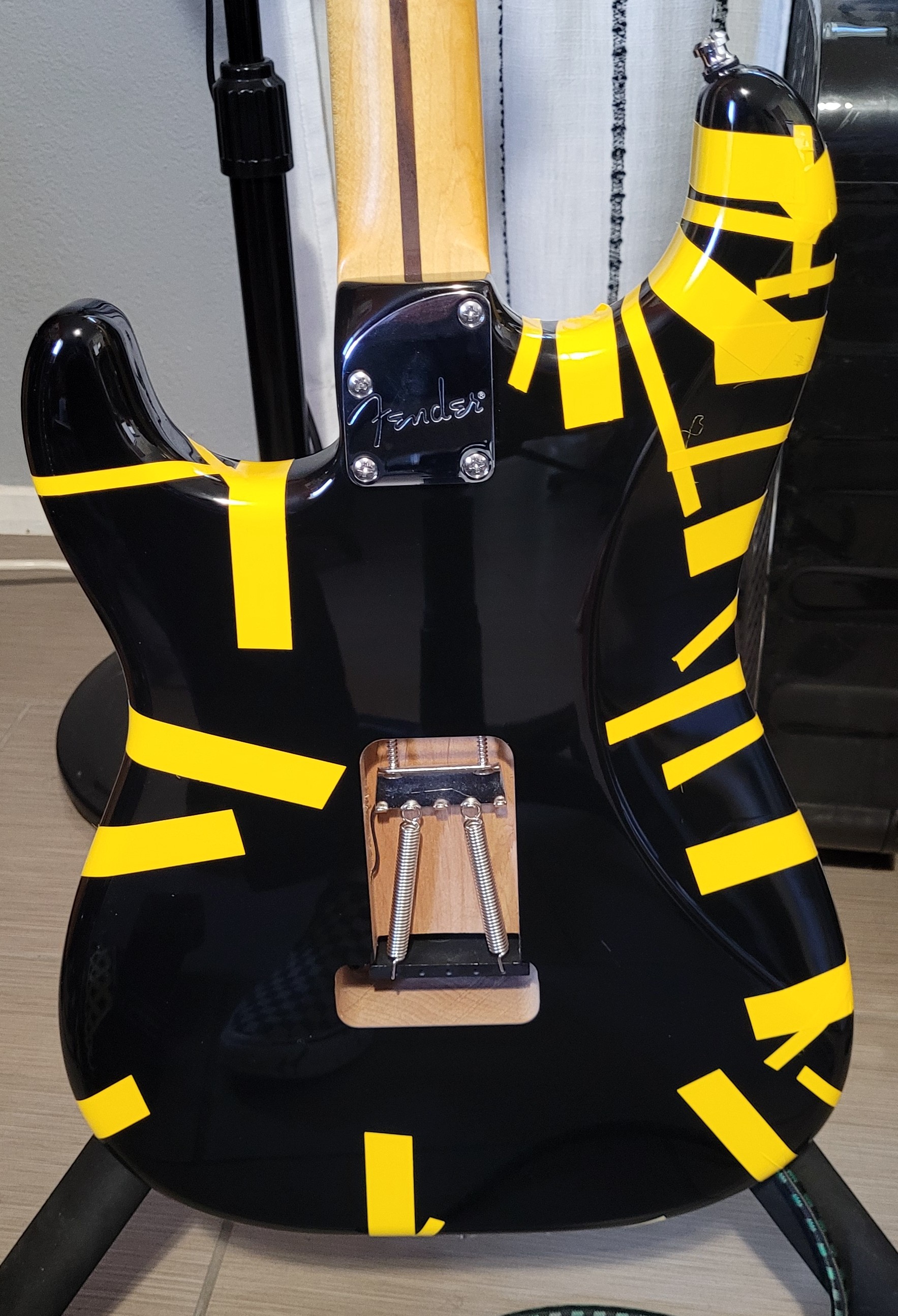

View attachment 145447
Click to expand...
Sweet! Enjoy it!

Love it! Was the paint jog that hard? Did you repaint the black or go yellow on top of the existing finish and then clear coat it? I've been thinking about doing this. I like that it has the classic trem and not a floyd!

Kapo_Polenton said:
Love it! Was the paint jog that hard? Did you repaint the black or go yellow on top of the existing finish and then clear coat it? I've been thinking about doing this. I like that it has the classic trem and not a floyd!
Click to expand...
It's not a paint job, it's automotive pin stripe tape. I guess you can say I cheated....lol...
