SDE-3000 CV JACK(S)

5

50WEST

Active member

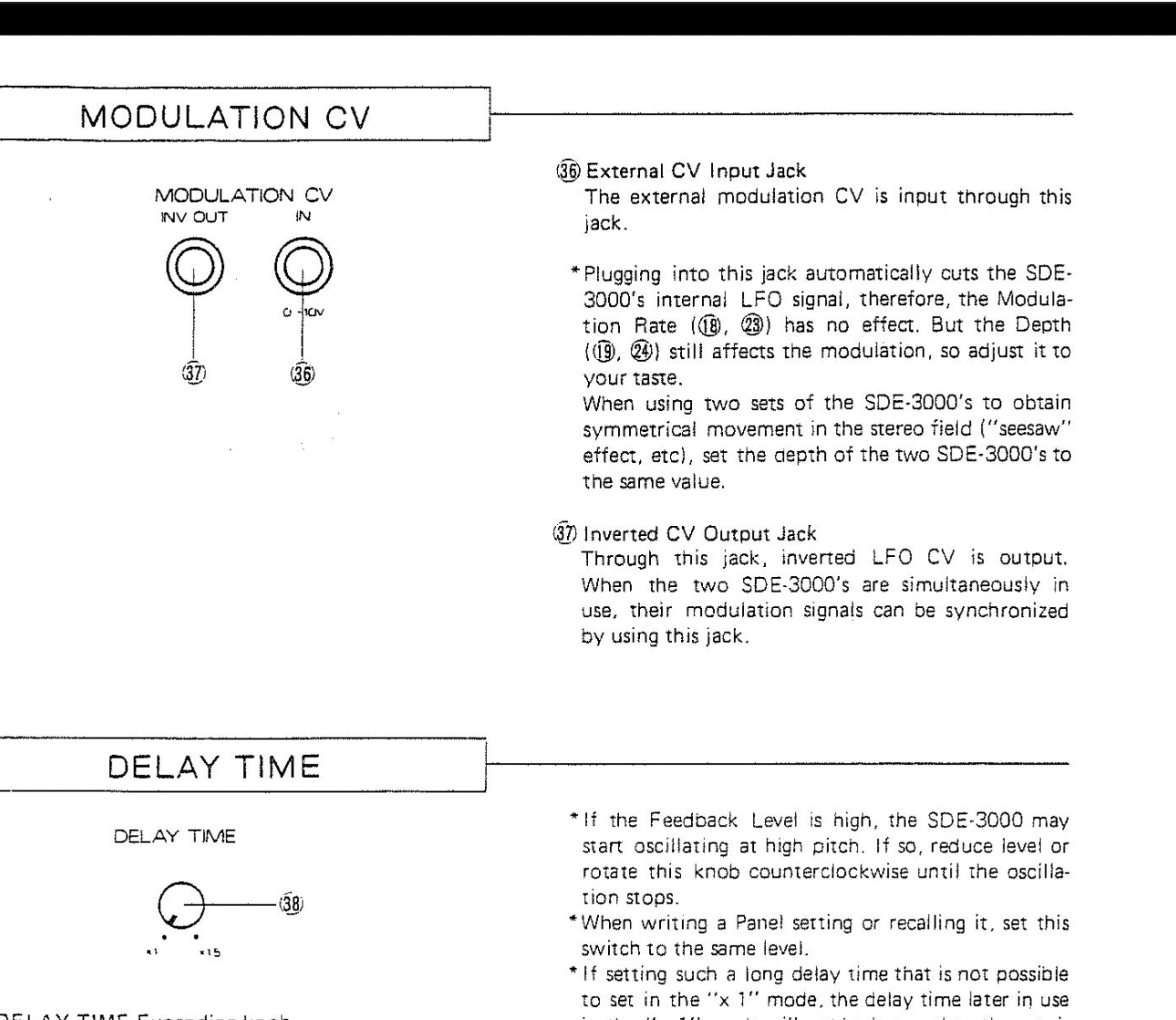

I’ve searched, and searched for an explanation, and read the manual which is very vague.

Does anyone know how to sync the modulation when using 2 SDE-3000s in stereo? What would the connections look like (in to outs) Do I need to hit any buttons on the front screen in addition to using the CV jacks? Thanks guys!!


Attachments

  • IMG_2996.jpeg
    1.6 MB · Views: 11
  • IMG_2997.jpeg
    287.1 KB · Views: 10
I've been looking for information and I've never found an answer...

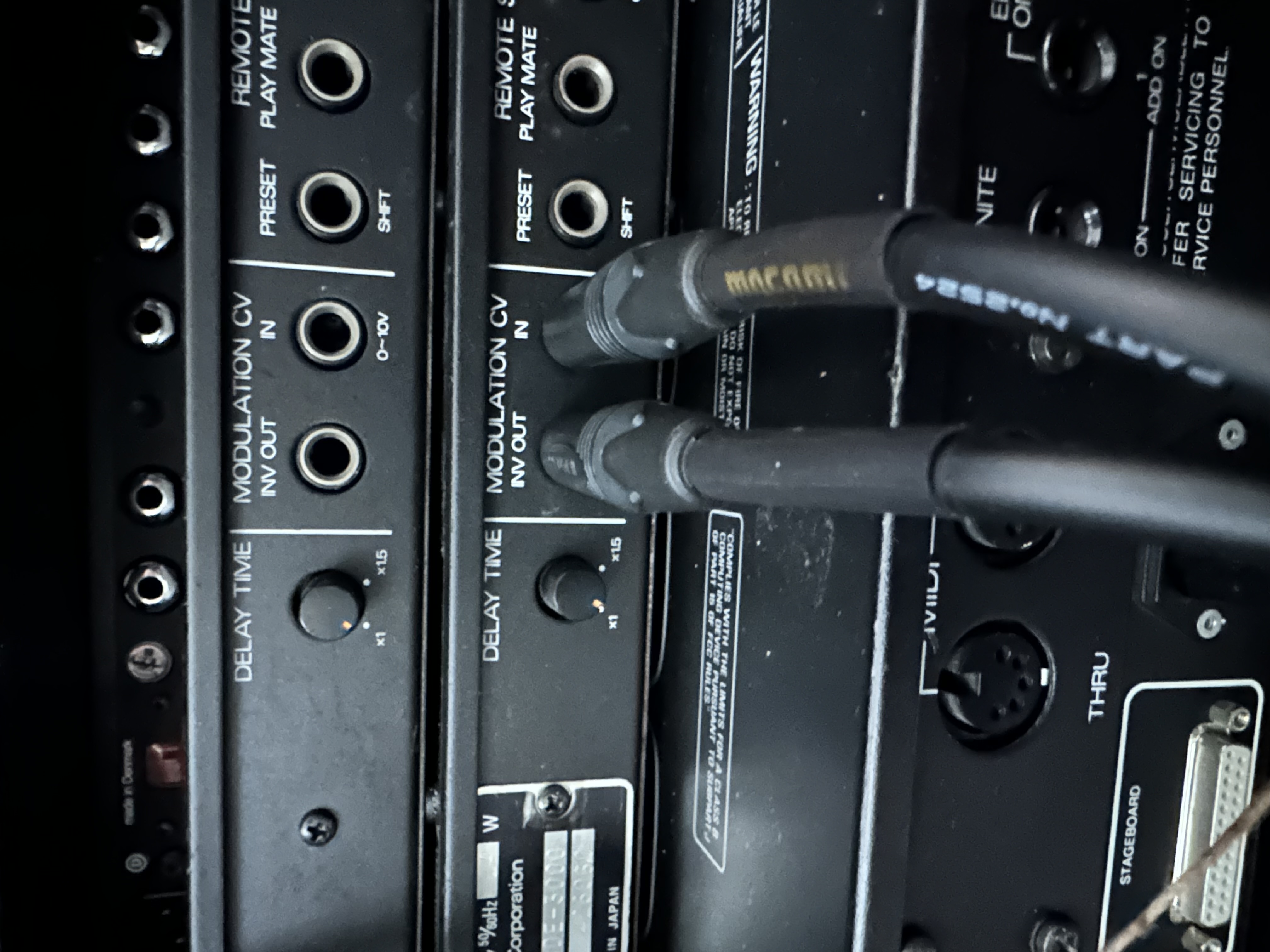

I took a risk and connected it and the modulation frequency is synchronized (out of phase)
Yes ....
Link the 2 Sde ....Cv in to cv out...

Unit #1 CV OUT——> Unit #2 CV IN

Then The rate of the one hooked to the out becomes master LFO?

The two out-of-phase signals give a stereo effect...that's how stereo choruses work...
if you put the 2 LFOs in phase and with the same depth, you don't get that effect...
