Hello guys,

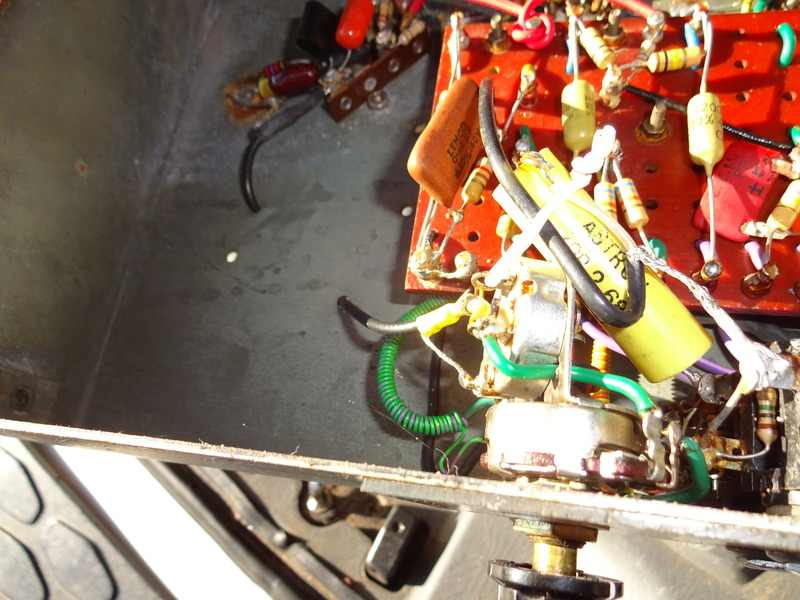

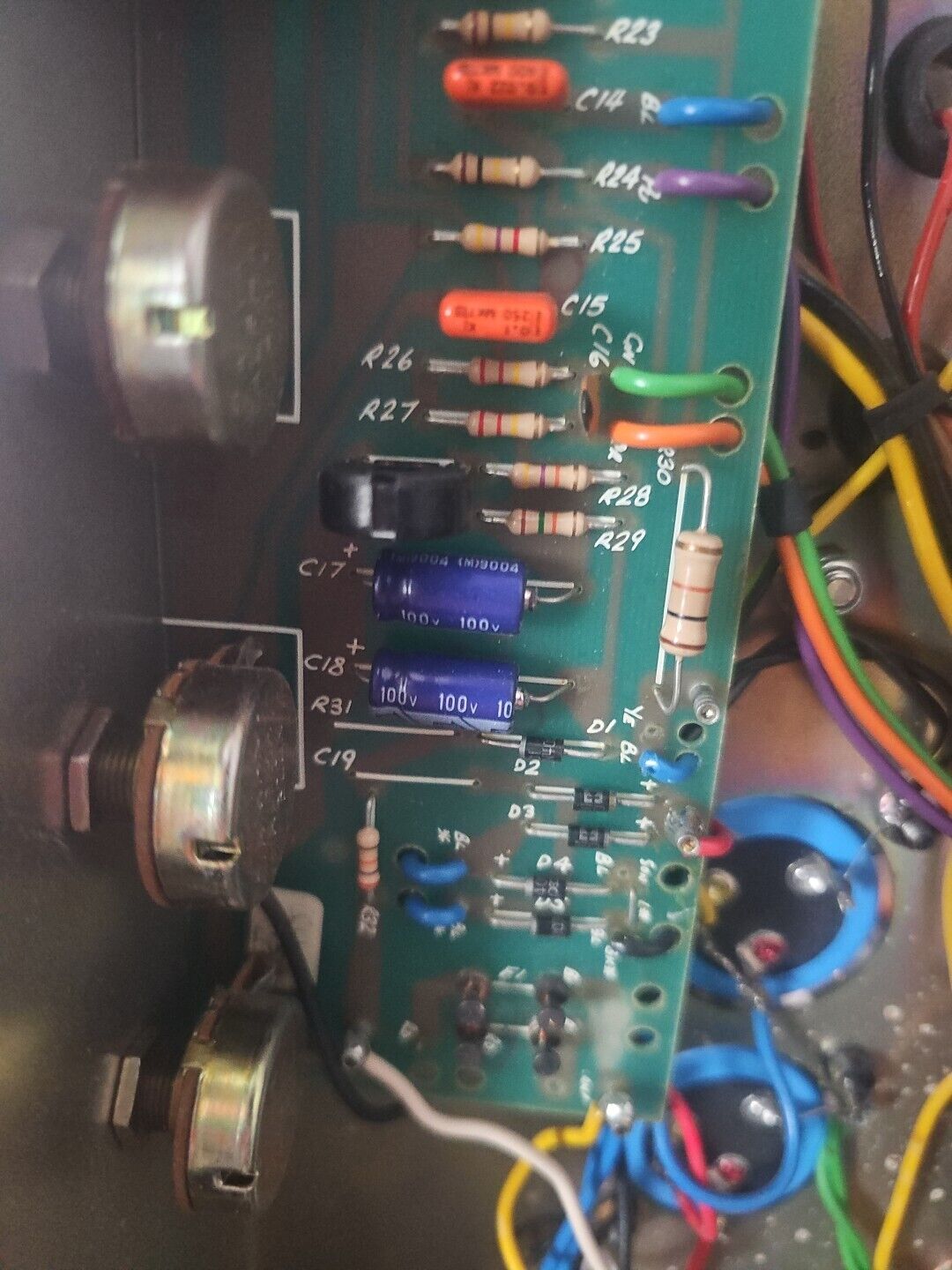

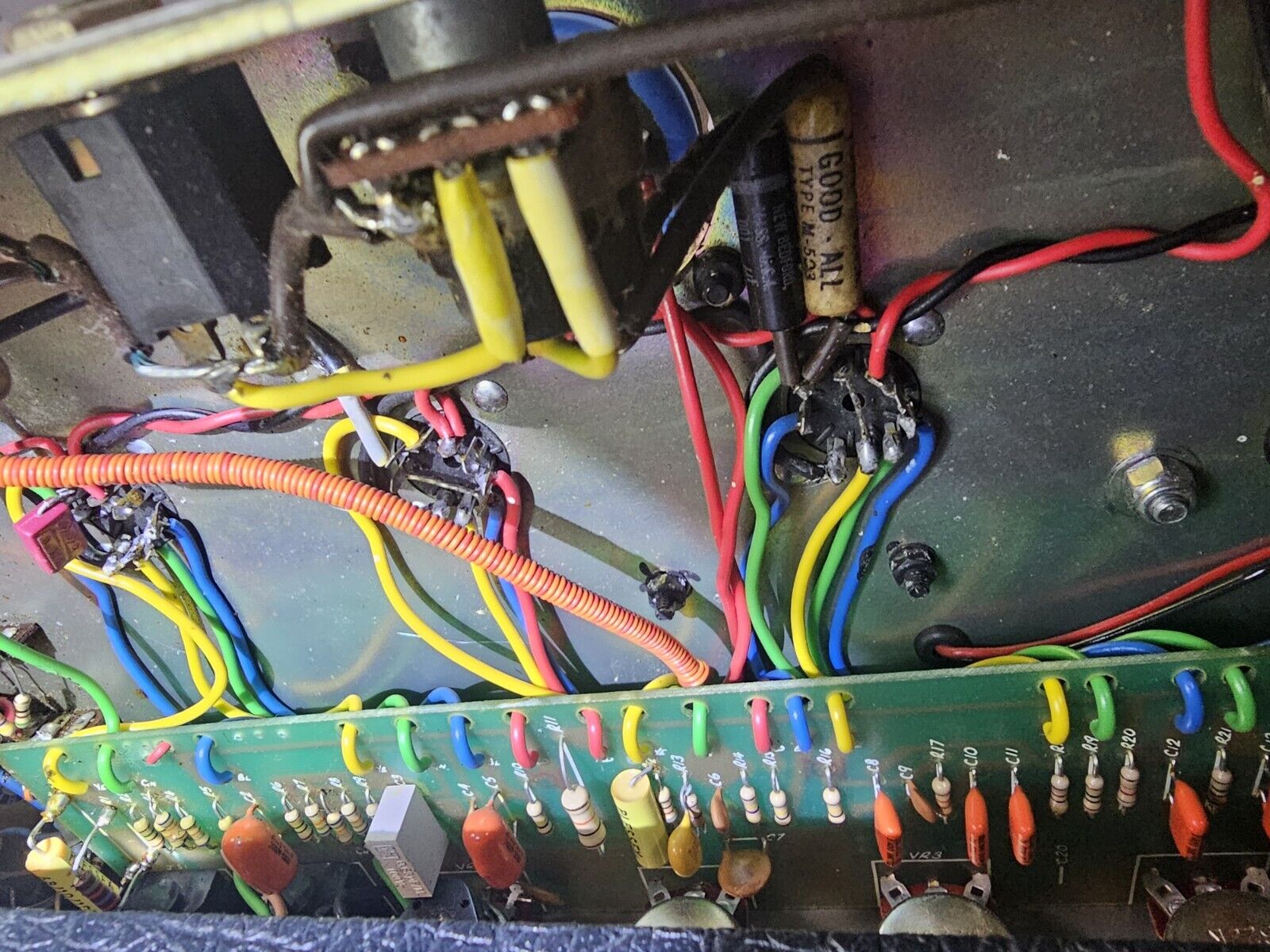

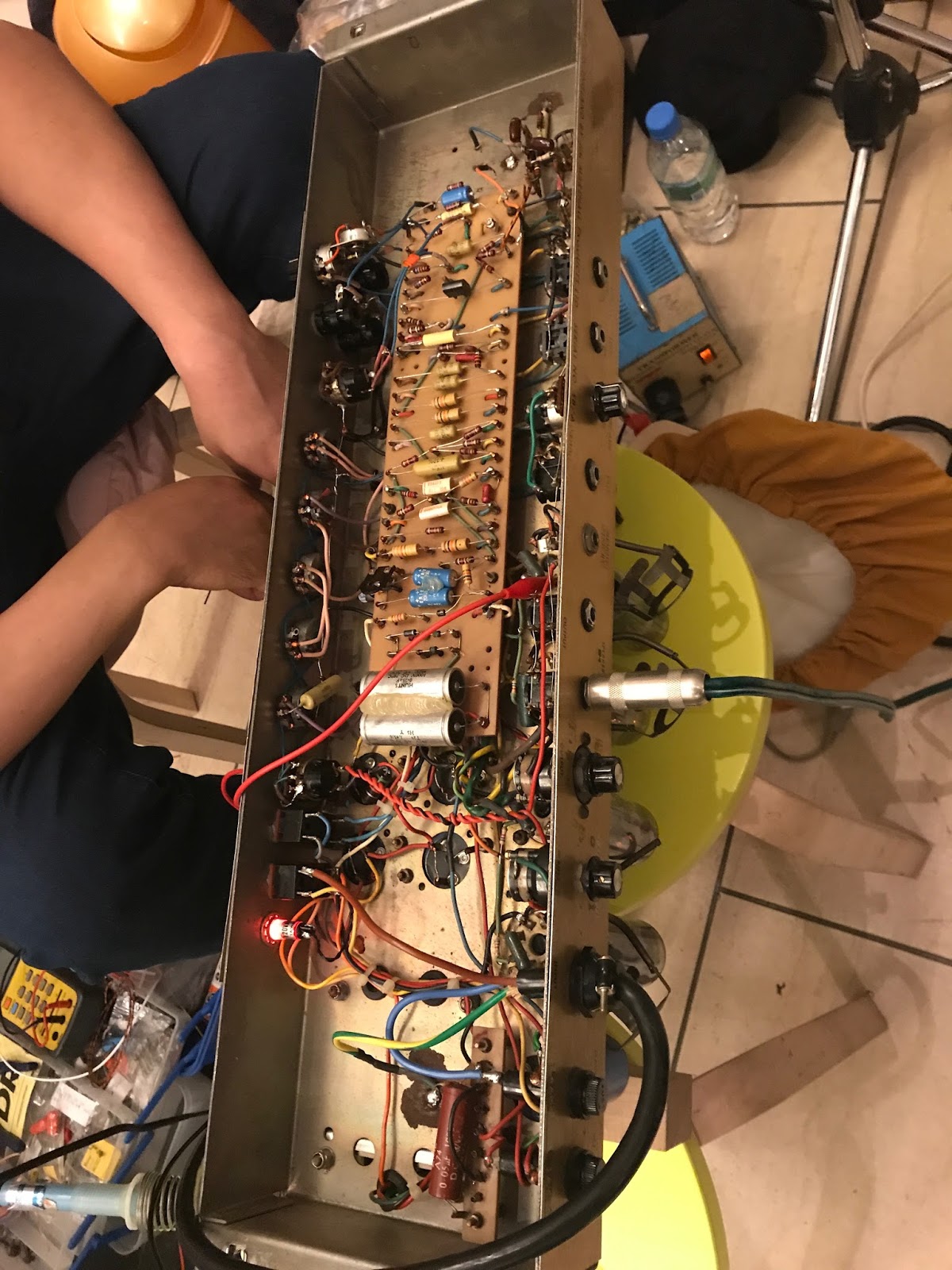

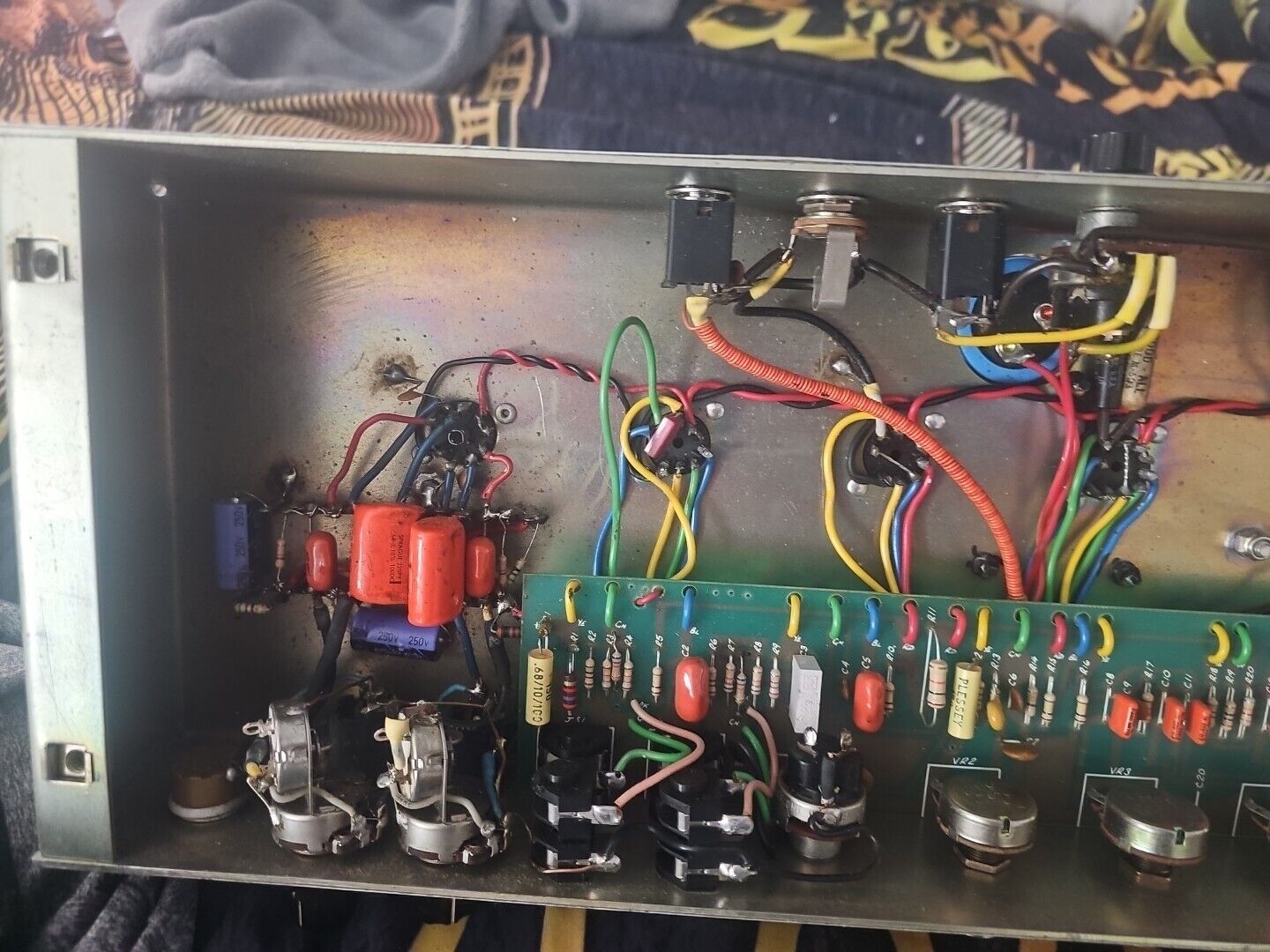

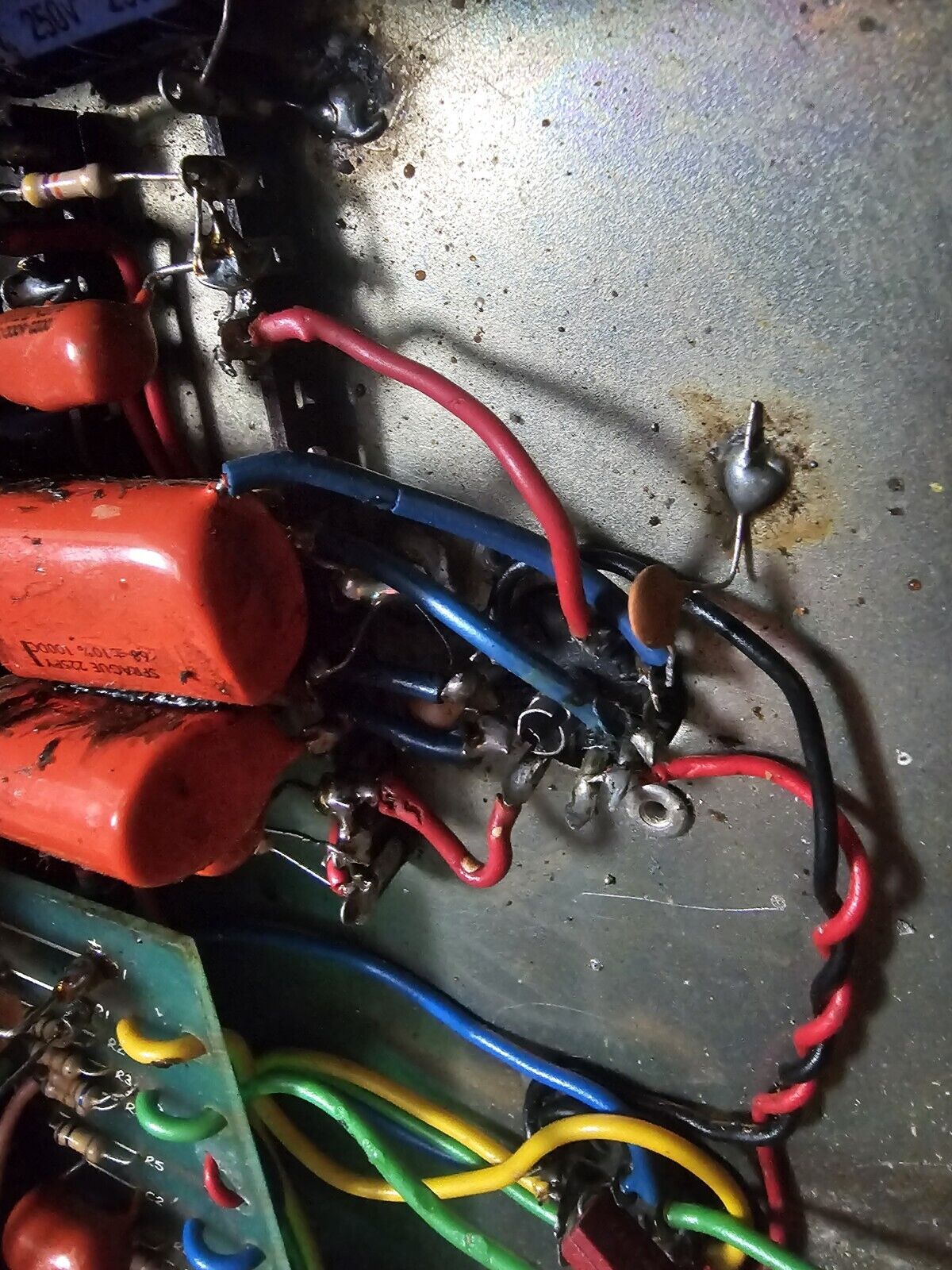

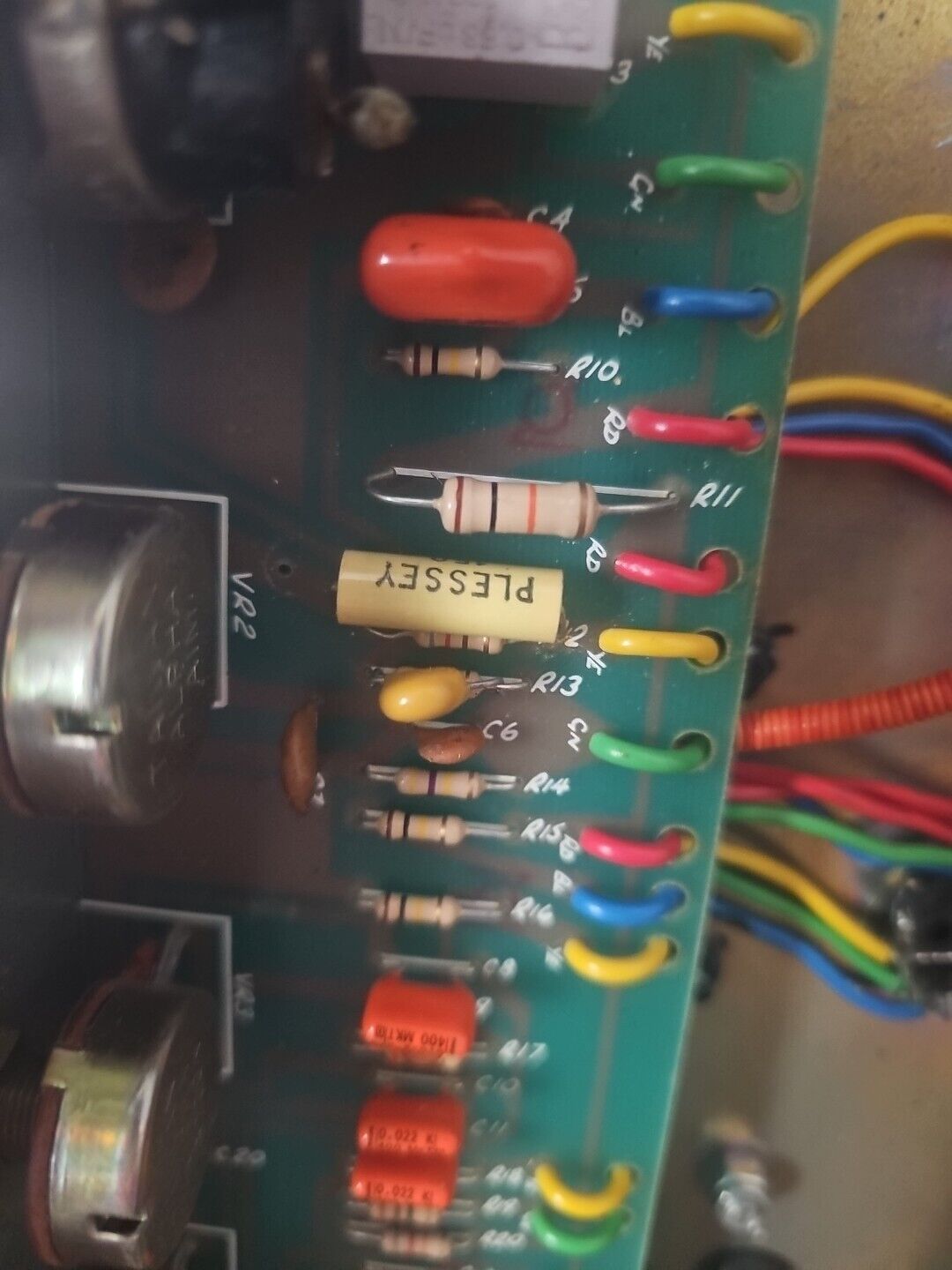

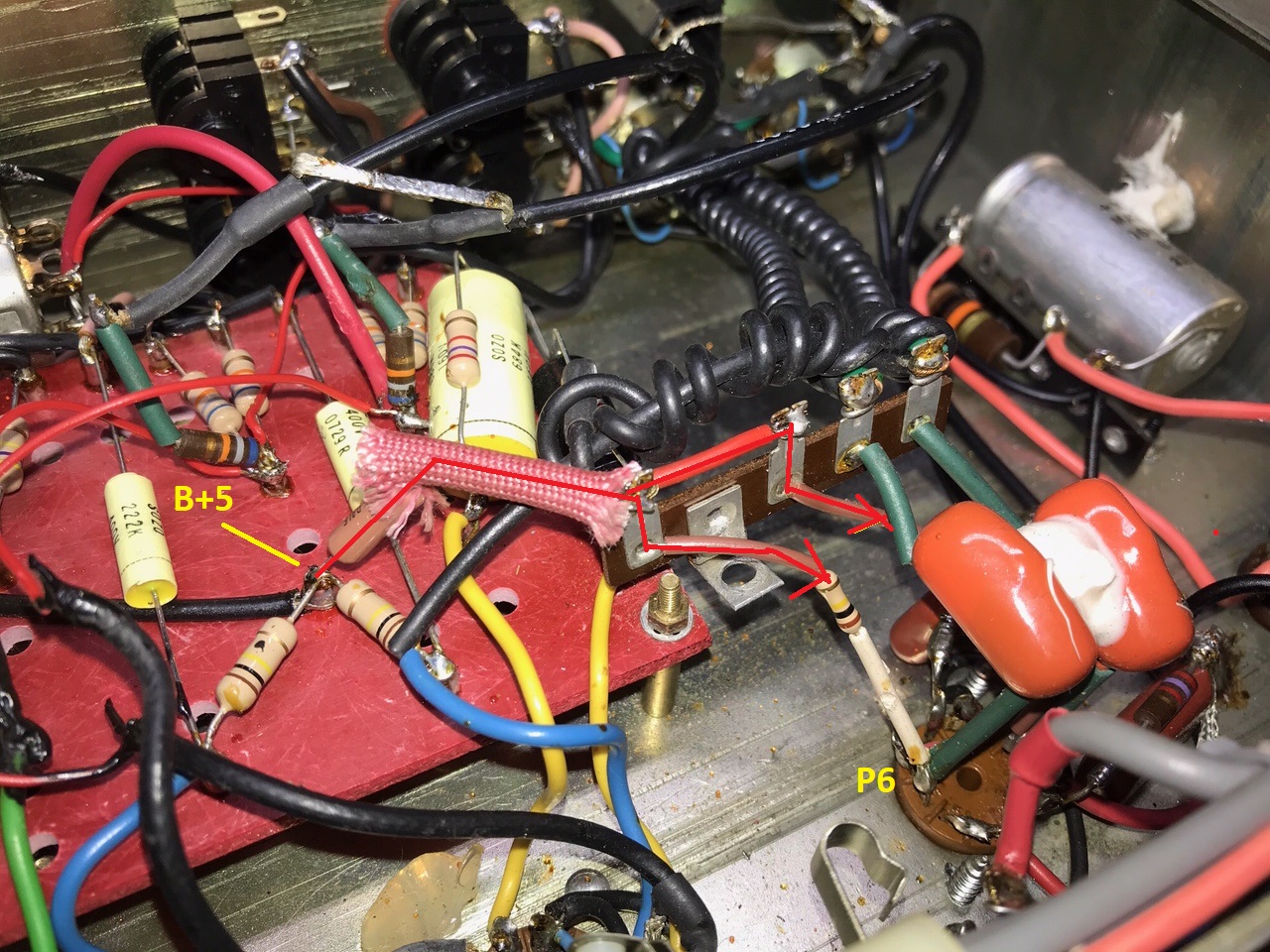

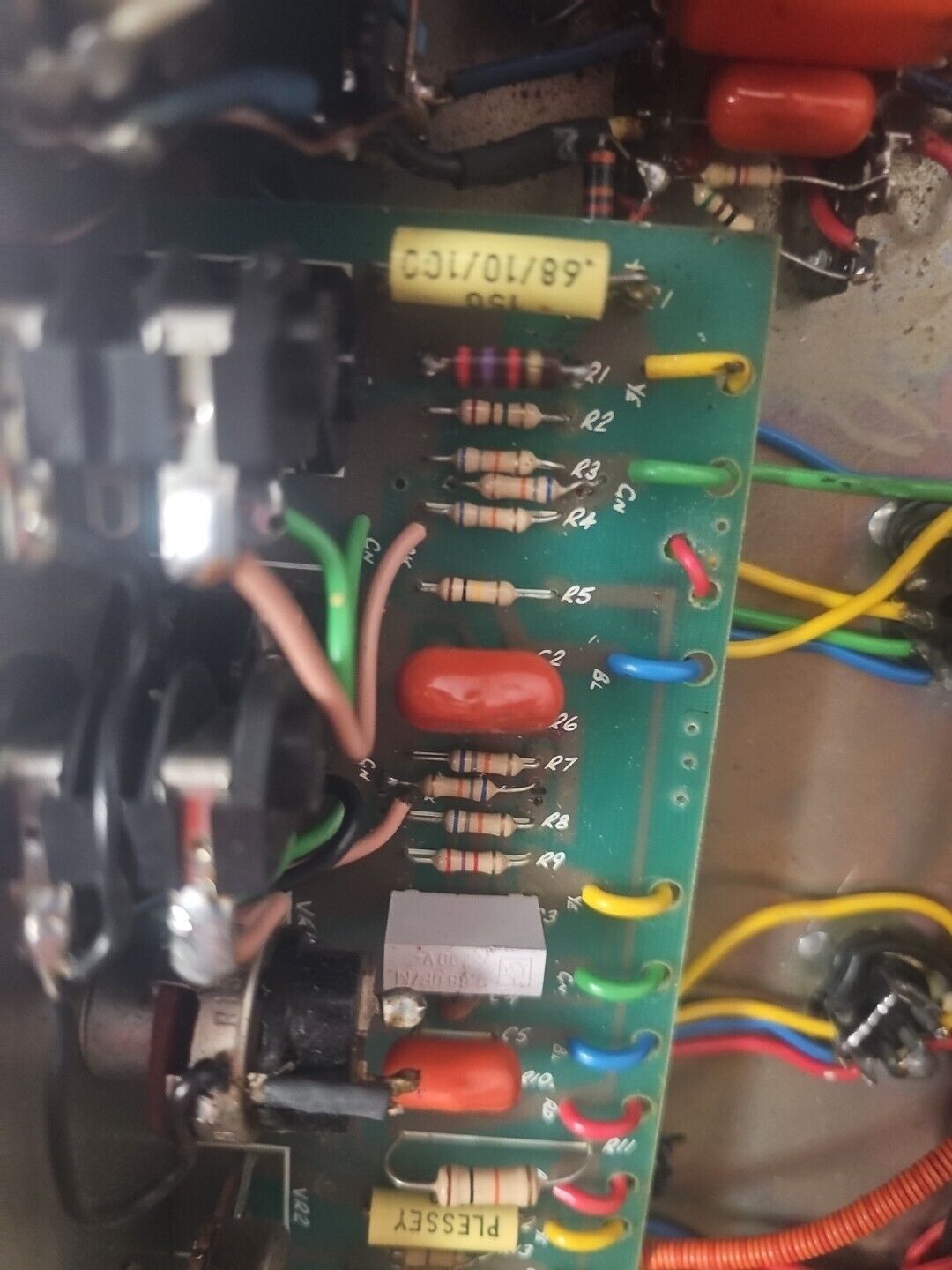

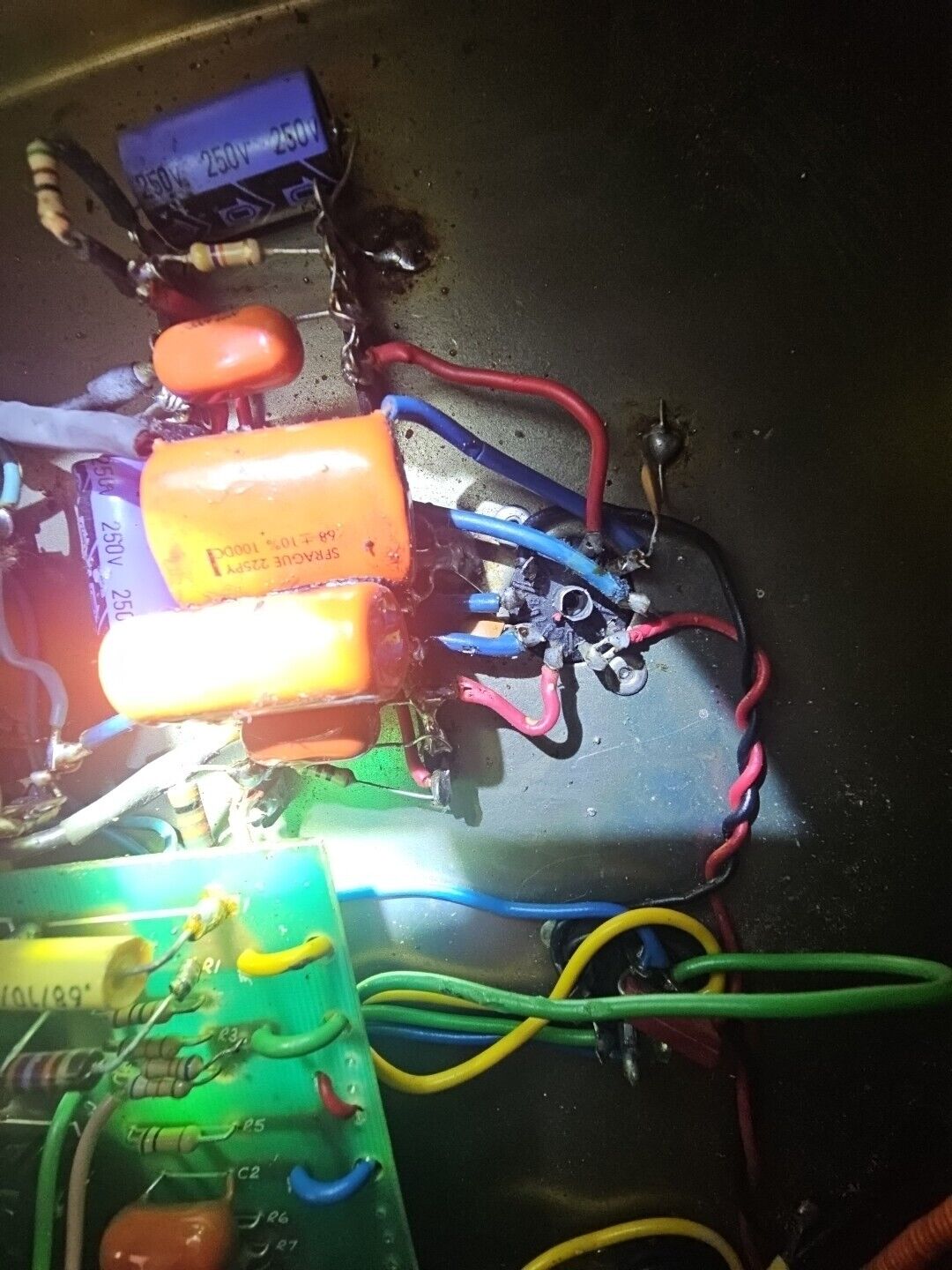

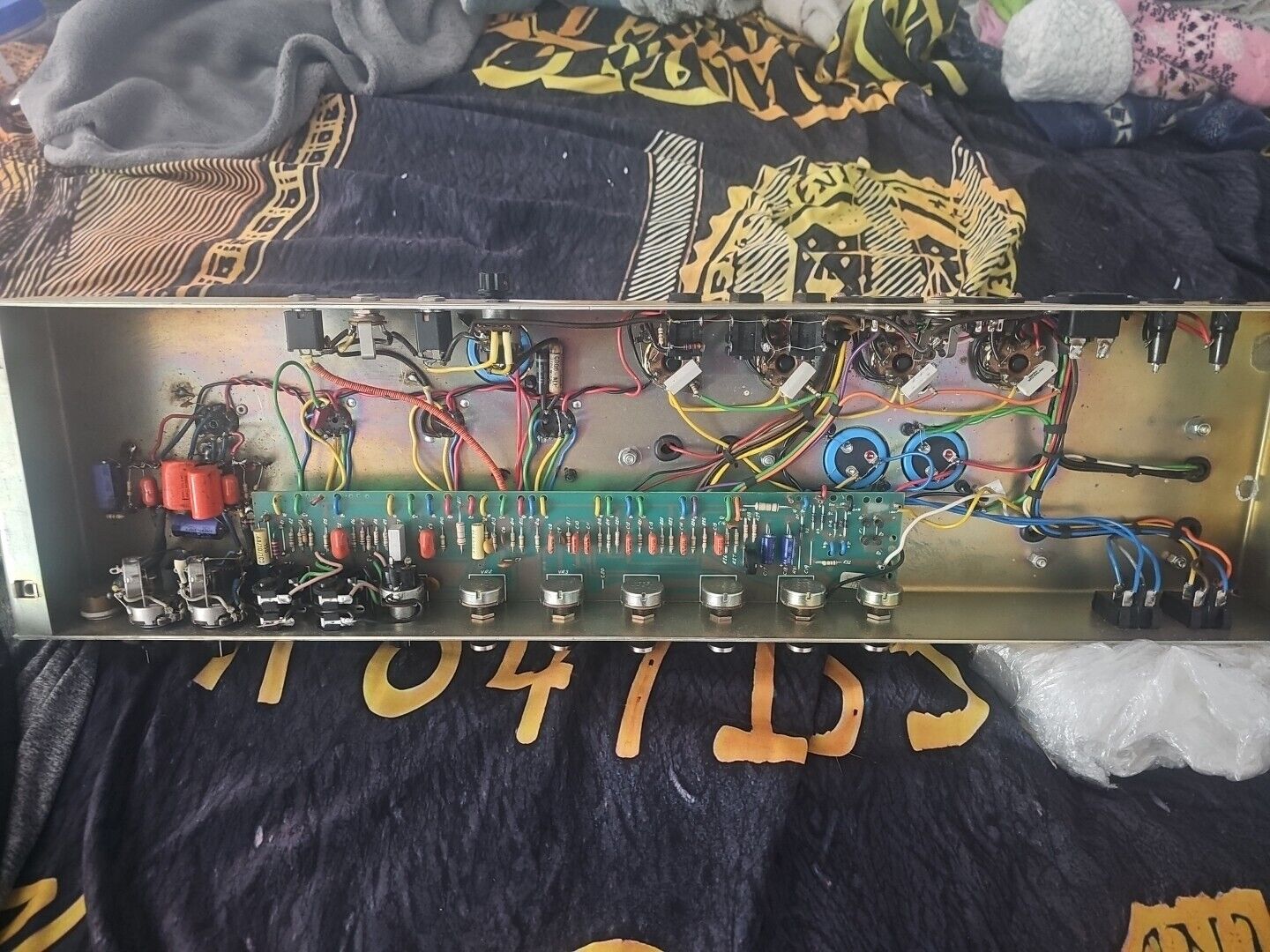

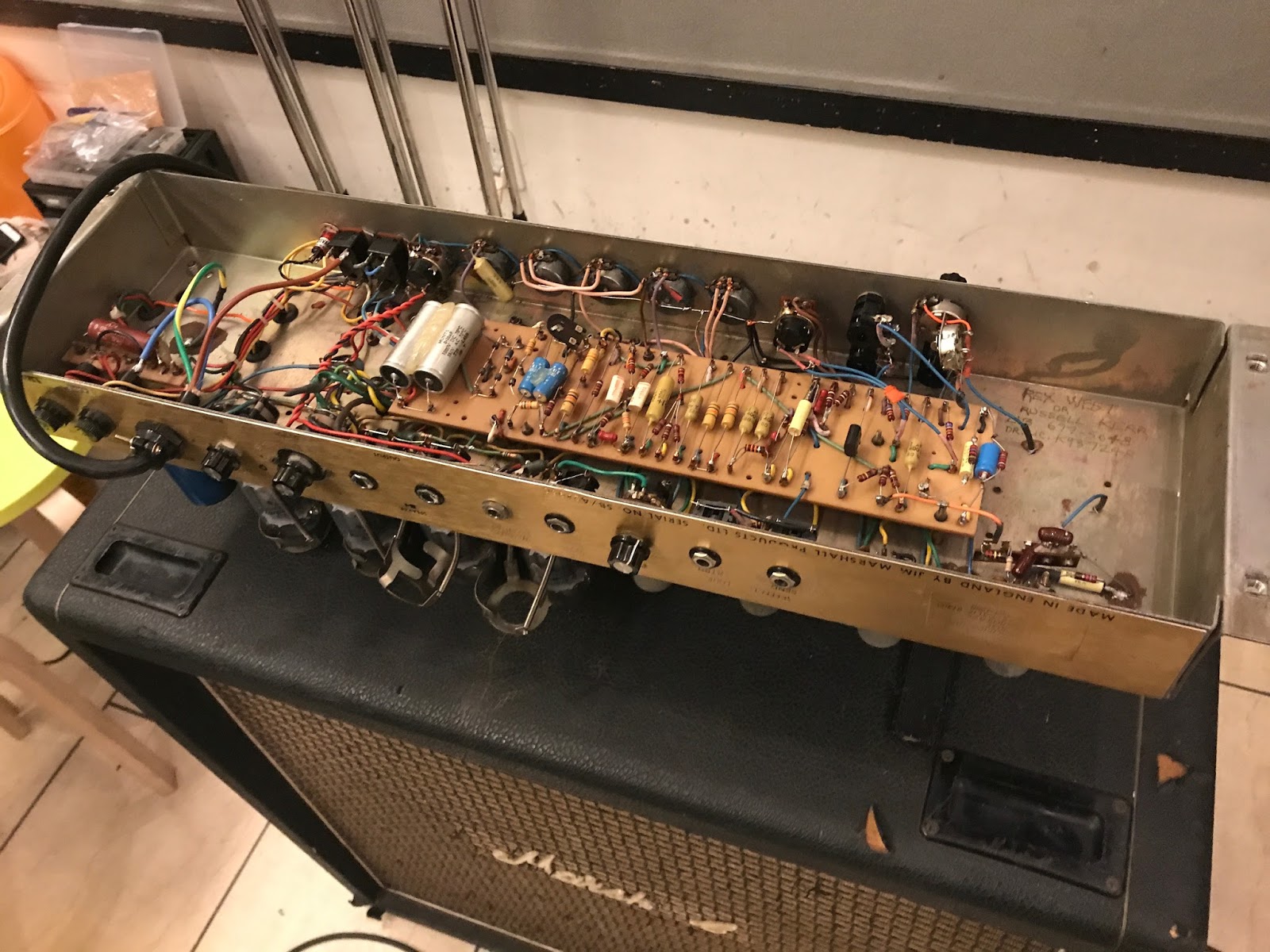

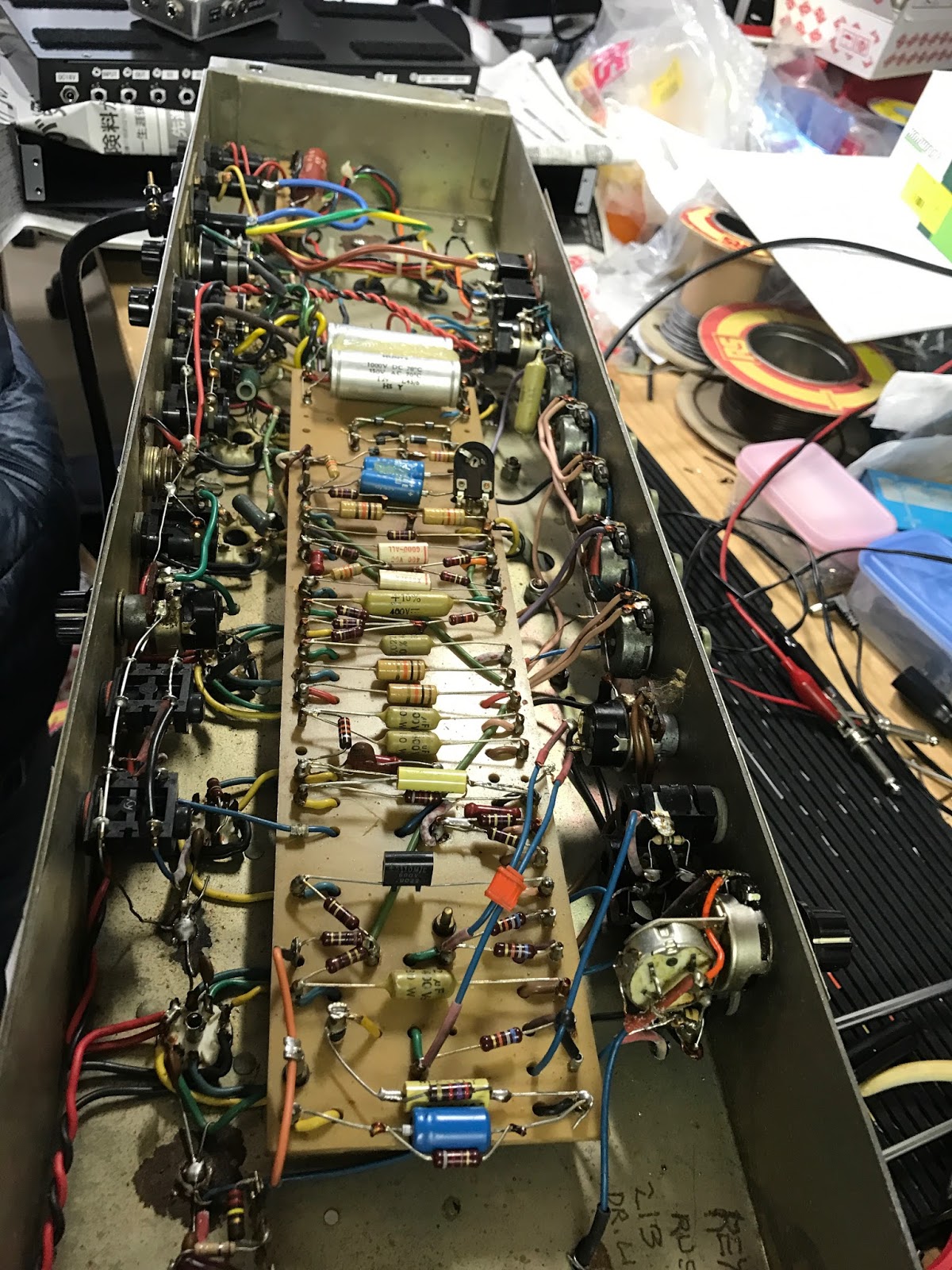

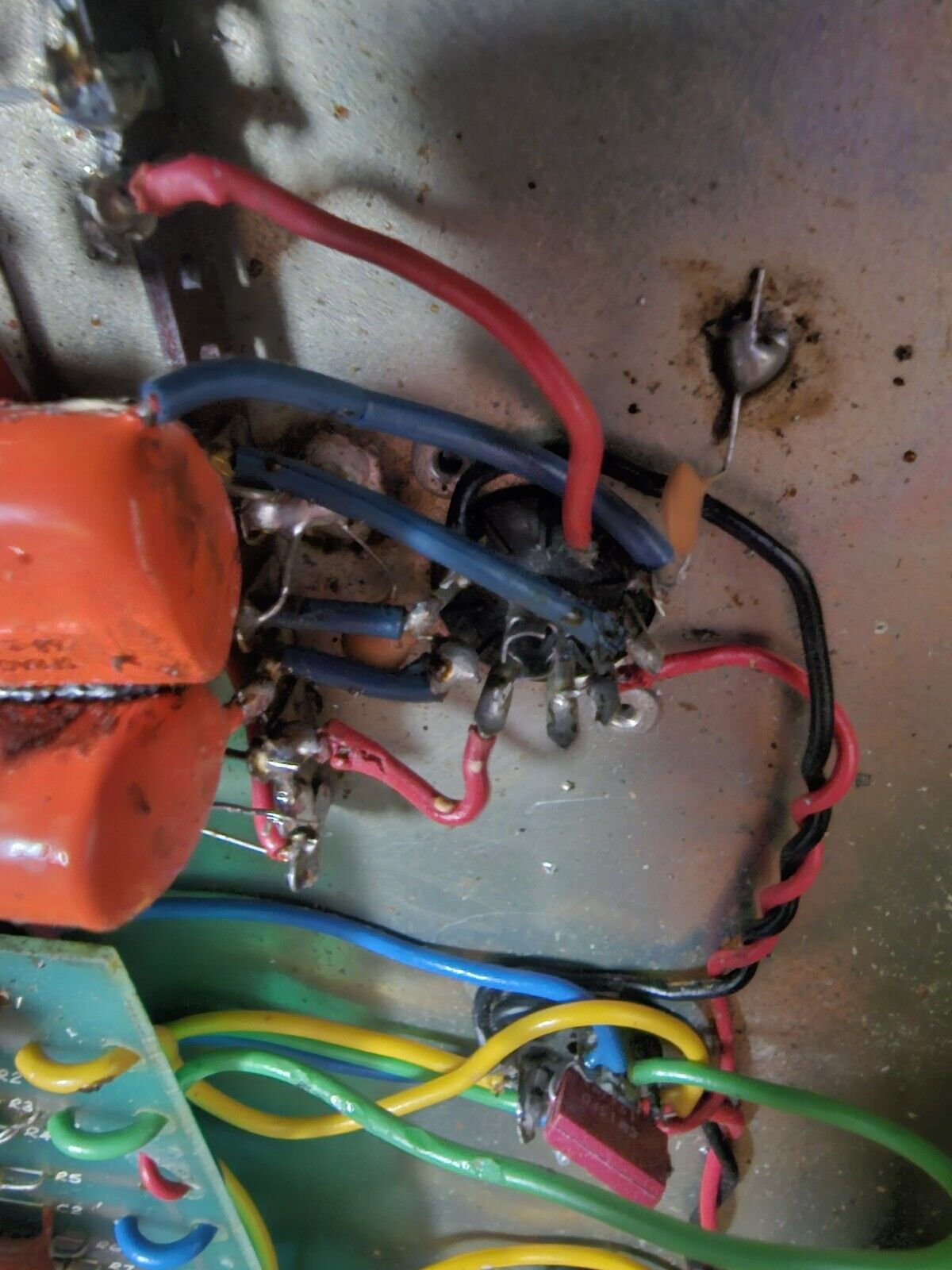

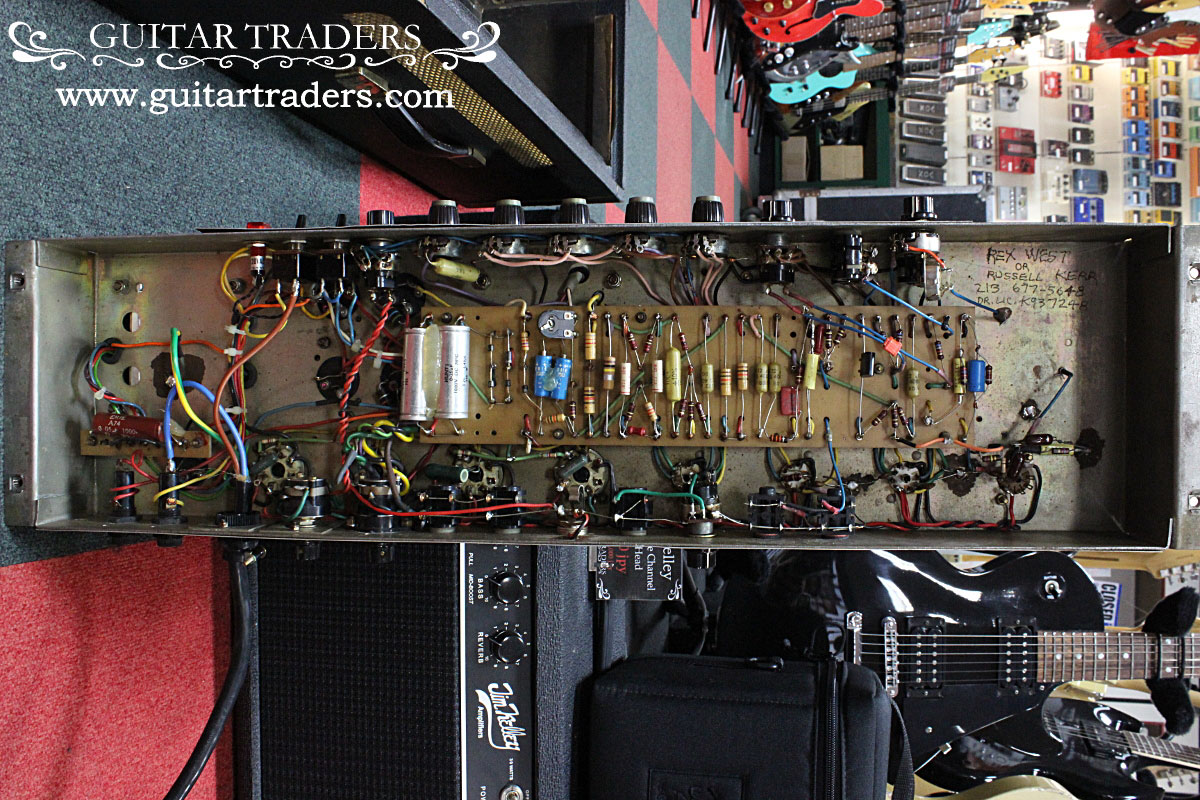

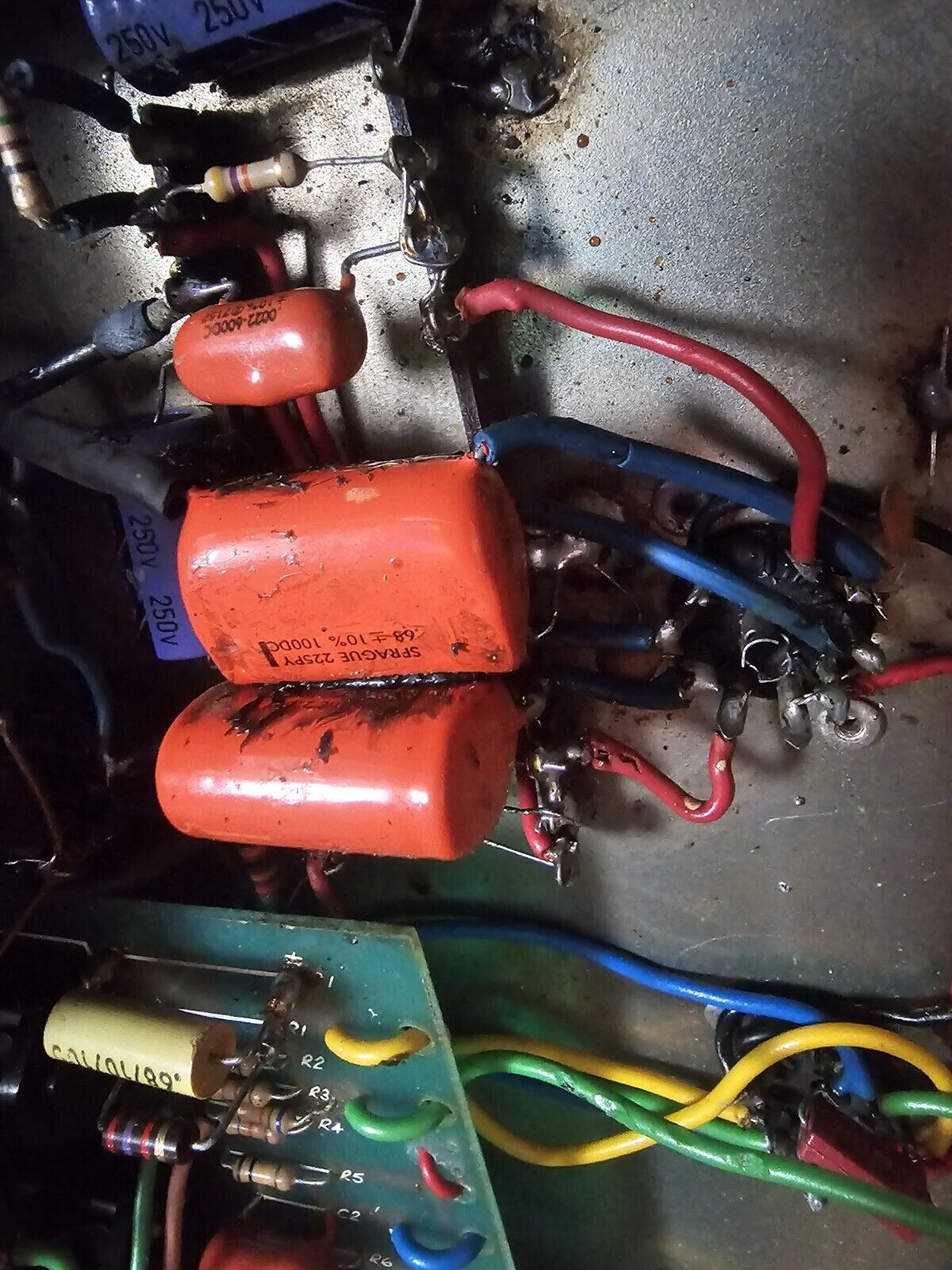

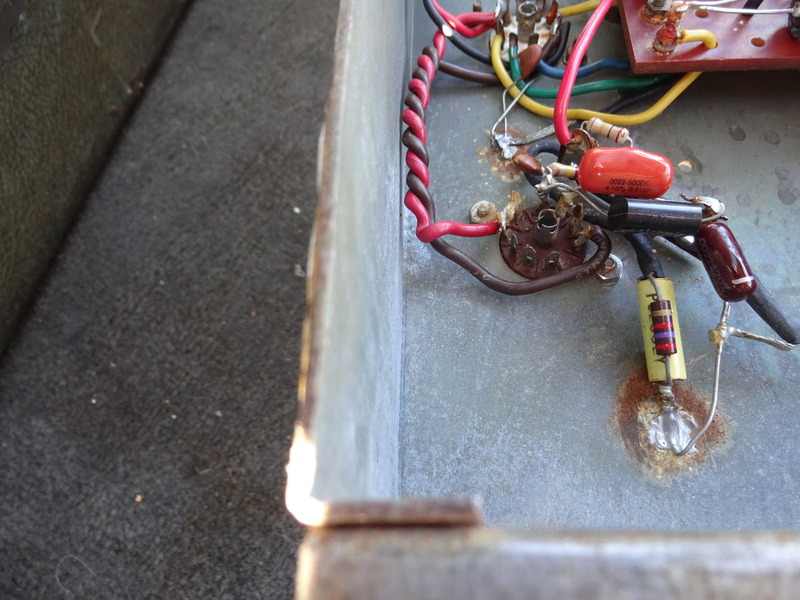

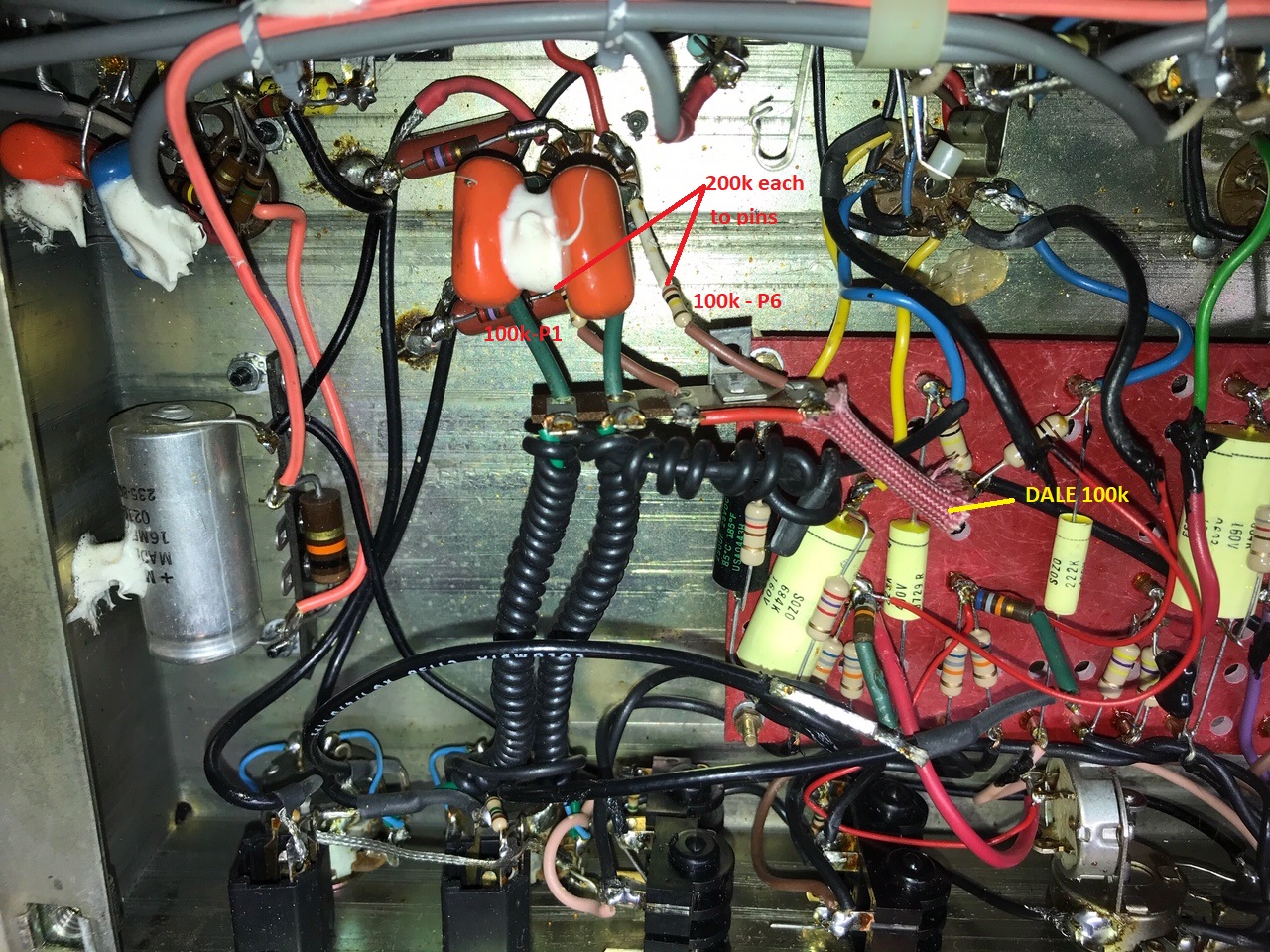

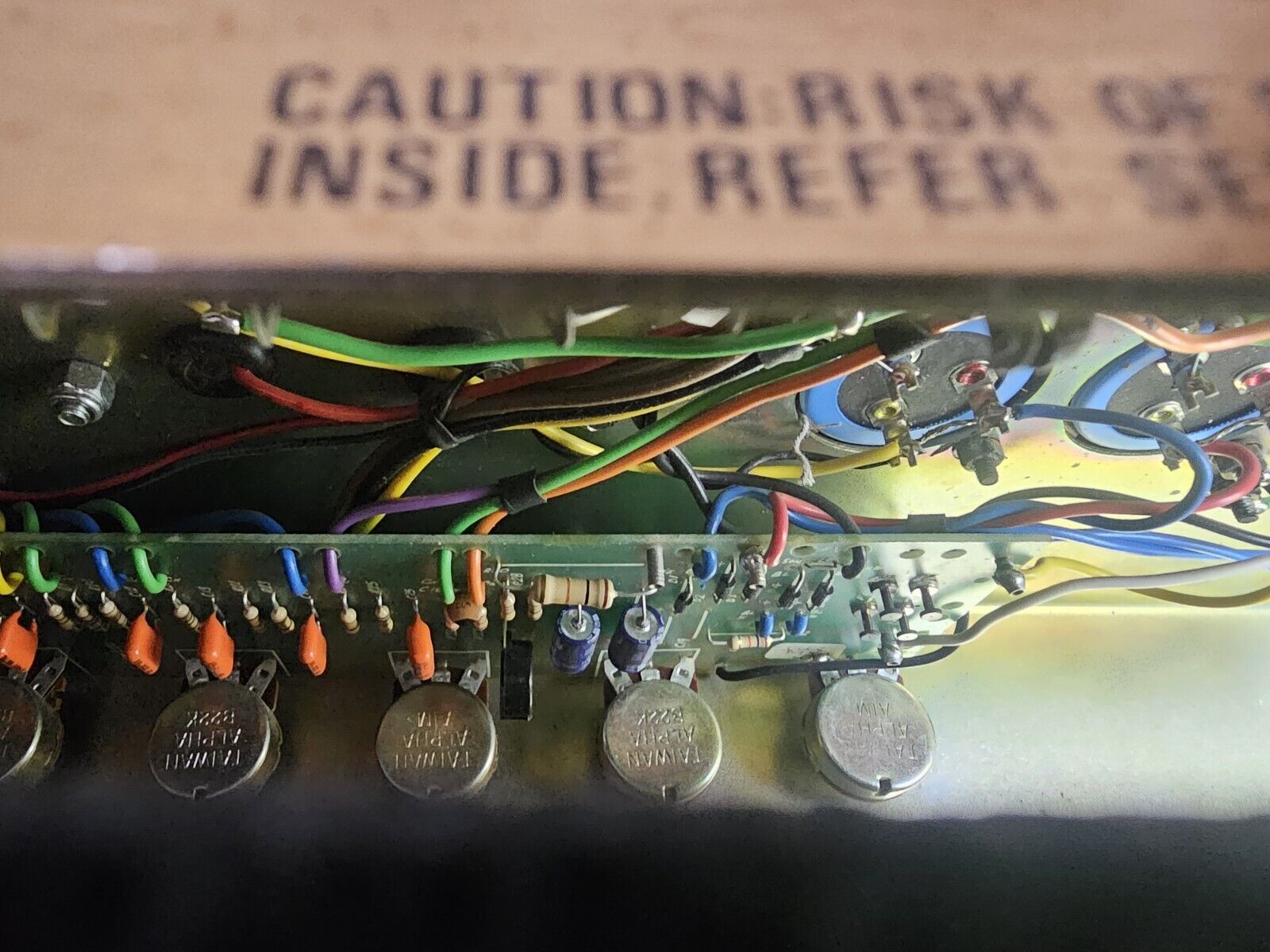

i think people should share what they got from josé arrendondo and that perhaps one day we will get somes clue of what that pot in back of the amp during VH1 and VH2 could be. I know this has been discussed tons of times. But Sharing doesn't hurt and if someone can make good amps out of those pictures why not ?

s-l1600 (11).jpg


s-l1600 (10).jpg


s-l1600 (3).jpg
s-l1600 (4).jpg
s-l1600 (8).jpg
s-l1600 (10).jpg
s-l1600 (12).jpg
s-l1600 (13).jpg
s-l1600 (15).jpg
s-l1600 (1).jpg

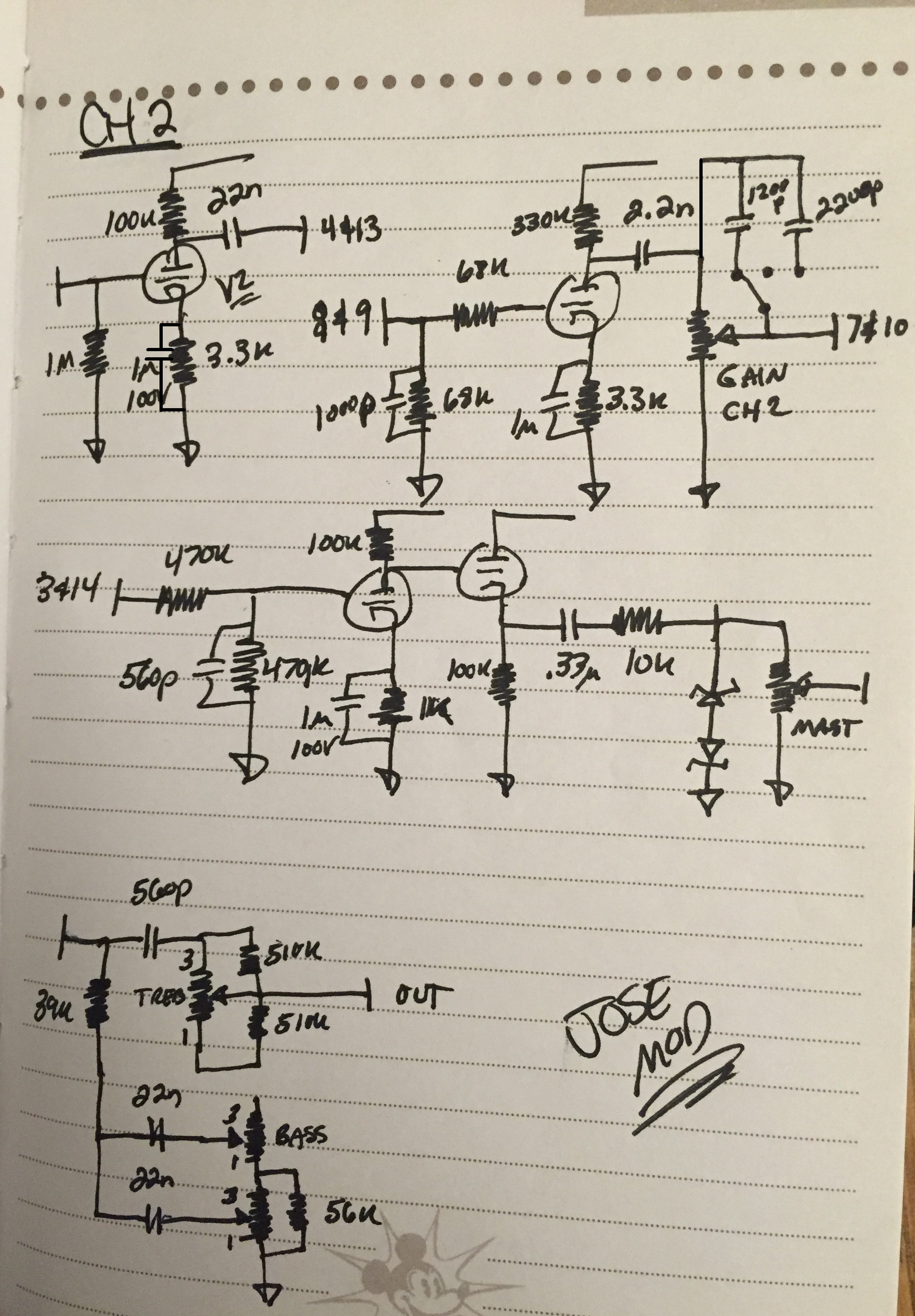

One schematic which is different from the calssical schematic found on the net :



if someone builds this one i'd be curious to hear it.

Last edited:
Racerxrated said:
Wow! Great stuff!
Click to expand...
Yeah i'm kinda geek i like to look for stuff on the net however it's a shame that a lot of past content doesn't work anymore and that the webarchive is being taking down... unfortunately the wayback machine seems to have it's days counted...

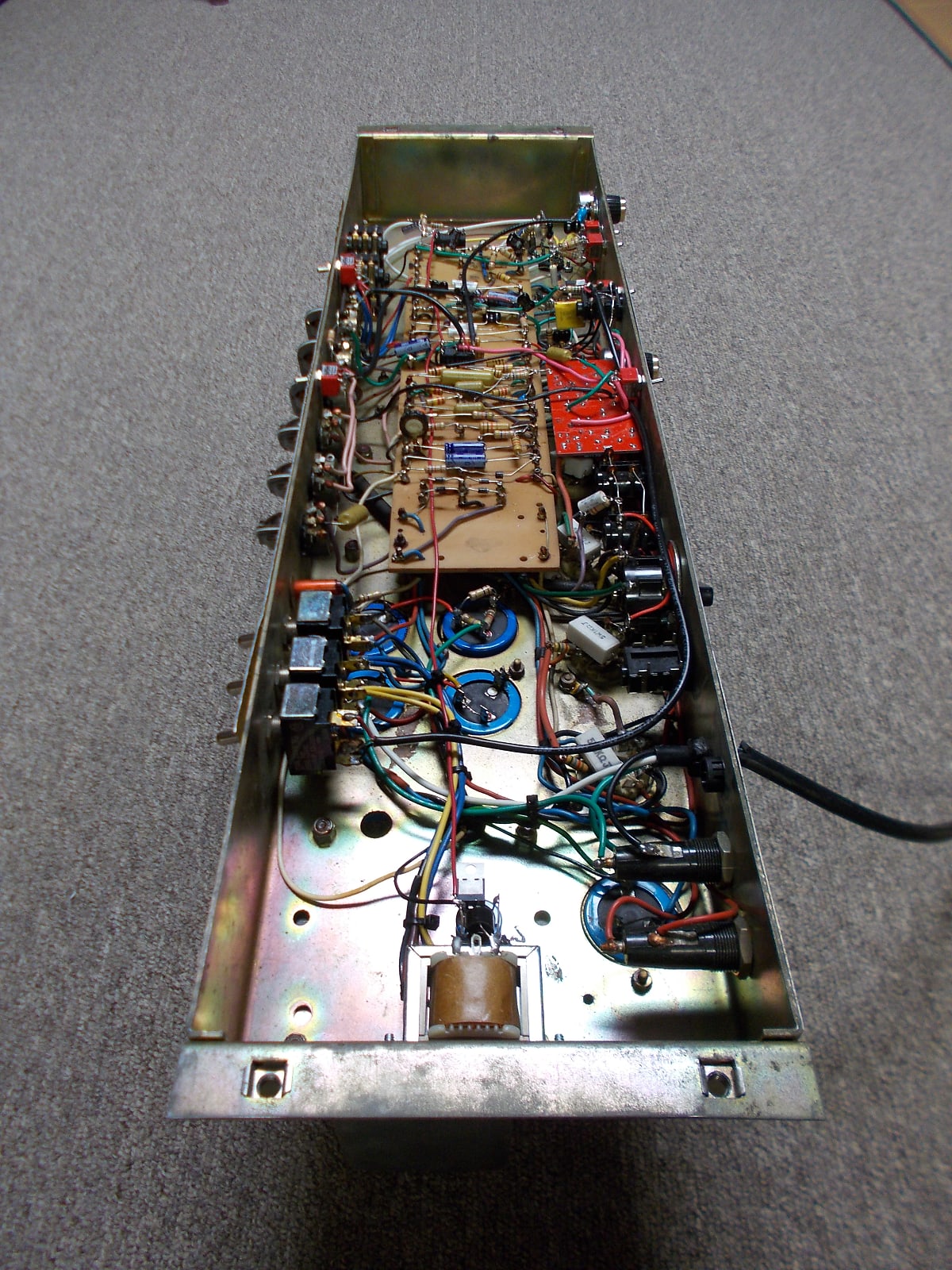

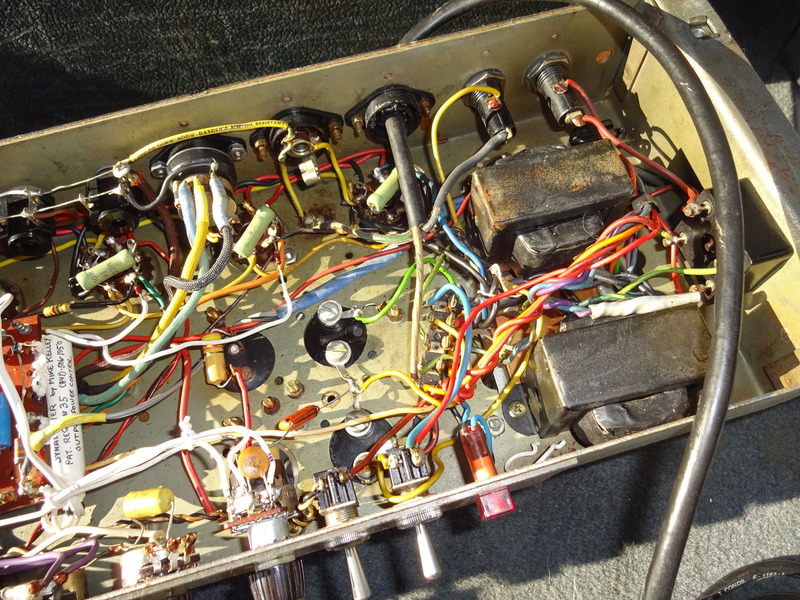

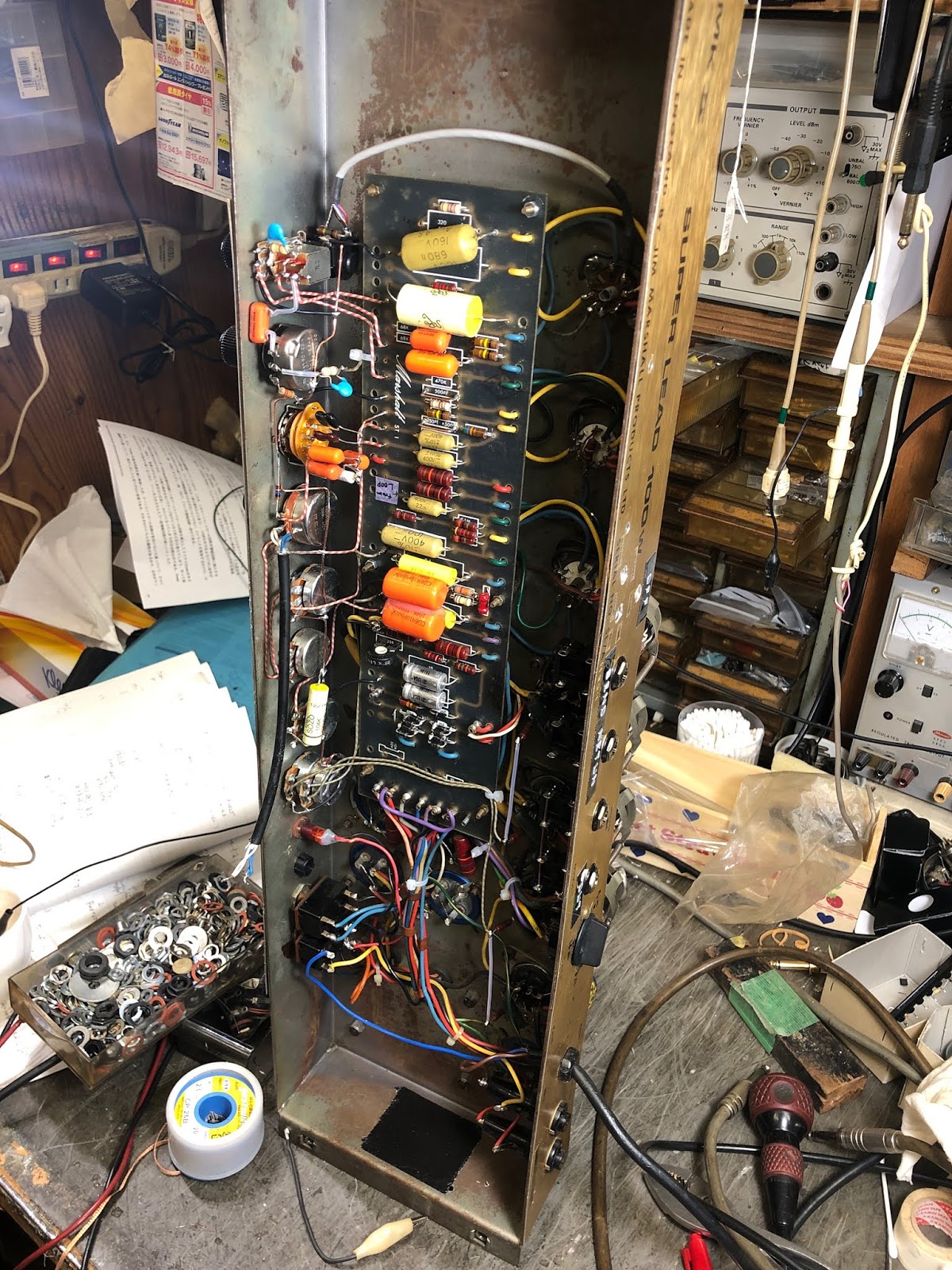

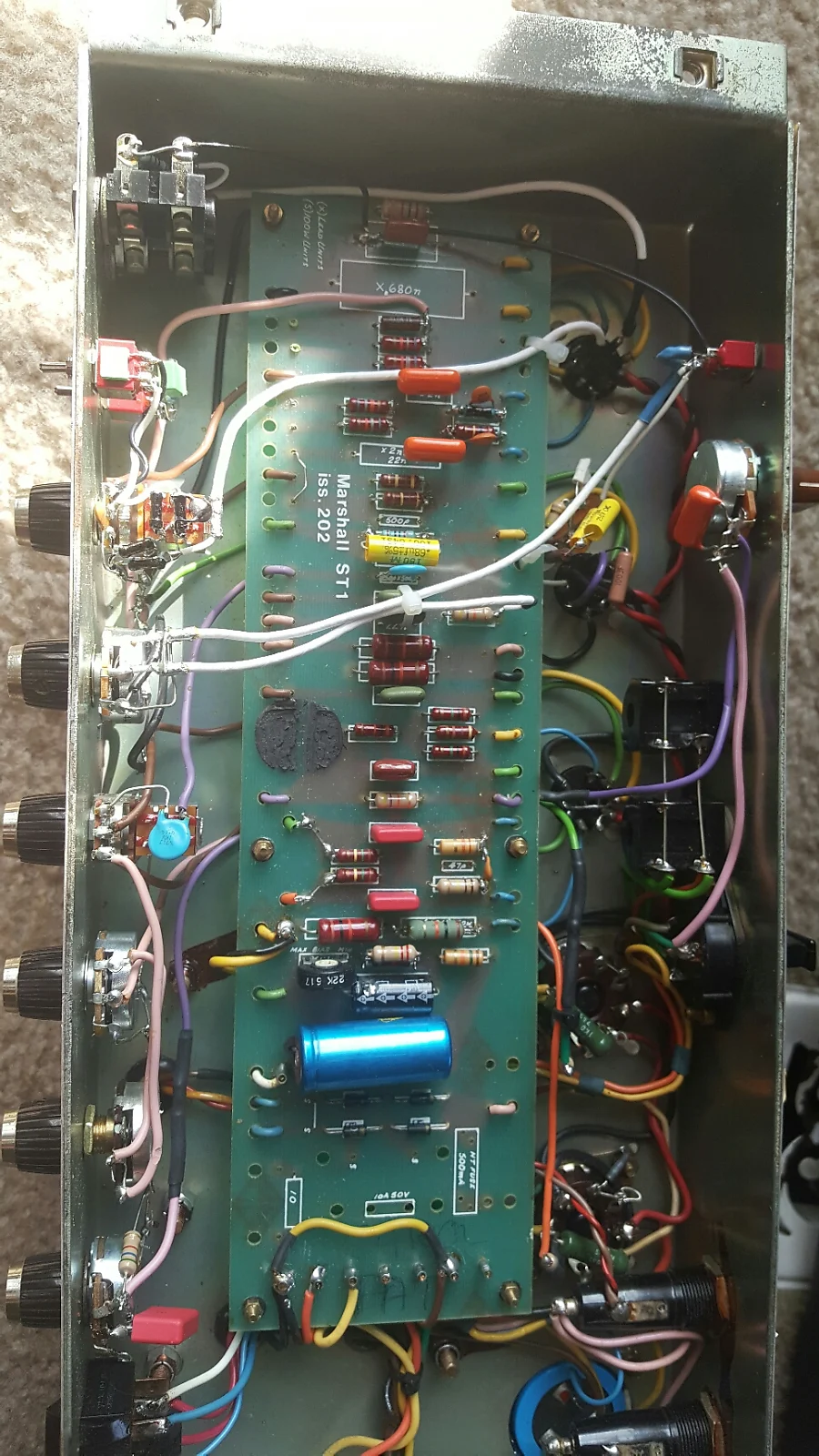

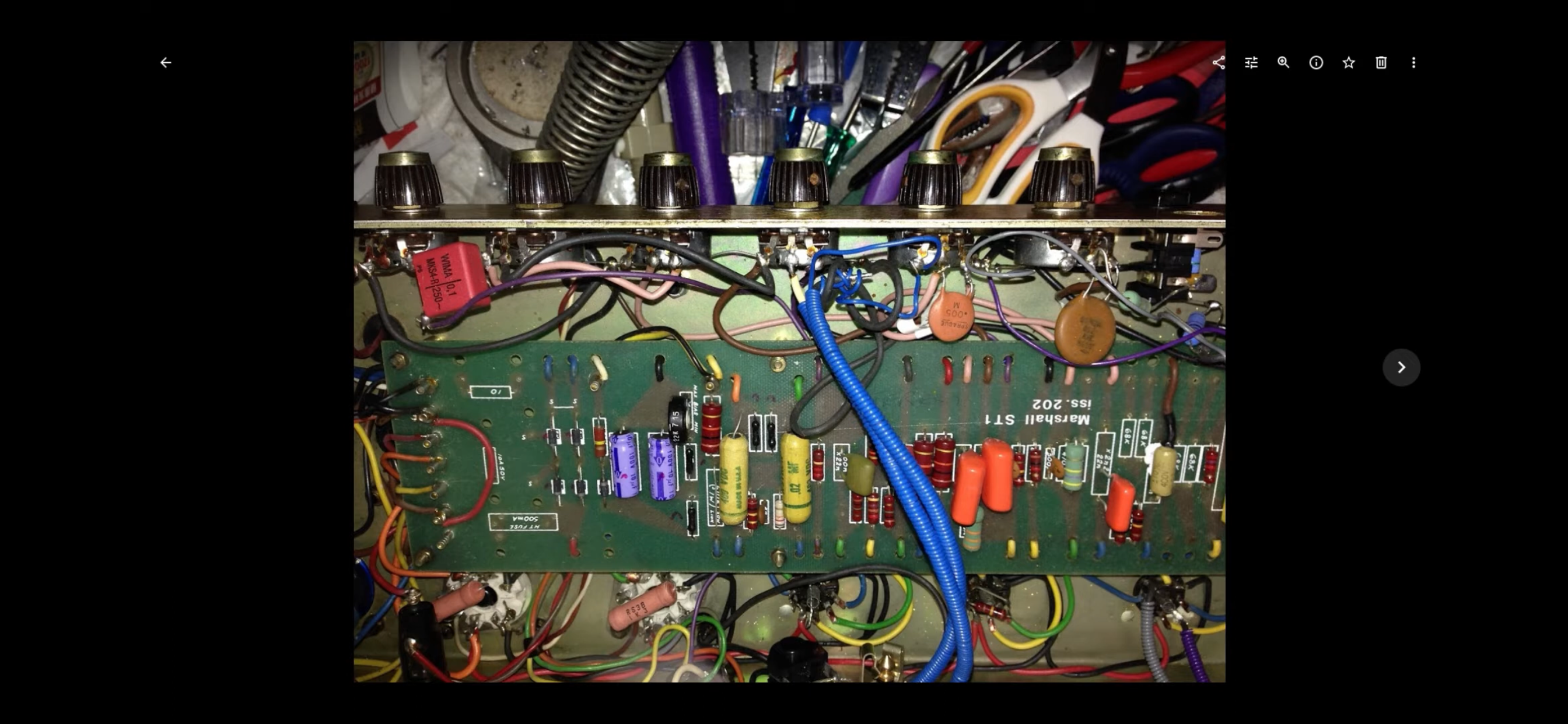

This one is from a mad scientist from Japan he mods tons of amps and builds some of the craziest mods on the net however I suppose this one is a genuine one :

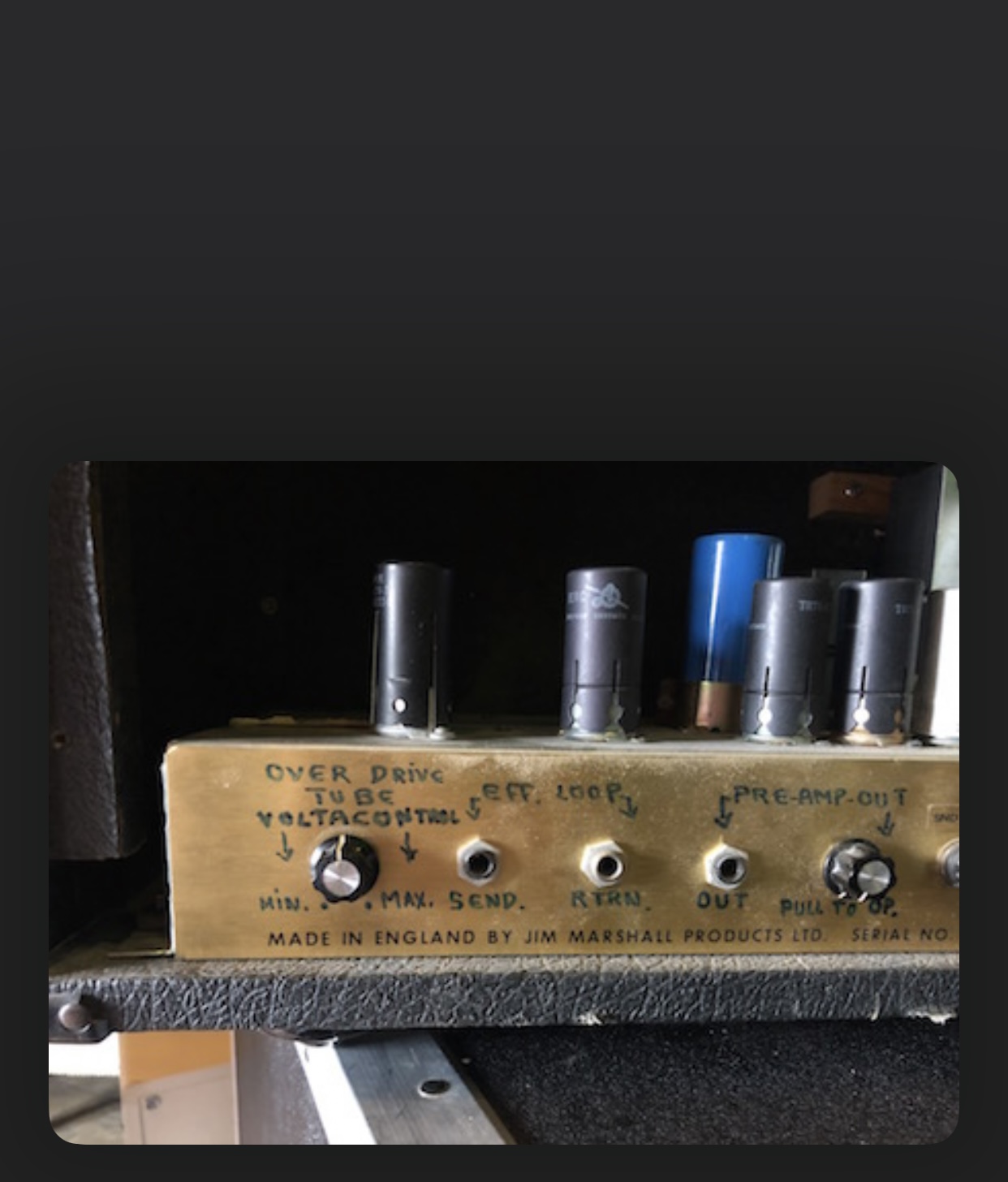

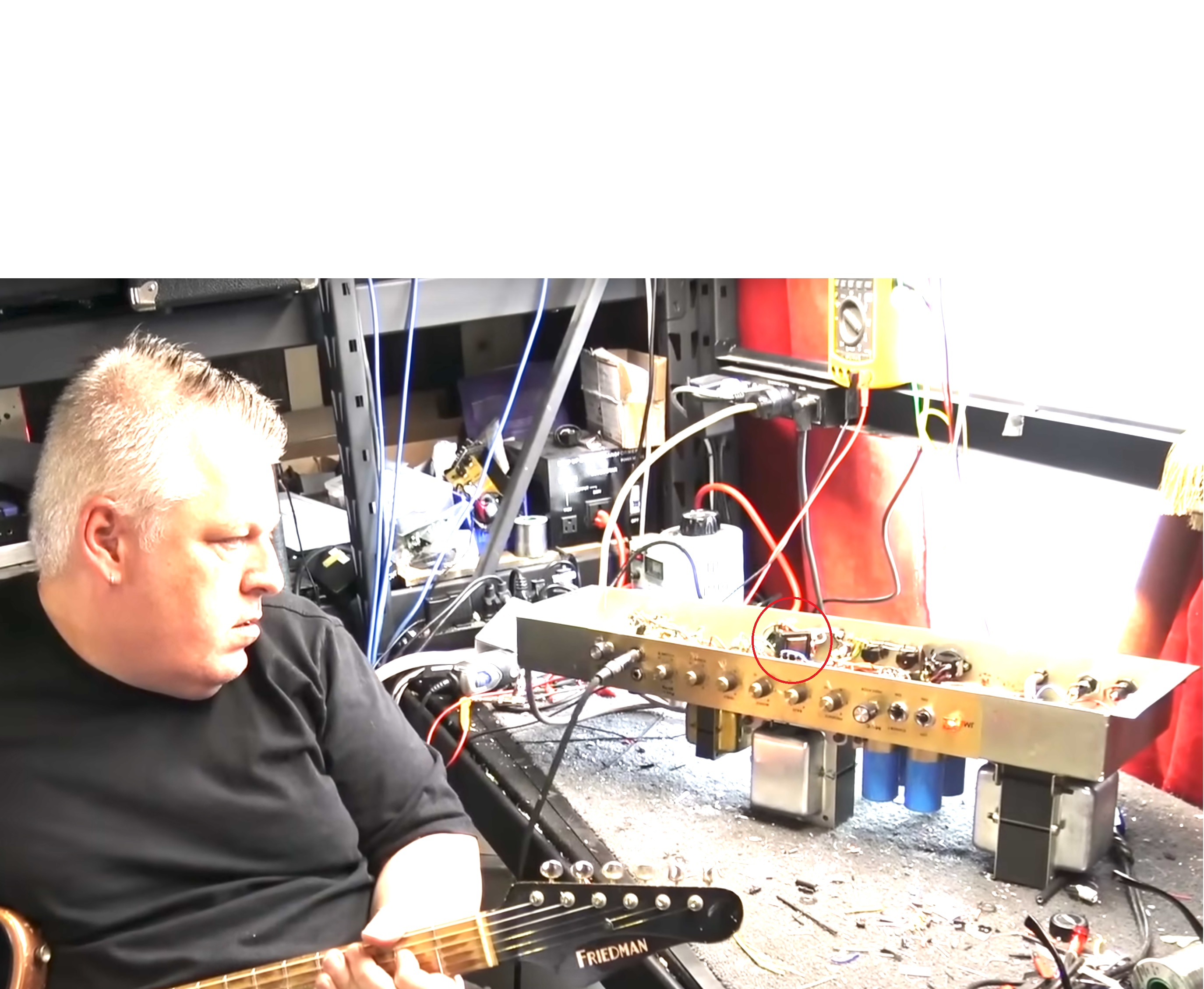

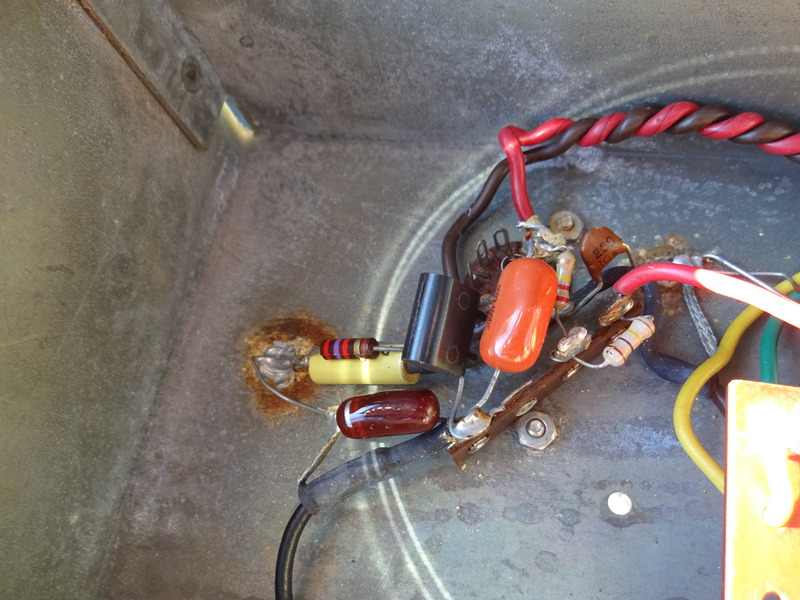

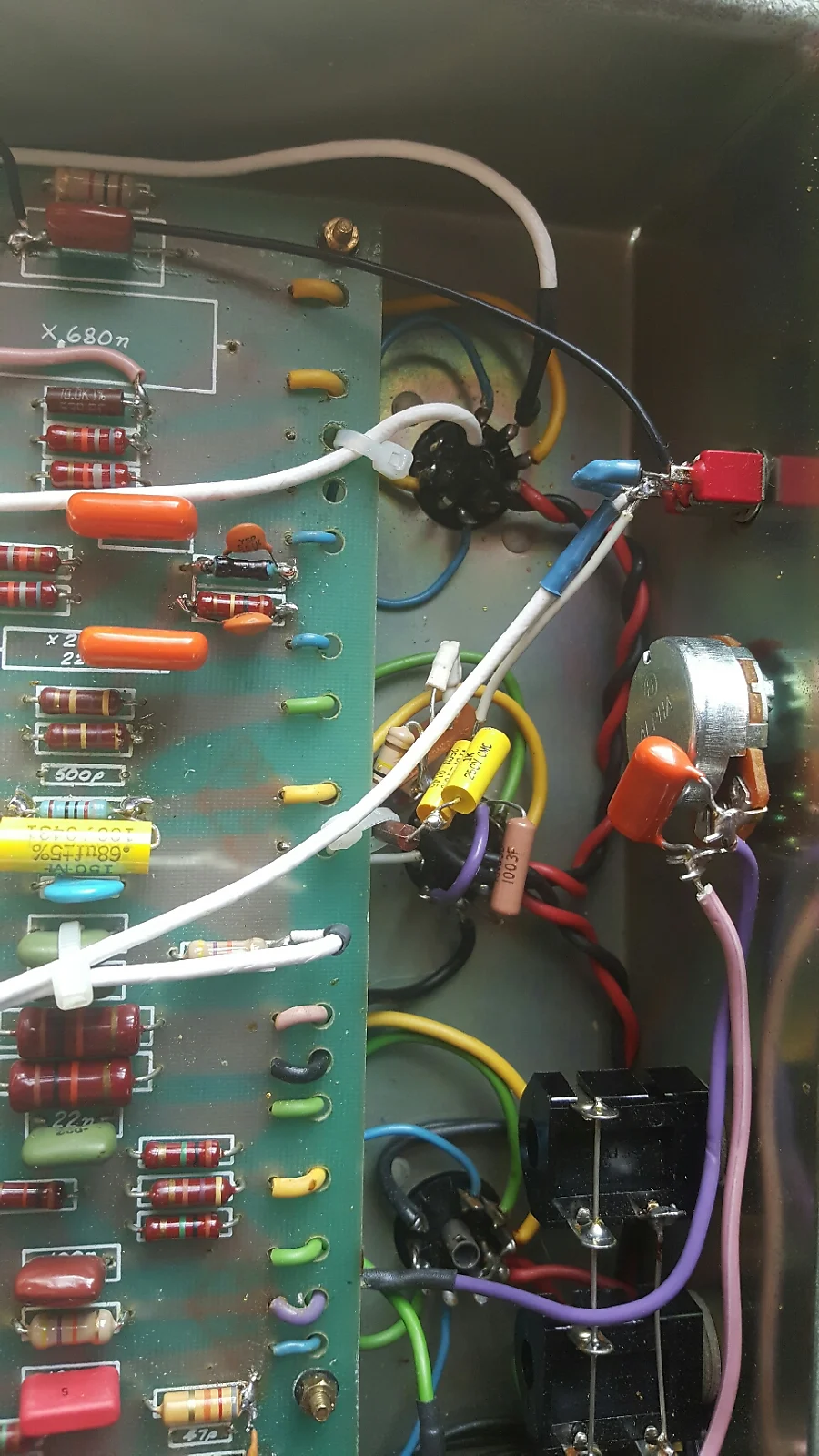

This however is a big mystery apparently that’s an amp that Dave Friedman got to service in LA and it has an overdrive for tubes working with a volt control ? I’m like wtf is this ? Perhaps there is a reason why some rare Jose’s have mini transformers in them other than for switches.




I think this perhaps could be linked to the pot in the back of eddie’s amp

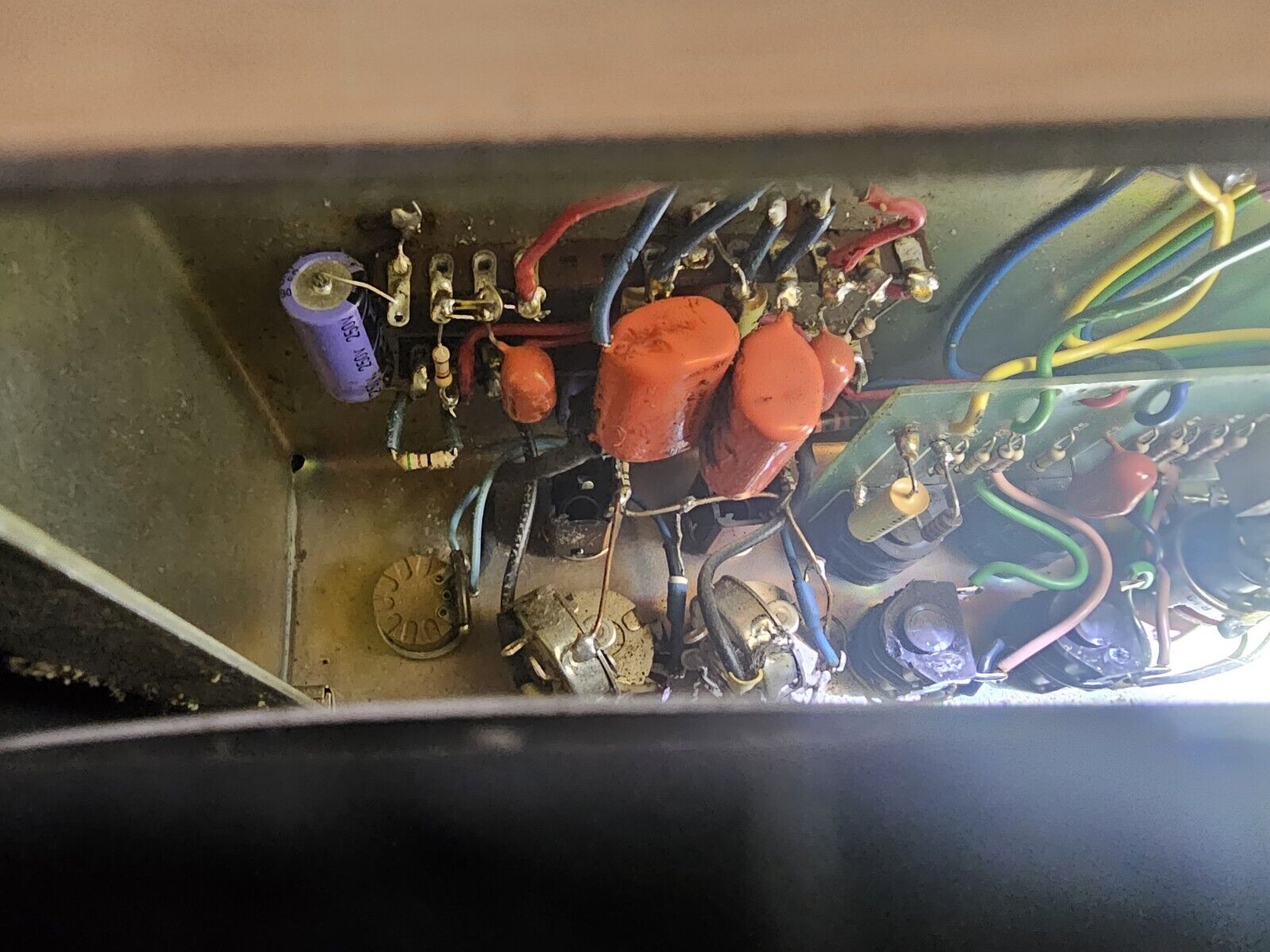

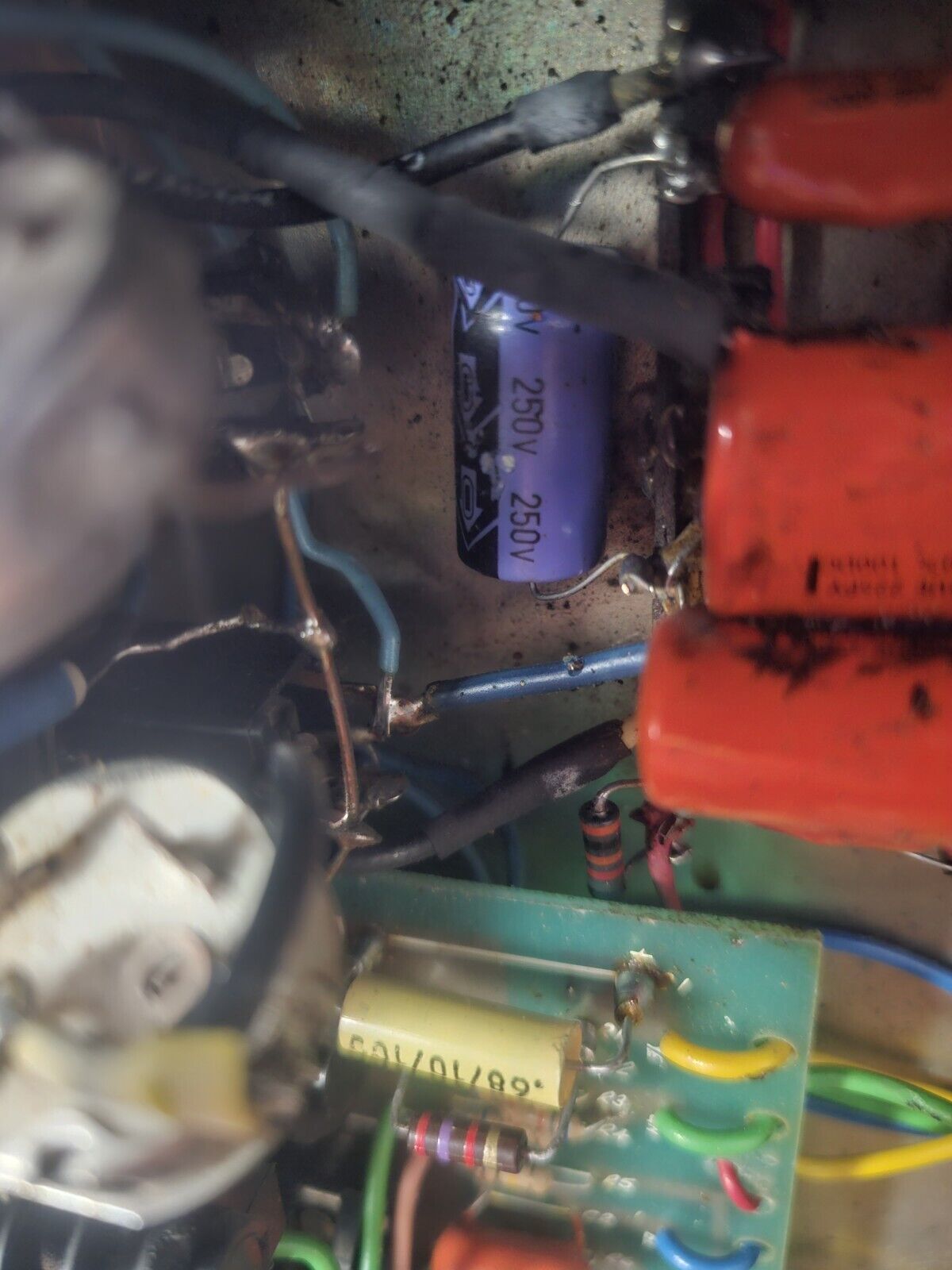

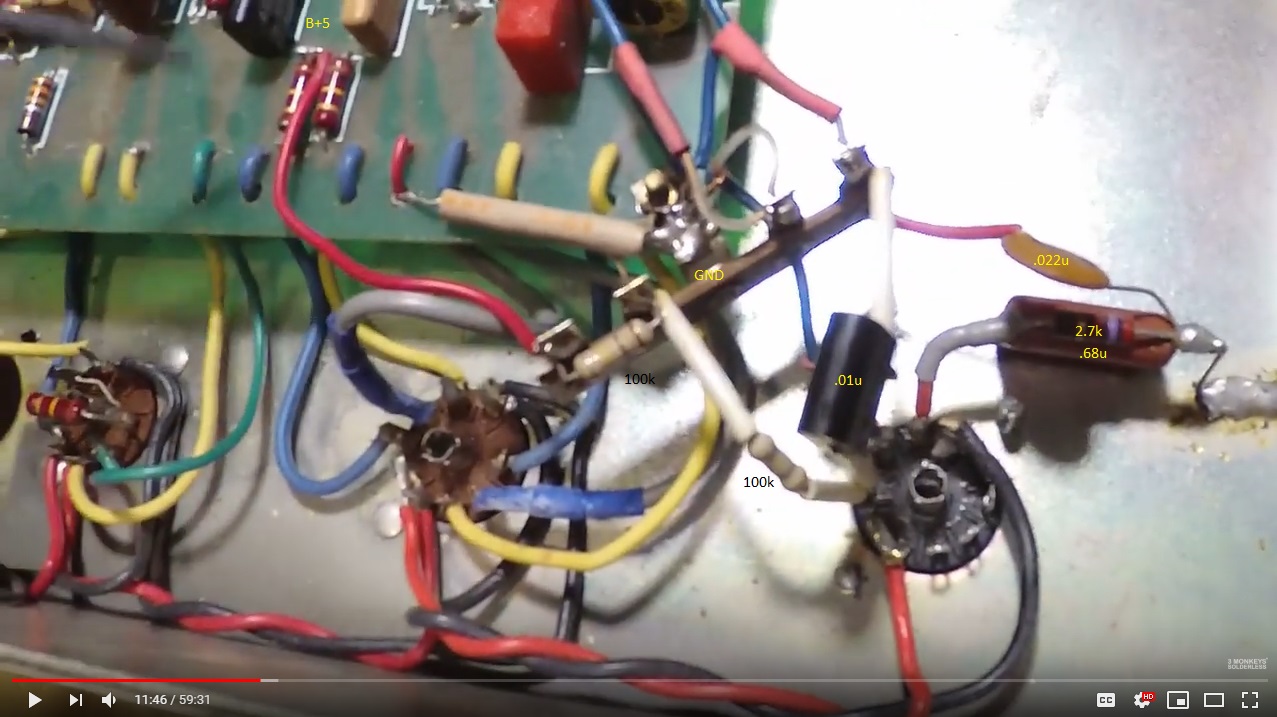

I can tell you that the blue purple electrolytic caps are 22uf that’s what I know.
