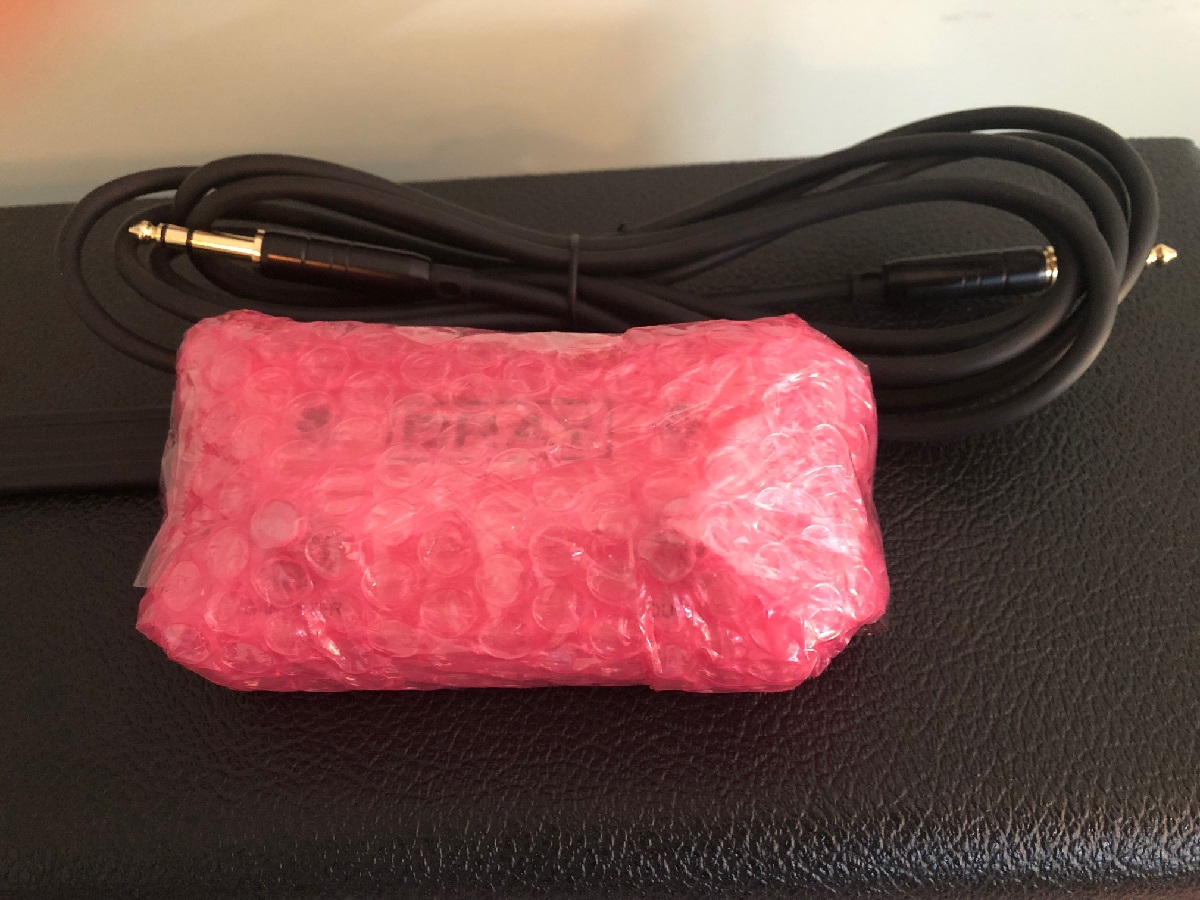

For sale is my Bray Alphaplex COCO 50. It is in like-new condition and works as it should and comes with power cable/footswitch-cable. Wanting to fund other purchases at the moment and already got other amps that can get similar tones. Sold
Bray Alphaplex COCO 50 Features:
More info- https://davidbrayamps.com/coco50.html
The BRAY® ALPHAPLEX™ COCO™ 50 INCLUDES: -Completely hand-wired, hand-soldered turret board and components
-Precision tight-wound tube filament wiring design to eliminate AC filament hum
-Bray spec'd custom-wound transformers by Heyboer, including 100-watt sized output transformer
-Gold color 16 gauge zinc-plated steel chassis
-3 ECC83 preamp tubes, 2 EL34 output tubes
-Adjustable input voltages of 100v, 120v, 220v, 230v/240v

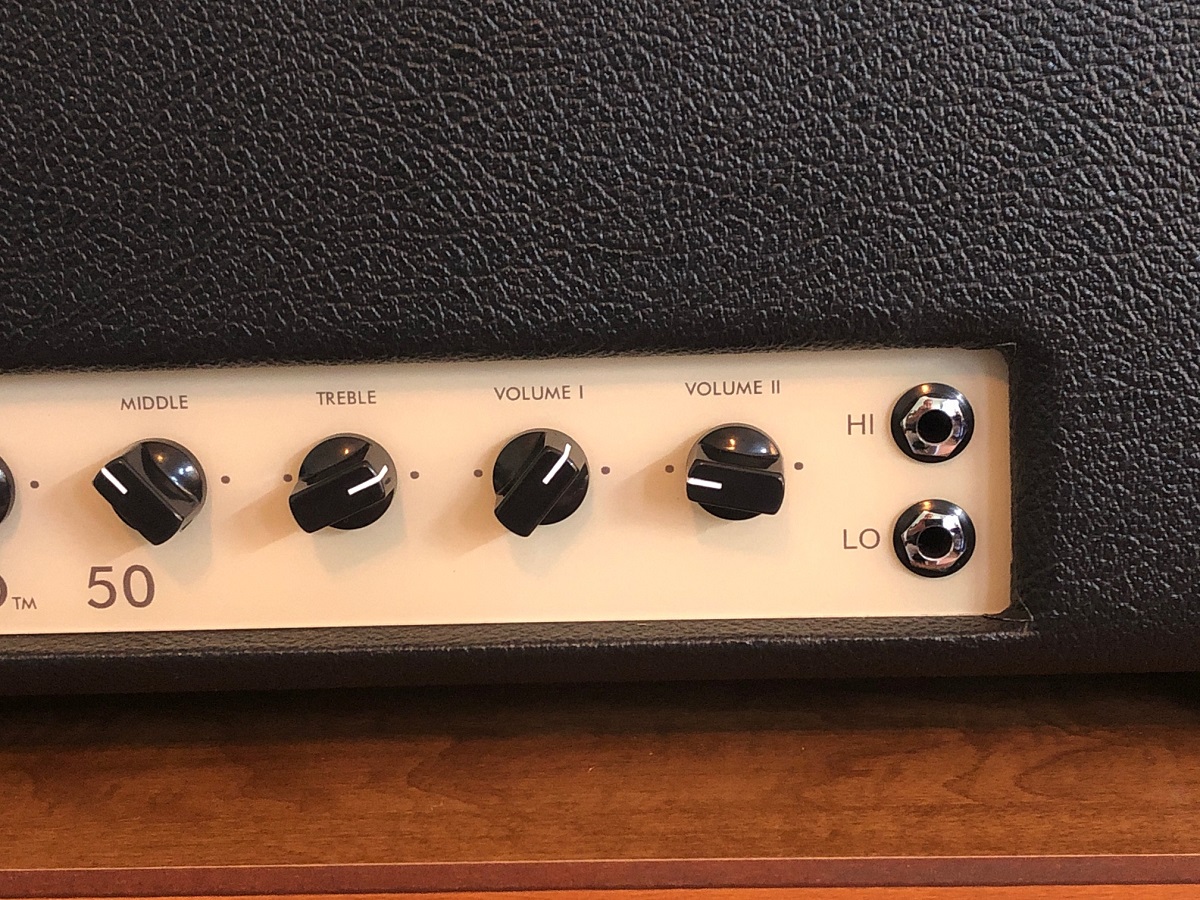

-Input jacks: The HI jack offers the most gain and aggression. Like a stock plexi, the bottom LO jack offers a cleaner and slighly darker sound.
-Volume I, Volume II: Like a plexi, VOLUME I and VOLUME II are “semi-channels” that run in parallel. VOLUME I is brighter and offers more “snarl”, while VOLUME II is darker, cleaner, and has slightly more low end. While the stock VOLUME II channel on a plexi is very dark and muddy, VOLUME II on the COCO™ 50 is much more usable. I enjoy having VOLUME II on 5, and VOLUME I on 2-3, while making use of the GANGSTER™ button (see below).
-Gangster ™ Button: Affects the VOLUME I setting via the included footswitch. When the GREEN footswitch LED is ON, this causes the VOLUME I setting to go instantly to 10, from whatever setting it is set at. Have it on 4 for a classic mild breakup, then step on the button and BANG, instant gain boost without a tone change distraction. Or, have it set lower for a clean sound, then hit the button for FULL drive. You can also turn VOLUME I completely down, and rely only on VOLUME II for your cleaner sound, then step on the footswitch for your drive sound. The GANGSTER™ feature is an effective way to mimmick a dual-channel amplifier without the extra knobs and tone change when switching.

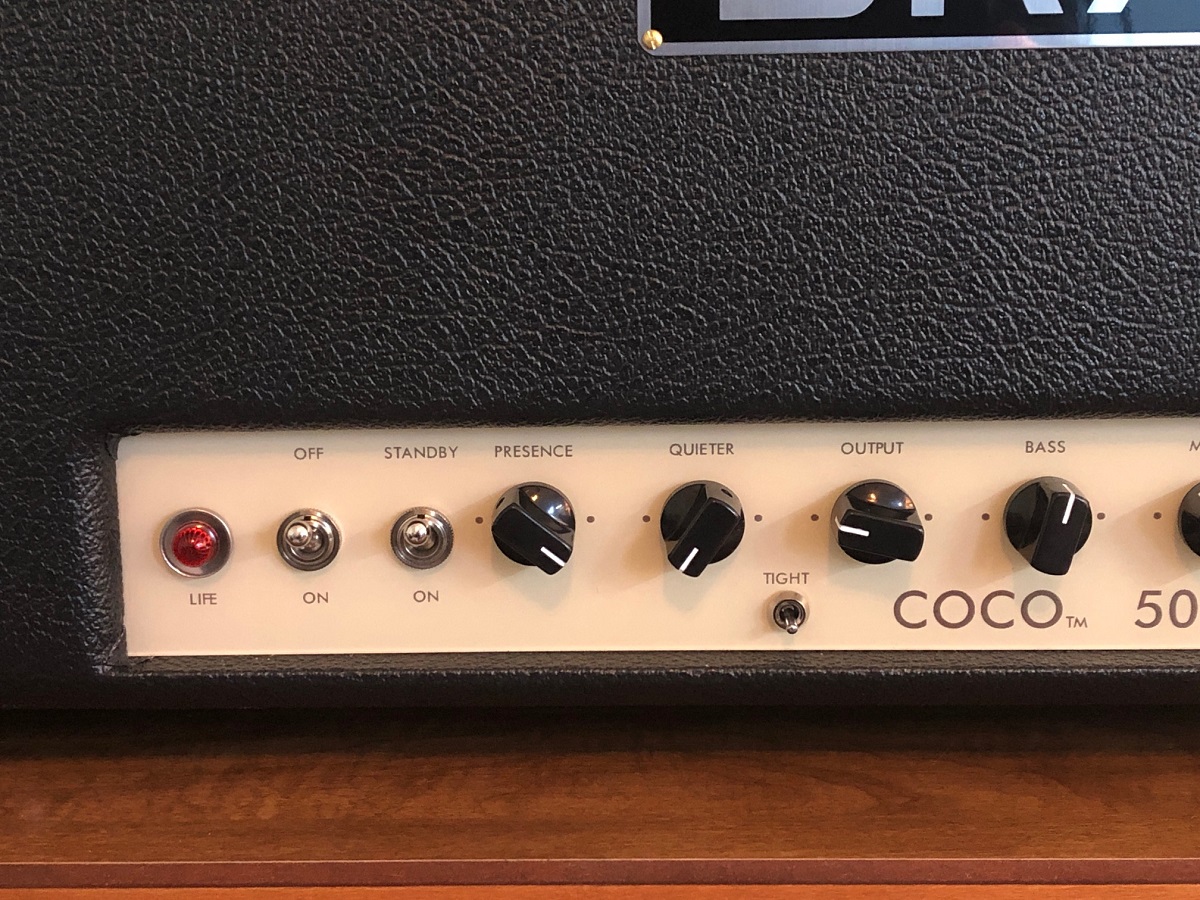

-Dual-Output Levels: “Output” level controls overall output coming from the amp. “Quieter” level is made active using the included footswitch, and reduces the Output Level when activated. Use this knob to determine the distance between your Lead and Rhythm volume levels. The higher you raise the Quieter knob, the closer your RHYTHM and SOLO levels will be. Gives you a SOLO volume boost, in addition to letting you stay loud when you turn your guitar down for a clean sound. - (H) 9" x (W) 26" x (D) 8-3/4" , 42 lbs.
Bray Alphaplex COCO 50 Features:
More info- https://davidbrayamps.com/coco50.html
The BRAY® ALPHAPLEX™ COCO™ 50 INCLUDES: -Completely hand-wired, hand-soldered turret board and components
-Precision tight-wound tube filament wiring design to eliminate AC filament hum
-Bray spec'd custom-wound transformers by Heyboer, including 100-watt sized output transformer
-Gold color 16 gauge zinc-plated steel chassis
-3 ECC83 preamp tubes, 2 EL34 output tubes

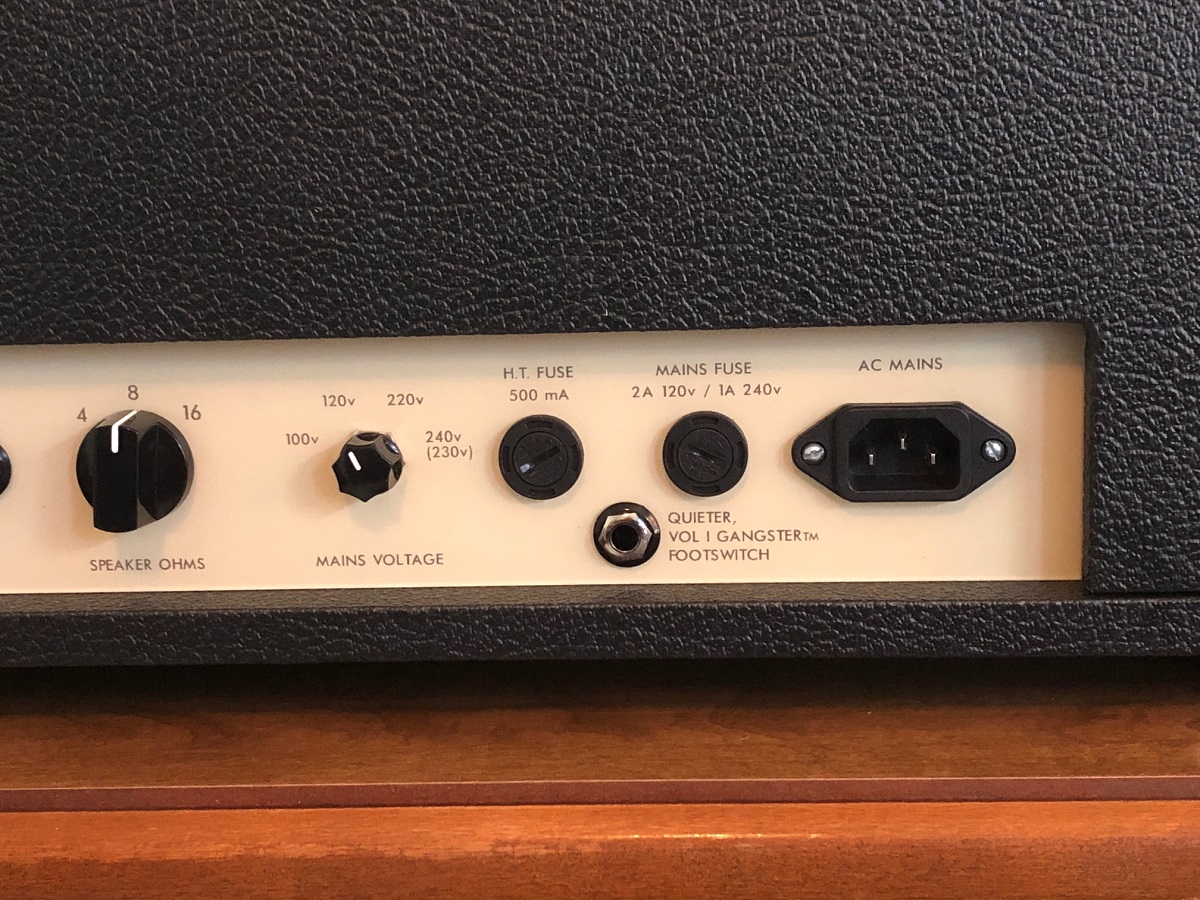

-Adjustable input voltages of 100v, 120v, 220v, 230v/240v
-Input jacks: The HI jack offers the most gain and aggression. Like a stock plexi, the bottom LO jack offers a cleaner and slighly darker sound.
-Volume I, Volume II: Like a plexi, VOLUME I and VOLUME II are “semi-channels” that run in parallel. VOLUME I is brighter and offers more “snarl”, while VOLUME II is darker, cleaner, and has slightly more low end. While the stock VOLUME II channel on a plexi is very dark and muddy, VOLUME II on the COCO™ 50 is much more usable. I enjoy having VOLUME II on 5, and VOLUME I on 2-3, while making use of the GANGSTER™ button (see below).
-Gangster ™ Button: Affects the VOLUME I setting via the included footswitch. When the GREEN footswitch LED is ON, this causes the VOLUME I setting to go instantly to 10, from whatever setting it is set at. Have it on 4 for a classic mild breakup, then step on the button and BANG, instant gain boost without a tone change distraction. Or, have it set lower for a clean sound, then hit the button for FULL drive. You can also turn VOLUME I completely down, and rely only on VOLUME II for your cleaner sound, then step on the footswitch for your drive sound. The GANGSTER™ feature is an effective way to mimmick a dual-channel amplifier without the extra knobs and tone change when switching.
-Dual-Output Levels: “Output” level controls overall output coming from the amp. “Quieter” level is made active using the included footswitch, and reduces the Output Level when activated. Use this knob to determine the distance between your Lead and Rhythm volume levels. The higher you raise the Quieter knob, the closer your RHYTHM and SOLO levels will be. Gives you a SOLO volume boost, in addition to letting you stay loud when you turn your guitar down for a clean sound. - (H) 9" x (W) 26" x (D) 8-3/4" , 42 lbs.
