Features and Specs:
PRESENCE SWITCH.
The Presence switch provides subtle control of brightness and compression. It allows you to tailor the response to match your acoustic environment and to correct for an overly bright amplifier. Three settings are provided: 0db (brightest setting), -3db, and -6db (darkest setting).
DI XLR AND ¼” LINE-LEVEL OUTPUTS.
The Ironman II’s Line-Out and DI outputs provide a line-level signal that can be used to drive another amplifier, mixing board, recording interface, or any other line-level input. To sweeten the pot, the DI out features an analog speaker cabinet simulation (with switches to select between speaker center or edge micing and ground-lift) that compares head-on with some of the most intricate computer-based IRs out there.
IMPEDANCE MATCHING.
Another unique feature of the Ironman II is its dual impedance controls – one for the amplifier input, and one for the speaker output. These controls allow you to match your speaker to your amplifier, regardless of the amp’s output impedance.
USE AS A DUMMY LOAD.
Want to record or practice silently? No problem. The Ironman II can easily be used as a dummy load with no speakers attached. This is ideal for using the cab-emulated out, your favorite IRs, plugging in a set of headphones for big amp vibe that won’t wake the neighbors.
TECHNICAL DETAILS

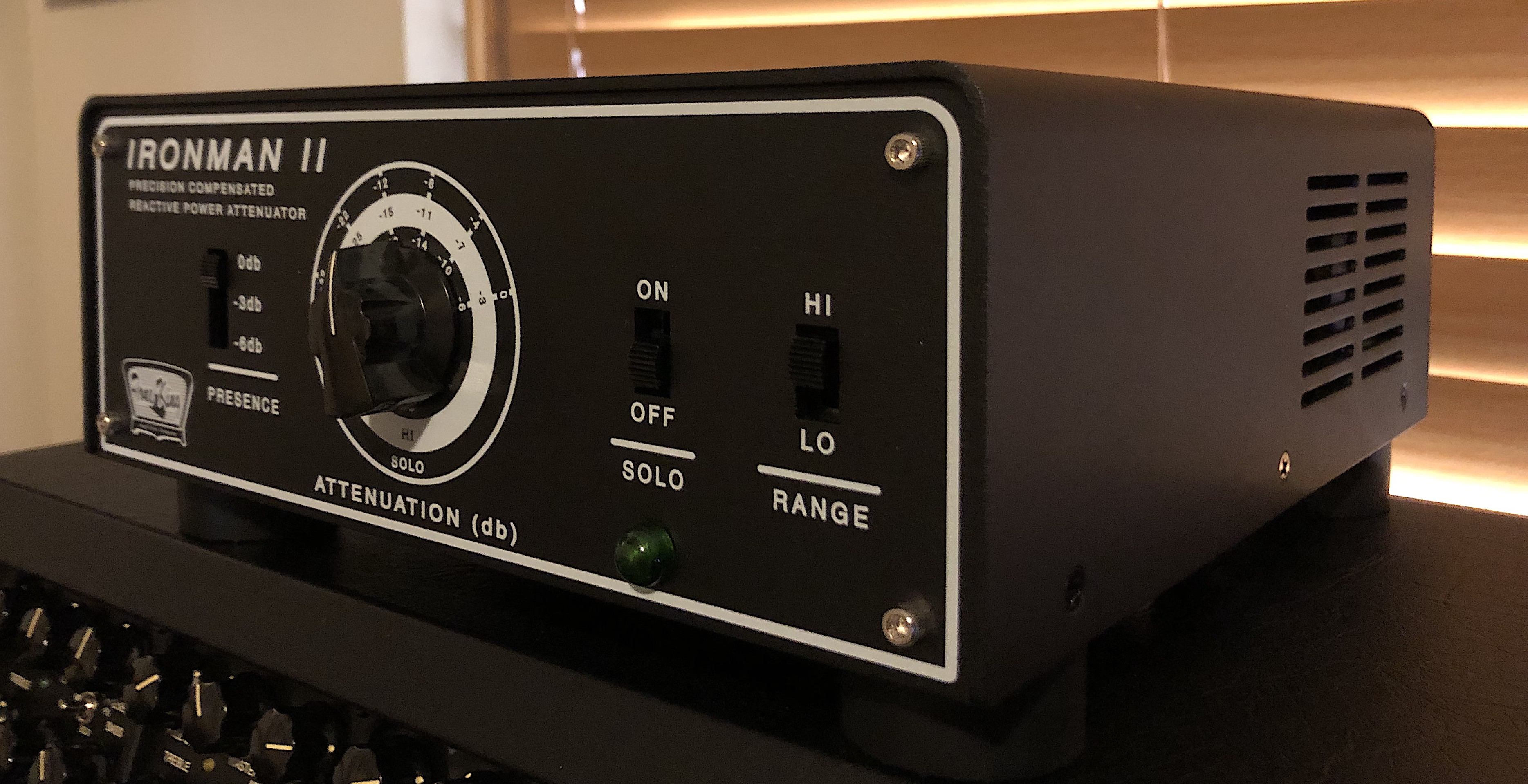

Front Panel:
Rear Panel:
Weight: 15 lbs.
Dimension: 10.25″ (deep)x 9.5″ (wide) x 3.75″ (high)
Features and Specs:
PRESENCE SWITCH.
The Presence switch provides subtle control of brightness and compression. It allows you to tailor the response to match your acoustic environment and to correct for an overly bright amplifier. Three settings are provided: 0db (brightest setting), -3db, and -6db (darkest setting).
DI XLR AND ¼” LINE-LEVEL OUTPUTS.
The Ironman II’s Line-Out and DI outputs provide a line-level signal that can be used to drive another amplifier, mixing board, recording interface, or any other line-level input. To sweeten the pot, the DI out features an analog speaker cabinet simulation (with switches to select between speaker center or edge micing and ground-lift) that compares head-on with some of the most intricate computer-based IRs out there.
IMPEDANCE MATCHING.
Another unique feature of the Ironman II is its dual impedance controls – one for the amplifier input, and one for the speaker output. These controls allow you to match your speaker to your amplifier, regardless of the amp’s output impedance.
USE AS A DUMMY LOAD.
Want to record or practice silently? No problem. The Ironman II can easily be used as a dummy load with no speakers attached. This is ideal for using the cab-emulated out, your favorite IRs, plugging in a set of headphones for big amp vibe that won’t wake the neighbors.
TECHNICAL DETAILS
Front Panel:
- Attenuation Settings:
- SOLO: 0dB, -4dB, -8dB, -12dB, -22dB and-32dB
- HI: -3dB, -7dB, -11dB, -15dB, -25dB, -35dB
- LO: -6dB, -10dB, -14dB, -18dB, -28dB, -38dB
- Presence: 0dB, -3dB or -6dB
- Switches: Hi/Lo Switch and Solo
Rear Panel:
- Amplifier Impedance Switch: 4, 8 or 16 ohms
- Speaker Impedance Switch: 4, 8 or 16 ohms
- XLR DI Output with switches for: GND, AXIS and LEVEL
- 1/4″ Line Out
- Foot Switch jack – foot switch is included
- 12V DC Jack – use the included power supply
Weight: 15 lbs.
Dimension: 10.25″ (deep)x 9.5″ (wide) x 3.75″ (high)
