This happens when Peter gives me his unused chassis

[duesentrieb]

I have finalized this:

It is a three channel amp, 6 ECCs, serial/parallel loop, 100 Watts, VH4 power tranny, Custom output tranny, former Einstein proto chassis, individual eqs and some voicing switches.

The frontplate (black) will be manufactured soon. The grille is black . . .

It is the same circuitry as in Alex Flouros' Duesentrieb "Jaguar" amp, which also made from former Diezel parts. Thanks to Peter for the old chassis, the headshell, the PT, OT, Choke, most of the tubes and esp. this time the new loop he created for me !!!!

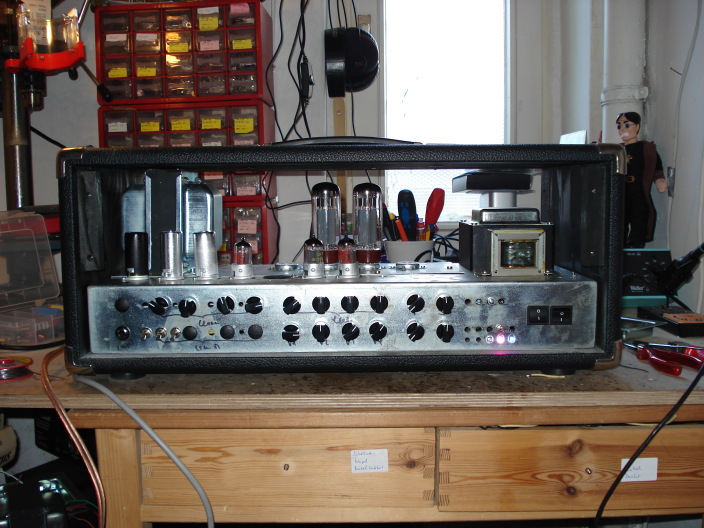

Here's the running amp with just two toobes:



[Peter Diezel]

Hey Prof,

no more support, because it looks like serious competition.



Would like to hear it soon !



[nbarts]

Clips



[duesentrieb]

Hey Prof,

no more support, because it looks like serious competition.



Would like to hear it soon !

It sounds like the (black, Herbert chassis) amp I've sent to Alex last year - which you've liked (a lot)

Klar, ich komme nach der Messe vorbei.



[Anonymous]

Beautiful work Olaf!..as usual.



[duesentrieb]

Thanks Stephen. It has the first two channels from "Alizee" plus a high gain channel. Same loop too - and pink LEDs



[duesentrieb]



[Lexicon Devil]

What kind of Output Transformer do you have in it? Drake/Dagnalls Marshall style? Also what type of Tonestack and placement of the stack? Tweed Fender/Marshall, Later Blackface Fender, or a Baxendall stack? --It's a nice build.



[van hellion]

If you keep this up Olaf you might have to ship one of those to Tennessee how much would one of those guys set a brother back? Work looks fantastic!

peace
Andy W



[duesentrieb]

What kind of Output Transformer do you have in it? Drake/Dagnalls Marshall style? Also what type of Tonestack and placement of the stack? Tweed Fender/Marshall, Later Blackface Fender, or a Baxendall stack? --It's a nice build.

The OT was custom wound by Dagnall for Peter - for tests and stuff. He didn't need it anymore, so he gave it to me.

Clean tonestack is 56k/250pF/22nF/22nF - one gainstage + separate CF, add. switch to go from Hifi-clean to "warm" clean
Crunch tonestack is 39k/500pF/22nF/22nF - three stages shared CF, decoupled from lead
Lead tonestack is 47k/500pF/22nF/22nF - four gainstages shared CF, decoupled from crunch



[duesentrieb]

If you keep this up Olaf you might have to ship one of those to Tennessee how much would one of those guys set a brother back? Work looks fantastic!

peace
Andy W

Thanks Andy - I'm feeling honored, but if I were you I'd wait for Peter's new flagship



[van hellion]

thats the word on the street! i have already got wheels turning on grabbing up one of those guys
your work is still super top notch! you constantly impress me with your quality and attention to little details!
peace
Andy W



[JohnRageOn]

thats the word on the street! i have already got wheels turning on grabbing up one of those guys
your work is still super top notch! you constantly impress me with your quality and attention to little details!
peace
Andy W

Indeed he's an excellent builder I testify this myself
And he also has a great taste on tone.



[duesentrieb]

Have you played Alex' amp, John?



[JohnRageOn]

Have you played Alex' amp, John?

Only seen it. But he's playing with it all the time AFAIK.



[Anonymous]

Thanks Stephen. It has the first two channels from "Alizee" plus a high gain channel. Same loop too - and pink LEDs

It's nice to know that a design has staying power and is a good basis onwhich to build.
