Tweaker 15, clean, hot, switch mod ( foot switchable kit)

[jamme61]

I have a tweaker and wanted the clean hot switch to be foot switchable. I talked to skip from http://skipzcircuits.com/ to do the mod. I sent my tweaker to skip (he has worked on my plexi before fantastic work) he did the install and may start offering a kit. the amp now works via the toggle switch on the front, or by foot switch. a lot of different ways to use this now. If anyone is interested contact skip http://skipzcircuits.com/Contact.html his stuff is top notch with great support.

link to CHSW http://skipzcircuits.com/CHSW.html



[Riffraff]

That looks like a cool little mod. I assume you are using this for a lead boost. How is it working out?

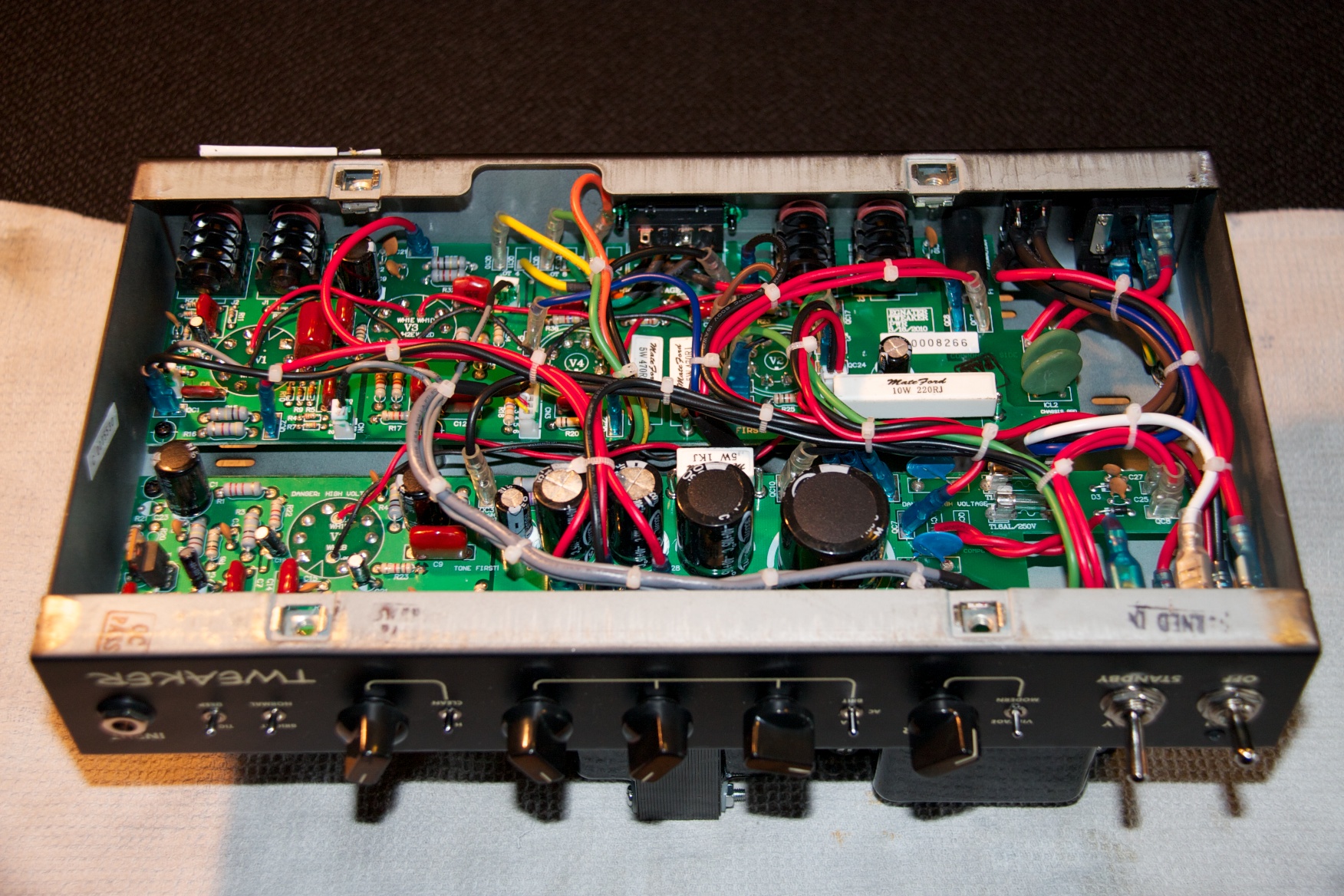

The speaker jacks in the T15 are PCB mounted so installing it in an unused speaker jack isn't really an easy install. The existing 2nd speaker jack would need to be pulled off the board to make room.
Did skip just drill a new mounting hole for it? That looks like the only easy solution. It looks like room could be made for mounting it in a new hole by replacing the straight quick connect terminals on the
yellow, green and orange conductors with right angle types where they plug into the board next to the impedance selector. Is that where he installed yours?
