What is the tube layout on Rocktron ie4?

[Rickinmemphis]

The tube sockets are numbered in my Rocktron ie4, but I don't know which numbers correspond to each channel (or for anything else for that matter). I would like to experiment with various tubes. Which socket does what? Many thanks in advance!



[guitarslinger]

You know 12AX7's are dual triodes, right? They have an A and B side to them, so many will be shared by multiple channels. That said, here goes:

input = V1A
CH 1 = V1B, V7B, V7A
CH 2 = V2A, V3A, V7A
CH 3 = V3B, V6B, V6A, V7A
CH 4 = V2B, V4B, V5B, V5A, V7A



[Rickinmemphis]

Thanks!



[marco70_italy]

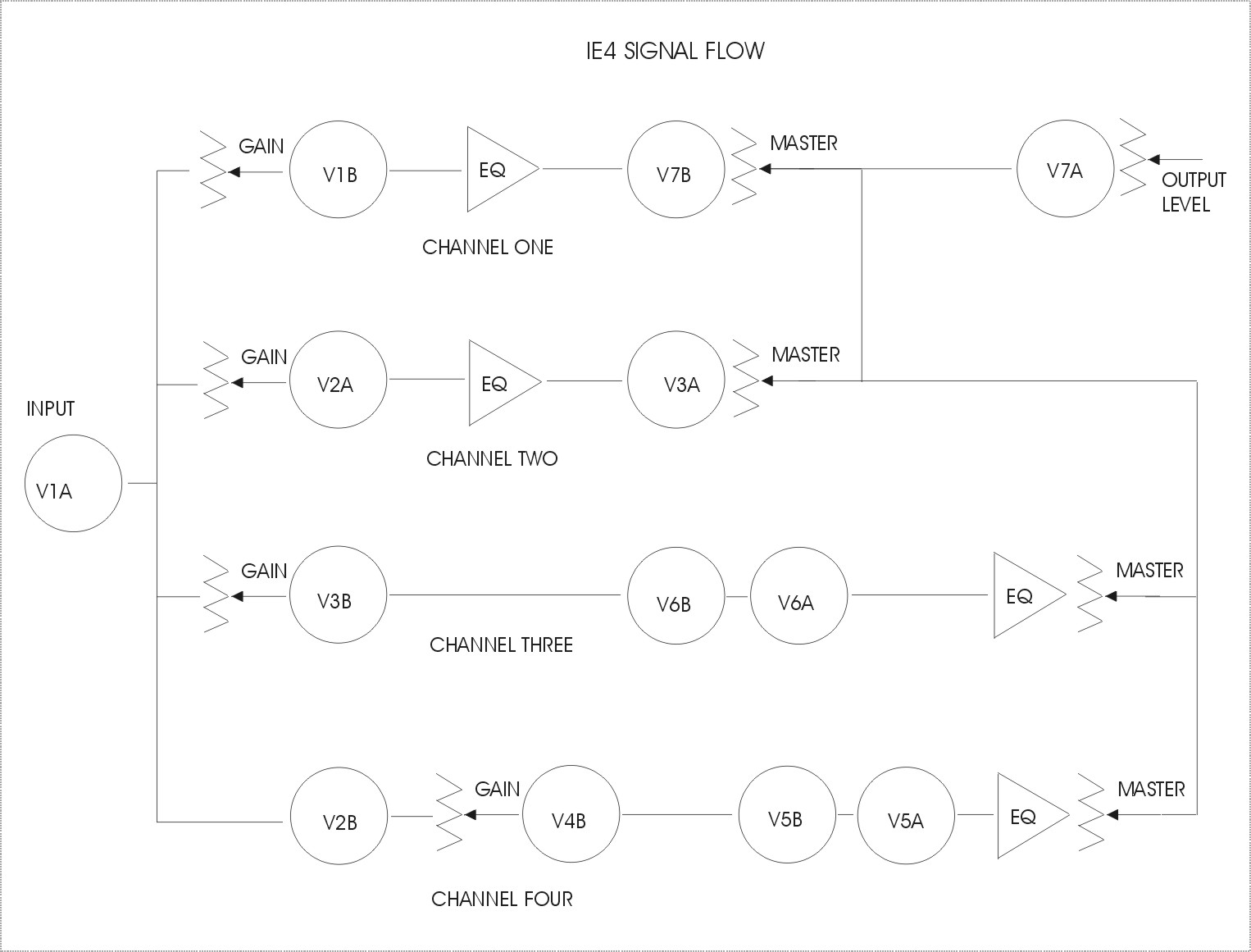

schematic..



[fireheart82]

when you look at the tubes. are they numbered 1234567 starting on the upper tubes from left to right? jacoblatey site is down.. whant to keep the fender clean but change to high gain on the other channels with the jj83s



[fireheart82]

everyone dead here? r.i.p
