Have the coupling caps been changed here?

lespaul6

lespaul6

Well-known member

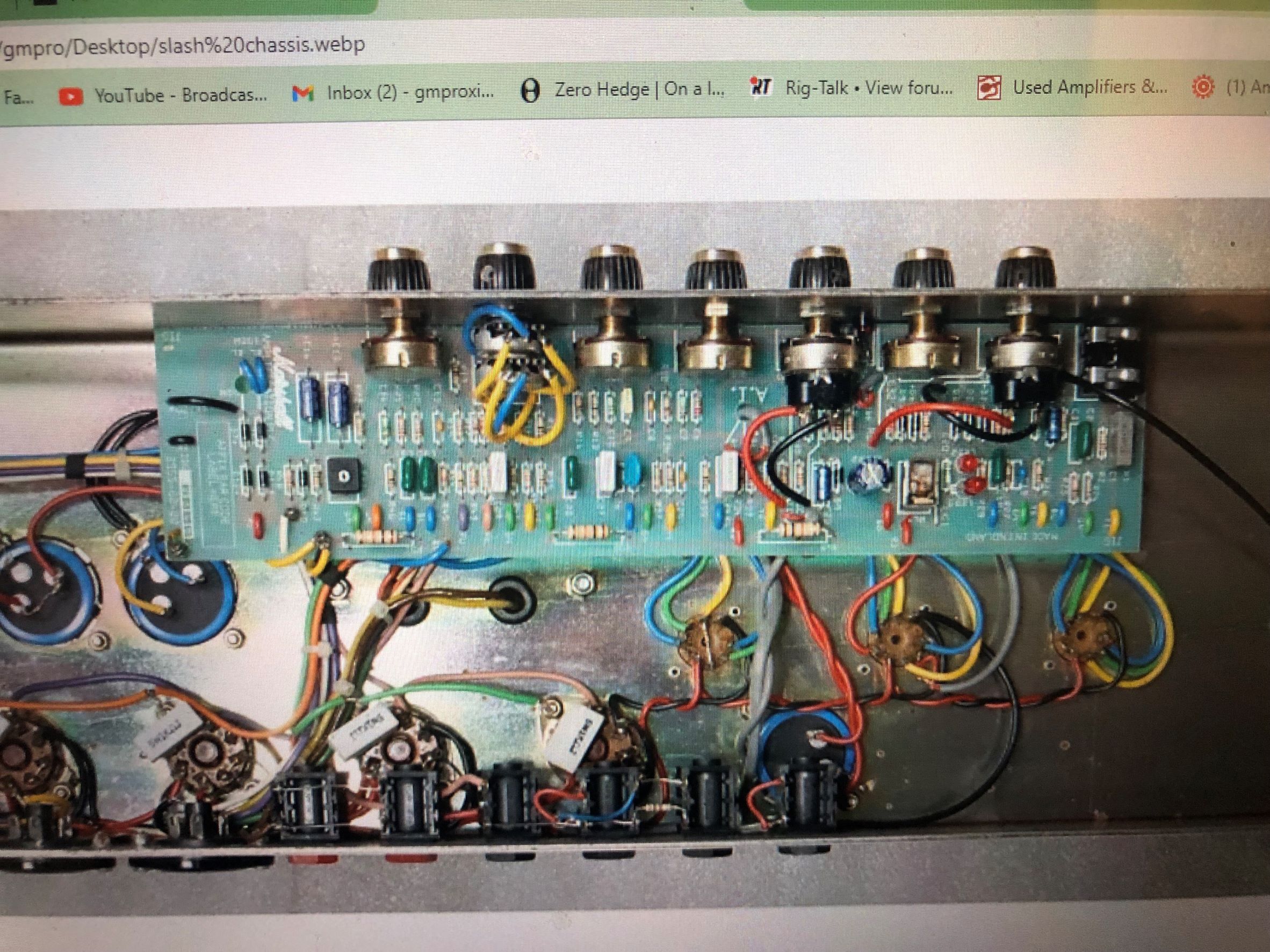

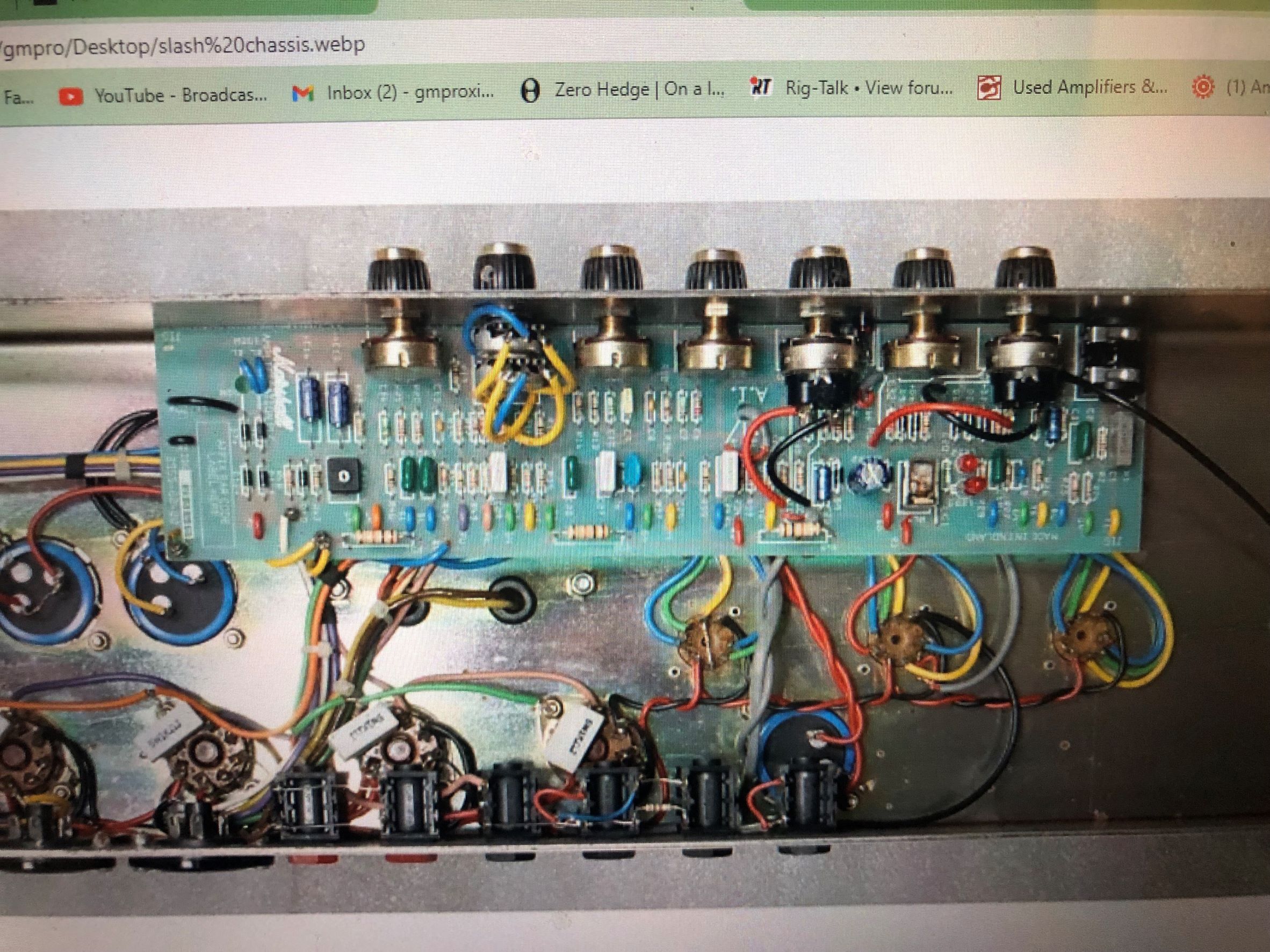

this is a marshall 2555SL made in 96. I'm looking at those green chicklet style caps and they don't appear stock? should they be the grey or tan box style caps that marshall uses? looks like someone used them in all the electrolytic areas? can anyone share their thoughts


Attachments

  • slash chassis .jpg
    slash chassis .jpg
    855.7 KB · Views: 73
lespaul6 said:
this is a marshall 2555SL made in 96. I'm looking at those green chicklet style caps and they don't appear stock? should they be the grey or tan box style caps that marshall uses? looks like someone used them in all the electrolytic areas? can anyone share their thoughts
Click to expand...

No those are indeed stock poly caps given the year.

glpg80 said:
No those are indeed stock poly caps given the year.
Click to expand...
really? man, I'm stumped. Every pic ive seen of this amp used the box caps in all those areas.. I have two of these amps and they are both all box caps and never been touched. Those are electrolytic caps?

lespaul6 said:
really? man, I'm stumped. Every pic ive seen of this amp used the box caps in all those areas.. I have two of these amps and they are both all box caps and never been touched. Those are electrolytic caps?
Click to expand...
Yep they actually don’t sound that bad. The aldrich i have was a 1959 reissue made in 96 and has them all throughout.

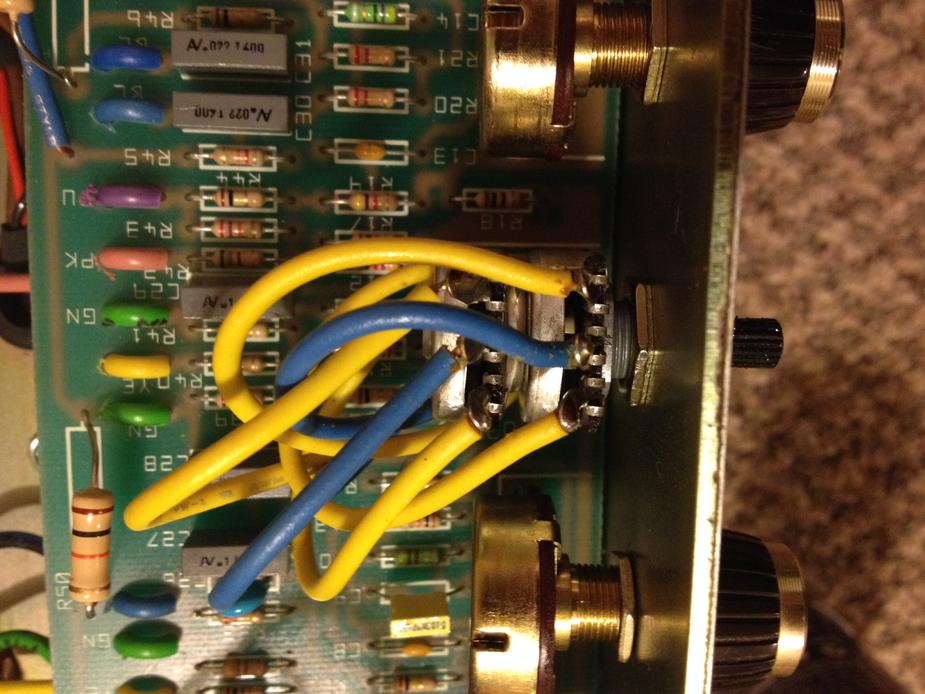

here is a pic of mine... the two coupling caps are box type and connect to those blue wires.. you can see them side by side to one another .022


FYI I've seen a lot of those grey box caps fail in amps from the late 80s. Seems their reliability fades after ~30 years

I always replace all the coupling caps when I mod amps. Usually with WIMA. At least on the late 70’s, early 80’s and reissue amps. I don’t trust the stock ones both for tone and reliability.
