Don’t see a kit for an SD 1 on the site. Would rather buy one already done.Just build a clone from one of the pedal sites.. like AionFX.
Upgrade teh components and incorporate the "mods" as you build it.
Use a Burr-Brown OPA2134 instead of the original IC.
These are the changes Keeley made to the original circuit:
C1 100n
C2 100n
C3 470pF
C4 100n
C5 220pF
C7 1uF
C10 47n
C12 100n
R10 2k4
R12 1k5
R23 20k
The kits come available from time to time.. You don't want the kit anyway, because you want to spec the components yourself to have the "modded" specs.Don’t see a kit for an SD 1 on the site. Would rather buy one already done.
I can build you one with custom graphics ..... be about 150 ... shippedDon’t see a kit for an SD 1 on the site. Would rather buy one already done.
You have some examples of your work ?I can build you one with custom graphics ..... be about 150 ... shipped
You have some examples of your work ?

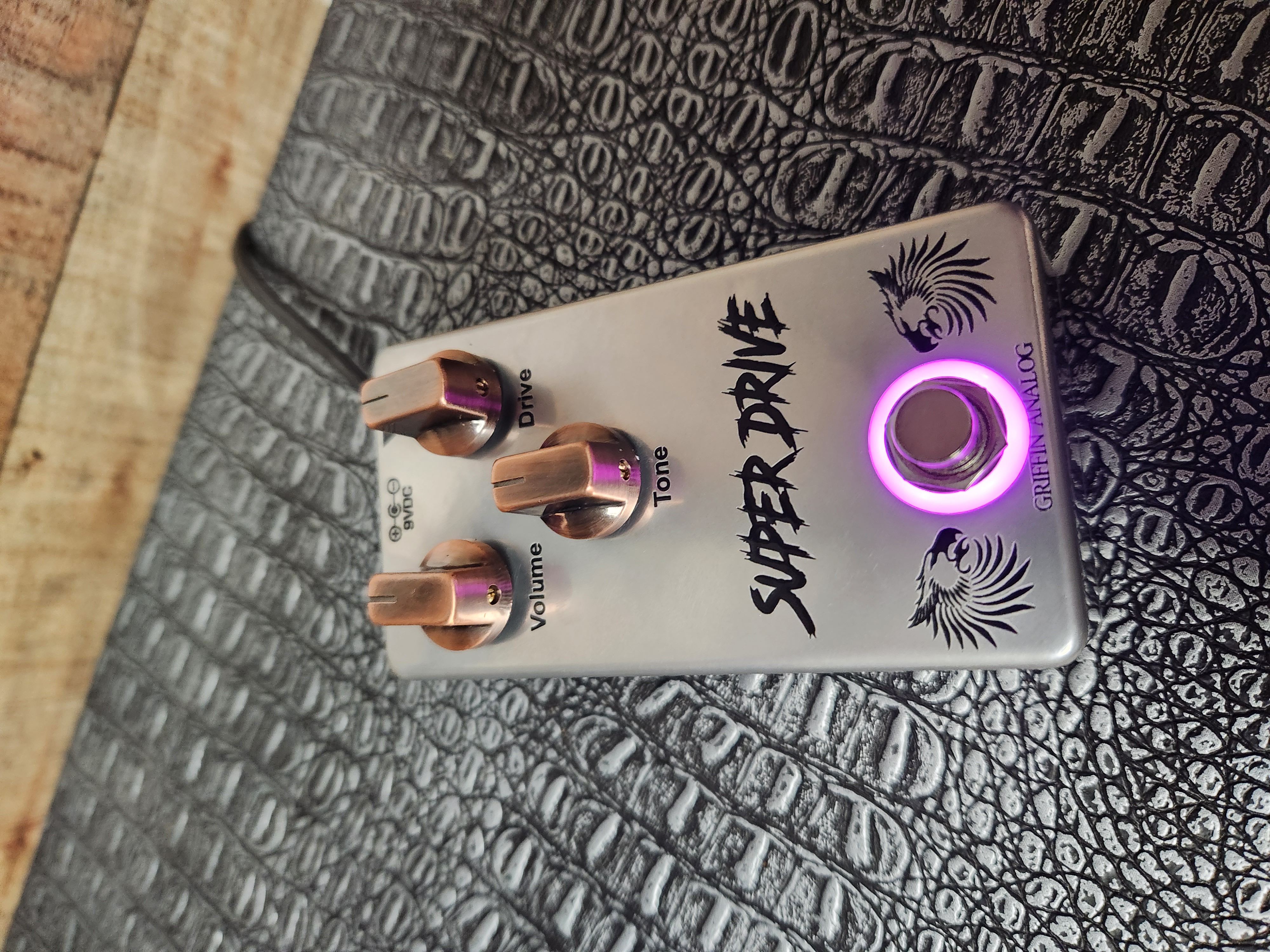

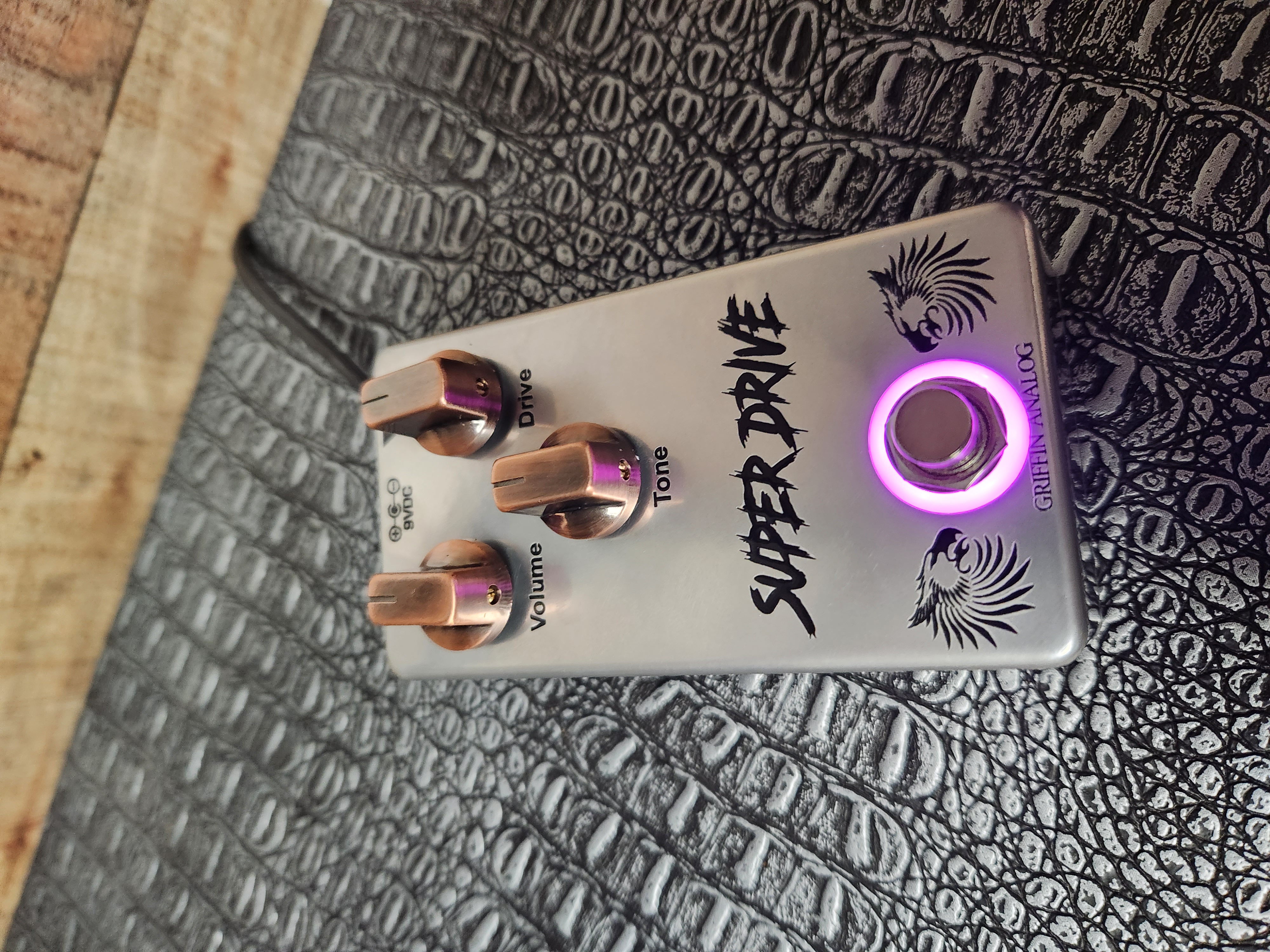

The one you see above that says " Super Drive " is a SD-1 clone ... part for part ( but really good quality parts ) it's also True bypass ..... so you won't get any " tone suck " when the pedal is off ...Do you do a SD 1 or would it it be a custom I off ? You can add the Keeley mods right ?

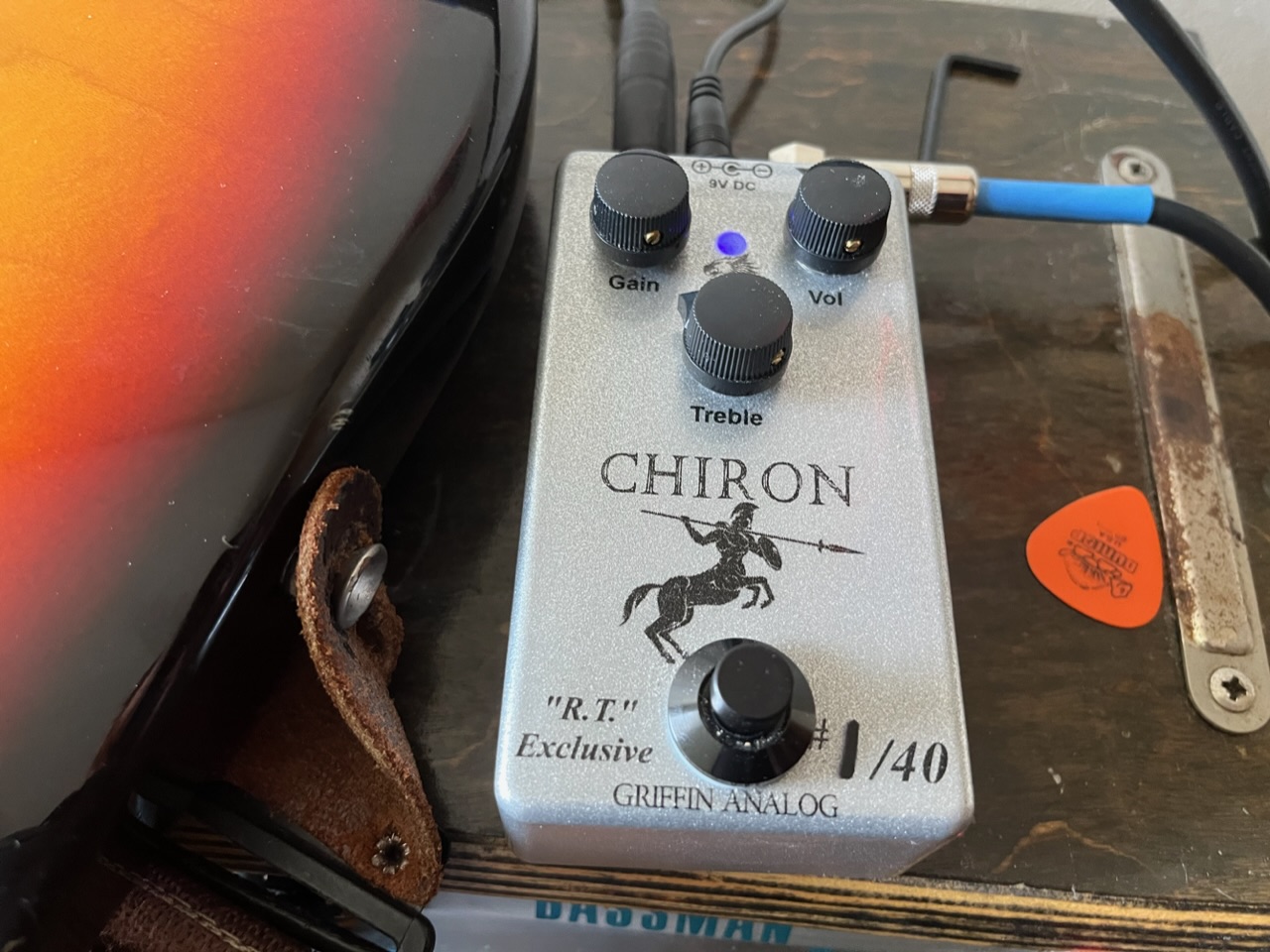

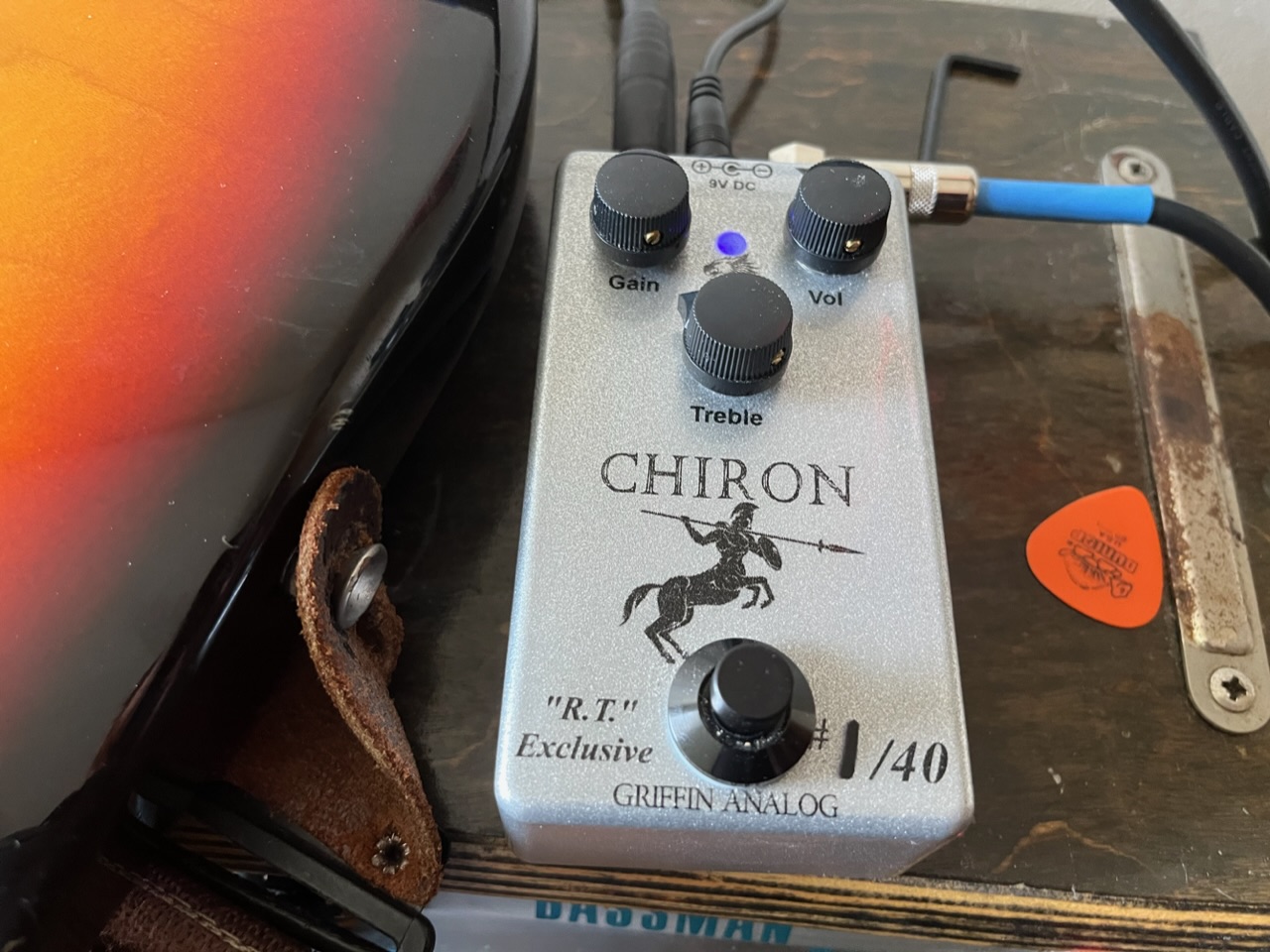

forgot you had Numero Uno !!Wayne is the real deal, he has made many pedals for forumites, I own a few myself...in fact I am getting ready to fire one up right now and jam out....View attachment 260217
if you wanted to keep my graphics and just do the circuit change .... I would charge 125 shipped .... and would be able to ship out on Monday as long as I have all the parts in stock .Do you do a SD 1 or would it it be a custom I off ? You can add the Keeley mods right ?

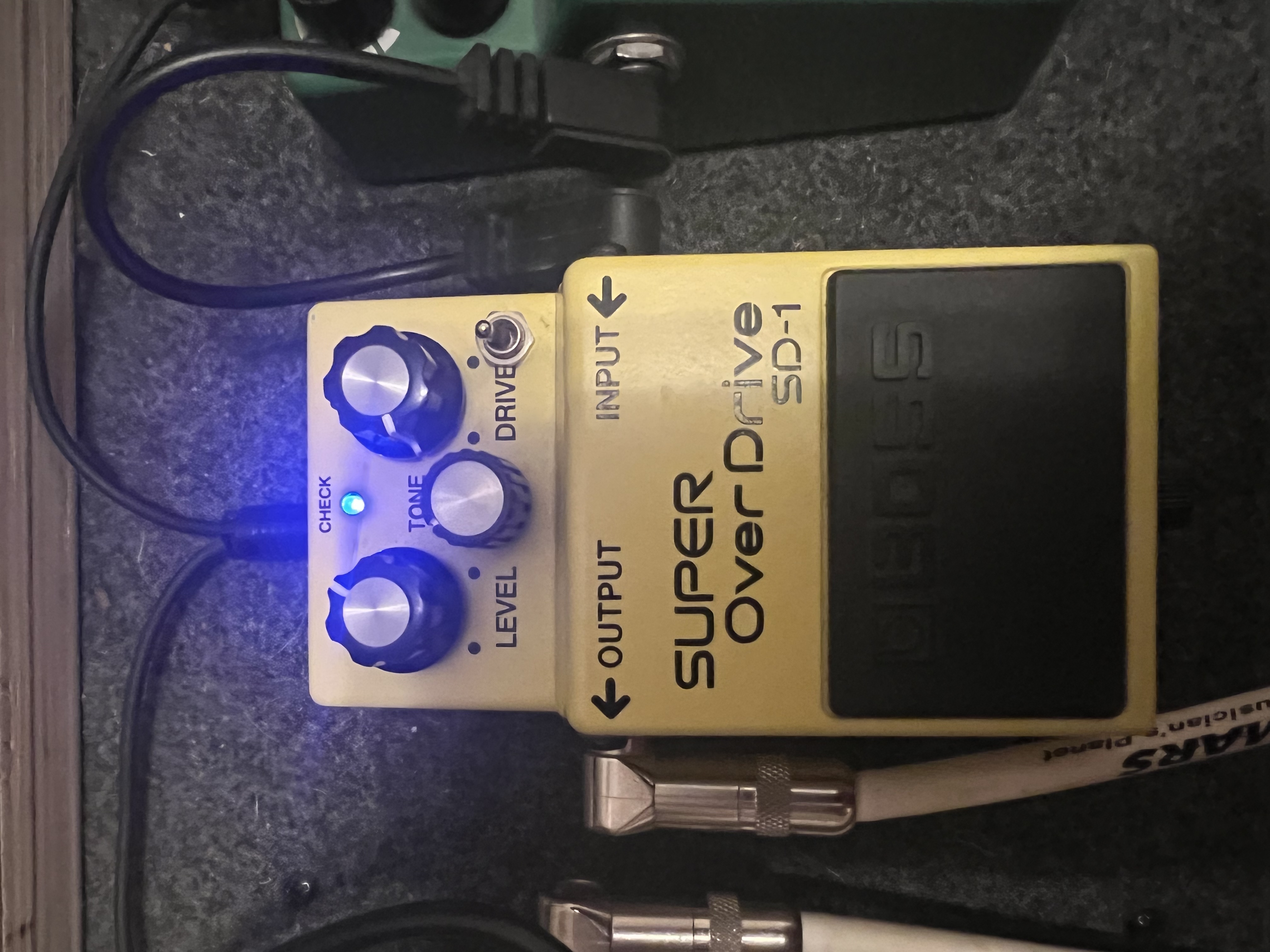

I have both stock and the Keeley and I prefer the Keeley. I have the toggle as well and always leave it in the up position.My SD-1 is Keeley modded circa the 2000s. Eh, it's ok but honestly if I could do it all over again, I would just leave it stock. One of the modes selectable by toggle (I can't recall which one) I never use as the drop in volume is too noticeable.
I’ll hit you up when I’m ready, thanksif you wanted to keep my graphics and just do the circuit change .... I would charge 125 shipped .... and would be able to ship out on Monday as long as I have all the parts in stock .
custom graphics on the build will be 3-4 weeks till I can ship ... it takes about 3 weeks to get a " new " enclosure done
Does the Waza version have better parts than the standard sd-1?,,,,,or is it just the extra mode that makes them different?The one you see above that says " Super Drive " is a SD-1 clone ... part for part ( but really good quality parts ) it's also True bypass ..... so you won't get any " tone suck " when the pedal is off ...
I can implement the changes to Keeley Spec ...
Was curious about this too ?Does the Waza version have better parts than the standard sd-1?,,,,,or is it just the extra mode that makes them different?
Super Drive looks great btw, and true-bypass is something the waza really lacks imo.
Does the Waza version have better parts than the standard sd-1?,,,,,or is it just the extra mode that makes them different?
Super Drive looks great btw, and true-bypass is something the waza really lacks imo.
I'm not sure if the Waza series uses upgraded parts ..... never been inside of one .... I prefer to use Nichicon Audio Grade Electro's in all my builds ...Was curious about this too ?
