Single volume, no tone, 1 pickup EMG active wiring diagram

[acceptance]

I won't be using the solderless kit.

Also, anyone have for two pickup variant (2 vol, no tone, 3 way toggle). Thanks!



[acceptance]

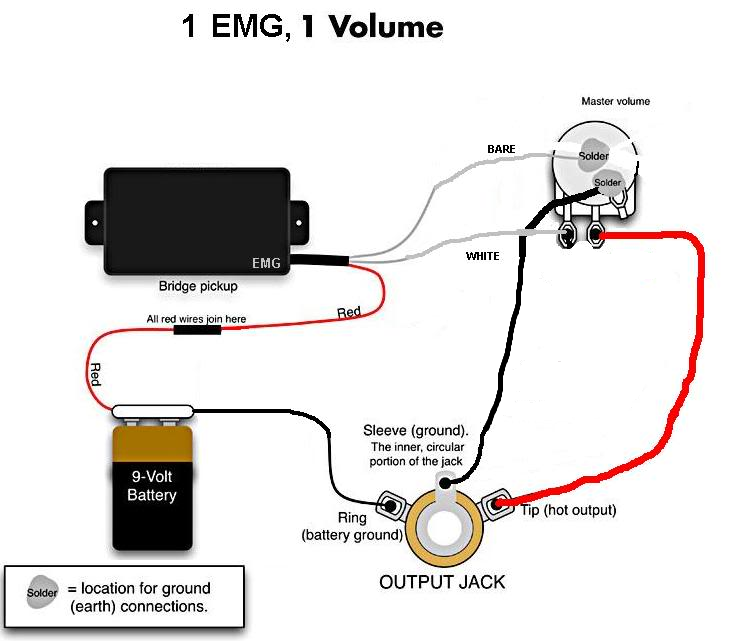

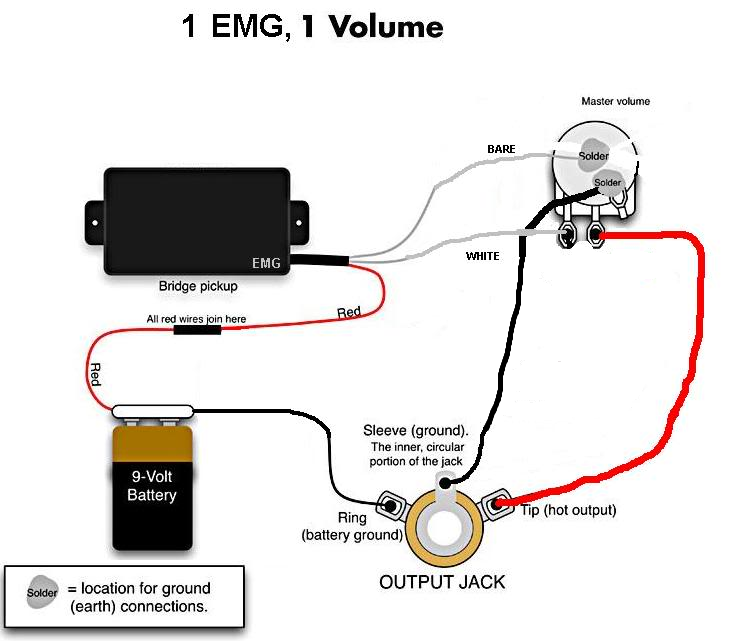

Found this if anyone can confirm



[mnemonic]

Looks right

For future reference, all the EMG wiring diagrams you could ever want

http://www.sonic.net/~emgman/wiringbook.html



[acceptance]

Awesome, thanks for that!
