Dino 939
Well-known member

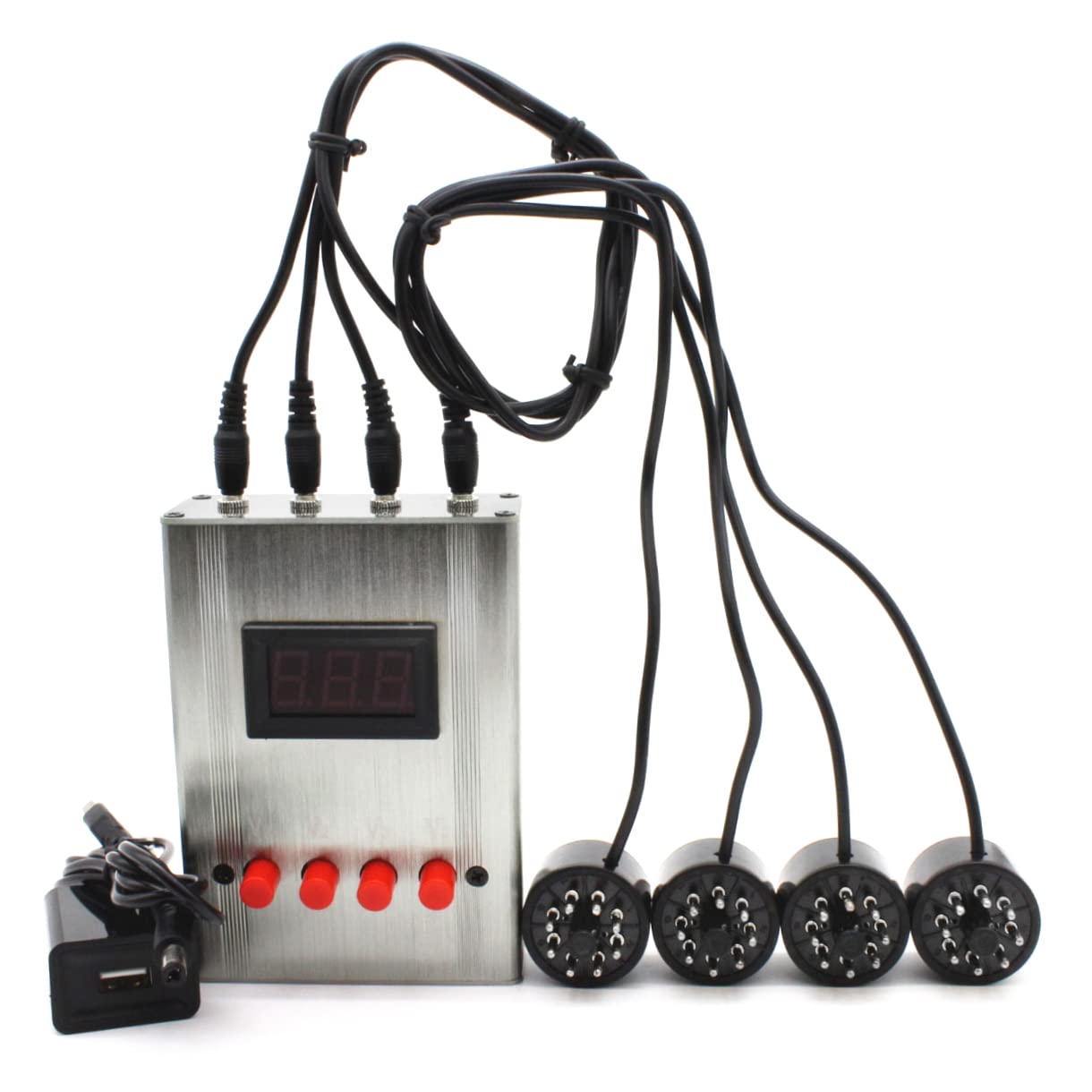

That’s my jam too!I use the TAD Bias Master. It's pricey but does 4 tubes at once.
Yes, pricey but for what it does it makes the other
junk pricey,lol!
Keep me posted with your amps man!
That’s my jam too!I use the TAD Bias Master. It's pricey but does 4 tubes at once.
Yep, my favouriteI use the TAD Bias Master. It's pricey but does 4 tubes at once.
I made my own multiprobe adapter and my own octal bias probes. The adapter I designed is a box you Plug as many two prong octal probes into it as you need and the box allows for anywhere from 1-4 tubes at once. It has a knob that lets you select the cathode current between each tube in real time so you can isolate which tube is biased hot and use that one for your limit, or if your amp has quad bias adjustment, it can handle individual tube bias. It allows you to plug in any multimeter you want to measure the current itself so it’s universal.
To grab plate voltage I just use a second meter. I know how to design for plate voltage measurement but I don’t have that much faith in precision resistors. I’d rather just measure it directly.
