Digitech drop pedal... any live users ?

  • Thread starter Thread starter Bash_Man
  • Start date Start date
If you're serious about this type of pitch shifting get a FOMO FX Virtual Jeff Pro and just use the pedal without the trem arm part. It makes every other pitch shifter on the market look like 80s pitch shifting.

Motorboat McCooter said:
It should work, but the whammy DT should come with its own power supply. According to the manual it should be in the box.

But if yours is missing, the Boss PSA 120S should work. It has the standard polarity center negative barrel and plenty of ma and it puts out DC just as the whammy dt requires.

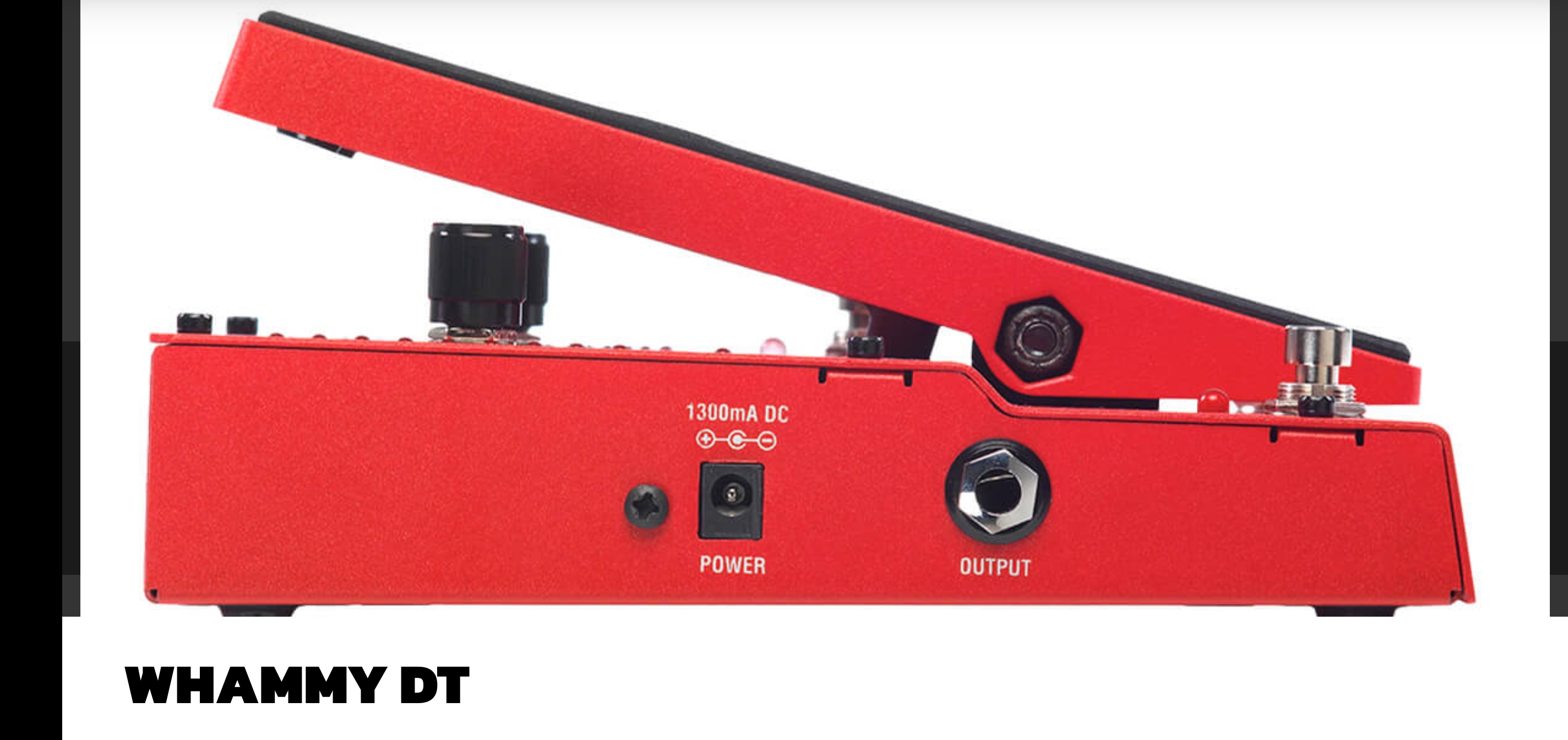

You can ignore the power requirement printed on the pedal. 1300ma. Woah.
View attachment 257916

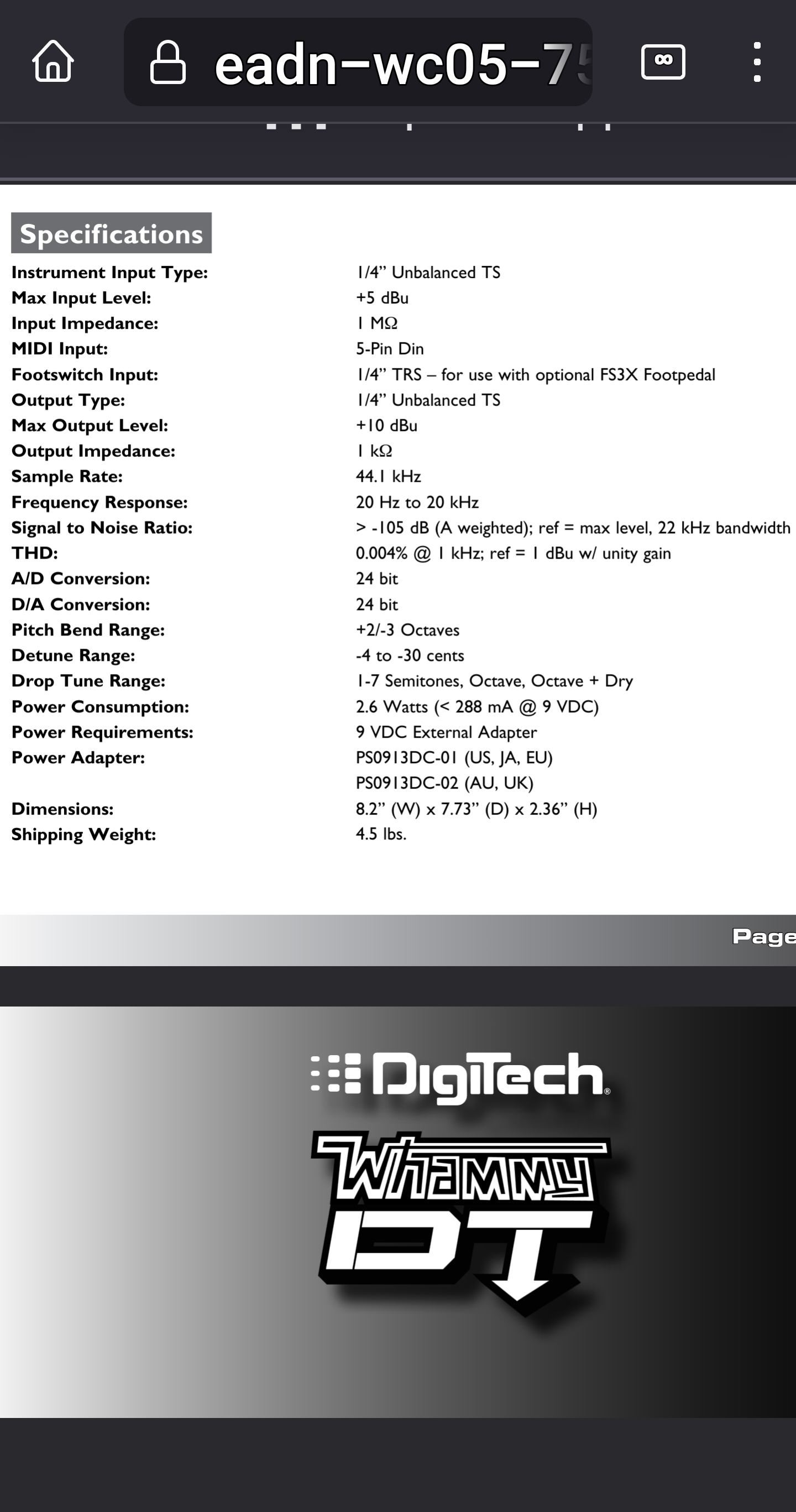

Their own manual says different saying 288ma.
View attachment 257922

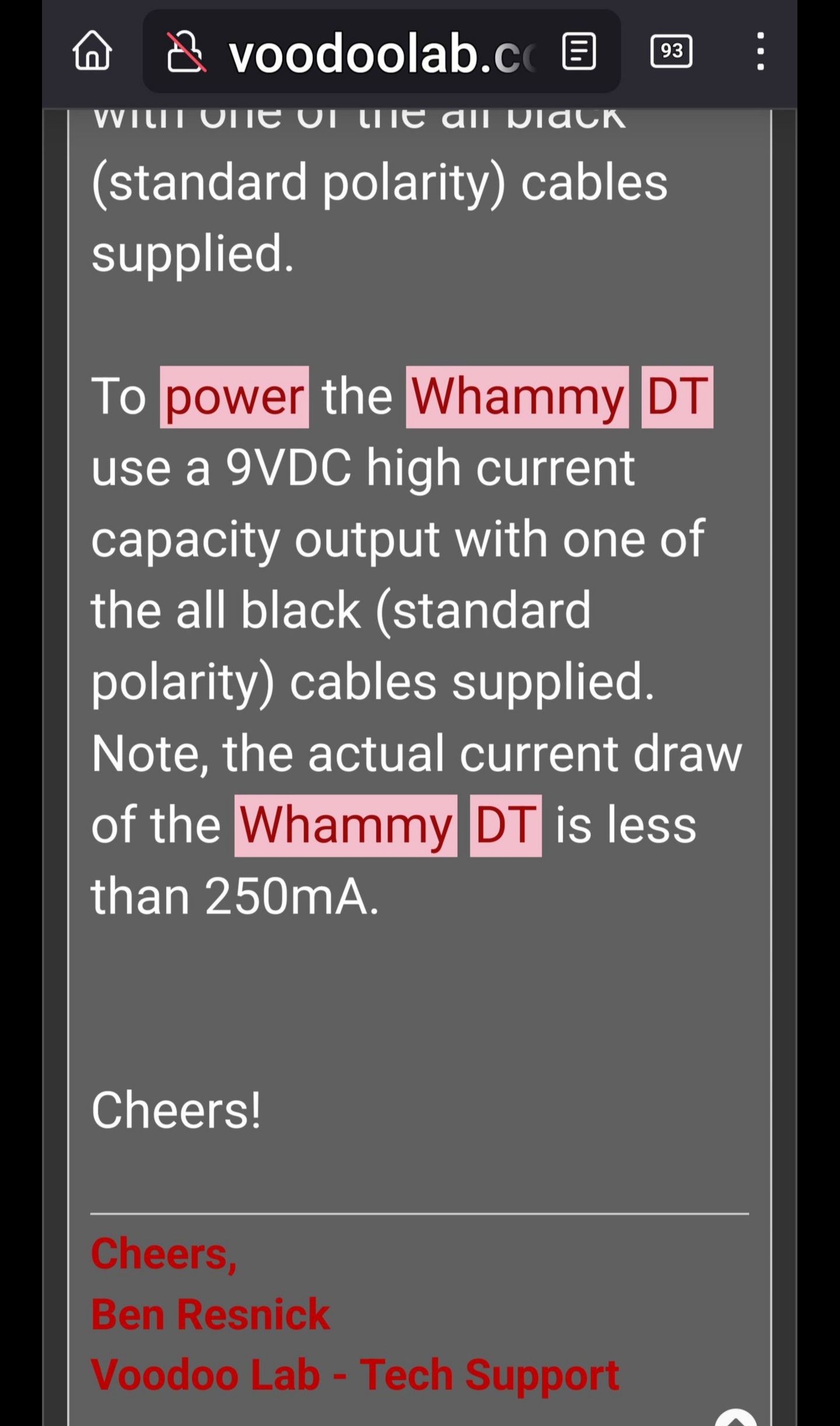

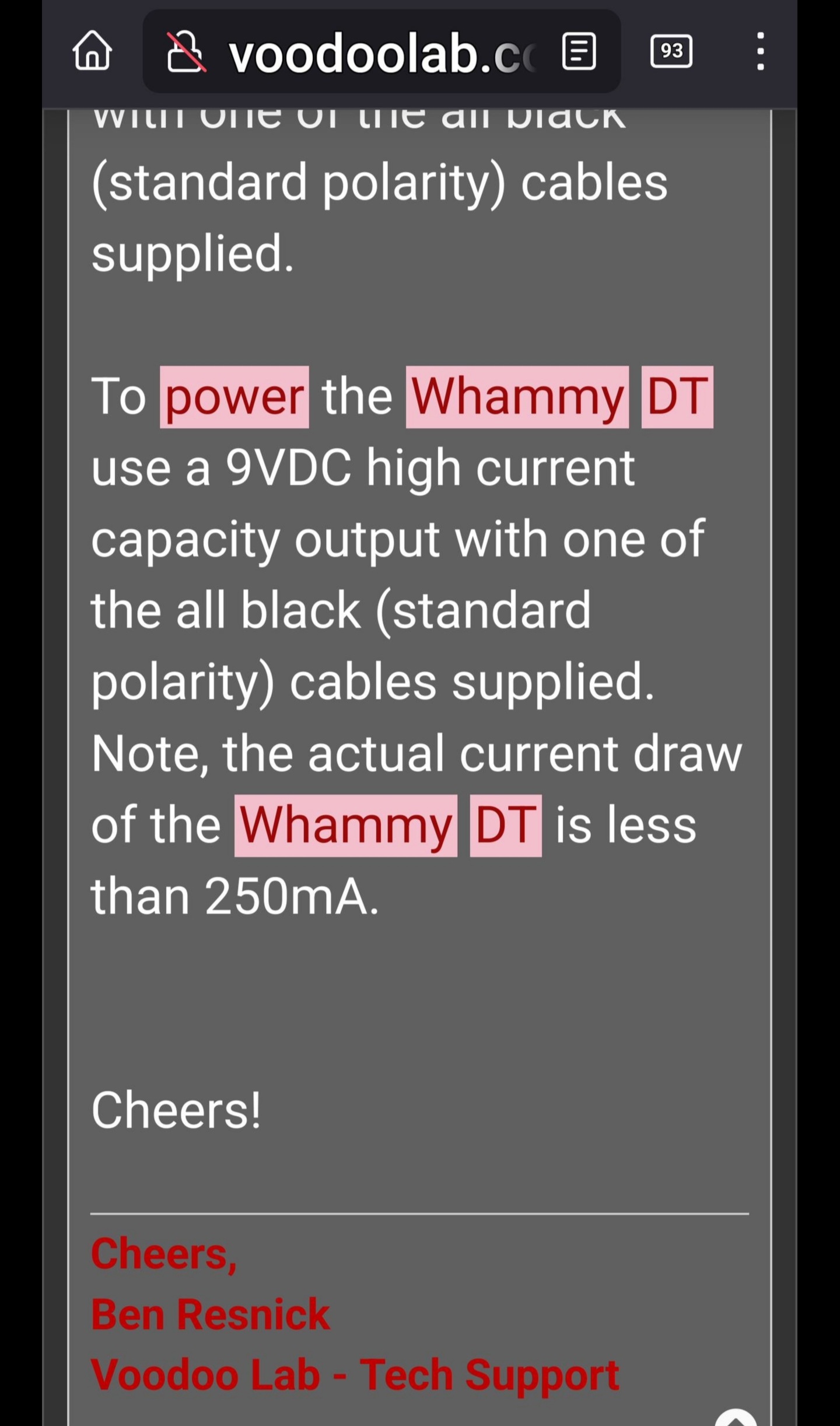

When I was researching the actual power requirements a couple years agos I found this on the voodoo labs forum. Sadly, that forum doesn't seem to exist any longer when I just searched for it. I'm glad I saved this screenshot. It says actual current draw is less than 250ma according to voodoo lab tech support.
View attachment 257925
Click to expand...
Thank you very much.

BSRIAudio said:
If you're serious about this type of pitch shifting get a FOMO FX Virtual Jeff Pro and just use the pedal without the trem arm part. It makes every other pitch shifter on the market look like 80s pitch shifting.
Click to expand...

Thanks for the heads up. I'm looking into it.

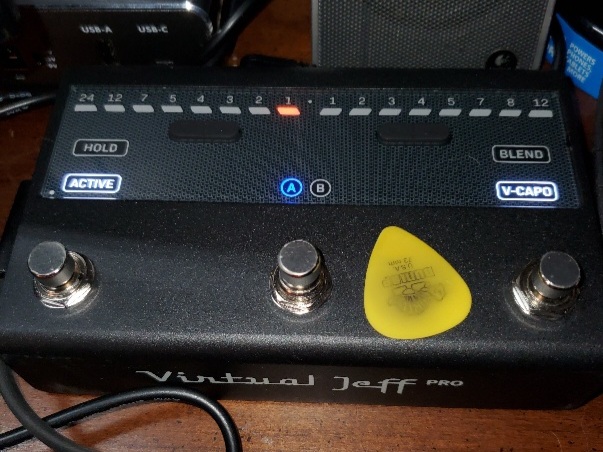

Got it Wednesday... Sounded great at band jam.


I had the Virtual Jeff for about a year. Ended up taking bar unit off the my guitar and mounting it in my pedalboard and stepping on it to dive bomb occasionally. Worked well but nothing stays around too long so off it went.
I did have a Drop pedal before that which did work well as well.

I have no be that I have no even fucked with. I need to
