DSL100, school me please

[griff10672]

uh oh. This one is missing tubes and the HT fuse. Seller claims it worked fine, but that's usually a tell tale sign. I see Marshall stopped making the replacement boards as well.

I would say those are some BIG red flags when it comes to getting a DSL ..... it's unfortunate ... they are steals for the money when they are working right



[Erock]

I would say those are some BIG red flags when it comes to getting a DSL ..... it's unfortunate ... they are steals for the money when they are working right

thanks griff, the price was attractive, but not if it's going to end up a door stop.



[griff10672]

it sucks .... they are great sounding amps ...... I re bought a DSL50 a couple of years ago to have one again .....nothing but BIAS problems for me ...

had a guy at work bust out his thermal camera while I had it going ...... the board was getting so hot in some spots I was afraid to run it anymore .... so I brought it back to GC ....



[rsm]

New Marshall DSL100HR $829.99; can call and see if 15% off applies?

https://www.musiciansfriend.com/amp...0hr-100w-tube-guitar-amp-head/k64627000000000



[glpg80]

There’s a way around the known problem. No new board needed. I’ll PM. Have to have a competent tech do it though.



[dstroud]

lots of options man!! The green on crunch with a boost sounded almost identical to my jcm800 with a boost. And that was in a band setting. Or you might like the more saturated gain channel options. They are all good, just depends what you like



[shar-vell Dan]

JCM 2000 DSL 2005 and after had the boards fixed.
Not a fan of the Vietnam amps.



[PurityS.L.G]

uh oh. This one is missing tubes and the HT fuse. Seller claims it worked fine, but that's usually a tell tale sign. I see Marshall stopped making the replacement boards as well.

Oh shit! Didn't realize they stopped making boards. If it's a pre 2004 model, it will certainly need the board replacement. JCM2000 only. Doesn't apply to the amps with the DSL100 logo near power/standby rocker switches.

edit: I wonder if the boards will be back available soon now that Marshall is back to manufacturing amps again.



[Erock]

There’s a way around the known problem. No new board needed. I’ll PM. Have to have a competent tech do it though.

Thanks man!

Oh shit! Didn't realize they stopped making boards. If it's a pre 2004 model, it will certainly need the board replacement. JCM2000 only. Doesn't apply to the amps with the DSL100 logo near power/standby rocker switches.

edit: I wonder if the boards will be back available soon now that Marshall is back to manufacturing amps again.

Thanks man, it's definitely the pre 2004 version, no DSL logo. It sounds like I'm going to get into the weeds with this. I think I'm going to pass.


Appreciate all the information everyone, really helpful.



[shar-vell Dan]

JCM 2000 DSL 2005 and after had the boards fixed.
Not a fan of the Vietnam amps.

The year of the JCM 2K amp is on the barcode sticker back right panel. This one sez 2002 [bad board].



[dave74]

Thanks man, it's definitely the pre 2004 version, no DSL logo.

Not having the DSL logo does not mean it is pre 2004.
They were JCM 2000 up until 2009ish.

The problems were pre 2004.



[shar-vell Dan]

Not having the DSL logo does not mean it is pre 2004.
They were JCM 2000 up until 2009ish.

The problems were pre 2004.

2005+ = fixed boards. 2004 were still a problem.



[rsm]

JCM 2000 DSL 2005 and after had the boards fixed.
Not a fan of the Vietnam amps.

built in Vietnam with Chinese parts vs built in UK with Chinese parts.

both work fine, both sound like they sound.

IME



[Briman24]

uh oh. This one is missing tubes and the HT fuse. Seller claims it worked fine, but that's usually a tell tale sign. I see Marshall stopped making the replacement boards as well.

If it's a jcm2000 and the year made is after 2003..... you will be fine.



[Erock]

Not having the DSL logo does not mean it is pre 2004.
They were JCM 2000 up until 2009ish.

The problems were pre 2004.

2005+ = fixed boards. 2004 were still a problem.

If it's a jcm2000 and the year made is after 2003..... you will be fine.

If I shot up today, I was getting a ridiculous deal. He might sell to a friend first, but I will see if he can identify the year after turkey day if he still has it. Thanks guys,



[JTyson]

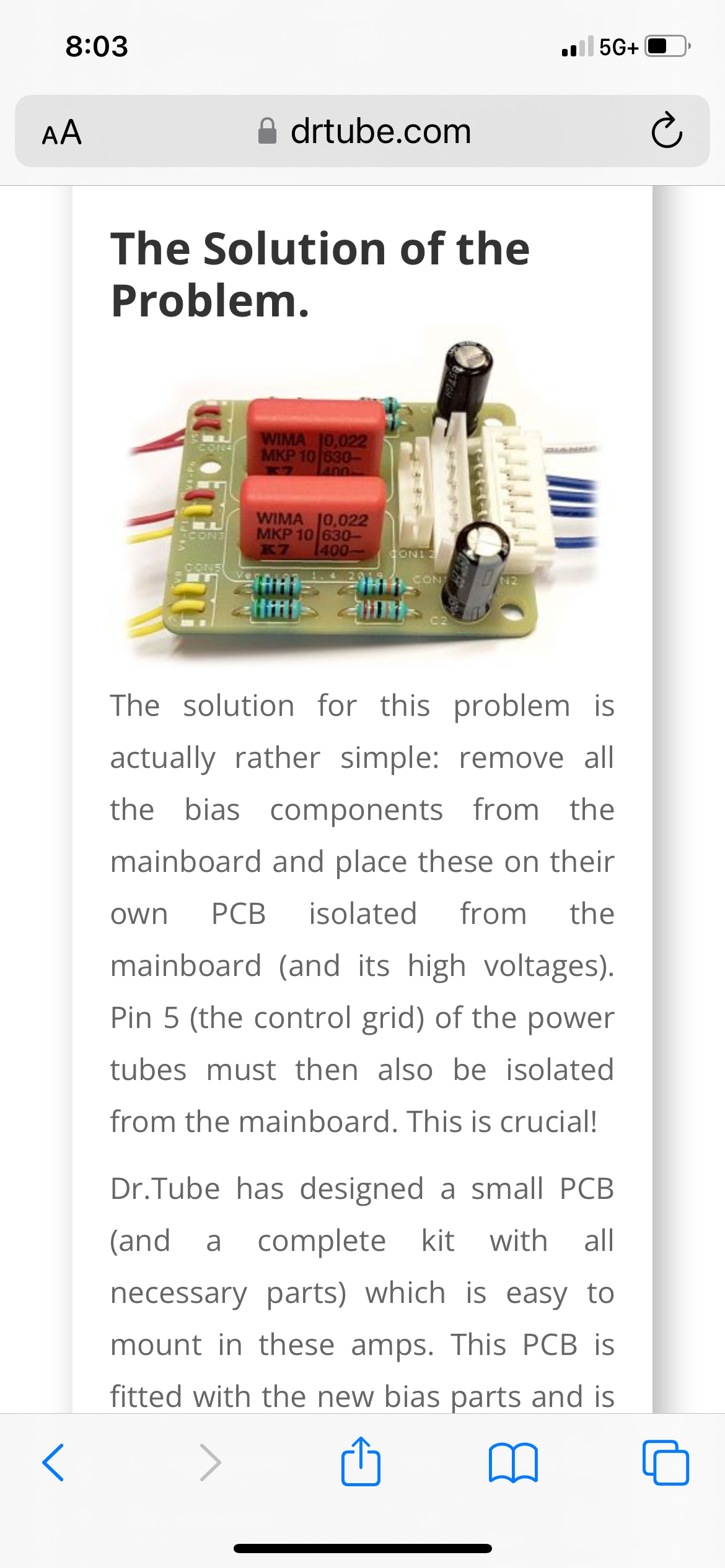

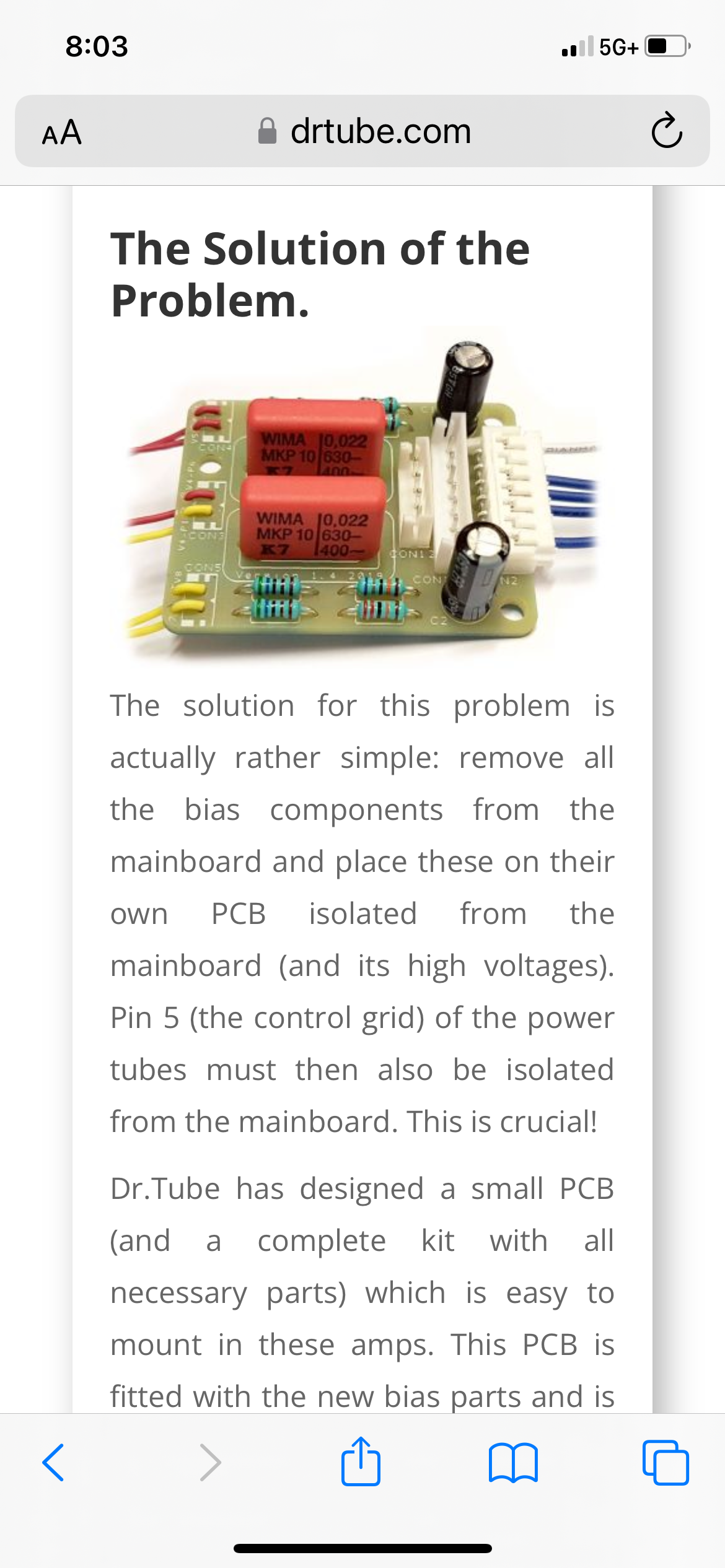

This will supposedly solve the bias drift issue, I’m thinking about landing one, I have a spectacular orange half stack that has been waiting for me to fix her for a lot of years.
www.Drtube.com



[311splawndude]

This will supposedly solve the bias drift issue, I’m thinking about landing one, I have a spectacular orange half stack that has been waiting for me to fix her for a lot of years.
www.Drtube.comView attachment 367346View attachment 367349

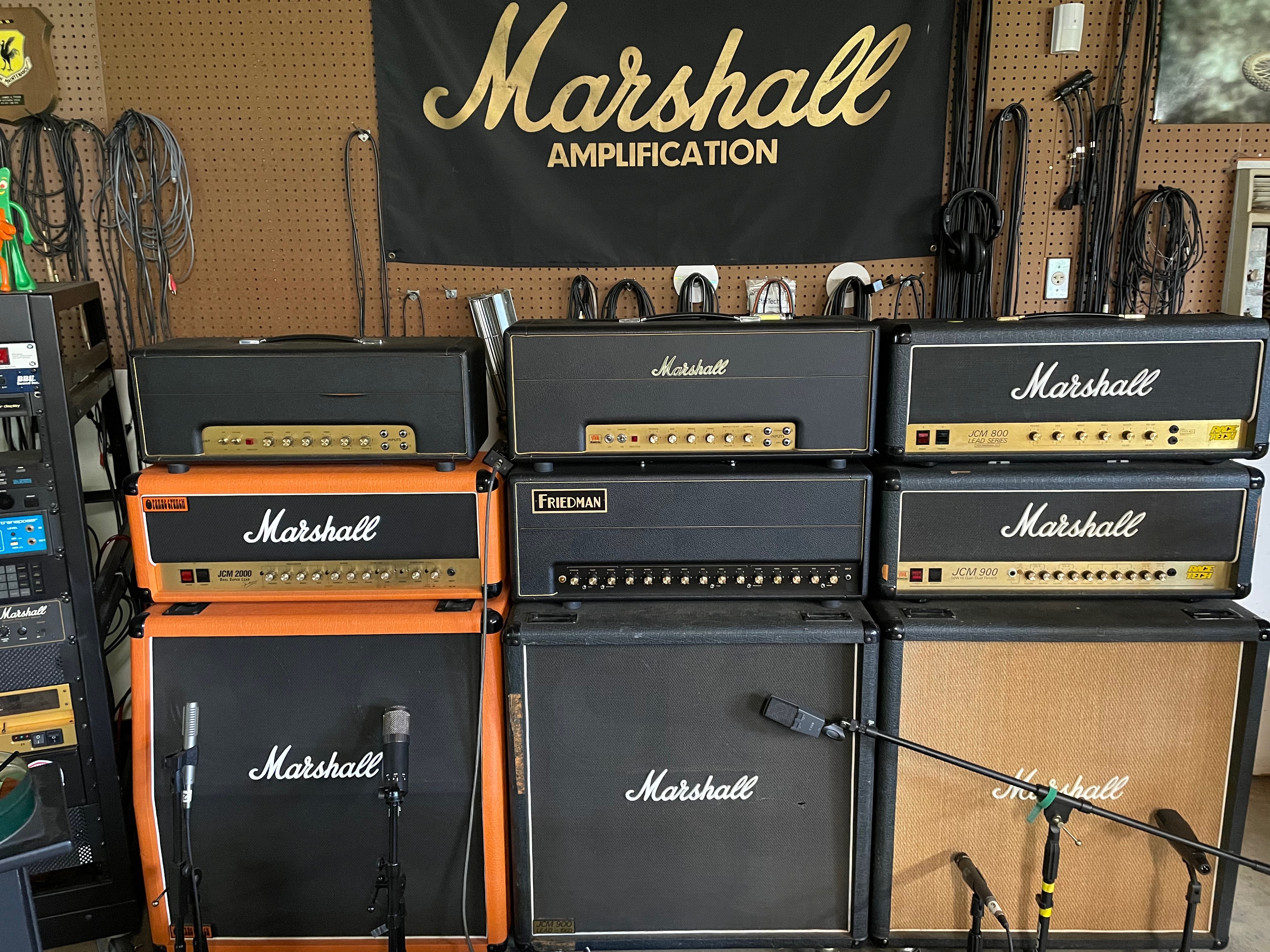

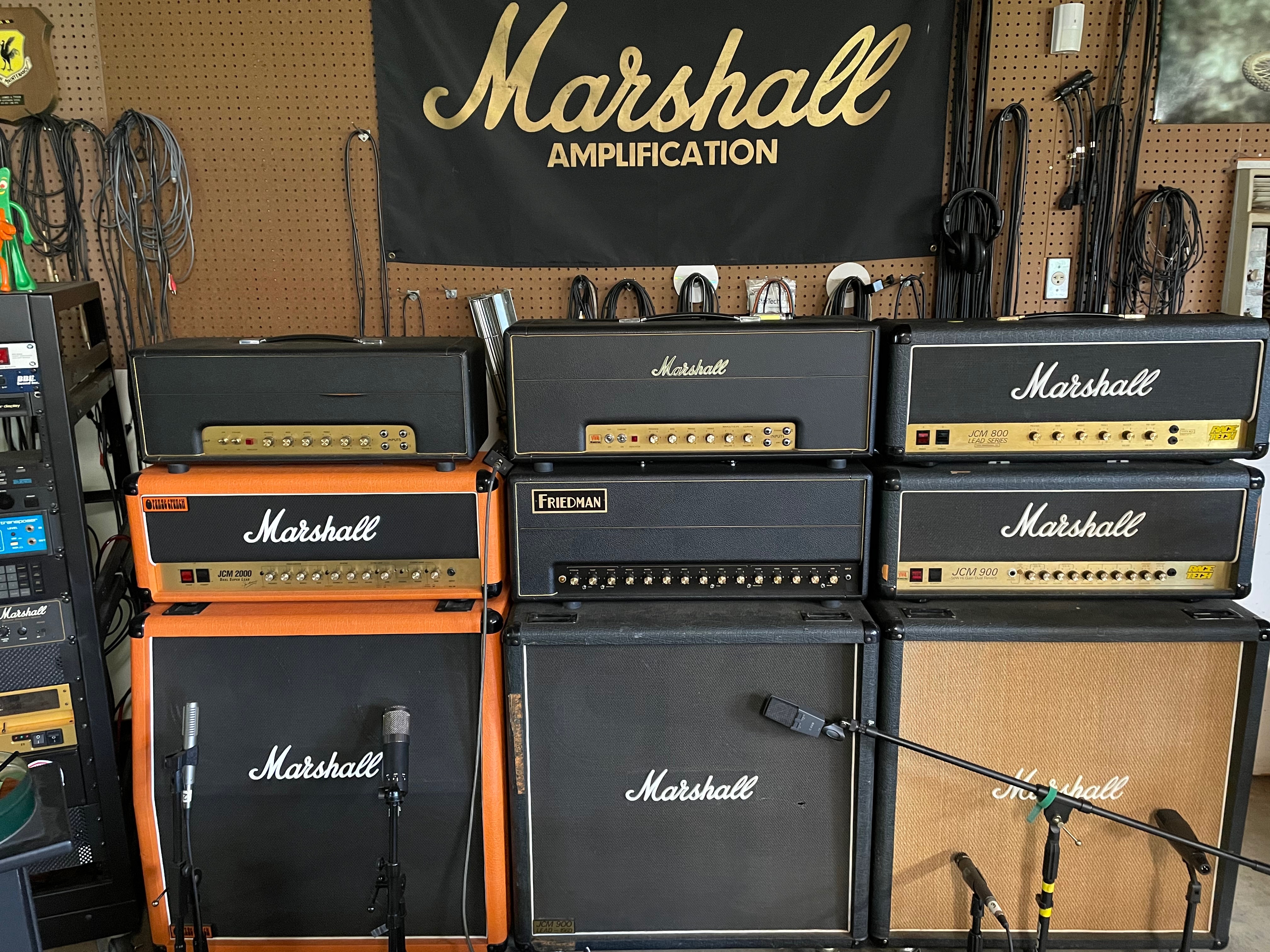

Some men work on their cars in the garage....



And then there is @JTyson



[JLR]

I have a '98-100 and replaced the board. Close your eyes and push the green channel with an OD and you're in 800 territory no doubt. I have them as well for a direct comparison. I live on the green channel and use my guitar volume for dynamics. Rarely in red channel but make sure my gain never exceeds 3.5.



[Briman24]

I have a '98-100 and replaced the board. Close your eyes and push the green channel with an OD and you're in 800 territory no doubt. I have them as well for a direct comparison. I live on the green channel and use my guitar volume for dynamics. Rarely in red channel but make sure my gain never exceeds 3.5.

Exactly! Green chanel boosted is the secret sauce!
