NAD: Engl Artist Edition

  • Thread starter Thread starter mcstinger
  • Start date Start date
Today I have checked bias. It was set too high, 110% power dissipation of tubes. Must be some lunatic tech doing the job. I set it around 70%. It plays like crazy. Fantastic amp.
I liked it at about 34-36mA.

I liked it at about 34-36mA.
Unfortunately I have found that power tubes are not matched that good. The hottest one is running at 38mA, the coldest one at 32mA. So far it sounds good. I have one matched JJ quad somewhere in a box, maybe I will use them later, but now it's ok like it is.

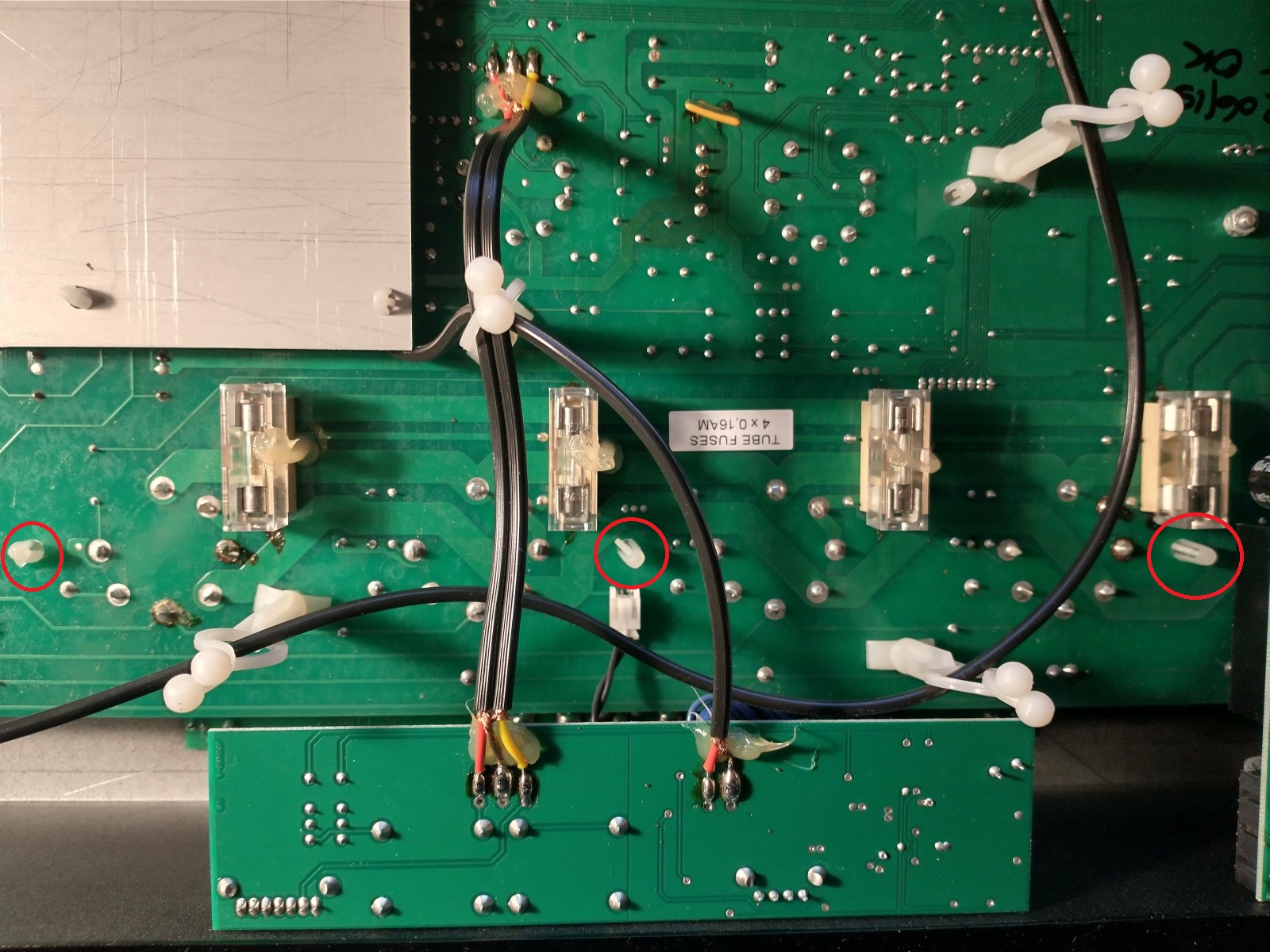

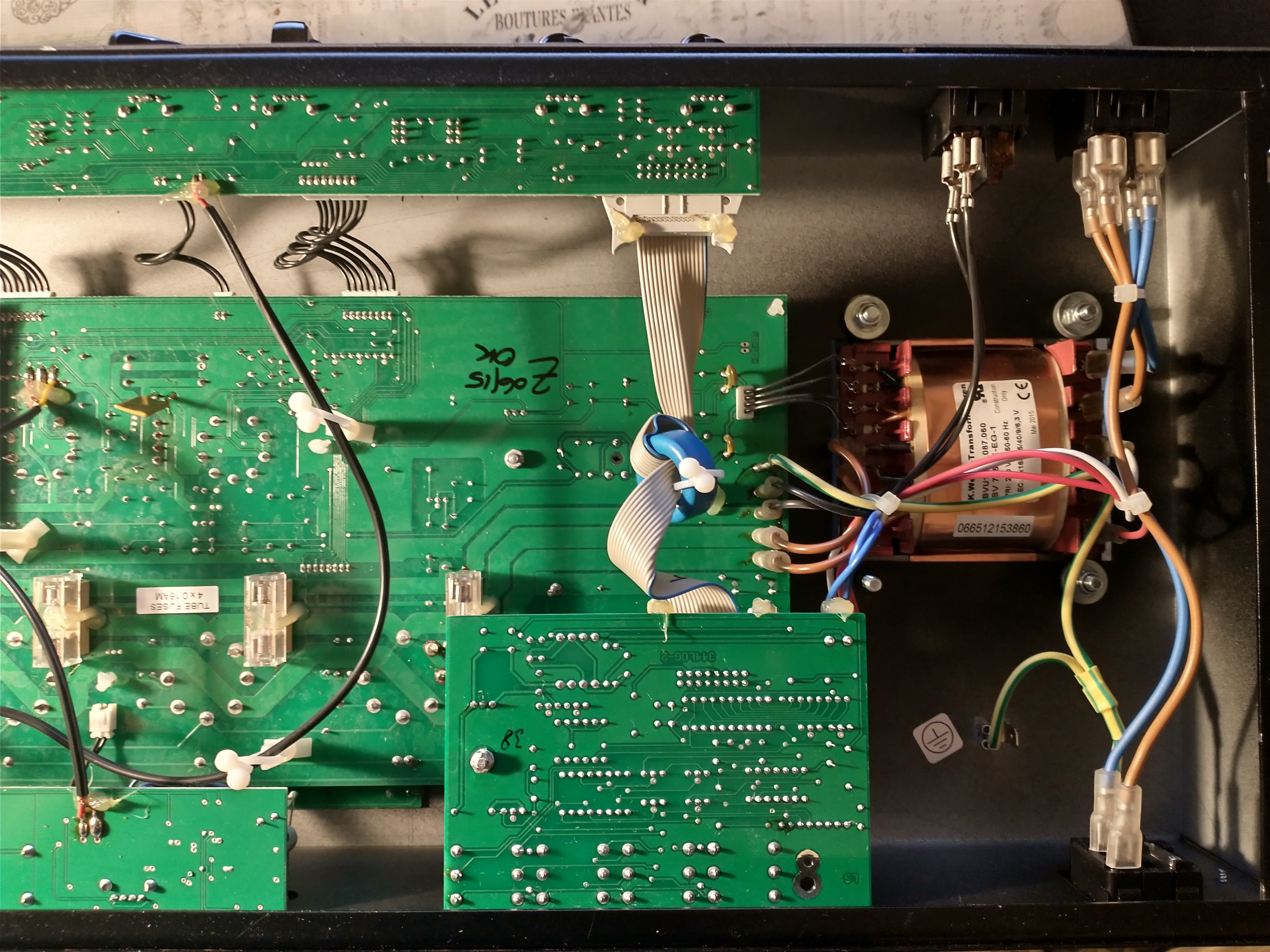

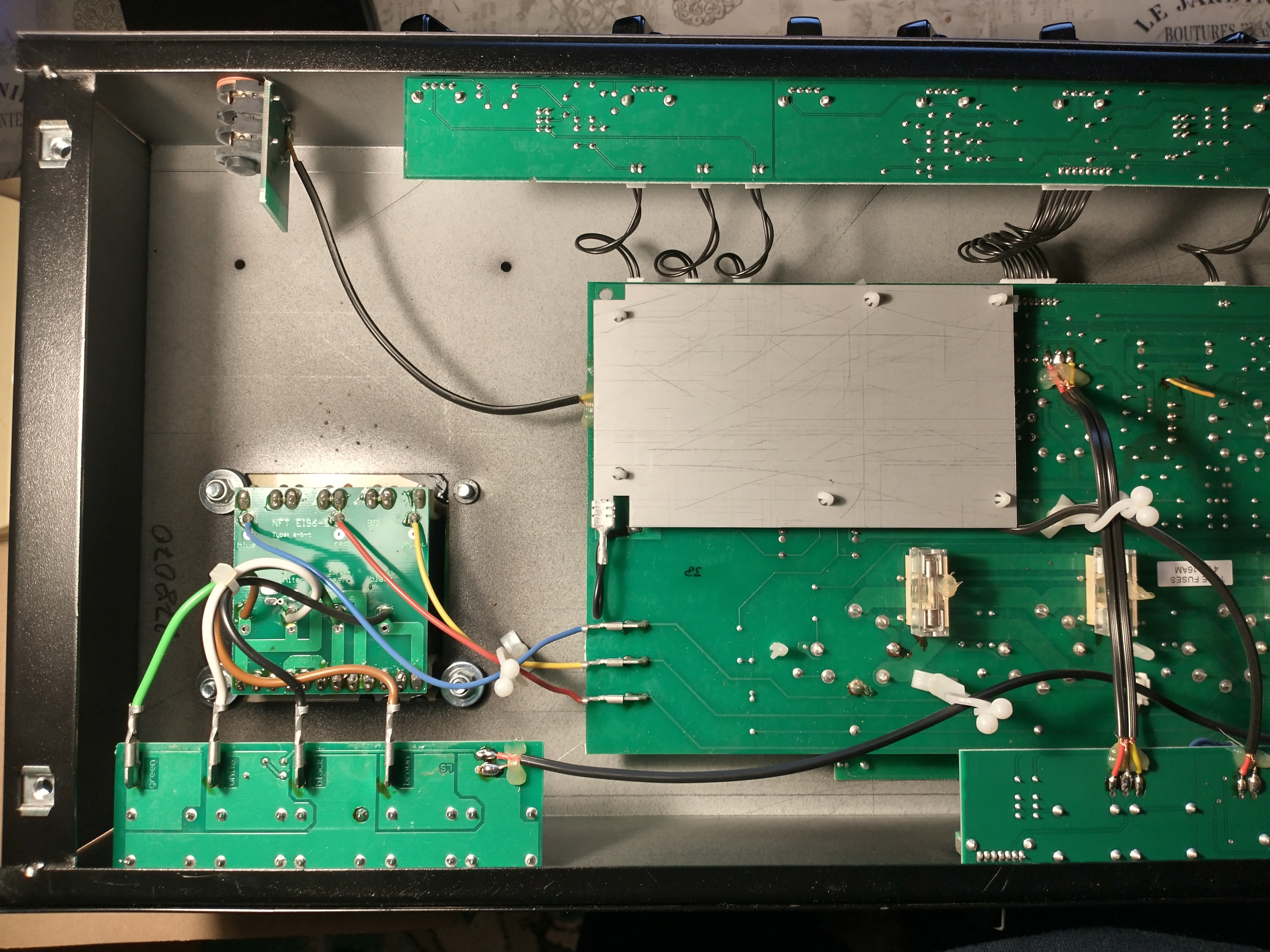

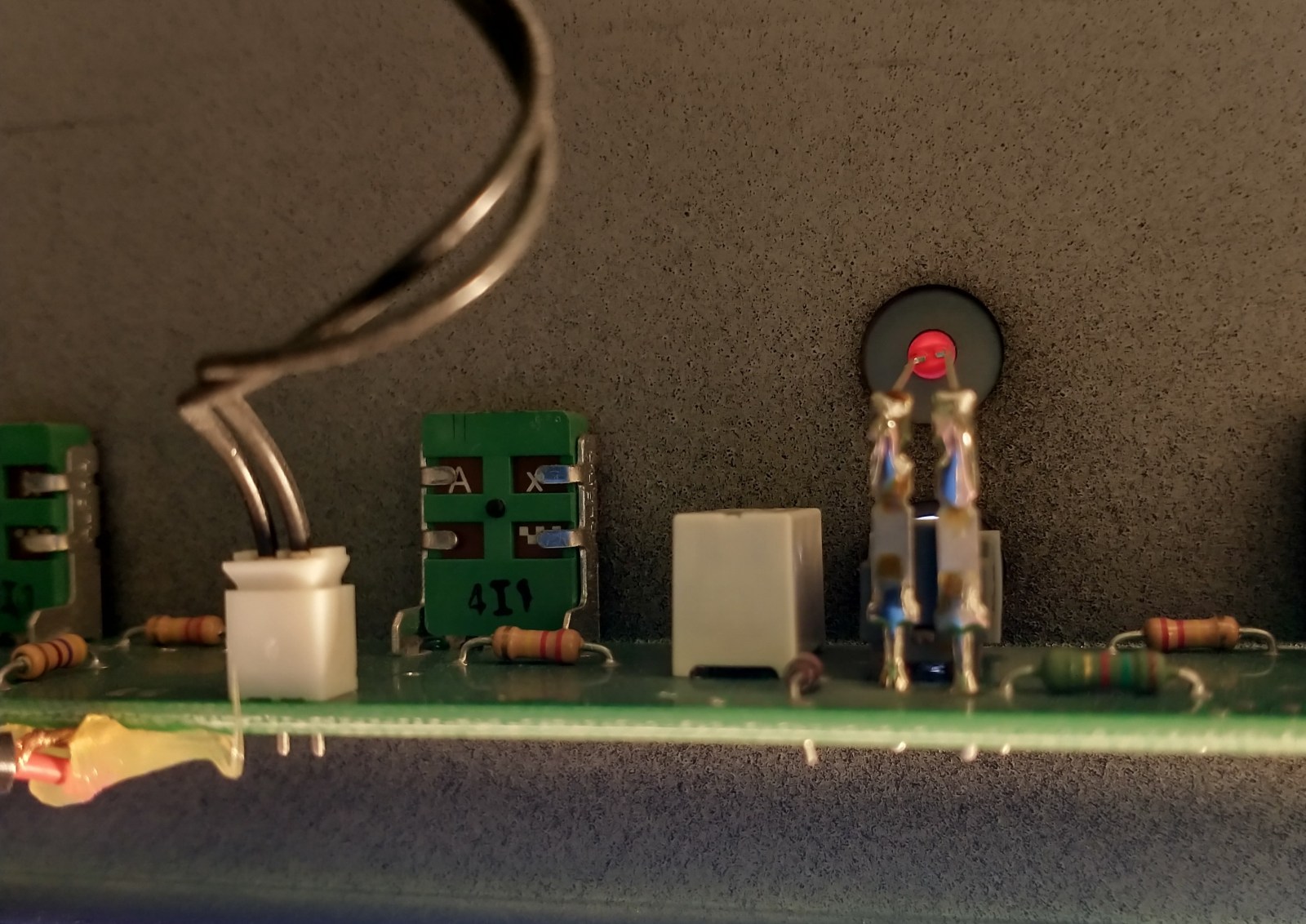

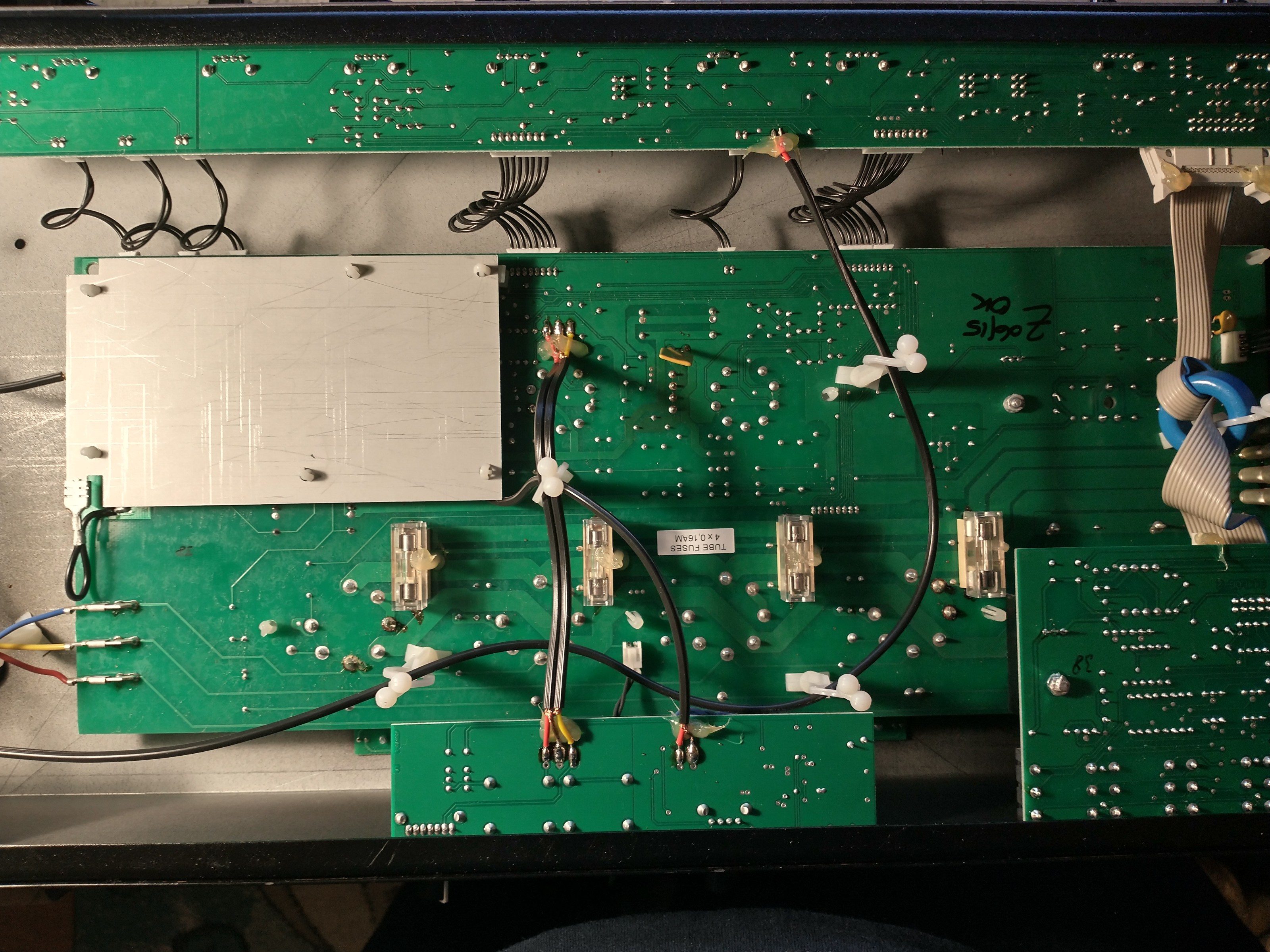

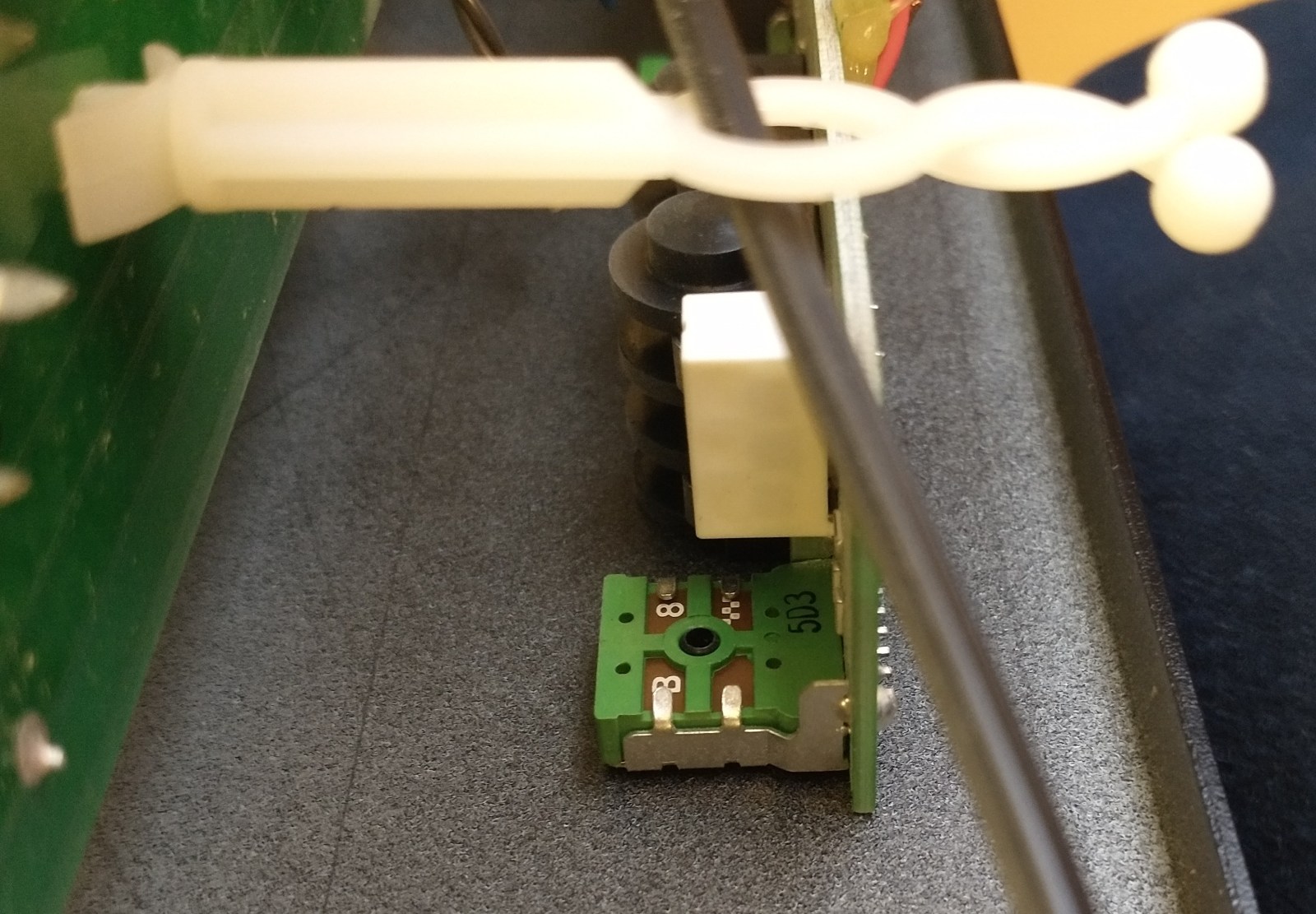

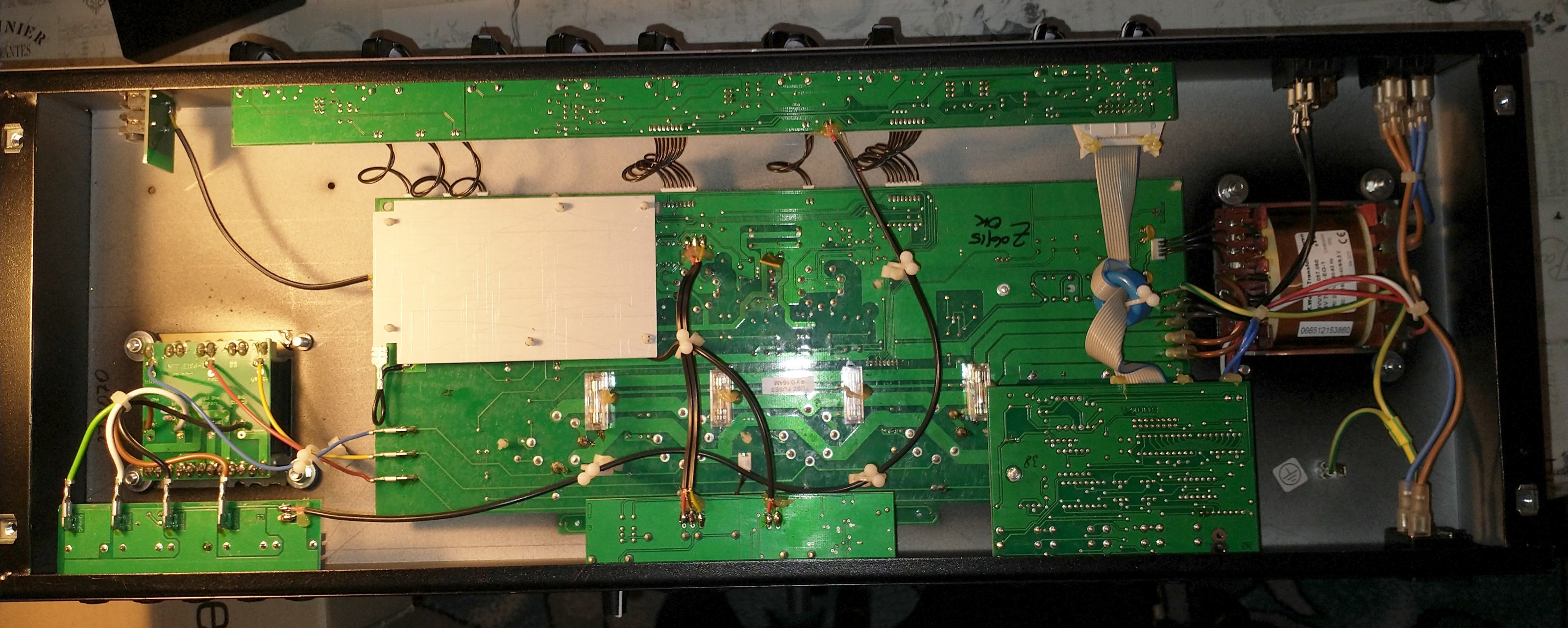

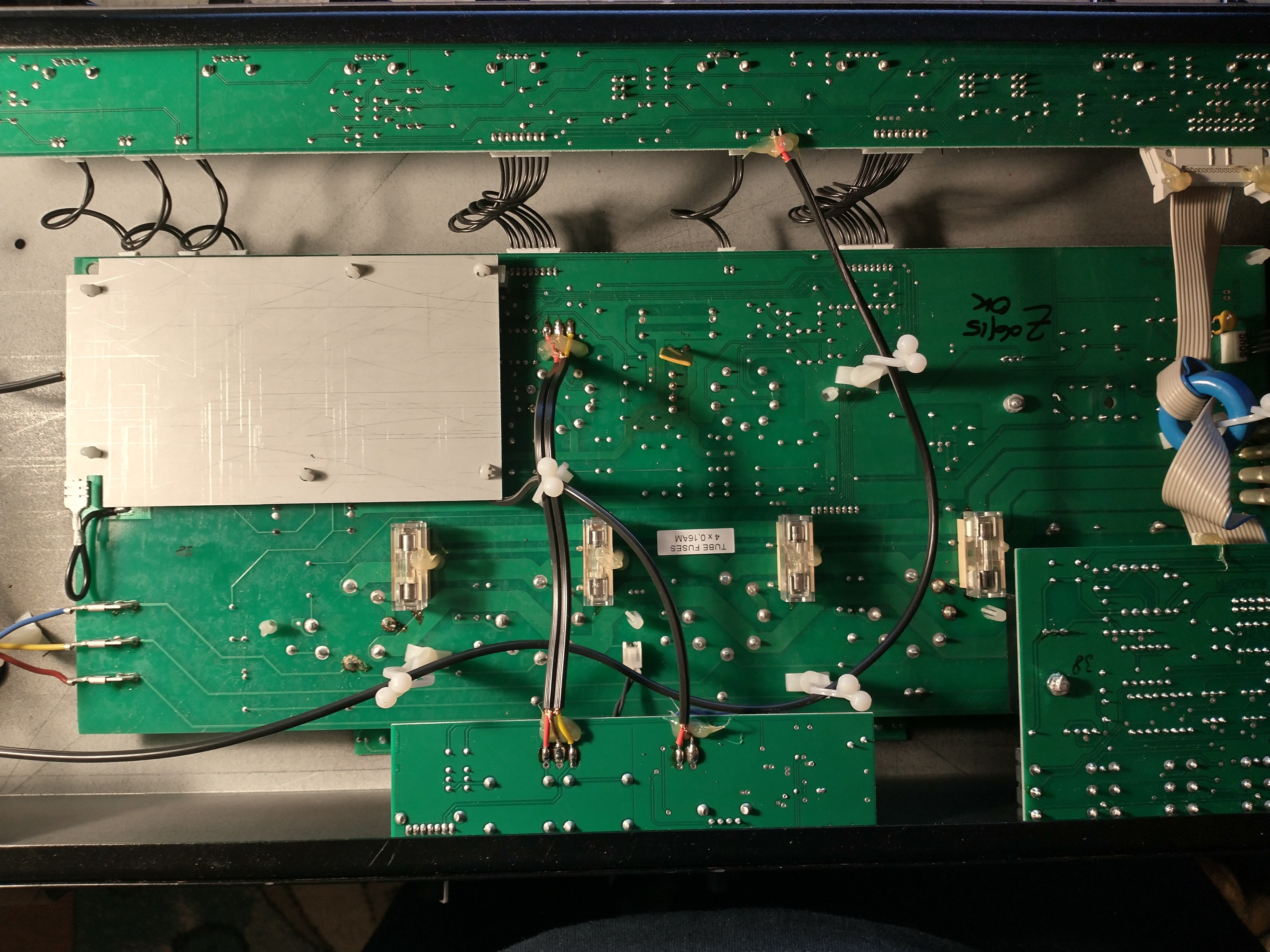

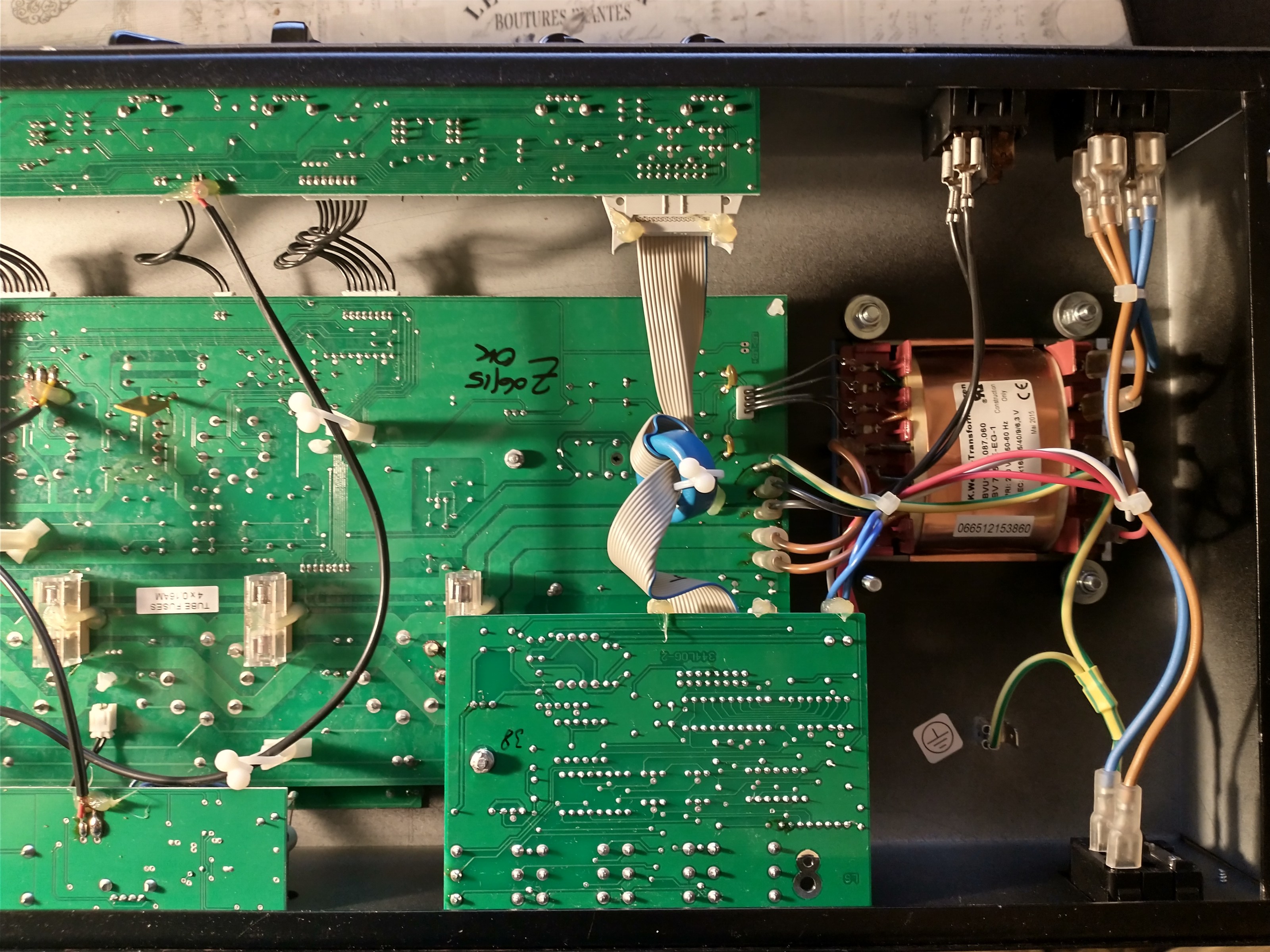

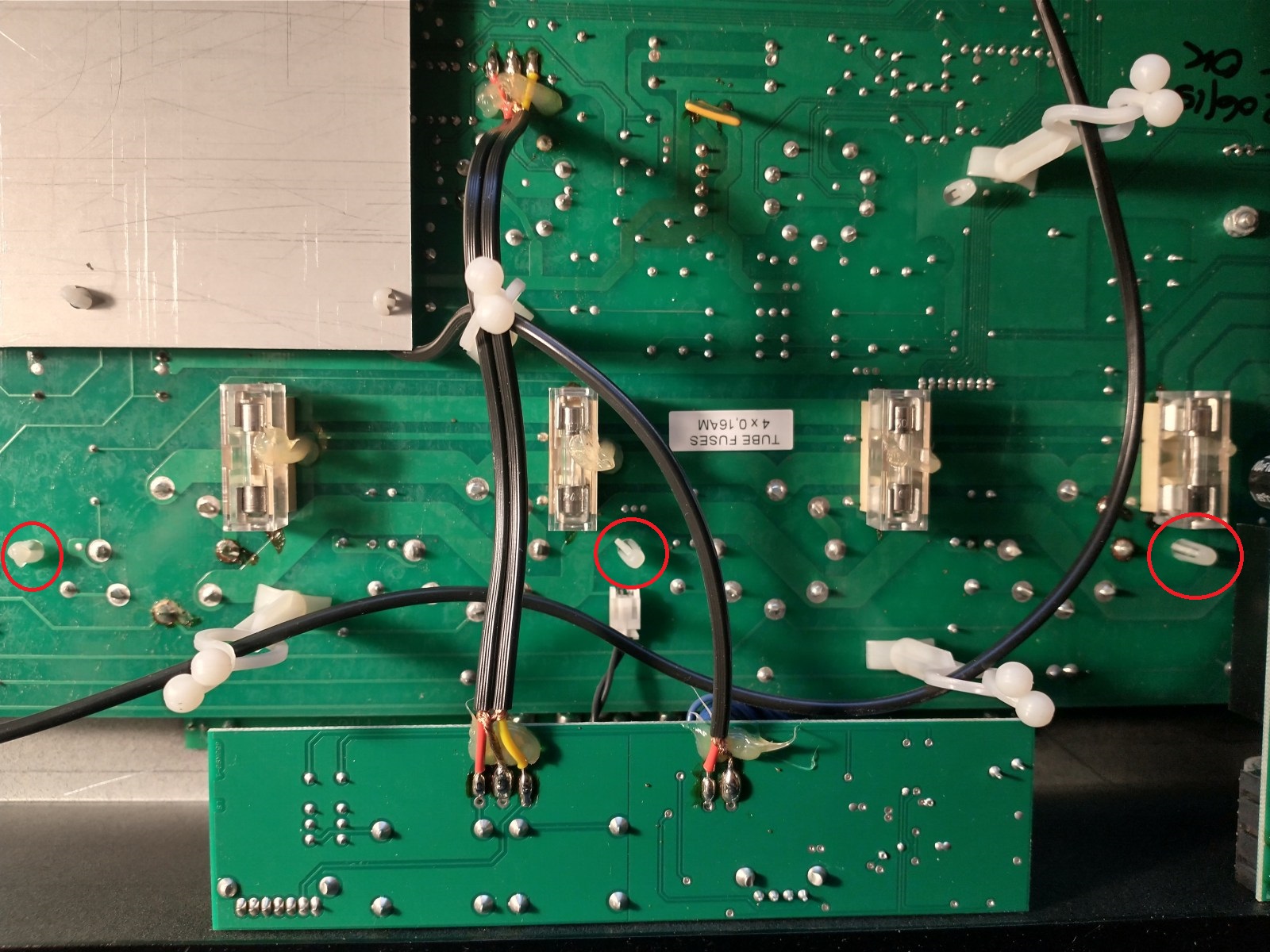

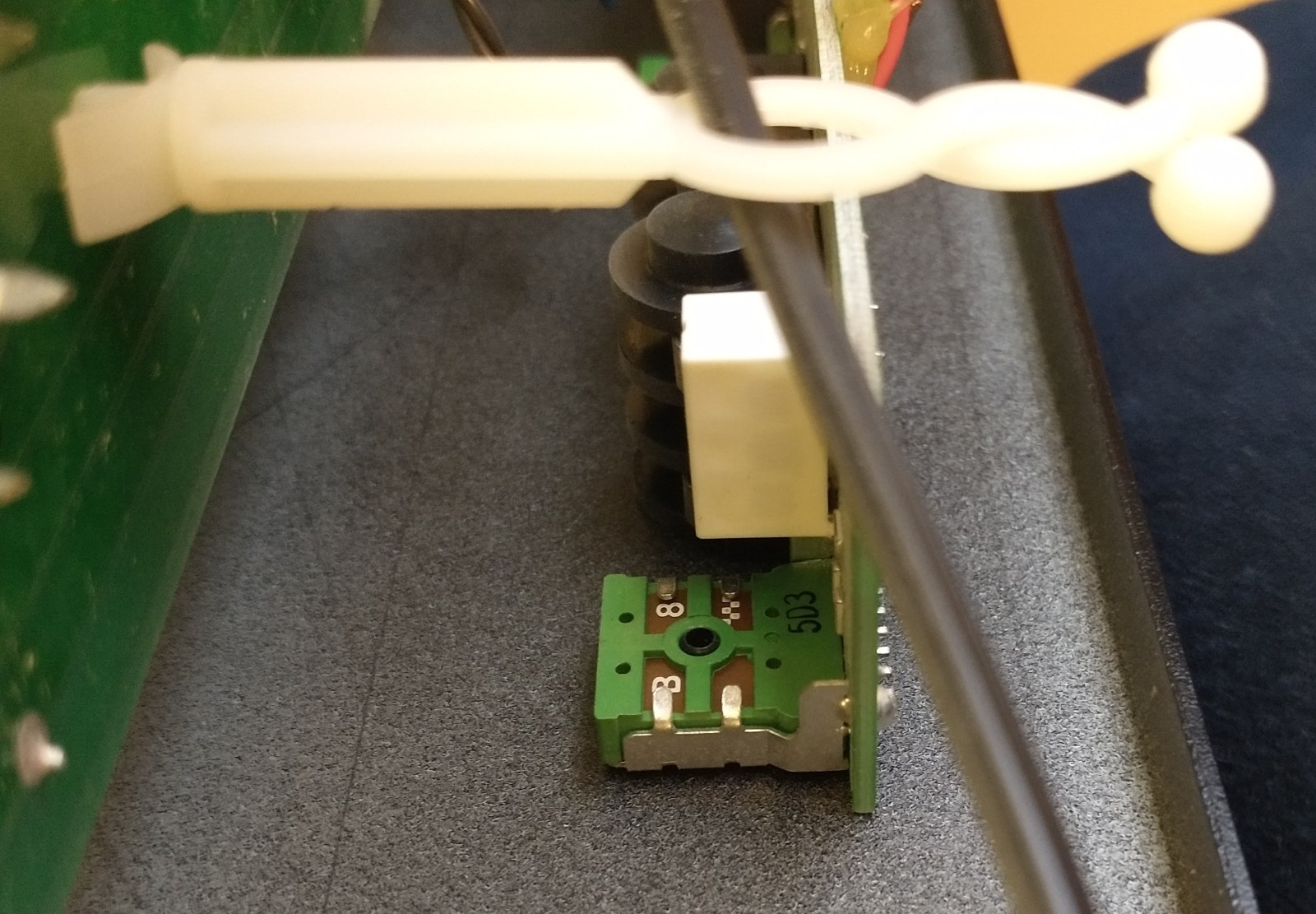

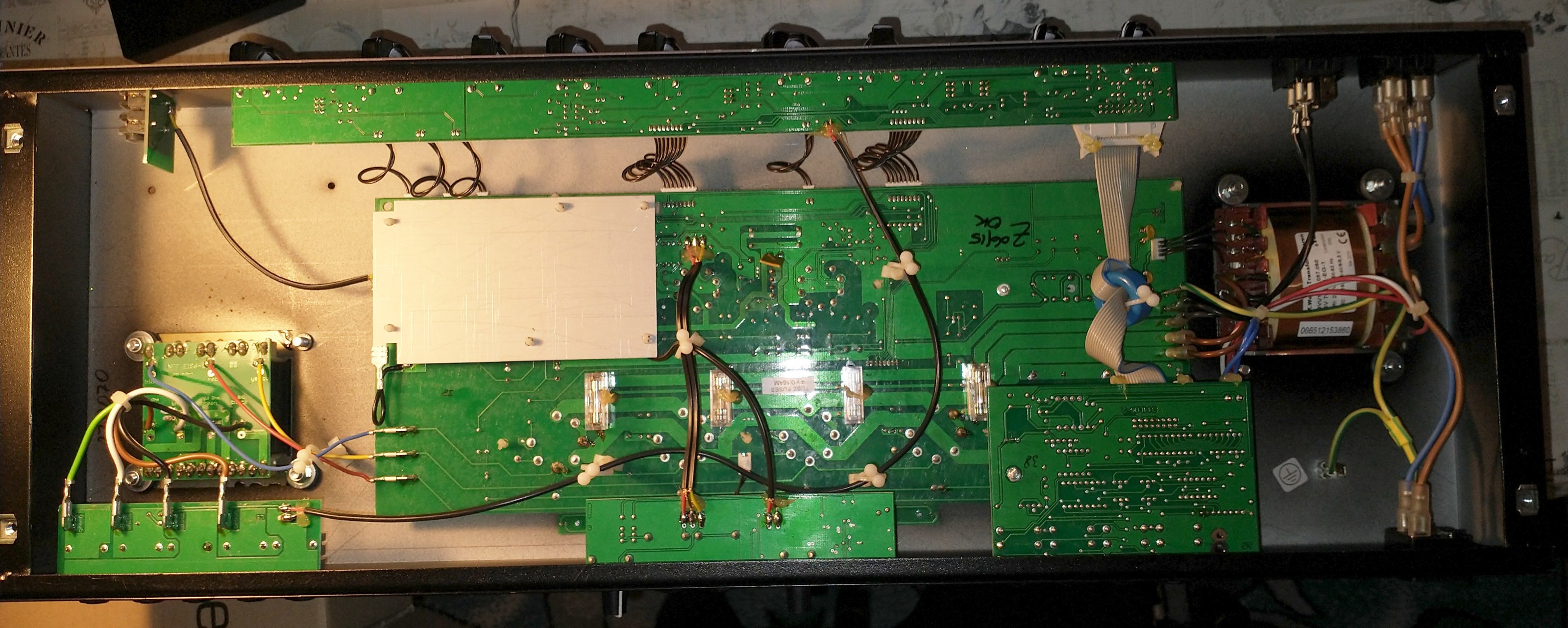

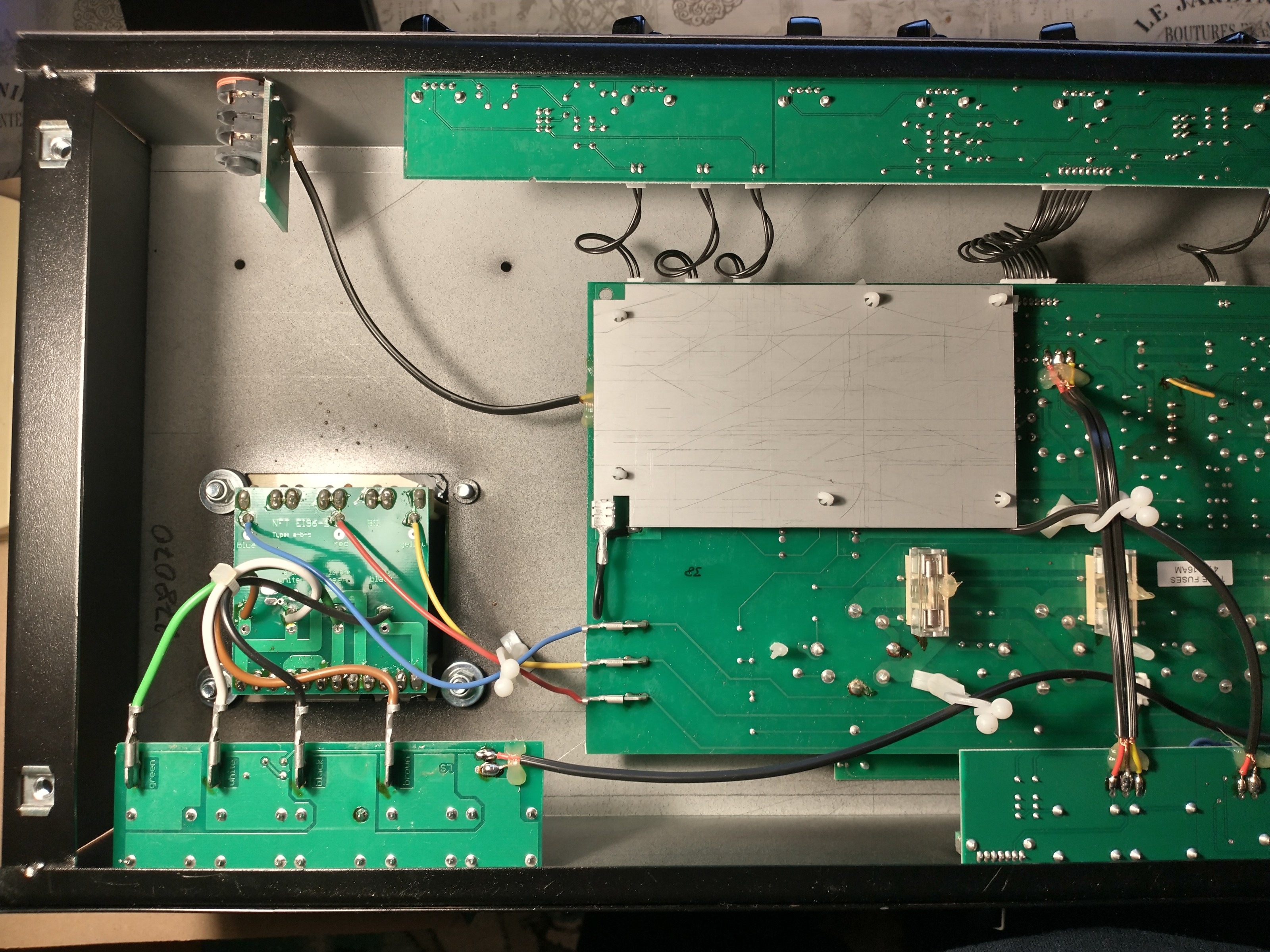

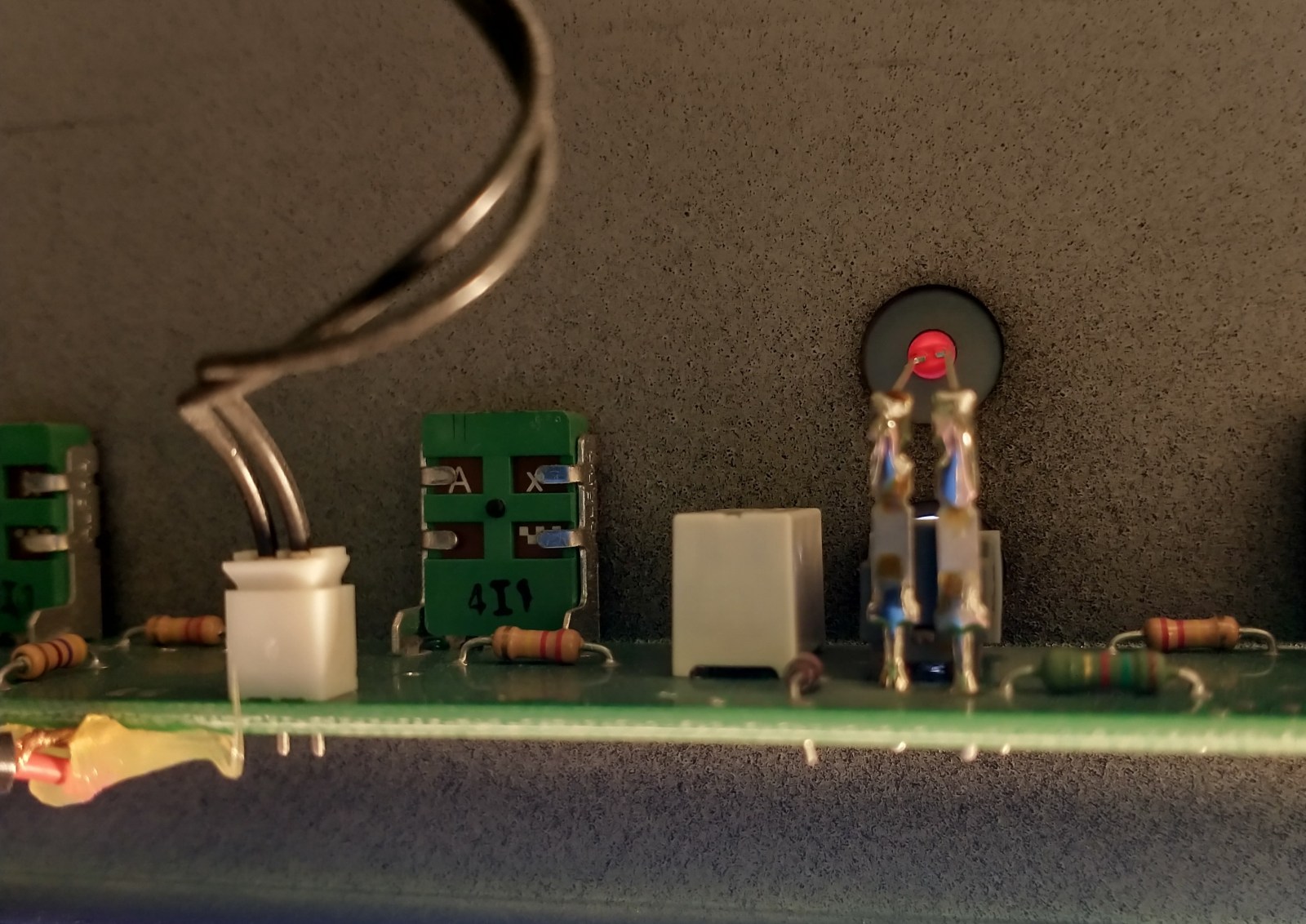

I had it open so I took a few photos.


Attachments

  • IMG_20221112_233534432.jpg
    869.2 KB · Views: 55
  • IMG_20221112_233421759_HDR.jpg
    1.3 MB · Views: 63
  • IMG_20221112_233430486_HDR.jpg
    1.3 MB · Views: 58
  • IMG_20221112_233440612_HDR.jpg
    1.2 MB · Views: 65
  • IMG_20221112_233452528_HDR.jpg
    469 KB · Views: 57
  • IMG_20221112_233857501.jpg
    332 KB · Views: 56
  • IMG_20221112_234018095_HDR.jpg
    306 KB · Views: 58
