New 2023 Bogner Uber Ultra

  • Thread starter Thread starter peterc52
  • Start date Start date
glpg80 said:
I have a plexi mode assignable to any channel and a dedicated clean on my XTC. No dedicated clean channel on a channel switcher is just a deal breaker these days. That’s unfortunate.

It’s more like a twin jet II

I wonder if he will update the effects loops of older models to this loop if we send in our amps?
Click to expand...
Yup I gotta TJ recently and I hear some TJ similarities... But this can do way tighter and more versatile... I thought Bogner should do a rev original to way modern metal tight chugs

Mr. Willy said:
I’m going to reserve judgment until I can hear some more clips. I don’t understand why all the iterations for the Uber. It was just fine in its original inception. Those first Ubers sounded the best, imho.
Click to expand...
100% agreed. If it weren’t for the 1st version Uber I’d still not be a Bogner fan. I heard some guys say it’s because a lot of tubes couldn’t handle the 1st version’s high plate voltage, but who really knows why these amp makers seem to often get it right the 1st and get worse later. Each revision seemed to keep losing balls and get more civilized sounding. That being said, I’d still be very curious to try this new Uber Ultra when I can

RedPlated said:
Density sounds like a NFB control wired in reverse. More NFB when turned up, less when turned down.
Click to expand...

That’s exactly what I thought too. But if that’s the case, what do the “Presence” and “Depth” controls do? Hi and low cut controls at the end of the preamp you think?

TheGreatGreen said:
That’s exactly what I thought too. But if that’s the case, what do the “Presence” and “Depth” controls do? Hi and low cut controls at the end of the preamp you think?
Click to expand...
Presence, Depth and NFB are all common power amp tone shaping controls. All of them control frequencies in the NFB path. Presence removes the high highs from the NFB so they aren’t canceled out, Depth does the opposite. And NFB control adjusts the overall amount of signal going to the speaker jack/ impedance selector (OT tap). They are commonly physically grouped together as they run sequentially in the circuit.

RedPlated said:
Presence, Depth and NFB are all common power amp tone shaping controls. All of them control frequencies in the NFB path. Presence removes the high highs from the NFB so they aren’t canceled out, Depth does the opposite. And NFB control adjusts the overall amount of signal going to the speaker jack/ impedance selector (OT tap). They are commonly physically grouped together as they run sequentially in the circuit.
Click to expand...

I’ve just never seen an amp with all three controls. Actually I don’t think I’ve ever seen an amp with a single “total negative feedback” pot now that I think about it.

I’d just assume that if there was a total negative feedback control, then individual high and low negative feedback controls would be redundant, so the Presence and Depth controls would more likely be preamp controls, like the Presence control was in the original Uber.

But who knows at this point. :)

Last edited:
TheGreatGreen said:
That’s exactly what I thought too. But if that’s the case, what do the “Presence” and “Depth” controls do? Hi and low cut controls at the end of the preamp you think?
Click to expand...
I’m thinking density is a variable NFB resistor, depth is depth, presence is presence.

The TJ has a preamp based filter for presence and depth last I recall.

If I’m not mistaken, the presence knob on the original Ubers affected the mids. High presence setting equaled more high mids, more Marshall. Lower setting was more lower mids, more Recto sounding.

TheGreatGreen said:
I’ve just never seen an amp with all three controls. Actually I don’t think I’ve ever seen an amp with a single “total negative feedback” pot now that I think about it.

I’d just assume that if there was a total negative feedback control, then individual high and low negative feedback controls would be redundant, so the Presence and Depth controls would more likely be preamp controls, like the Presence control was in the original Uber.

But who knows at this point. :)
Click to expand...
My amp has all 3 on front.

Presence and Depth are more filter controls as they control specific frequencies determined by capacitors that are used. NFB control is just a variable NFB resistor, no filtering involved.

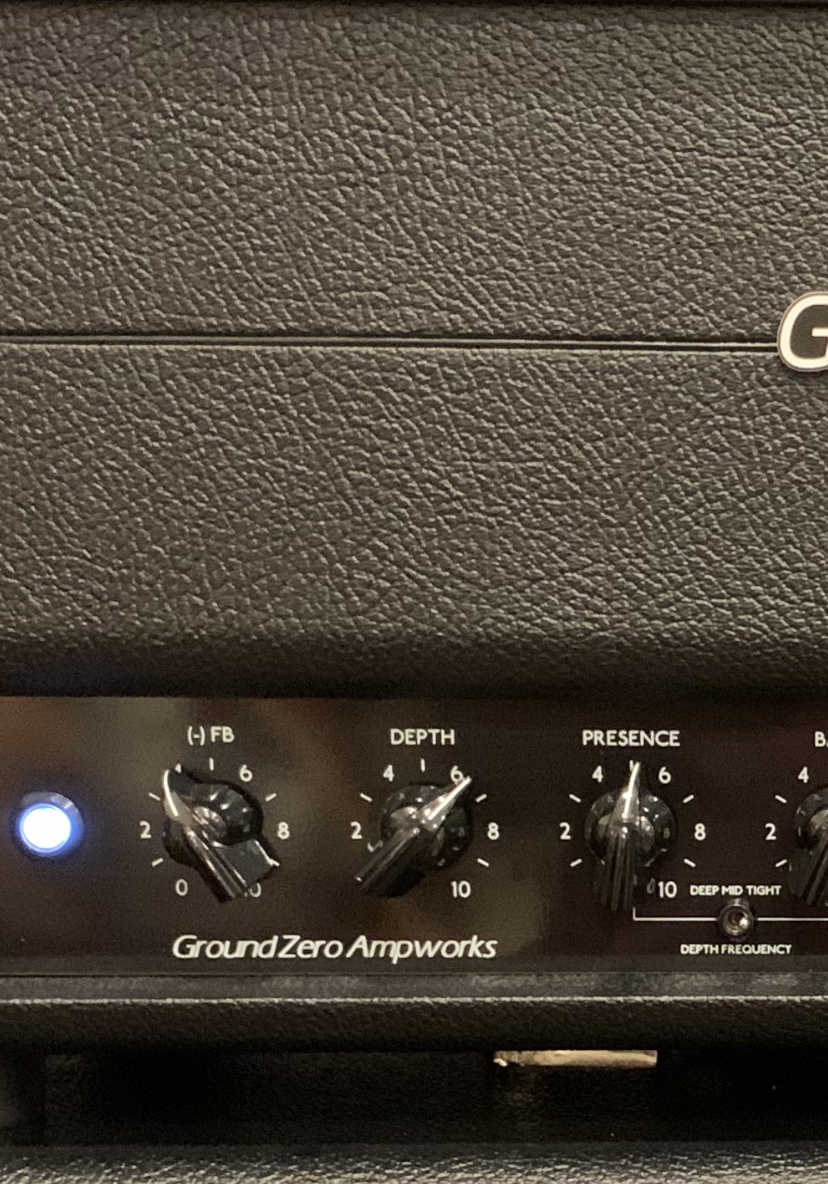

Here’s the layout on mine:


Attachments

  • 46CBDFA1-869A-4866-BF4A-32BF4B059801.jpeg
    852.1 KB · Views: 130
