Peavey 5150 switchable mods

  • Thread starter Thread starter dannykookoocookjr
  • Start date Start date
glpg80 said:
Doesn’t mean it’s not a shit design location.
Click to expand...
Just because you read it on a forum doesn't make it a shit design. It's been in use for many years and has proven itself regardless of what internet experts might say.

JerryP said:
Just because you read it on a forum doesn't make it a shit design. It's been in use for many years and has proven itself regardless of what internet experts might say.
Click to expand...

You forget the reason some things are done the way they are is not because of correctness but rather to reduce cost and increase producibility.

Not only is the standby switch in the wrong location but they used a resistor instead of a choke not because single pole filters are better than double pole filters but rather because chokes are more expensive to purchase, inventory, install, and ship.

This actual expert only states facts. It’s textbook 101 knowledge you switch with respect to ground not with respect to hot especially if the design allows for it. You can do the latter but that doesn’t make it correct.

WarHed said:
You could use a flyback suppression diode to control the spike. Solving a problem that shouldnt exist imo
Click to expand...
Given the inrush currents involved you’ll need quite a few diodes in series not to overcome the breakdown voltage at startup. That being said this is the correct answer if you’re going to switch a choke in and out of circuit of a DC source.

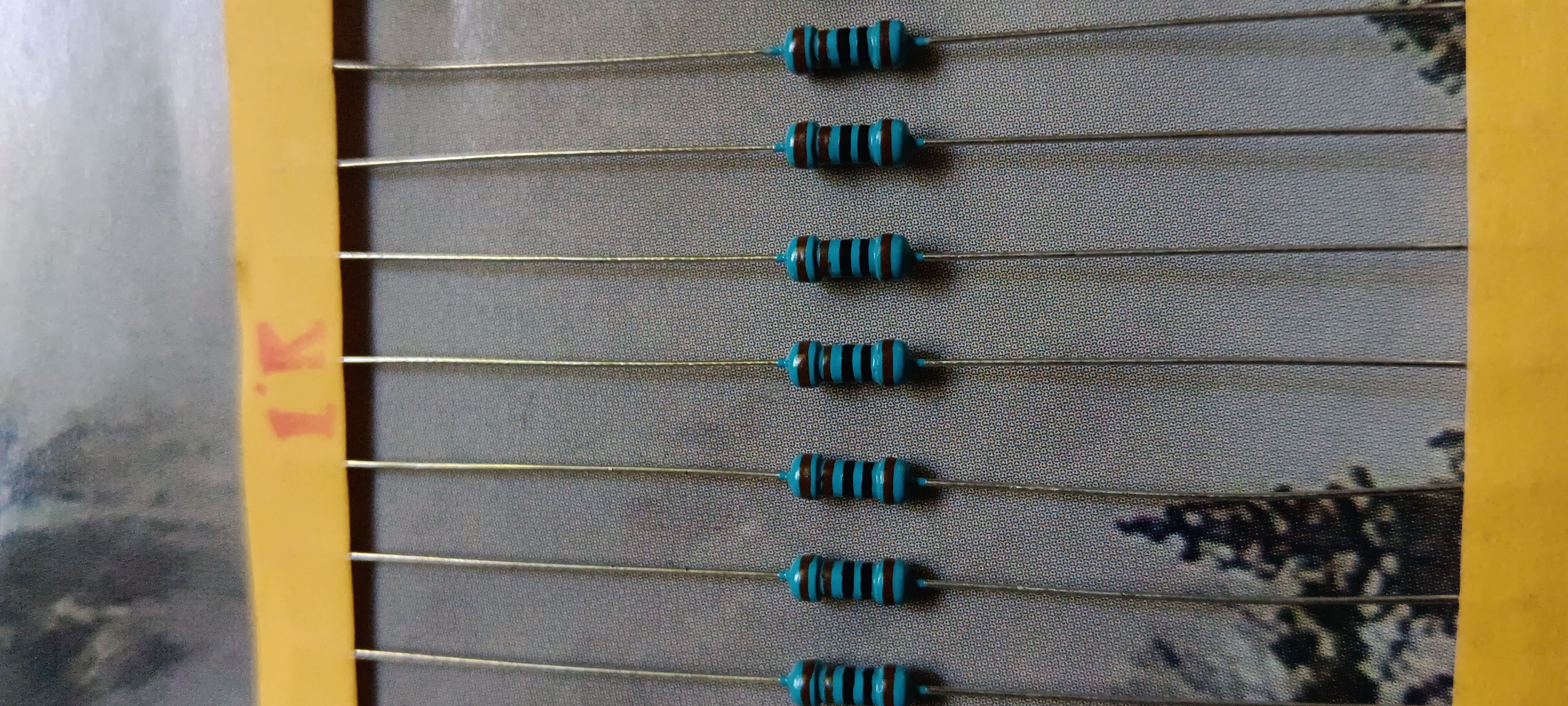

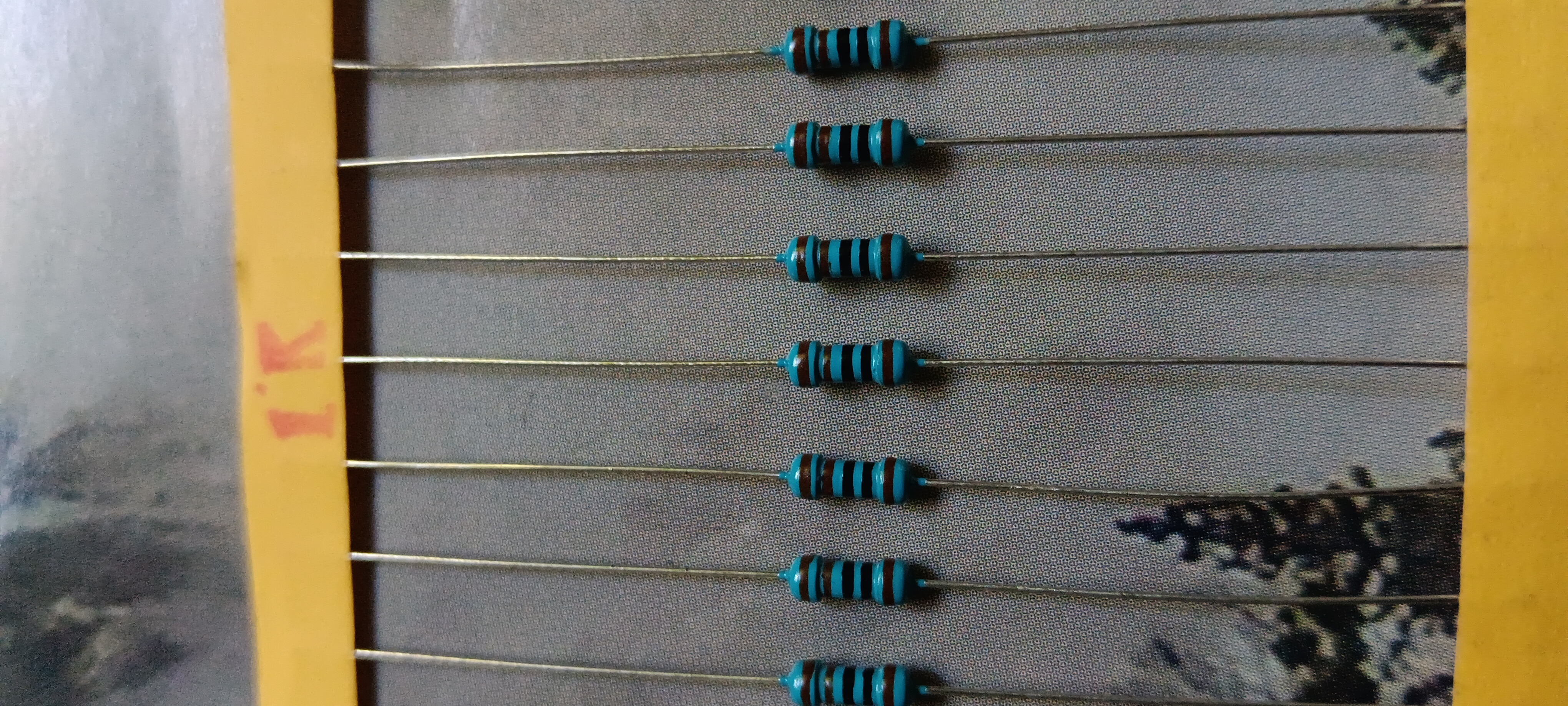

Are these the proper resistors to use for the screens to compensate for the 5150 10 hen choke mod

Sorry are these rite to use for the choke mod


Attachments

  • 20231020_105720.jpg
    3.2 MB · Views: 47
dannykookoocookjr said:
Sorry are these rite to use for the choke mod
Click to expand...
No sir you need 5W ceramic encapsulated resistors that look like white blocks and are heavy. That’s because they need to be fire resistant should they short due to tube failure. The metal film ones you posted could technically ignite under severe failure before a fuse blows (assuming the fuse is correctly rated anyway) which is obviously a very bad scenario.

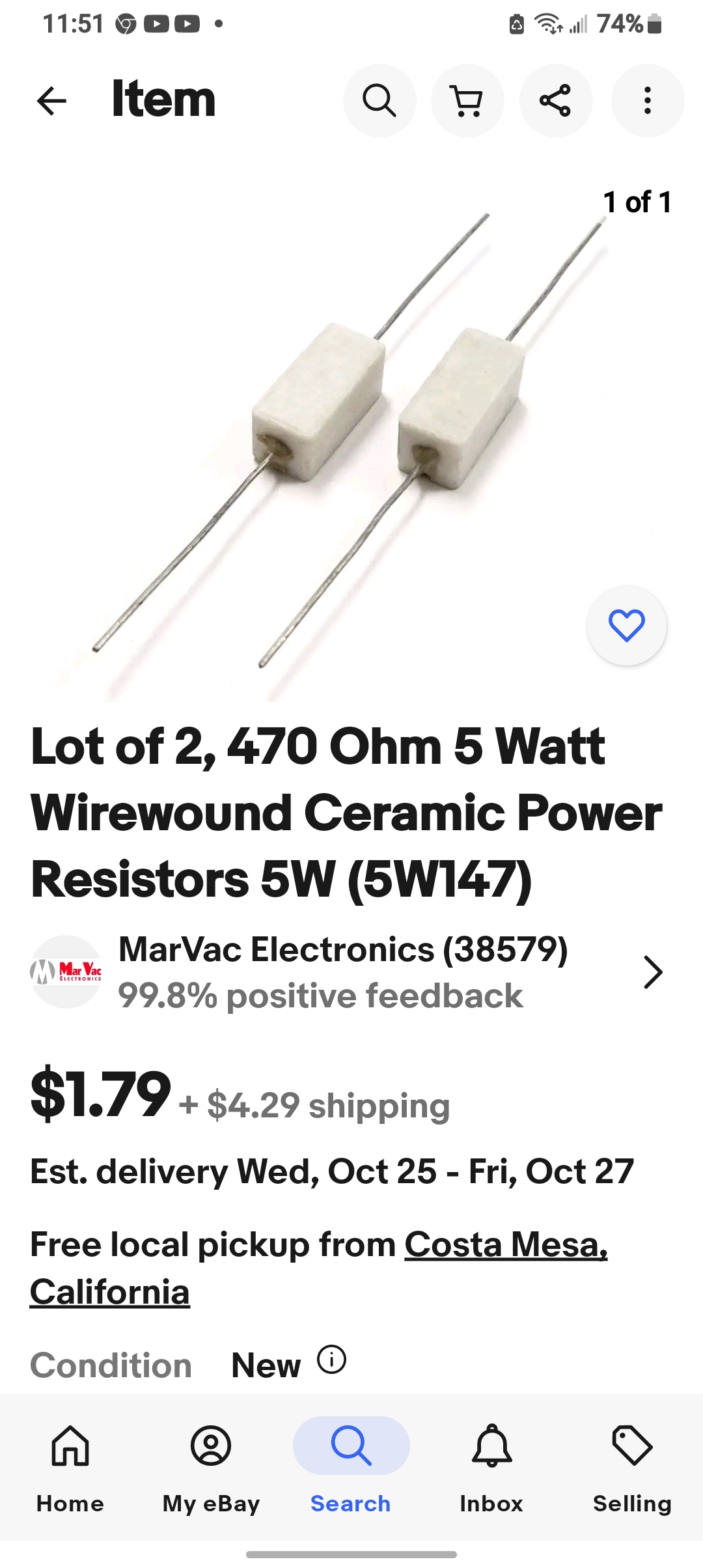

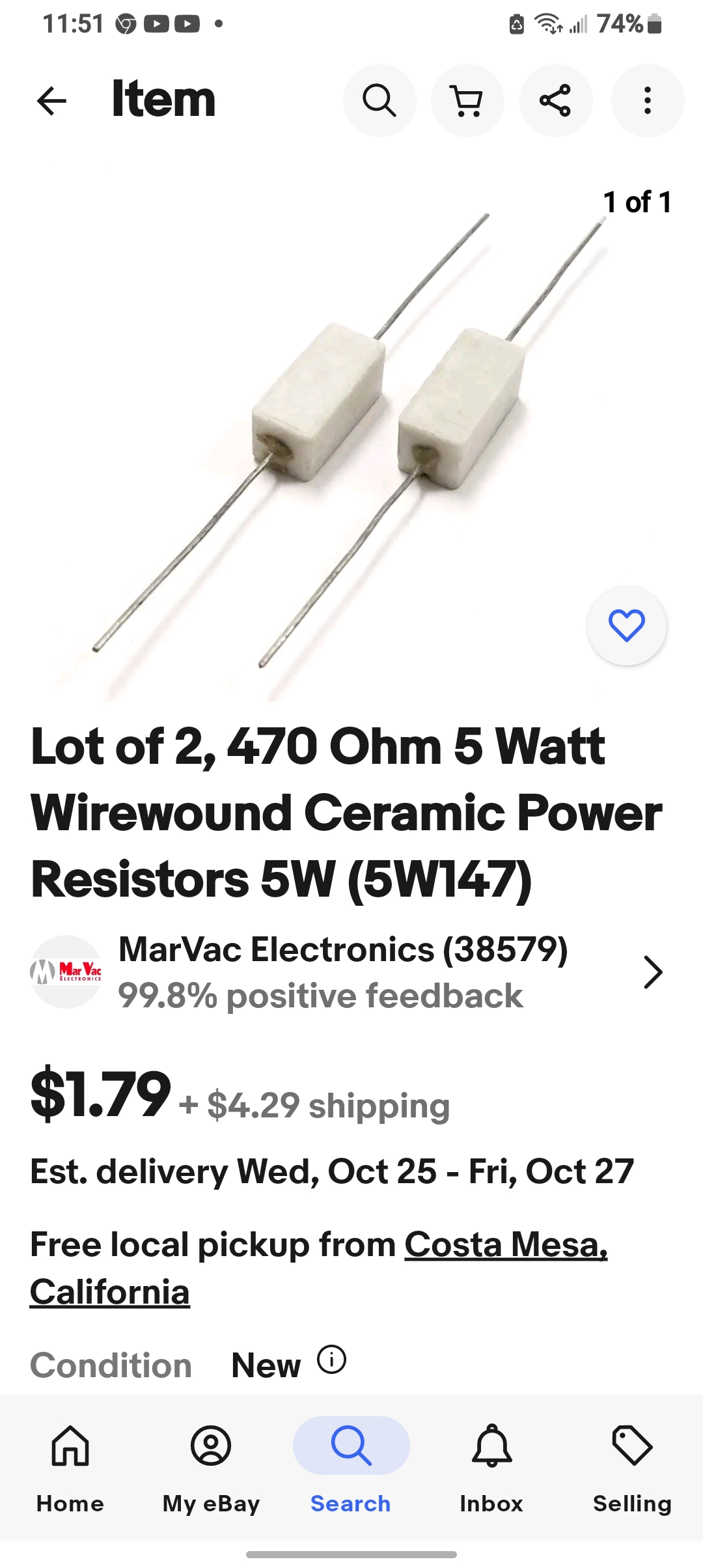

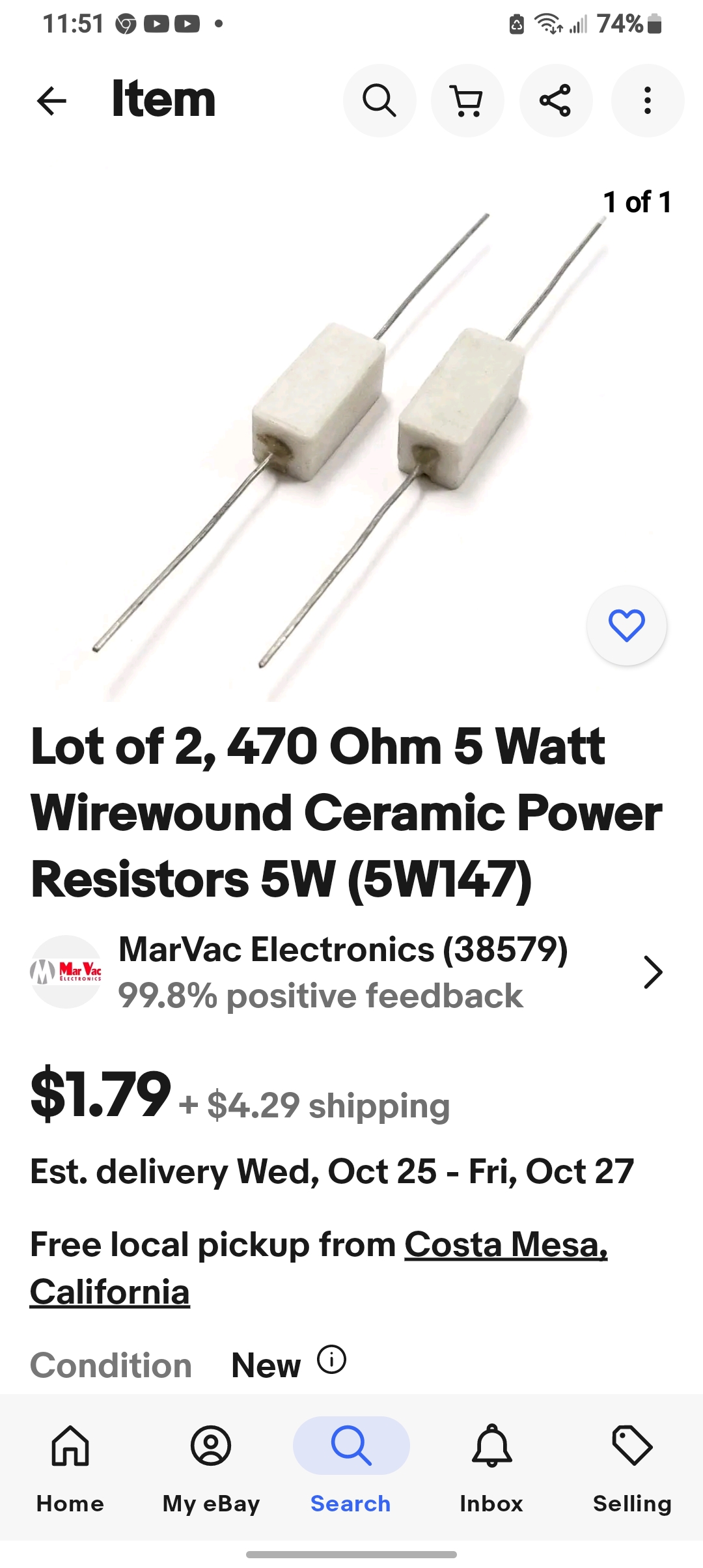

Like this?


Attachments

  • Screenshot_20231021_115103_eBay.jpg
    444.1 KB · Views: 54
  • Screenshot_20231021_115103_eBay.jpg
    444.1 KB · Views: 49
Would it be a good idea to use a higher value for any reason?or any suggestions on a specific brand ?I'm always willing to spend a little bit more for reliability reasons

Yeah that’s the correct type of resistor you got it.

1k value is perfect. You’re limited by how big they can be since it’s going onto a PCB board. I prefer vishay resistors. Valvestorm sells what you need.

I wanted to know if there was any reason why I shouldn't use a toroidal filter choke for the peavey 5150

glpg80 said:
Been a long time since I’ve looked at an OG schematic but they are either 220 or 470 ohm and you want to replace the lower values with 1k ohm 5W ceramic especially with a choke.
Click to expand...
Bummer I already ordered 4 470ohm 5w.i would like to add a choke in the future.so I should get 1k 5w for that you say?and thanks for your patience and advice

dannykookoocookjr said:
Bummer I already ordered 4 470ohm 5w.i would like to add a choke in the future.so I should get 1k 5w for that you say?and thanks for your patience and advice
Click to expand...
Myself as well as others recommend 1k 5W ceramic for various reasons. Parts are cheap so it’s not hard to order more. Otherwise it’s not worth your time since you have to lift the board.

I ordered the 1k 5w
glpg80 said:
Myself as well as others recommend 1k 5W ceramic for various reasons. Parts are cheap so it’s not hard to order more. Otherwise it’s not worth your time since you have to lift the b
