Post your pedal board pics..

  • Thread starter Thread starter base341
  • Start date Start date
I just finnished mine again. I had to rearrange it for the Toadworks True Bypass Looper. I put my Rat, OCD, and Phase 90 in that loop. The Rat is an older Keeley modded one. Functions well for guitar and bass, but mostly bass.

jlbaxe":5srir7sn said:
nevusofota":5srir7sn said:




Click to expand...
Nice Floor…..Um Board :thumbsup:
Click to expand...
Thanks man........I have to find a different backdrop for my gear pics. More people comment on the floor than my gear :lol: :LOL:

............or maybe that means I need better gear :D

Gutmann":2miid1ml said:


Those jacks lead to the Superdelay VM which is placed in the fx-loop..
This board works with both amps without tweaking:
Click to expand...
Got a part number for those jacks and where to buy? I really want to do that on my pedaltrain :yes:



The MIDI controller will be going away to make room for my 5153 controller when it gets here tomorrow.

damn this thread! I read it, and immediately ordered a Gator G-bone pedal board, a Crybaby 95Q,and some cheap Danelectro Vibe pedal.

Hope it all fits with the Splawn footswitch and my Modtone tuner. I just had a sudden urge to buy pedals

blackba":fpiuy0cy said:
mtripper":fpiuy0cy said:
I just made some small changes to mine, swapped in a new compressor and changed the order up a little.
Click to expand...

How do you like the Empress Compressor? I have read that it is awesome.
Click to expand...

So far I really like it and I would say what you have read is accurate. I am of the transparent dynamics control type of compressor user and this thing does that perfectly. I've played around with getting a really squished sound from it and it also does that very well but I haven't tried to do a chicken picken type of thing with it yet. My last compressor had a parallel blend or mix knob as well and it does make a huge difference in retaining the attack but still compressing the signal. I have mine set at about 80 wet 20 dry. I tried my bass through it as well and it worked equally well there. Anyway, it's a great pedal so if you are in the market for a compressor I would highly recommend checking it out. I emailed the company with a bunch of questions before ordering it and they always responded promptly.

simple and straightforward! Jetter Gain Stage Red is on the way and will be placed in the open spot!


Gutmann":3ln658xv said:
My latest version of the board, nothing else needed:







Those jacks lead to the Superdelay VM which is placed in the fx-loop..
This board works with both amps without tweaking:

Click to expand...

Hey glad to see someone with diezel's also with the tubemiester! I have as well and its pretty sick!

2 pedalboards: One for gigging and one for rehearsal/home.


I've got two. One is my smaller one with pedals and the other is for my main rig where most my pedals are racked.




snowdog":1tk2iyvj said:
Lord Toneking":1tk2iyvj said:
Got a part number for those jacks and where to buy? I really want to do that on my pedaltrain :yes:
Click to expand...

http://www.parts-express.com/pe/showdet ... er=092-044

There are TRS and mono ones. Not finding any mono ones though.
Click to expand...

Those will work for TS or TRS, you just don't wire up/use one of the lugs to keep it TS/Mono.


vchizzle":1tk2iyvj said:
That's awesome. Would love details on what you used for lighting and how it's hooked up.
Click to expand...

Thanks. I measured out how much I would need to go around the whole board, bought a LED light strip 12v rating, took a power cable for the Voodoo Labs ISO-5, cut it in half, stripped it and wired the LED strip to it. It is powered through the ISO-5 from the 12v power output. The Light strip has a sticker backing, and I also used zip tie mounts for the wires and LED strip.

Exact LED Strip I used.
http://www.dealextreme.com/p/48-5050-7- ... ngth-41195
Random Zip tie mount. I bought mine from home depot
http://i.imgur.com/xaQTc.jpg
Used one of these for the power
http://images.thomann.de/pics/prod/222166.jpg

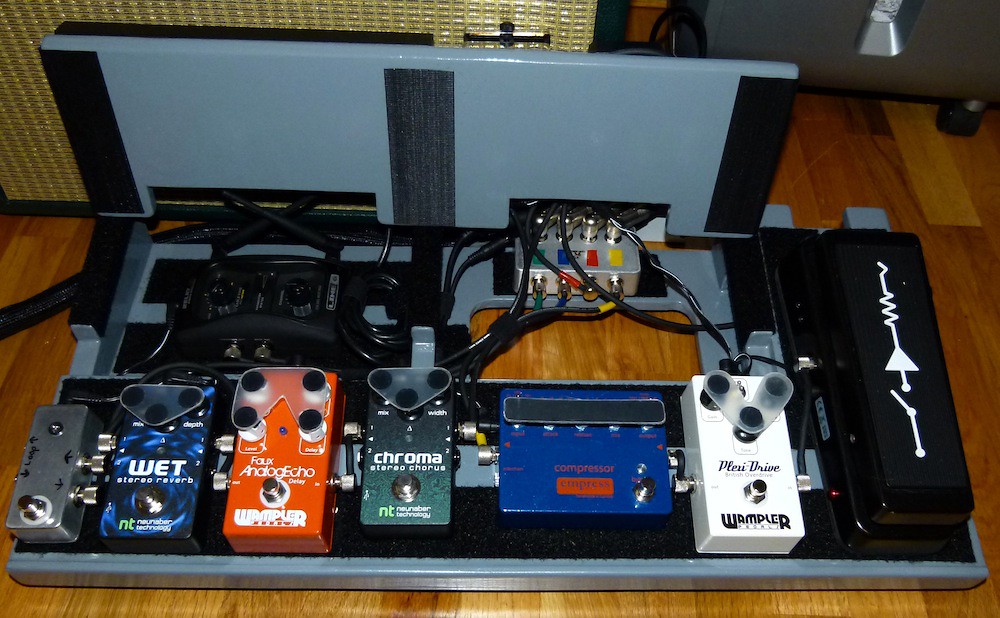

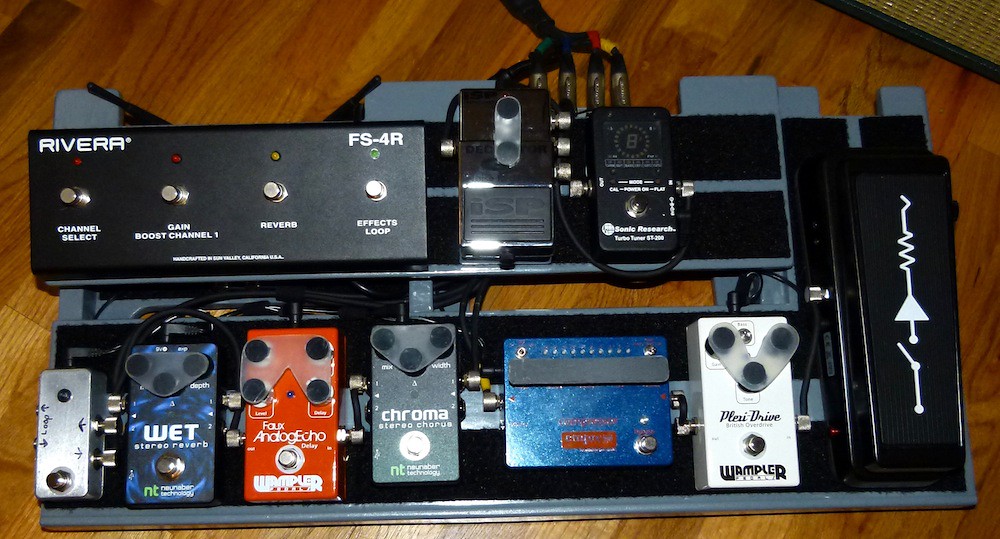

There wasn't anything wrong with my old one but it was starting to get chipped up and there were a few things I would have done different so I decided to rebuild it. Again. This time though instead of enamel I used that truck bed liner stuff so hopefully it holds up better. Even though it was only cosmetic it still bugged a little when it got chipped. I also made it 1" wider but shrank the wah area so the upper riser it 3" wider which gave me more room under it. I also made the patch bay ledge wide enough so it is actually big enough for the patch bay. I can swap the drive pedal out now for some that are a little bigger depending on what I need, a wampler slostortion fits there now where it wouldn't before. It's built a little better as I took my time and the tolerances are much closer, the last one was actually the prototype but I just started using it and have been for a couple years now. The paint job isn't all that great but at least it should hold up.
