Who wants their own signature OD ?? Free pedal giveaway !!

griff10672

griff10672

Well-known member
Getting ready to step away from the PCB software for a little while I hope ...... looking for one more pedal idea

sooooooooo .......

I need a theme and maybe even a name ....... and a circuit you want to use ...............

and if I like / use your idea .... you'll get one for free

just a note : you will have no say in the design .... just the name / theme / circuit .... I think it will keep things fun

you've got until 5pm ET

if there's nothing for me to use ..... DanTravis62 will get his own ...... I will call it " Dan's Zapotos " and put pics of Carlos Santana snakeskin penny loafers on the sides of the pedal .

Well ??

Last edited:
griff10672 said:

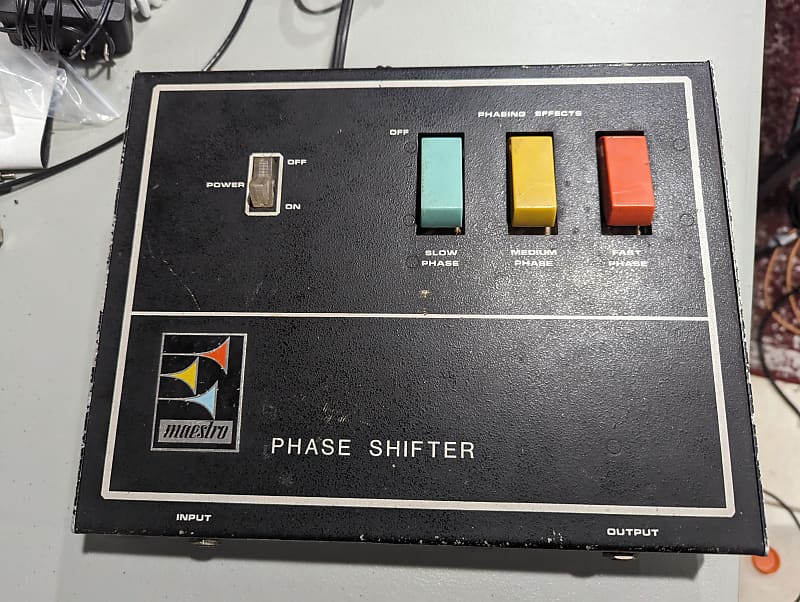

that's a pedal ??
Click to expand...
One I have saved.....but probably won't get to...due to lack of time and talent. 😂

Was just dropping an idea.🤷🏻‍♂️

The vero board layout is done 4 different ways....I was gonna do them running in series.

Sorry if the reference is a bit sloppy. I think freestompboxes has the schematic.

simonfrewler said:
One I have saved.....but probably won't get to...due to lack of time and talent. 😂

Was just dropping an idea.🤷🏻‍♂️

The vero board layout is done 4 different ways....I was gonna do them running in series.

Sorry if the reference is a bit sloppy. I think freestompboxes has the schematic.
Click to expand...
is it verified ??.... I've used schematics from them before that didn't work out ..... last thing I want to do is start troubleshooting free builds ...

griff10672 said:
is it verified ??.... I've used schematics from them before that didn't work out ..... last thing I want to do is start troubleshooting free builds ...
Click to expand...
I can appreciate this.

I don't think so.

Not sure, but according to the comments on the site I gave you, it's pretty clear it works and he gives many technical answers about the circuit, which will make lots of sense to you.

If it's too much, I get it.

Just an idea.

Do appreciate the gesture though, this is cool.

Sorry if I am causing frustration.

VonBonfire said:
The "preamp" pedals seem to be rising in popularity.
Click to expand...

simonfrewler said:
I can appreciate this.

I don't think so.

Not sure, but according to the comments on the site I gave you, it's pretty clear it works and he gives many technical answers about the circuit, which will make lots of sense to you.

If it's too much, I get it.

Just an idea.

Do appreciate the gesture though, this is cool.

Sorry if I am causing frustration.
Click to expand...
no stress ......

I will take a look at it a little later on today ....... if I think it's worth it .... it might just have to wait till I have the time to devote to it ...

for this contest/ giveaway ... I'm looking to have the schematic done ... PCB layed out by 6 or 7 tonight (y)

griff10672 said:
no stress ......

I will take a look at it a little later on today ....... if I think it's worth it .... it might just have to wait till I have the time to devote to it ...

for this contest/ giveaway ... I'm looking to have the schematic done ... PCB layed out by 6 or 7 tonight (y)
Click to expand...
It's cool....pretty niche.

Thanks.

Good luck.

PS this is pretty much a Sunn Motel T, Bassman derived circuit...so not super special...might not be for everyone anyway.

Have a good one bud🤘

simonfrewler said:
It's cool....pretty niche.

Thanks.

Good luck.

PS this is pretty much a Sunn Motel T, Bassman derived circuit...so not super special...might not be for everyone anyway.

Have a good one bud🤘
Click to expand...

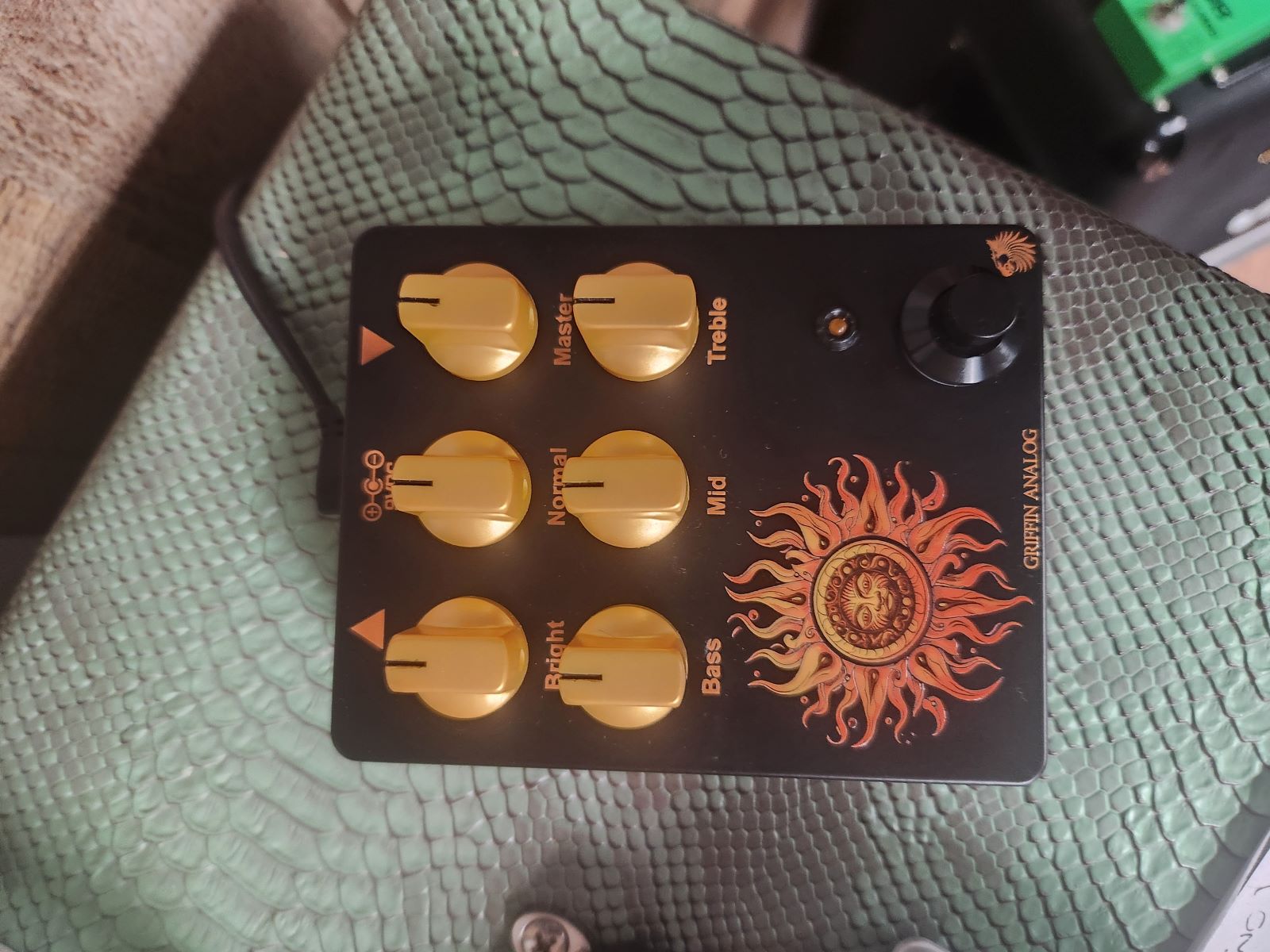

I have a Sunn Model T circuit pedal already .......


Call it “The Biggus Dickus” because you have to step on your biggus dickus to activate it. And it should be pink or purple…. If you go with the bigger enclosure it should be black…. Just saying….
