Boosts .... Overdrives ..... Distortions .... What next ???

  • Thread starter Thread starter griff10672
  • Start date Start date
JackBootedThug said:
how about one of your dual pedals with say....a tsv808 on one side and a killer distortion on the other? Put the ole mushroom stamp in the middle.....call it the R.T.O.T.C. mushroomhead....because it's fed shit and kept in the dark....lol..
Click to expand...
issues ....... :loco:

griff10672 said:
I don't know if you can have a patent on diodes clipping config .... but who knows ...
yes .... the SD-1 is Asymmetrical ... while the TS is Symmetrical ....
I'm in the process of designing some of my own SD-1 boards ... a lot of the guys in here want that option on a switch ... and different diode types ...
so I'm working that into the design
Click to expand...
I've always wondered that. I was aware the SD-1 and TS808 circuits are very similar.

However, quick question, the asymmetrical vs. symmetrical clipping difference is only part of what sets them apart, correct?

I mean, if you just modded an SD-1 to remove one diode from the clipping stage and did that solely, it would still sound like an SD-1, just slightly less edgy, correct?

Rex Rocker said:
I've always wondered that. I was aware the SD-1 and TS808 circuits are very similar.

However, quick question, the asymmetrical vs. symmetrical clipping difference is only part of what sets them apart, correct?

I mean, if you just modded an SD-1 to remove one diode from the clipping stage and did that solely, it would still sound like an SD-1, just slightly less edgy, correct?
Click to expand...
They are so similar... you can build either one using the same board ... the Sd-1 has a couple of extra parts .. 3 ...I think to be exact ... some values of a few are different... the main one being ... if I remember right ... the gain pot of a 808 is 500k ... while the SD uses a 1M ... giving it more gain .

griff10672 said:
They are so similar... you can build either one using the same board ... the Sd-1 has a couple of extra parts .. 3 ...I think to be exact ... some values of a few are different... the main one being ... if I remember right ... the gain pot of a 808 is 500k ... while the SD uses a 1M ... giving it more gain .
Click to expand...
So where does the lower output come from the SD-1? And the more extreme low-end rolloff?

I agree with the SD-1 having more gain. But set to 0, it also has less. Any idea where that comes from?

Boss Advanced EQ 10 band boosts great while having the EQ . Probably my fav pedal with koko 1

CrystalSky said:
No I mean pedals done, time to move to full blown amps hehe
Click to expand...

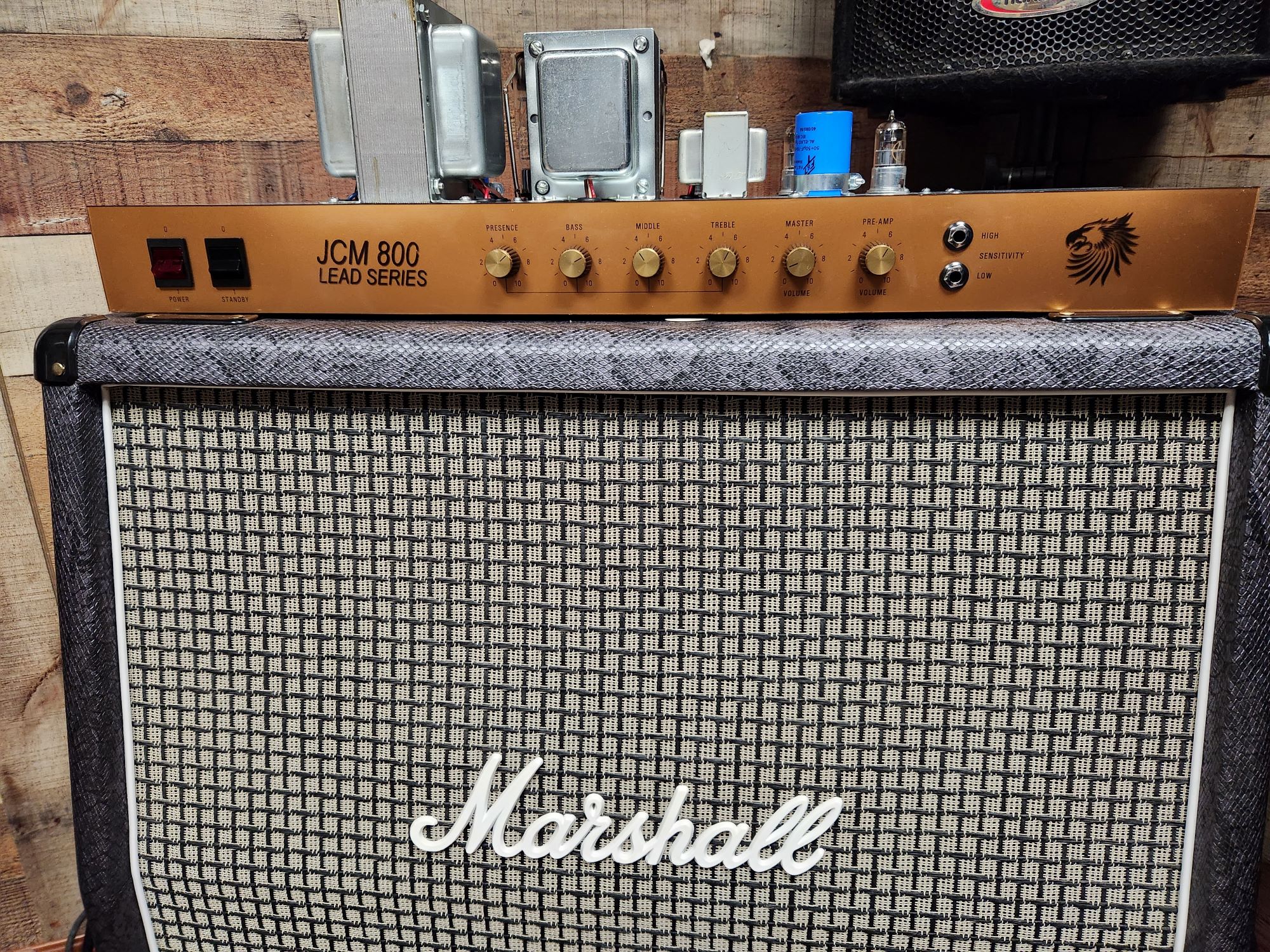

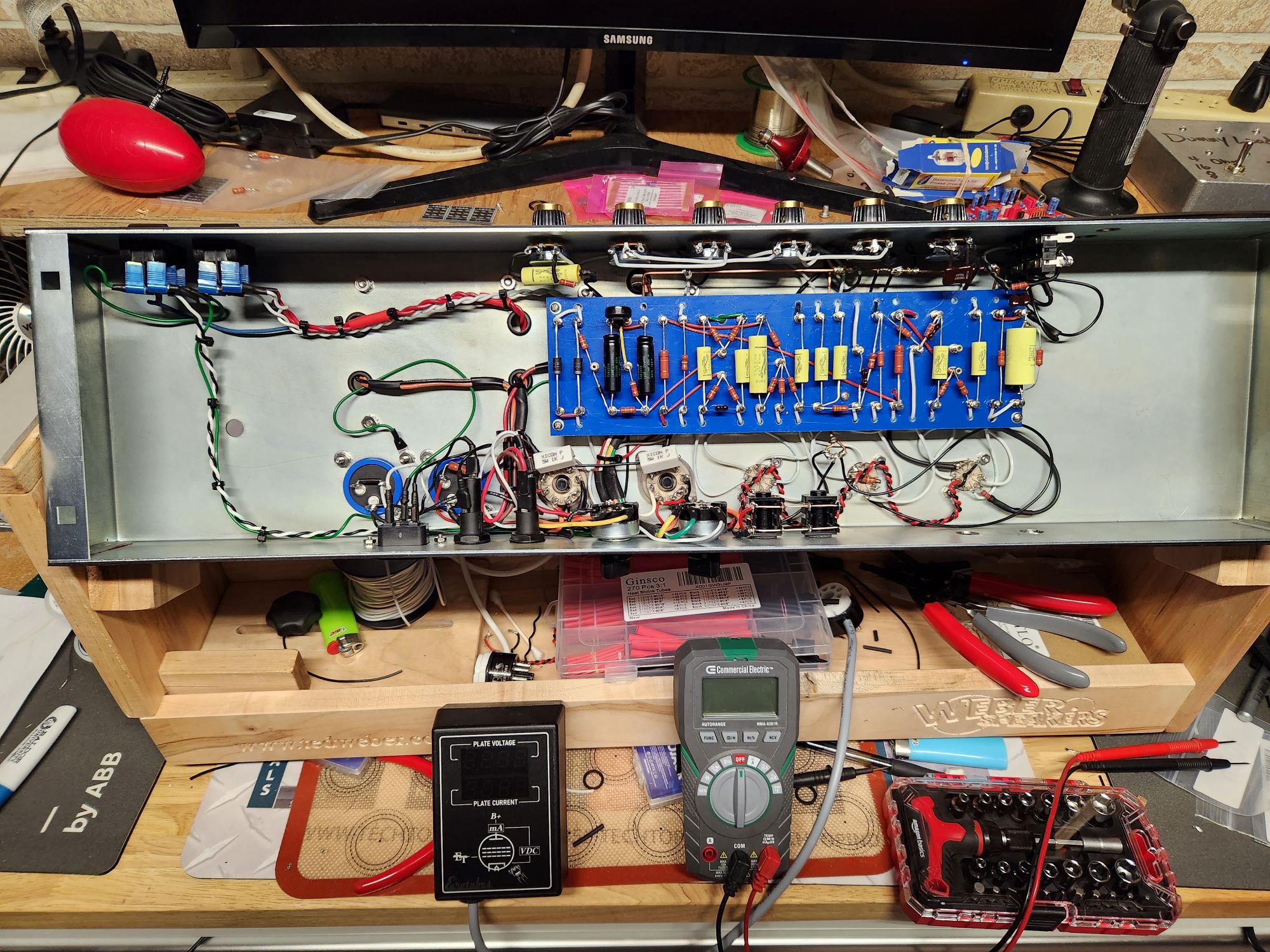

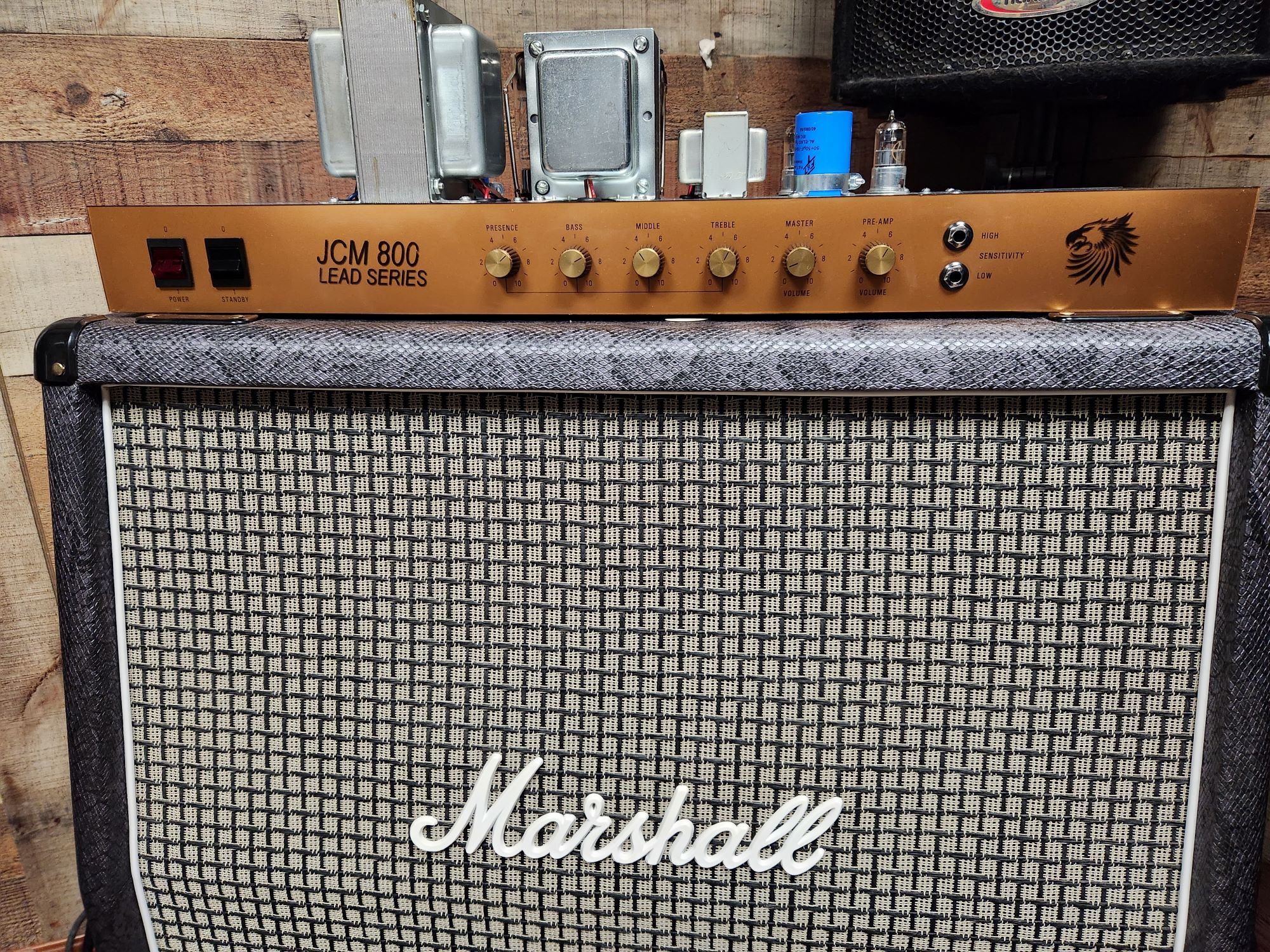

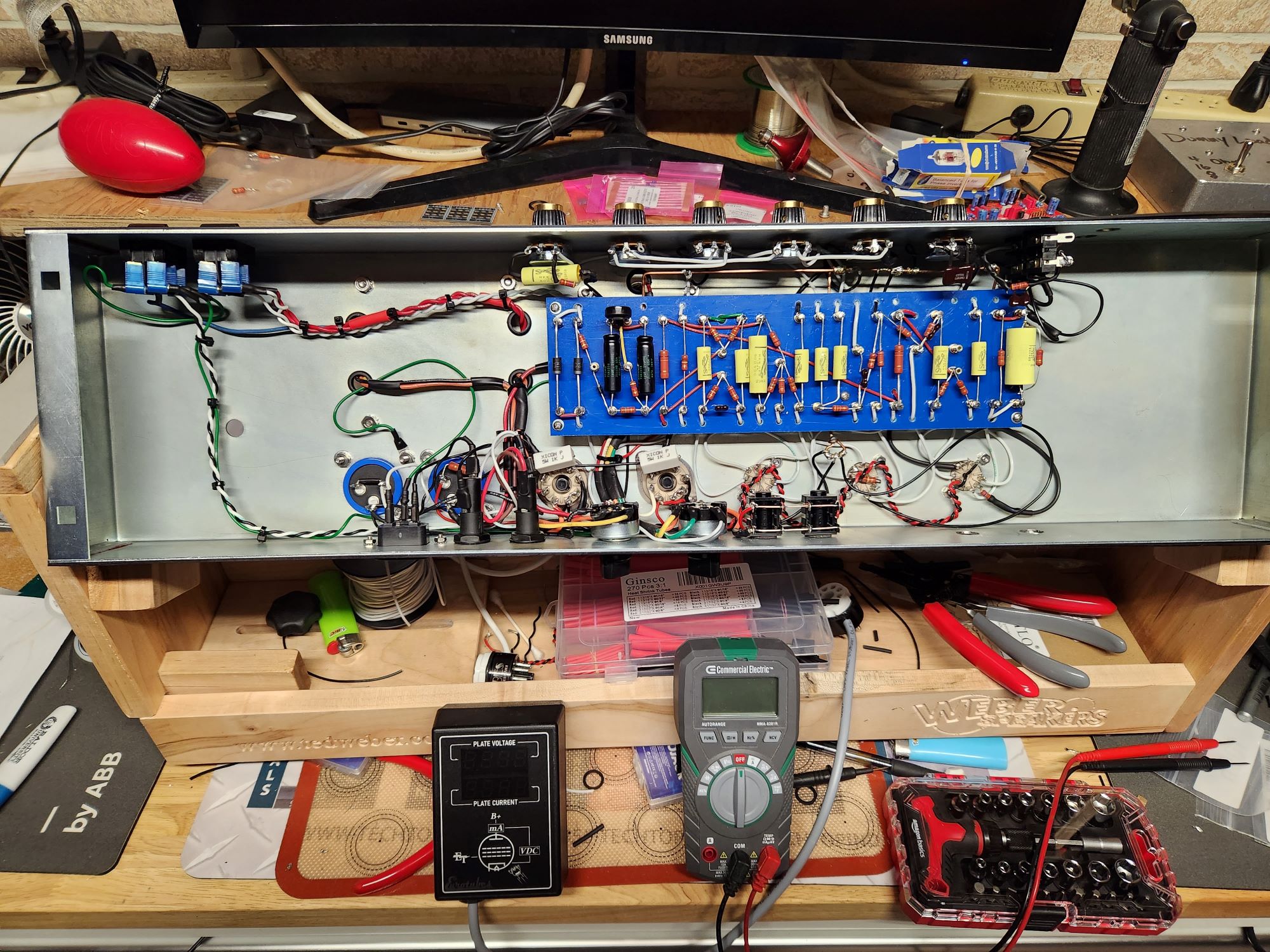

I build amps too ...

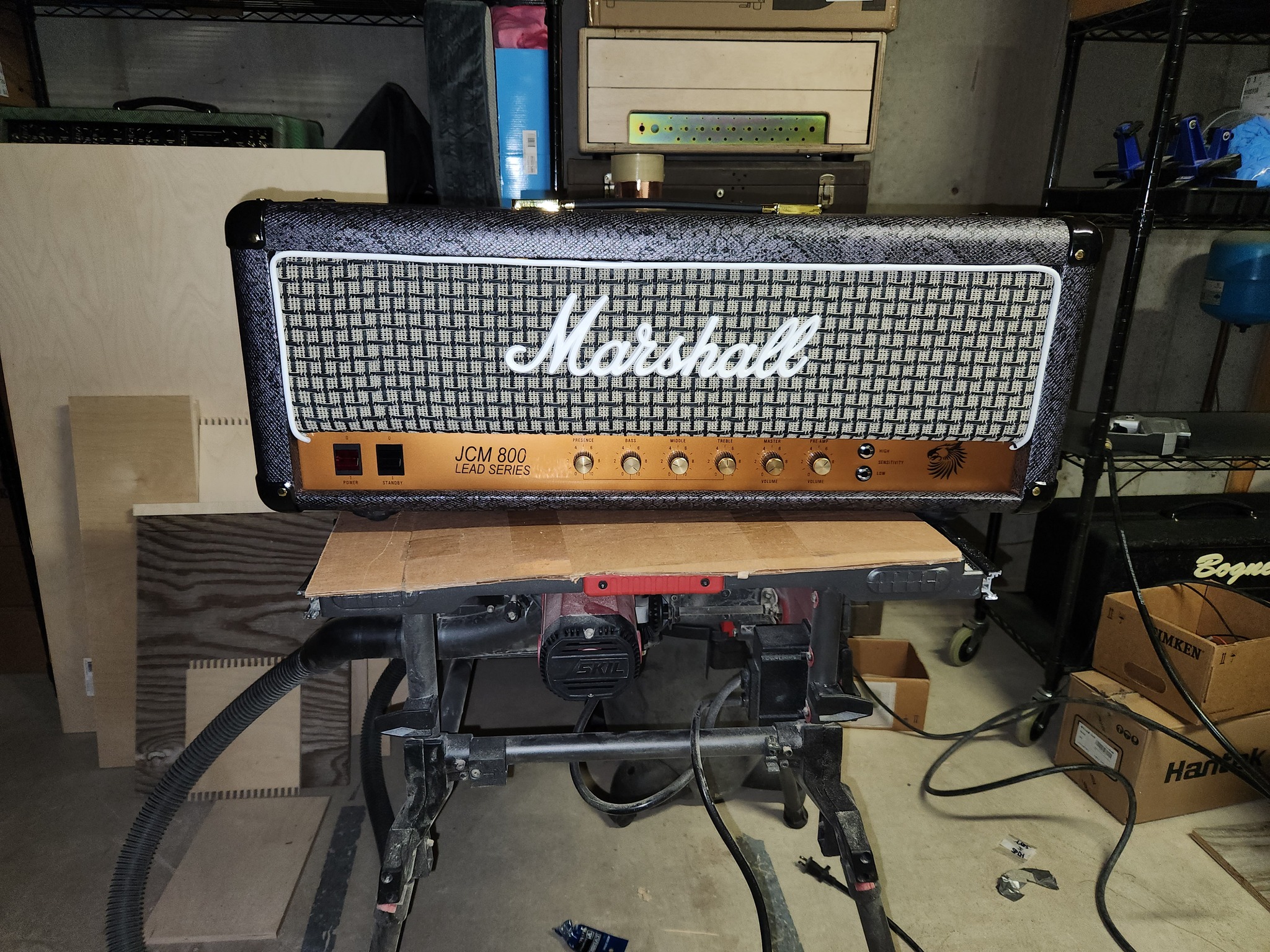

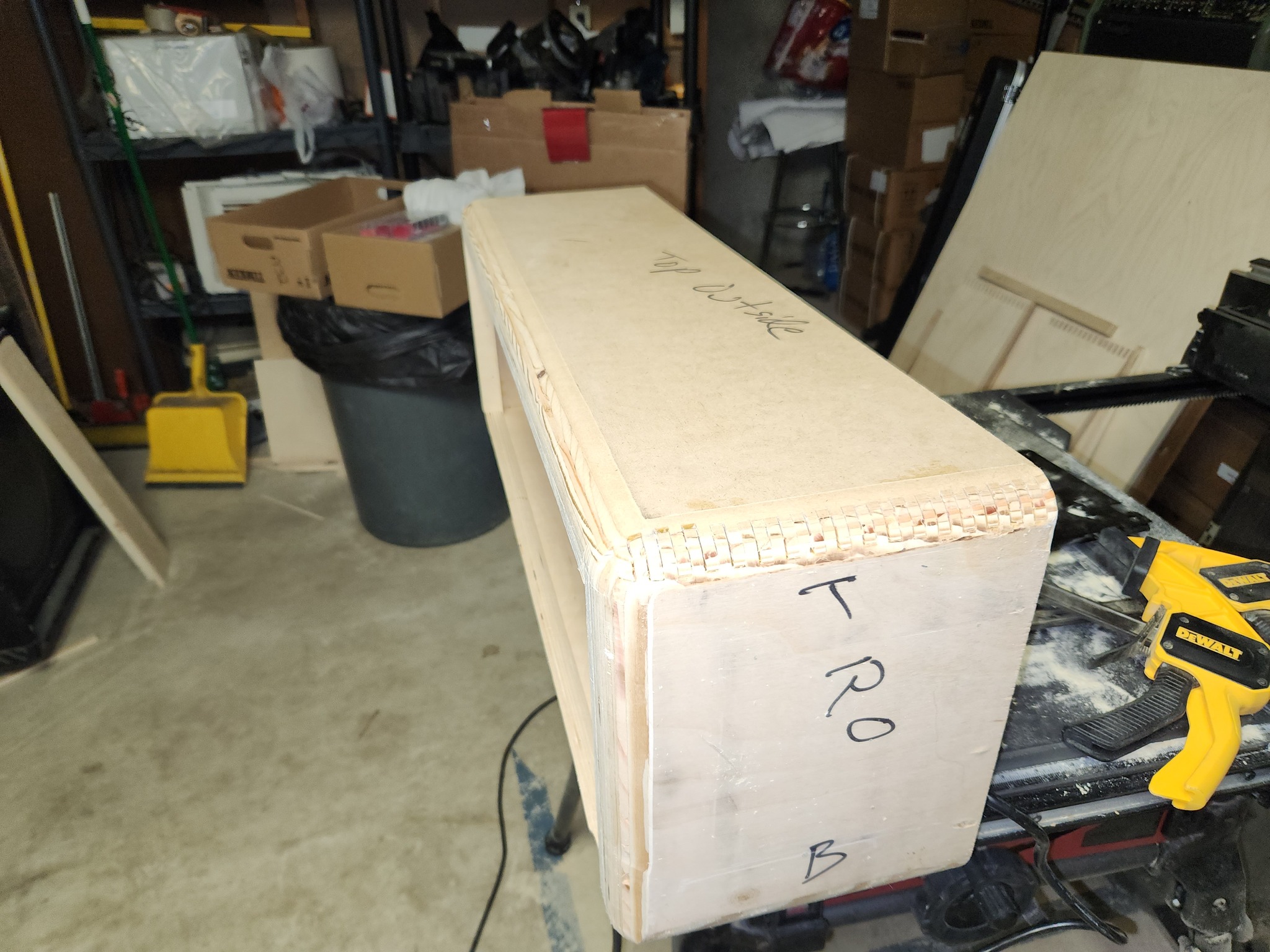

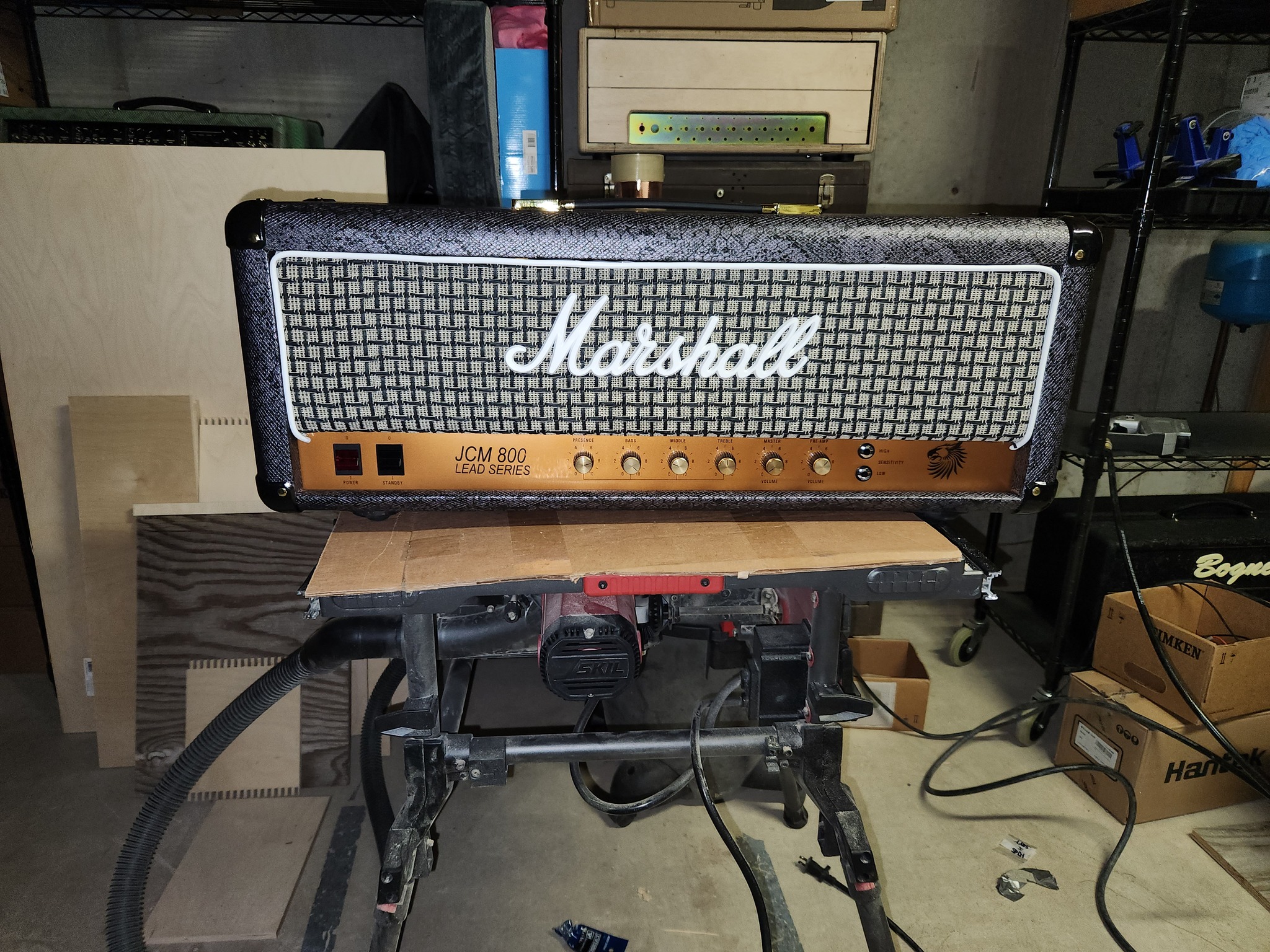

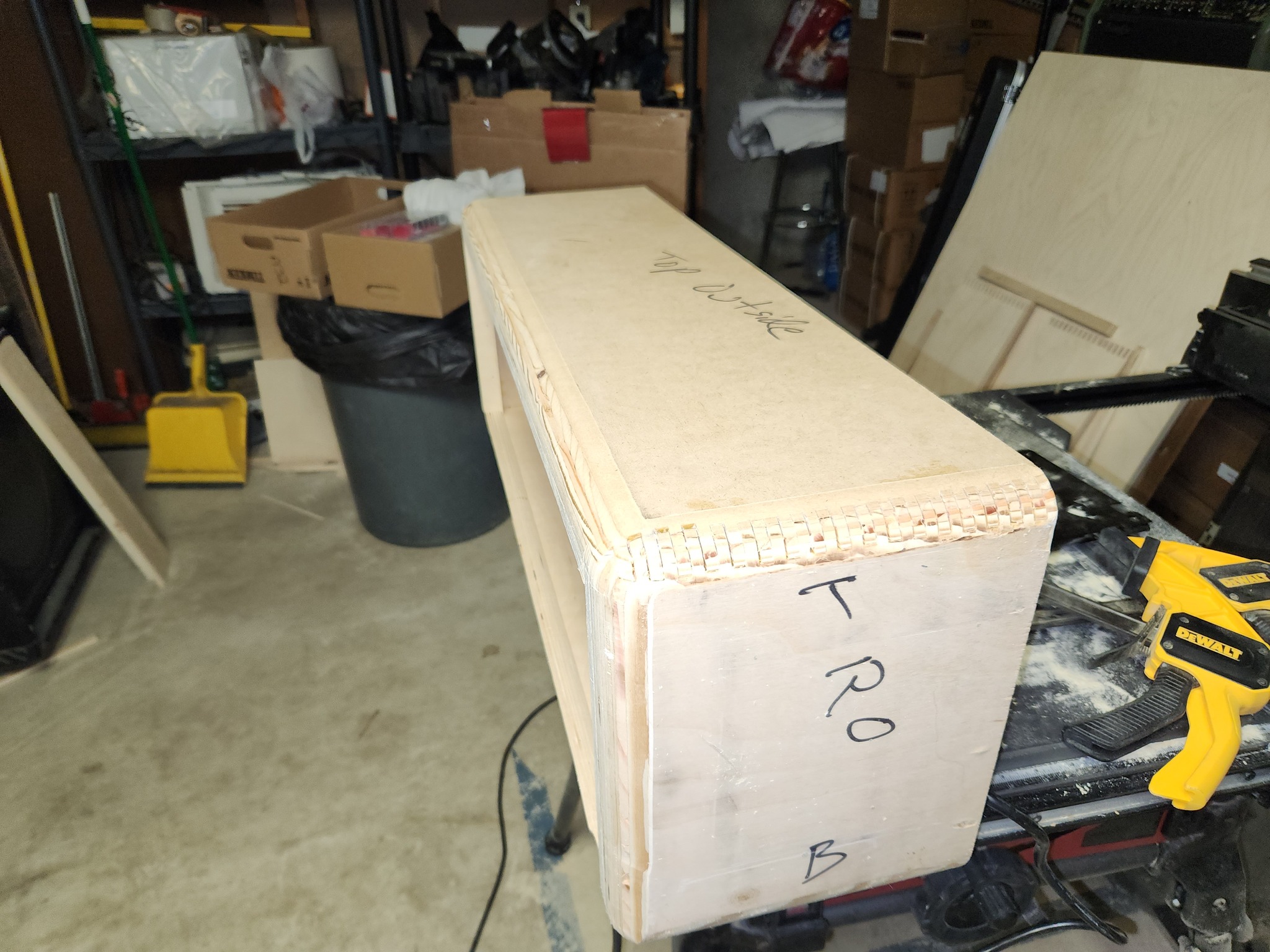

and a headshell to match the cab


CrystalSky said:
Wow! This looks stellar! 🤘🏻
I never knew!

Time to get RT exclusive Mark 2c+ then 😁
Click to expand...
I've actually got all the parts in the shop to do a Headfirst Kali ...... but lately spare time just doesn't exist ... not the spare time to be involved in a amp build anyway .

griff10672 said:
I've actually got all the parts in the shop to do a Headfirst Kali ...... but lately spare time just doesn't exist ... not the spare time to be involved in a amp build anyway .
Click to expand...
Headfirst can be bought for sane money. I’d go for an unobtainium 🤔

blackba said:
The Mostortion clone gets my vote.
Click to expand...
tell you what .... first ten votes on the same pedal ( that I can get boards for ) I'll do

Sd-1 isn't possible for me at the moment ... plus I'm working on a modded one for you guys ....

What about a boost like the jackson je-1000
Real unobtainium...
