How very Gear Page - Lets see some Rig Talk pedal boards

[lame guitarist]

One of mine



[rbc]

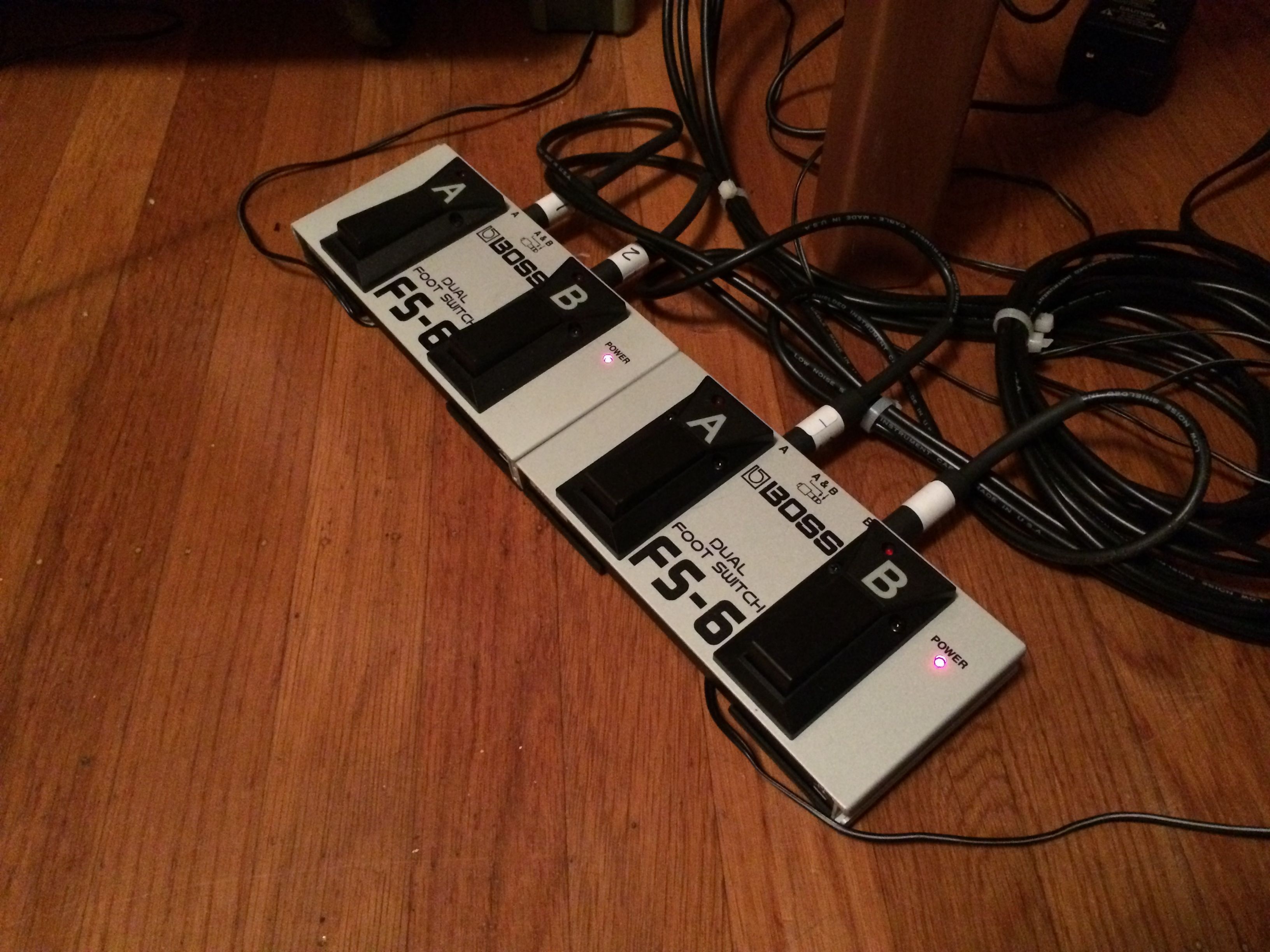

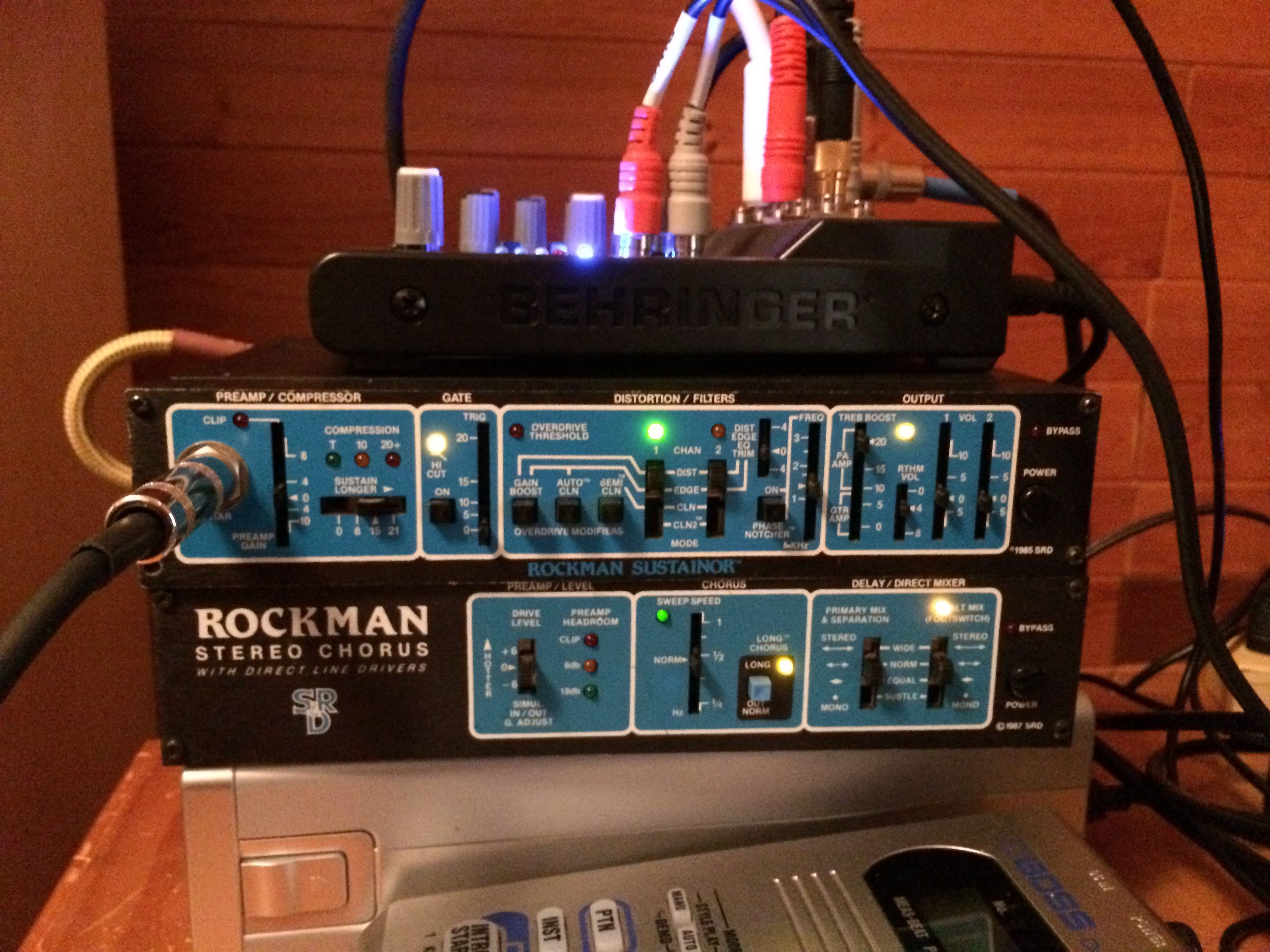

Here's another pedal arrangement I have. I use a pair of Boss FS-6's with my Rockman Sustainor and Stereo Chorus. This particular rig, doesn't have any stomp boxes in it. No audio flows through the pedals. The way it's currently configured, the left FS-6 controls the Sustainor channel and output levels. The right FS-6 controls the Stereo Chorus bypass and sweep (on/off). This arrangement hasn't been on stage yet. It may change a lot by then.



[mrZen]

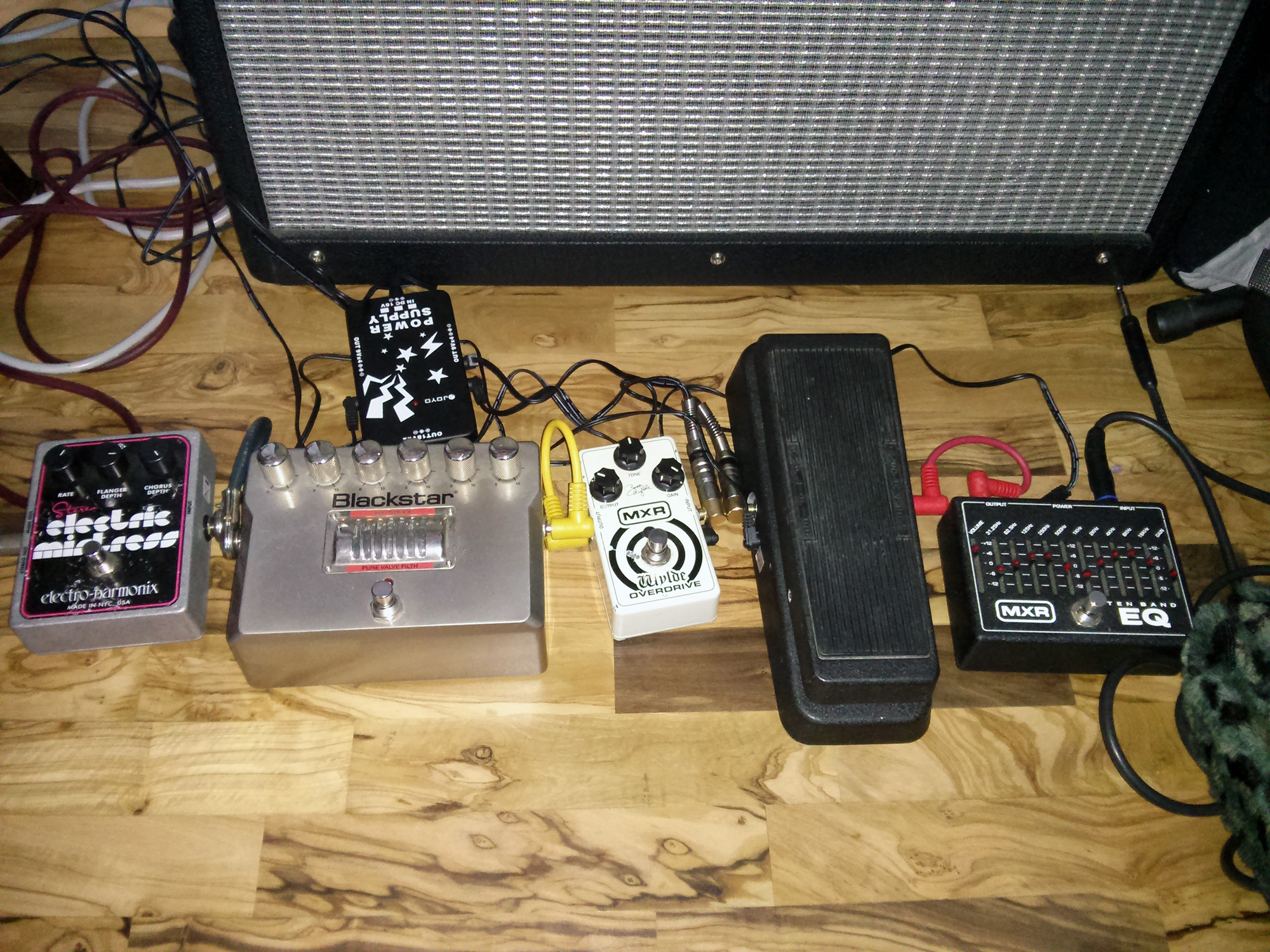

Here's my bunch of pedals.
I love the Blackstar and the simple but very effective Stereo Electric Mistress. ATM I use the 10band eq in clean mode for giving a bit of "singlecoilness" to my Jackson SL3, but a change of pups is near I think.
The wylde overdrive is nothing really exciting, but works.
The crybaby is a stock one, maybe one day I'll make it true bypass.



[Gutmann]



[Dingleberries]

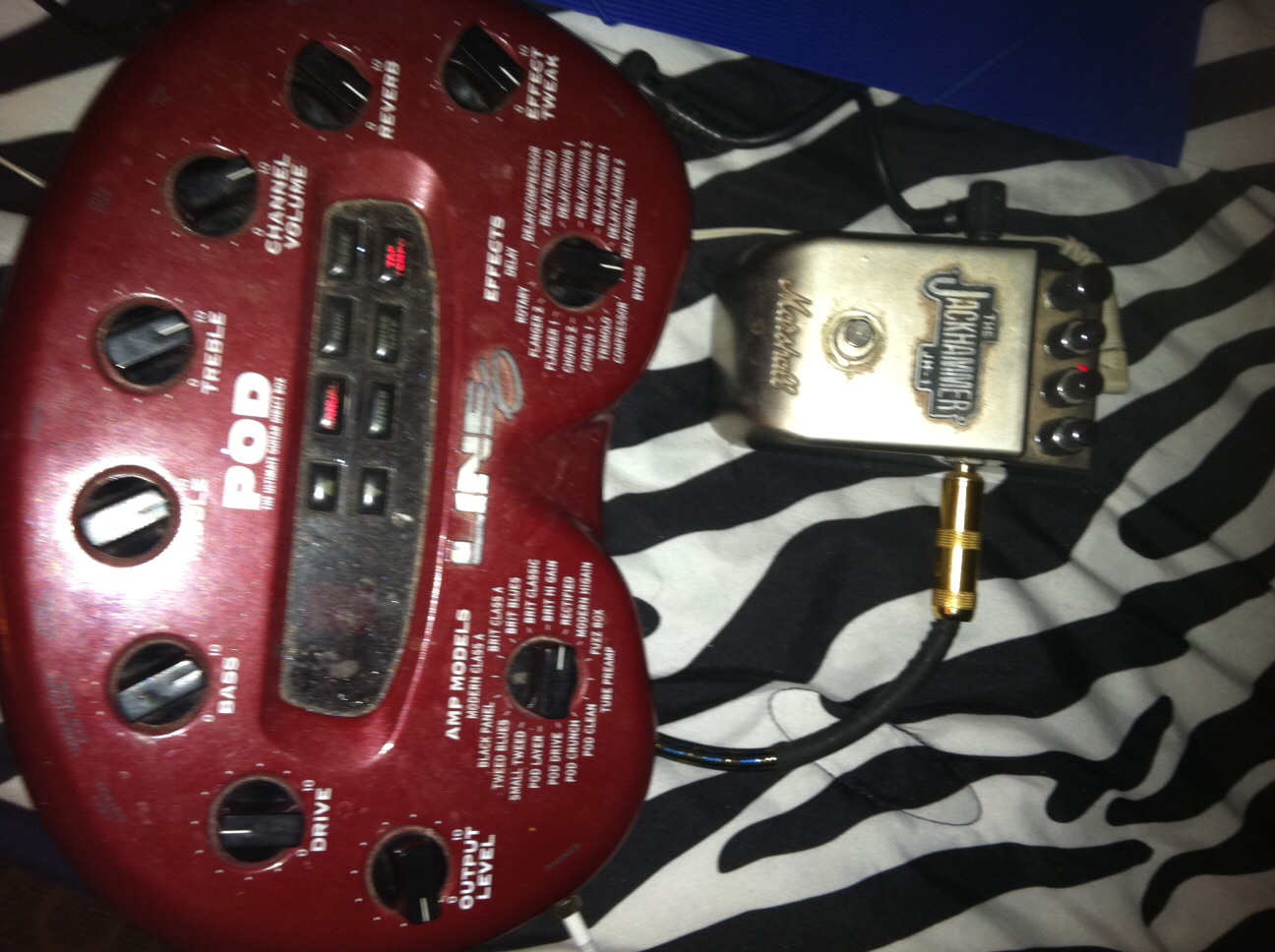

My practice rig:



[C1-ocaster]

Great thread, with some really nice setups!

I'm putting together a very modest board.
So I want to ask, I want to build the actual board myself.
I'm not a gigging musician, so this is just for home and the occasional trip to play with friends.

What material should I get to cover the board with so that velcro will hold?
Is it something I can pick up at a hardware store or carpet place?

I've only got 5 pedals and won't likely go more.
I like the solid in/out connectors, any that are rated better or best than others?
I got good info on a power supply and will go with the Voodoo iso5 or a T-rex.

Great boards guys!
It's giving me board envy.



[Laars]

Here is my main board:



My small board for rehearsals.



[sleewell2]



[Death by Uberschall]

My current layout.



[dfrattaroli]



[Metlupass2]

Before I went Axe FX now eventually Kemper.



[midnightlaundry]

Some people need to go to pedal rehab..



[El Mariachi]

Those little clips routing the wires on the underside of the board are pretty slick! What are those?



[El Mariachi]

I'm a bit of a minimalist.



[Chester Nimitz]



[glassjaw7]

Nice 2-year bump, haha! I finally bought a board on Reverb, just yesterday actually. 30x18 Trailertrash Flattrash with riser (which I'll probably raise up a bit and move closer to mid-board like the UK custom boards/GRcases style)

These will be on the new board but a few will be added shortly - may swap the 250 with a Timmy or RCSH and I should be up on the KOT list by late summer. Also have an MXR custom comp and r28 mod Phase 90 that may be on this one. If not, I'll have a mini board with MXR/Boss/EHX.
vibe, Looper, bypass switcher and volume/exp pedal will complete it, so long way to go.

Then when it's all said and done, I'll probably sell it all and get a Helix or FX-8.



[JTyson]

Here's a 2-tier aluminum board I just built for my bass player, it will control the rotation of the earth (he also plays guitar)
There was no way to fit it all on one, so I hand-fabricated some brackets and stacked 'em
We call it the "mothership"



[Death by Uberschall]

Here's a 2-tier aluminum board I just built for my bass player, it will control the rotation of the earth (he also plays guitar)
There was no way to fit it all on one, so I hand-fabricated some brackets and stacked 'em
We call it the "mothership"



[El Mariachi]

Here's a 2-tier aluminum board I just built for my bass player, it will control the rotation of the earth (he also plays guitar)
There was no way to fit it all on one, so I hand-fabricated some brackets and stacked 'em
We call it the "mothership"



[Purpleibby]

Here's a 2-tier aluminum board I just built for my bass player, it will control the rotation of the earth (he also plays guitar)
There was no way to fit it all on one, so I hand-fabricated some brackets and stacked 'em
We call it the "mothership"

GD!!!! LMAO!
