Hermansson Build: 5GS “Marsnall”

  • Thread starter Thread starter Nashville Riff Co
  • Start date Start date
Nashville Riff Co

Nashville Riff Co

Well-known member
In process of a Hermansson 5 GS build.

Donor amp is a 1982 “Marsnall” JMP.

Marshall + Arsenal = “Marsnall”?

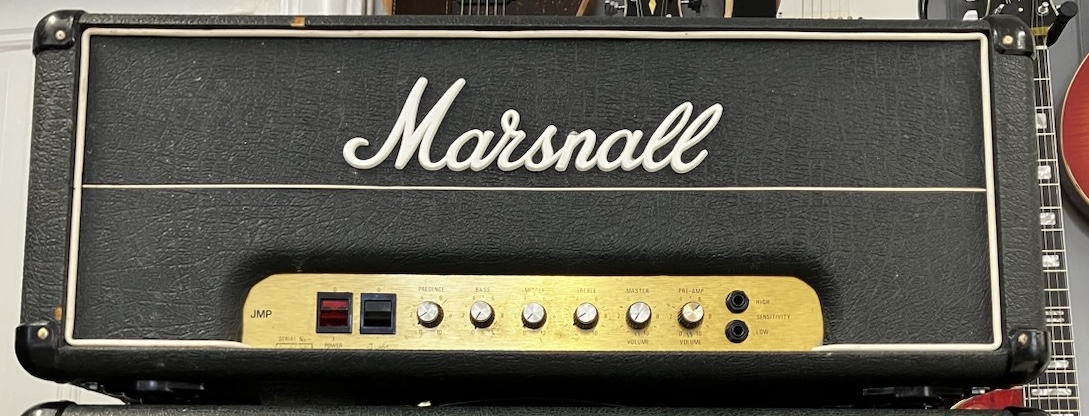

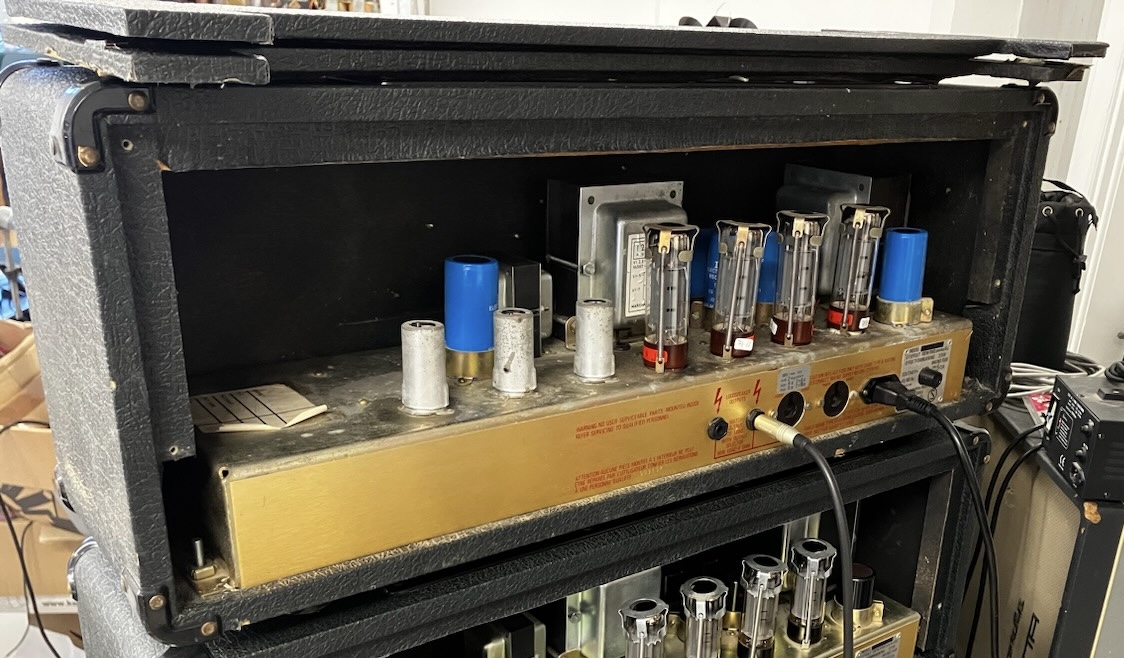

1. Donor Amp and the Svetlana Winged C’s it’s already got





2. Light inside replaced with a neon bulb, was unoperational previously






Last edited:
Amp went on the bench this past Monday, and should be done in a month. I was offered the slot the week prior to amp going on the bench fwiw.

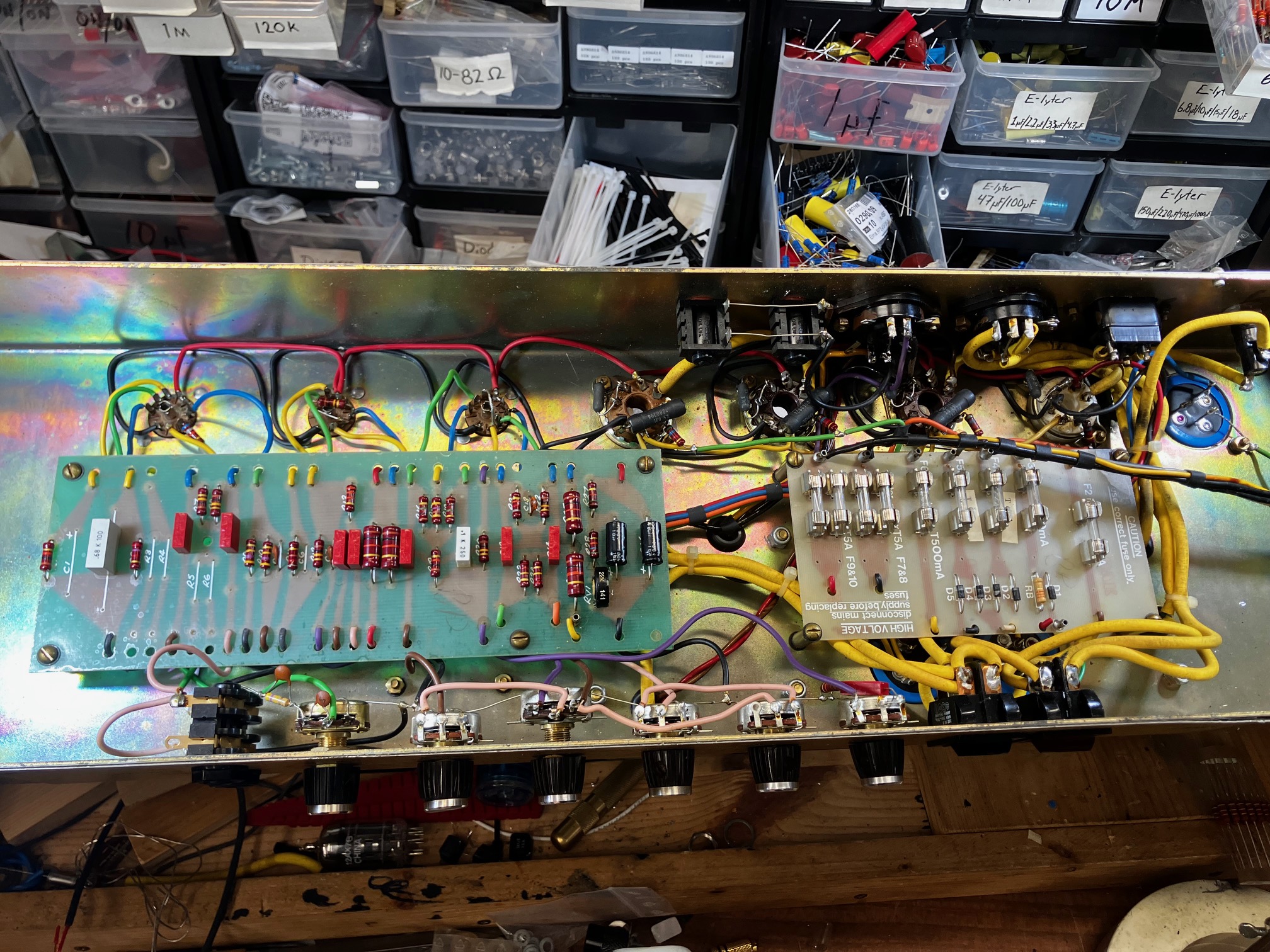

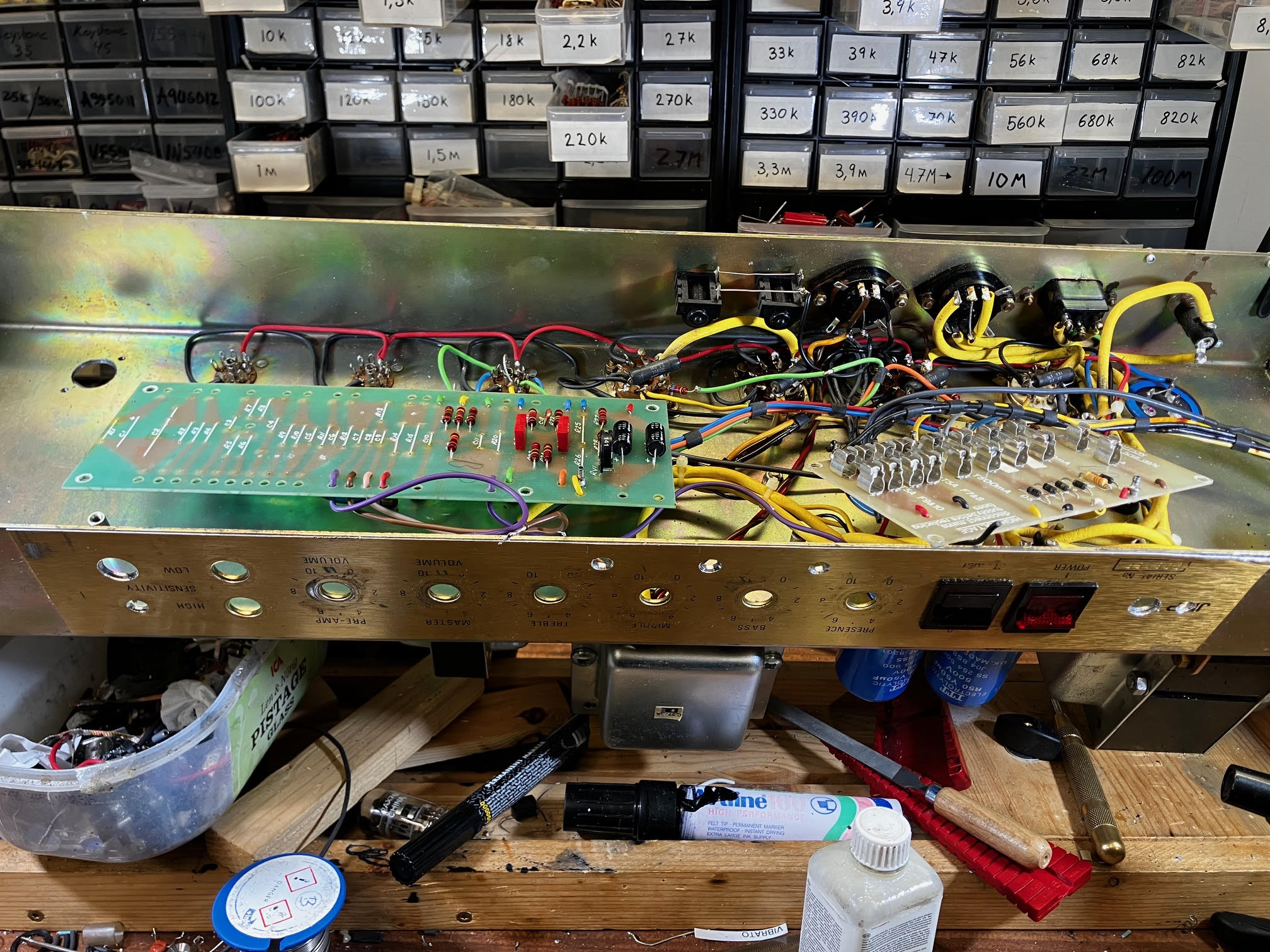

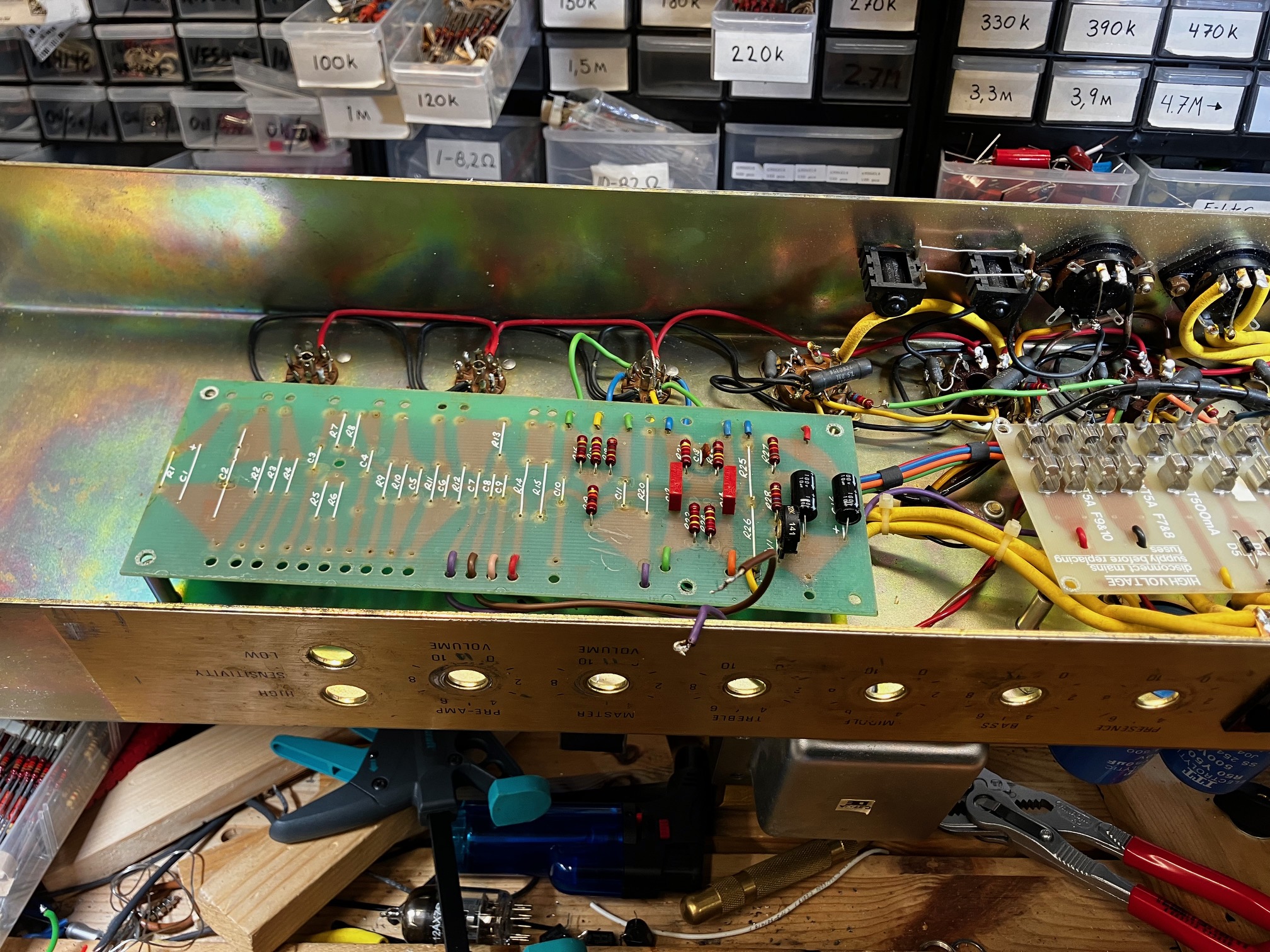

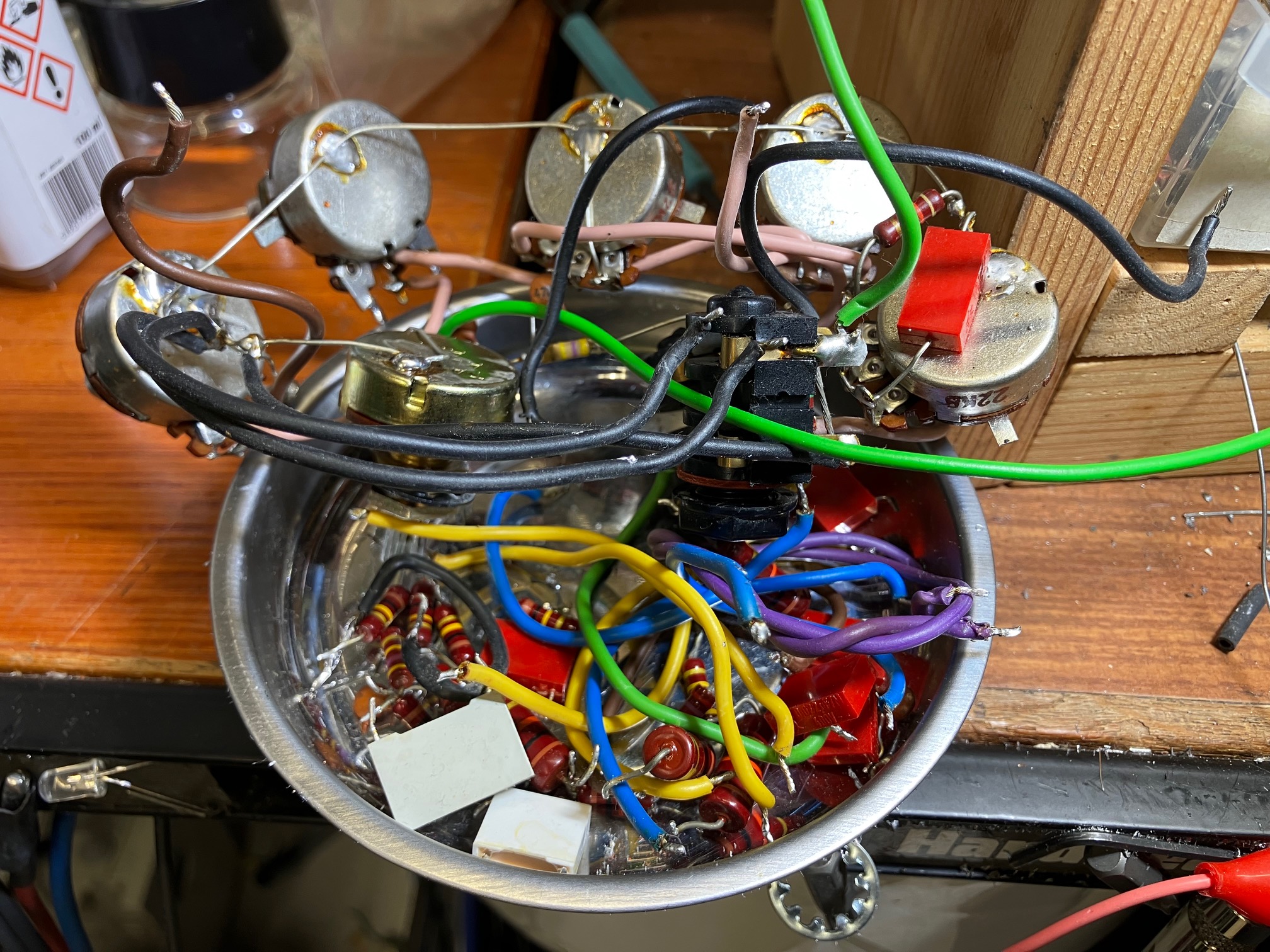

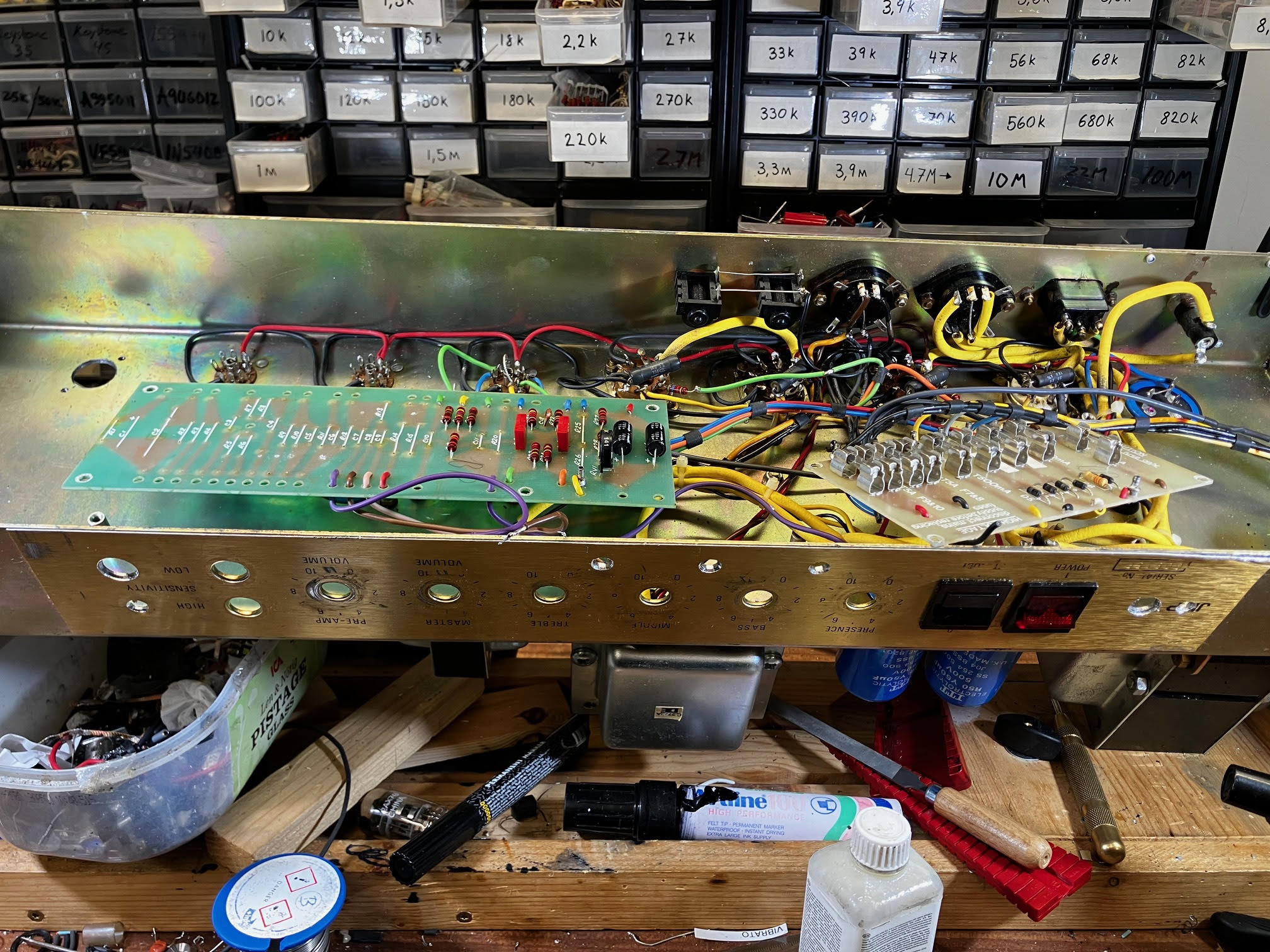

Old preamp cleaned out, all potentiometers and input jack to be replaced in this rebuild

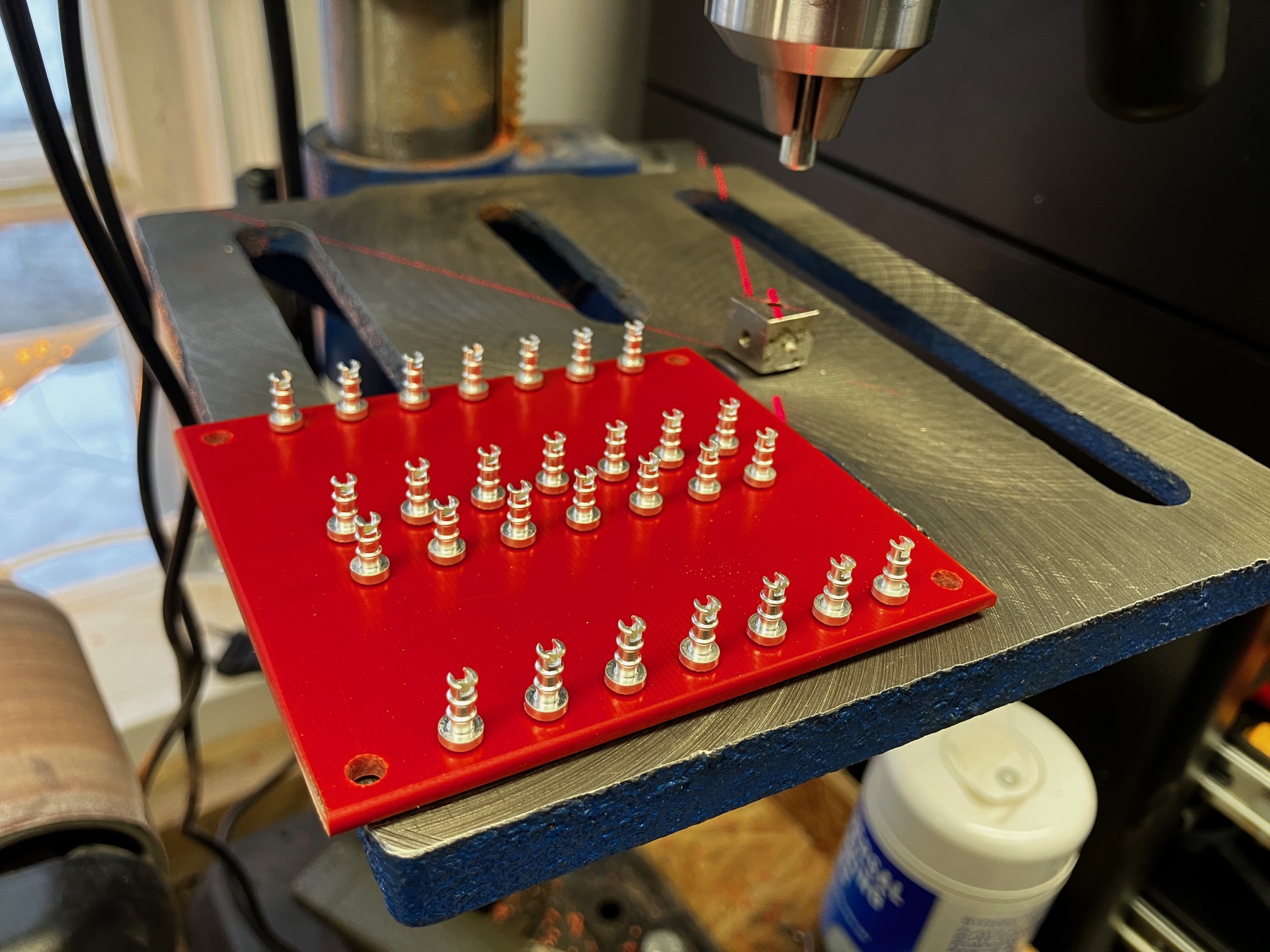

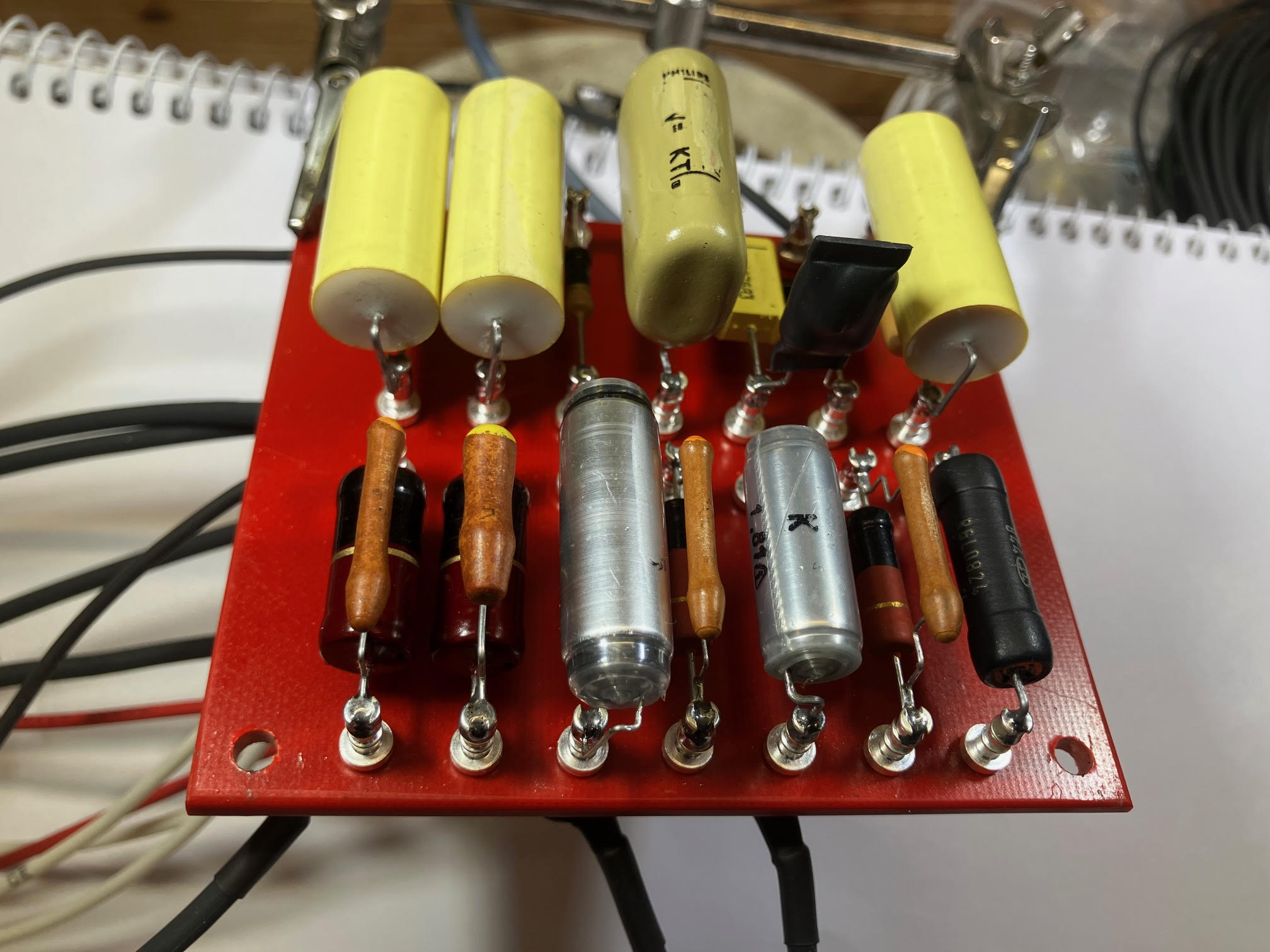

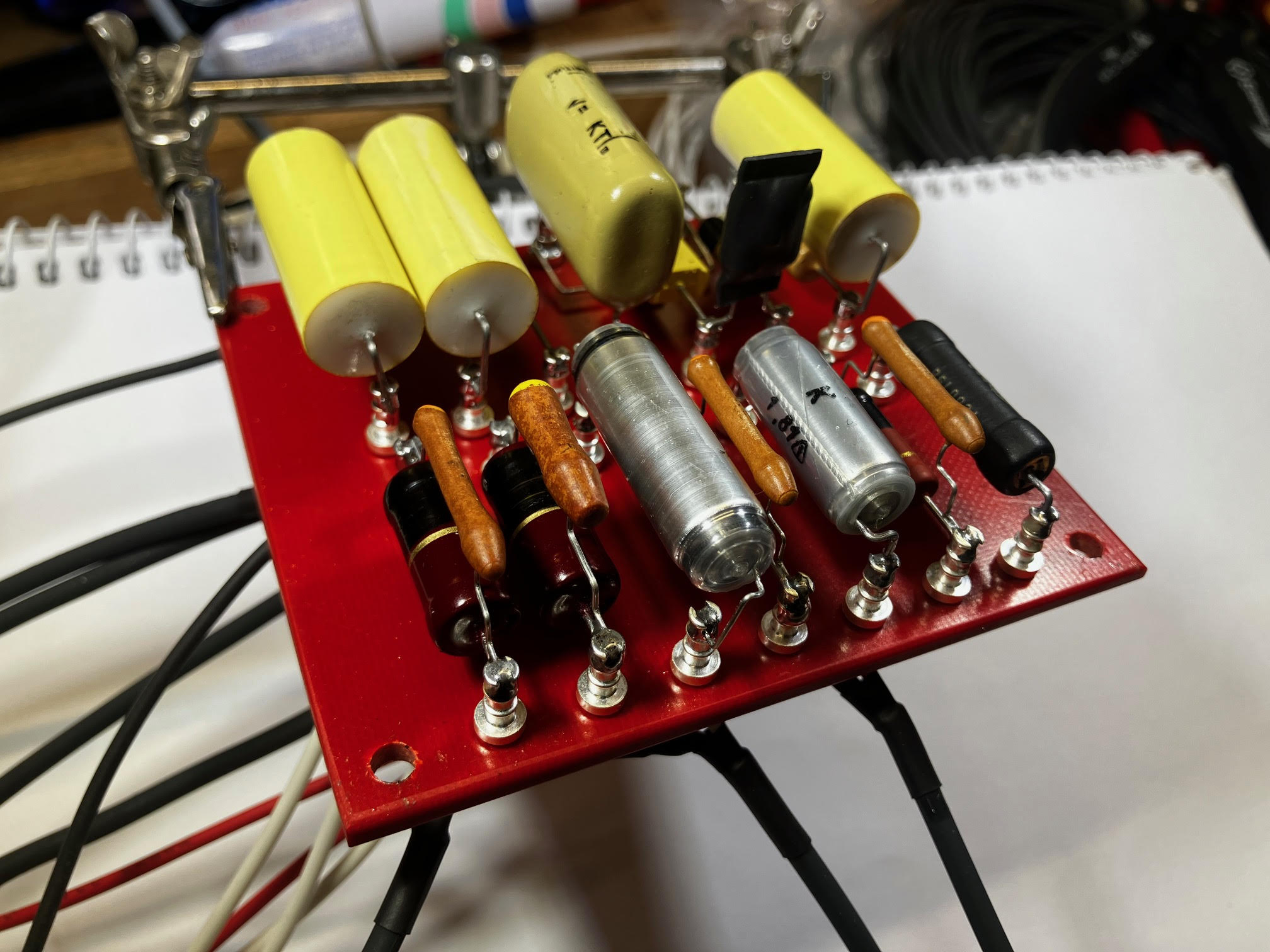

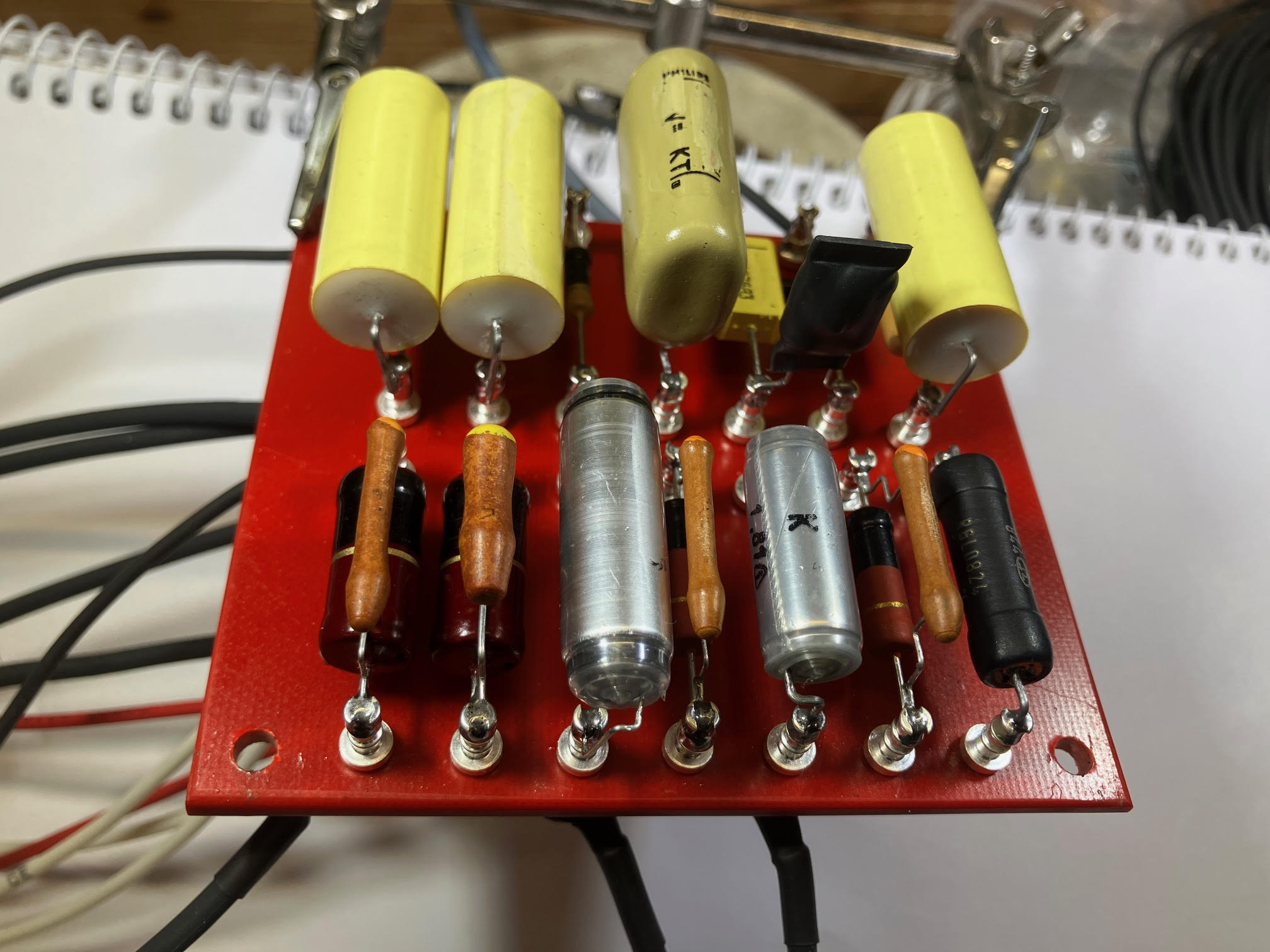

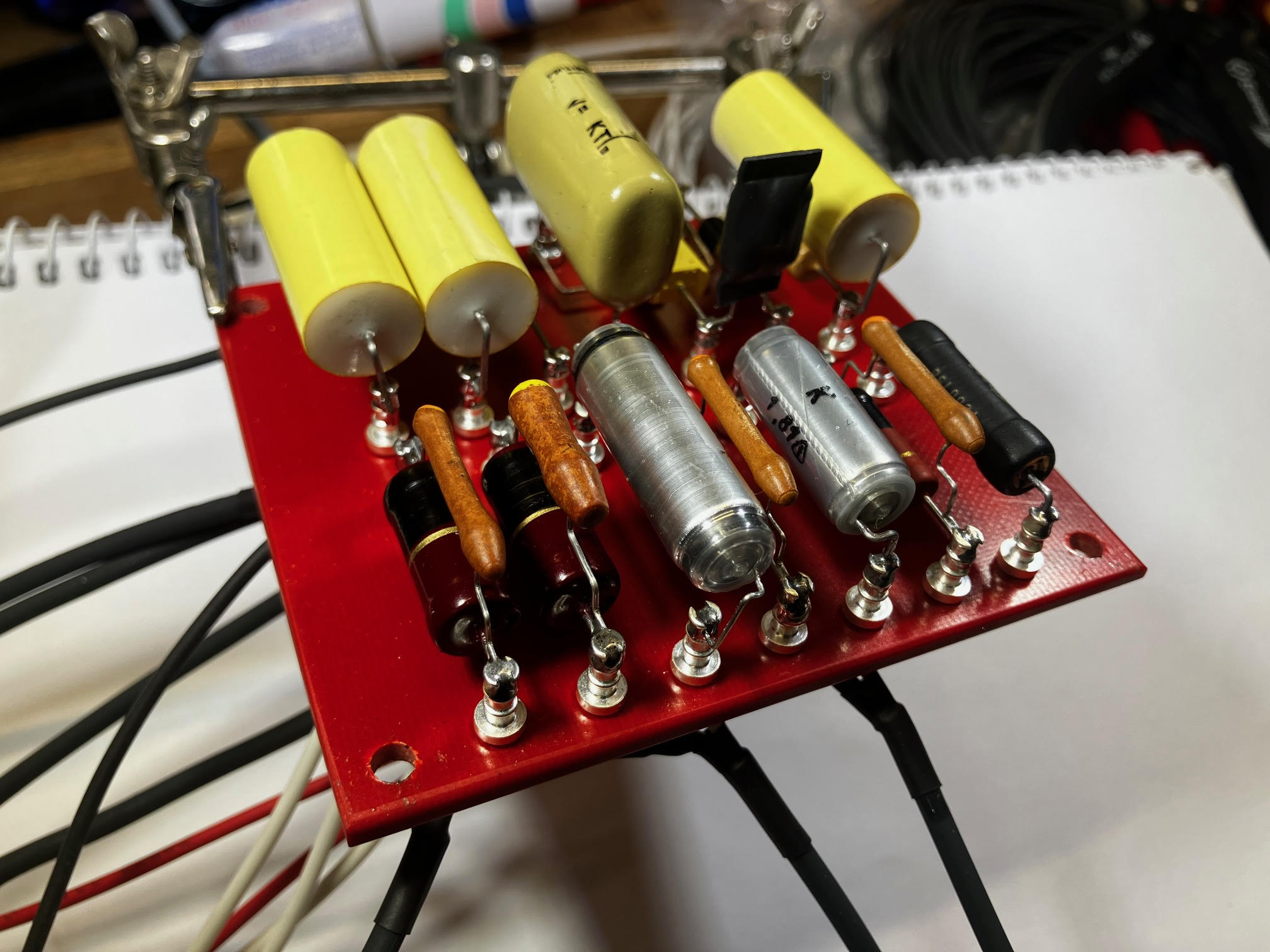

Turret Board underway


peterc52 said:
Happy days :)

Just for info, if you didnt know. youve got an scandinavian version without 16 ohm out
Click to expand...

The scandinavian part makes sense cause he already had it in his shop (i figured it would be easier than shipping one to him from here).

The lack of 16 ohm out, is that a european thing? i assumed all marshalls came stock with that option?

Nashville Riff Co said:
The scandinavian part makes sense cause he already had it in his shop (i figured it would be easier than shipping one to him from here).

The lack of 16 ohm out, is that a european thing? i assumed all marshalls came stock with that option?
Click to expand...
In start 80's marshall did a scandivian version with the extra fuses and lack of 16 ohm. Both versions are in denmark/sweden

peterc52 said:
In start 80's marshall did a scandivian version with the extra fuses and lack of 16 ohm. Both versions are in denmark/sweden
Click to expand...

very cool, any nuances tone wise or no difference? i dont mind plugging in to 8ohm output i guess

Nashville Riff Co said:
very cool, any nuances tone wise or no difference? i dont mind plugging in to 8ohm output i guess
Click to expand...
If you go 8 > 8 or 4 > 4 Ohms, you'll have a bit more volume and punch. If you plug the 8 Ohms into a 16 Ohms cab, you'll have a hair less volume and punch. My 5GS is a Scandinavian version, and even when plugged into a 16 Ohms cab, it's still punchier than most other amps I've heard.
Remember the early Rectifiers that had two "8-16" and two "4" Ohms outputs? This "8-16" are 8 Ohms output, but it's fine to plug into a 16 Ohms cab. And plenty of people have done that for years, including myself, without any complaints.
So, try it and figure out which one you like best, 8 or 16 Ohms cab with the amp. It won't hurt the amp.

SBlue said:
If you go 8 > 8 or 4 > 4 Ohms, you'll have a bit more volume and punch. If you plug the 8 Ohms into a 16 Ohms cab, you'll have a hair less volume and punch. My 5GS is a Scandinavian version, and even when plugged into a 16 Ohms cab, it's still punchier than most other amps I've heard.
Remember the early Rectifiers that had two "8-16" and two "4" Ohms outputs? This "8-16" are 8 Ohms output, but it's fine to plug into a 16 Ohms cab. And plenty of people have done that for years, including myself, without any complaints.
So, try it and figure out which one you like best, 8 or 16 Ohms cab with the amp. It won't hurt the amp.
Click to expand...

Perfect, thanks a ton dude!!!

I have a question, because I do not know. When you have an amp modded such as this, is there the option of having your swapped parts sent back to you?

japetus said:
I have a question, because I do not know. When you have an amp modded such as this, is there the option of having your swapped parts sent back to you?
Click to expand...
I’ve never had it offered (though Mesa always sent me back anything they changed). I’m sure they would send you back anything salvageable. Henric is pretty dang responsive when working on the mod

japetus said:
I have a question, because I do not know. When you have an amp modded such as this, is there the option of having your swapped parts sent back to you?
Click to expand...

In this situation the amp was his already and I have no use for the parts.

In the past the only mods I’ve had done are by Dave Friedman and he always sends any and all parts that come out back inside the shipping box.
